- ASROCK
- Ново
Цена
€71 47 / 139 78 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.asrock.com/mb/AMD/A620AM-HVS/index.asp
Model

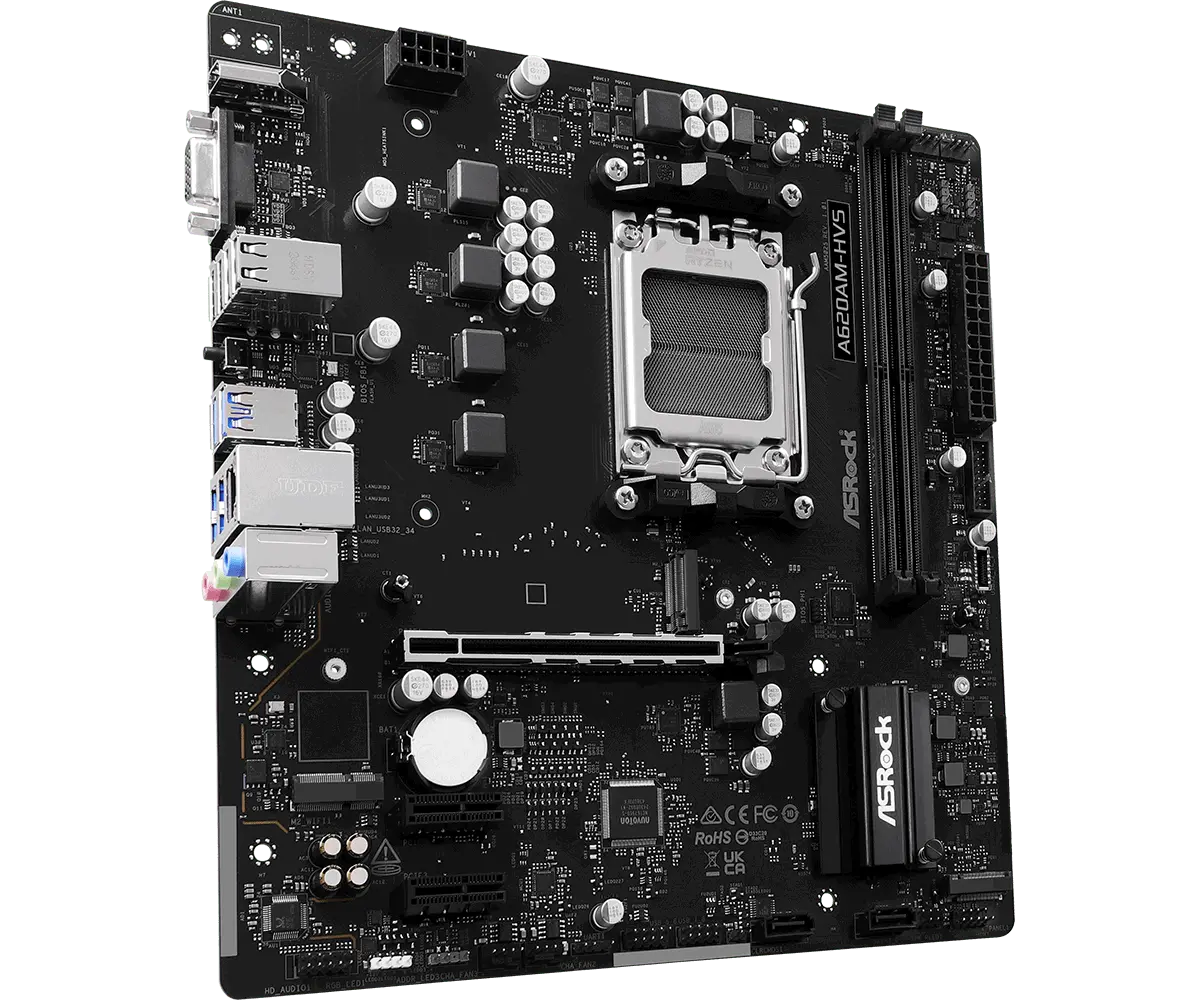

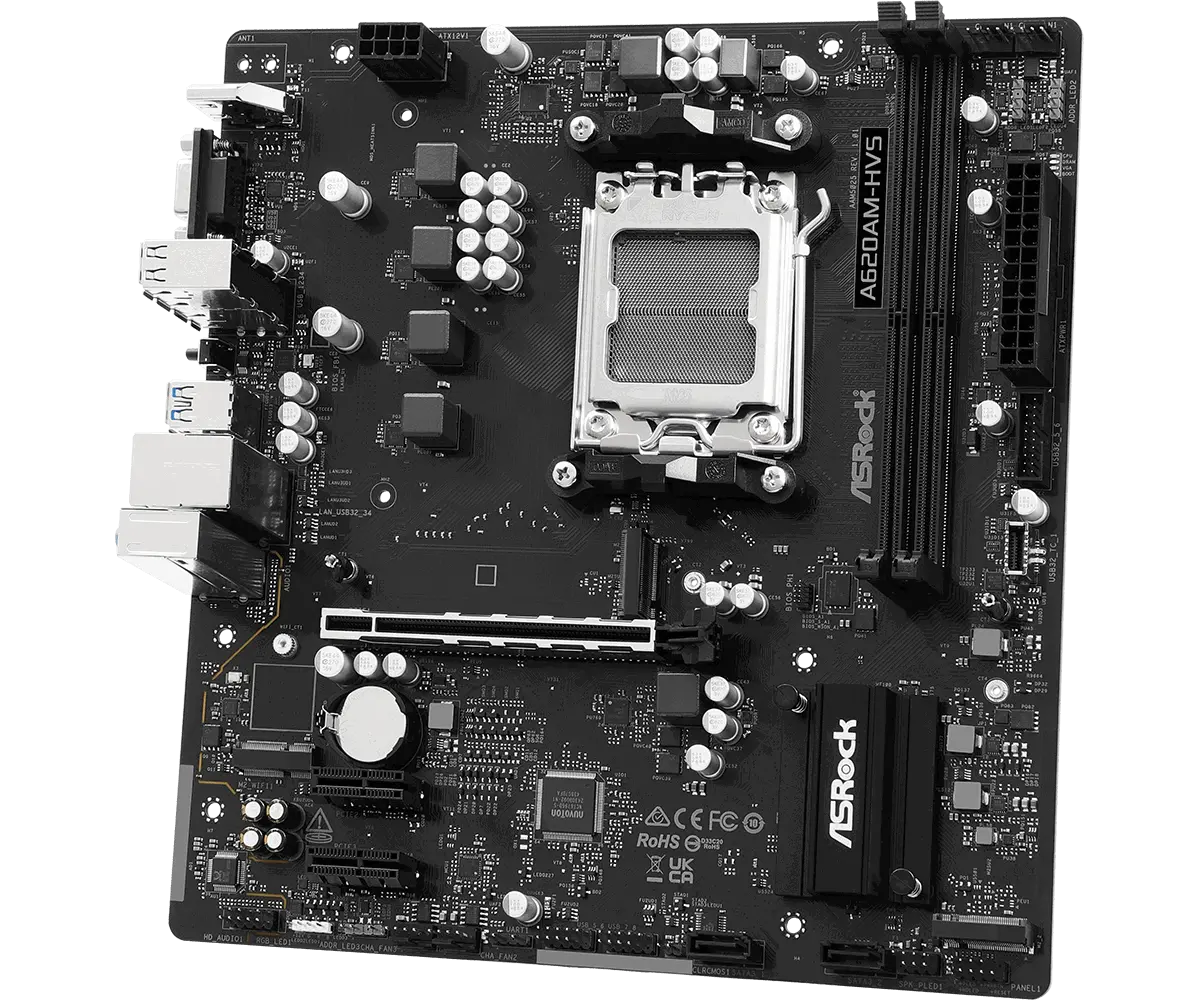

A620M-HVS
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
AMD A620A
Expansion slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 2 x SATA3 6.0 Gb/s Connectors
*M2_1 is the first priority for M.2 installation.
Supports NVMe SSD as boot disks
RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
Memory type
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

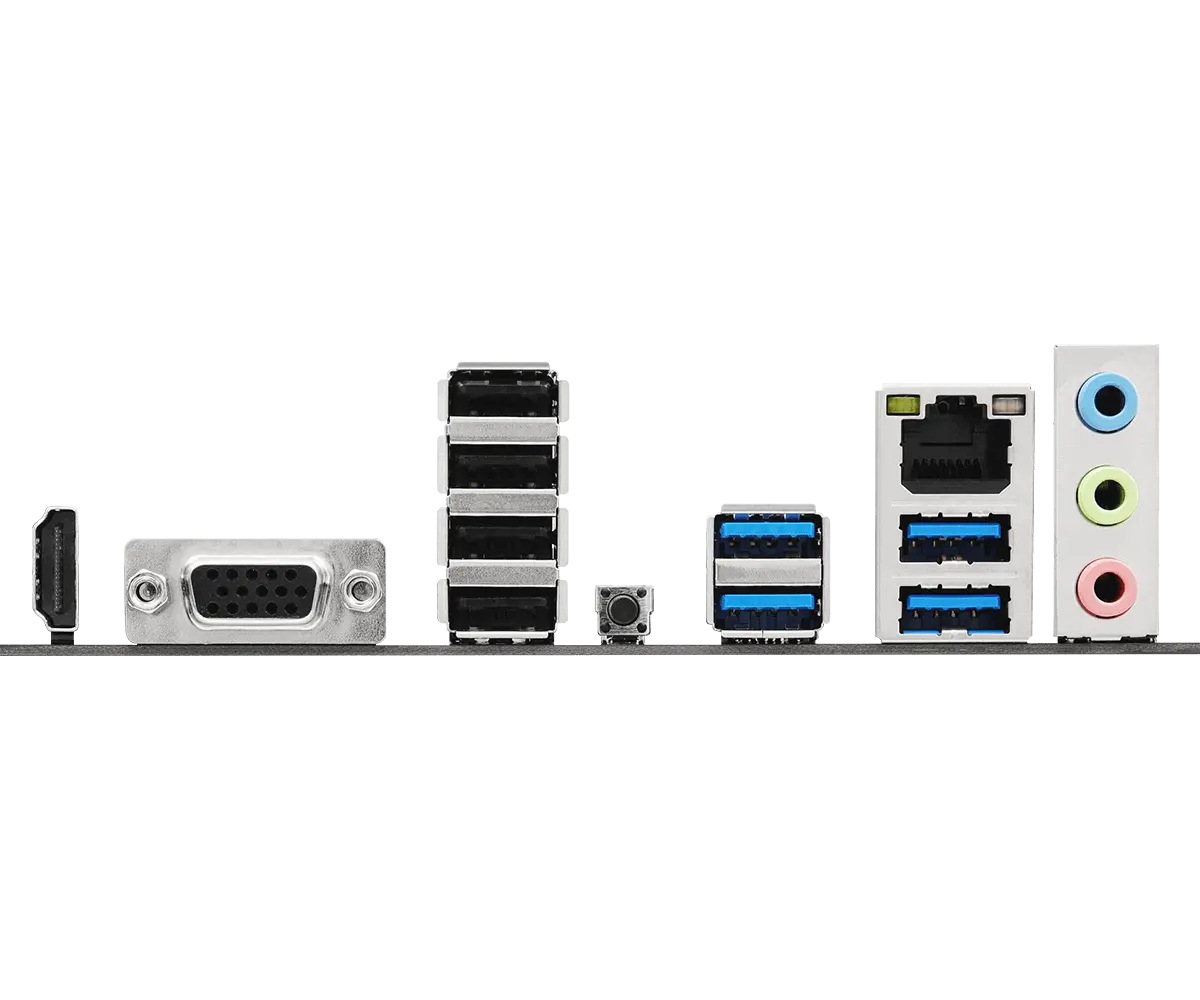

Rear panel I/O
2 x Antenna Mounting Points
1 x D-Sub Port
1 x HDMI Port
4 x USB 3.2 Gen1 Type-A Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
USB
CPU:
- 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34))
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Connectors
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
CHA_FAN1~3/WP support the fan power up to 3A (36W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan
Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
Micro ATX Form Factor: 24.4 cm x 22.9 cm
2oz Copper PCB
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.asrock.com/mb/AMD/A620AM-HVS/index.asp |
| Chipset | AMD A620A |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Memory type | 2 x DDR5 DIMM Slots |
| Memory type | Max. capacity of system memory: 128GB |
| Memory type | Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) |
| Form Factor | 2oz Copper PCB |
| Form Factor | Micro ATX Form Factor: 24.4 cm x 22.9 cm |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Rear panel I/O | 1 x D-Sub port |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 2 x Antenna Mounting Points |
| Rear panel I/O | 4 x USB 3.2 Gen1 Type-A Ports |
| Rear panel I/O | 4 x USB 2.0 Ports |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | 1 x BIOS Flashback Button |
| Rear panel I/O | HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| LAN | Realtek RTL8111H |
| Model | A620M-HVS |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| Expansion Slots | - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* |
| Expansion Slots | *PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. |
| Expansion Slots | Supports NVMe SSD as boot disks |
| Graphics | - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Graphics | - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Storage | Supports NVMe SSD as boot disks |
| Storage | - 2 x SATA3 6.0 Gb/s Connectors |
| Storage | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* |
| Storage | *M2_1 is the first priority for M.2 installation. |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Connectors | 1 x RGB LED Header* |
| Connectors | 3 x Addressable LED Headers** |
| Connectors | 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** |
| Connectors | 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
| Connectors | *Supports in total up to 12V/3A, 36W LED Strip |
| Connectors | **Support in total up to 5V/3A, 15W LED Strip |
| Connectors | ***CPU_FAN1 supports the fan power up to 1A (12W). |
| Connectors | CHA_FAN1~3/WP support the fan power up to 3A (36W). |
| Connectors | CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB 3.2 Gen1 Type-C (Front) |
| USB | - 8 x USB 2.0 (4 Rear, 4 Front) |
| USB | - 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) |
| USB | - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
