- MSI
- Ново
Цена
€297 23 / 581 33 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.msi.com/Motherboard/MAG-B850-TOMAHAWK-MAX-WIFI
Socket
Socket AM5
Graphics
1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD B850
Expansion slots
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot
Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.
** Please refer to the manual for M.2 SSD heatsink restrictions
RAID
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

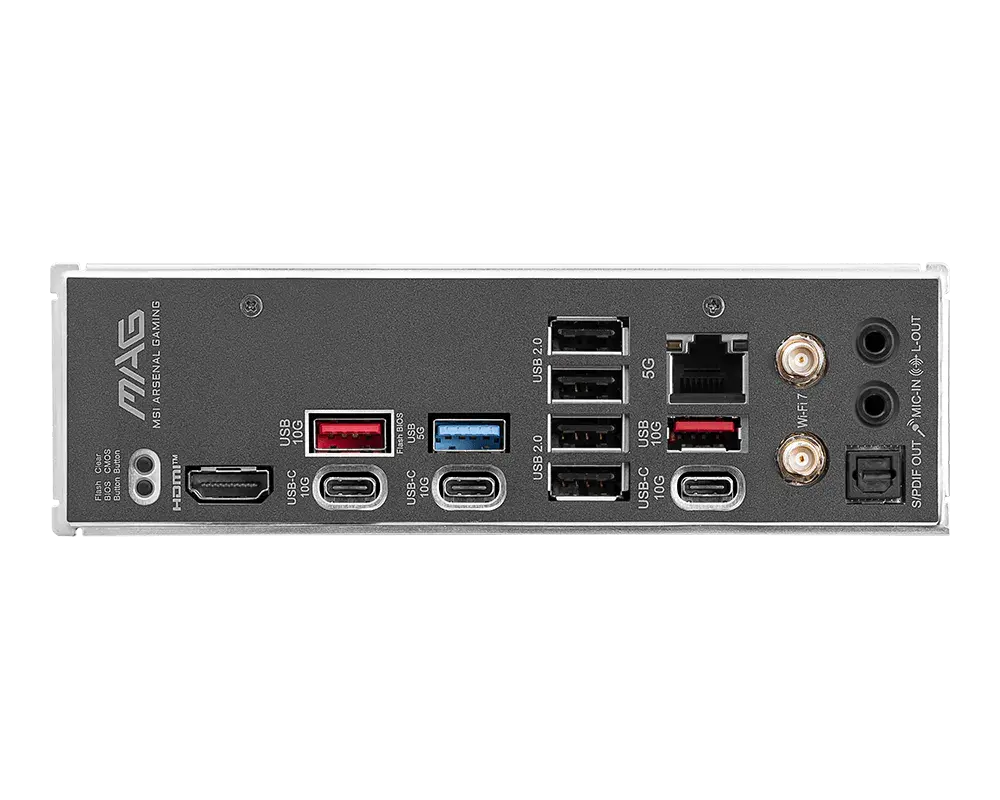

Rear panel I/O
Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
3x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Audio
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Lan
Realtek® 8126VB 5G LAN
Wireless
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Form factor
ATX, 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Socket | Socket AM5 |
| Vendor_url | https://www.msi.com/Motherboard/MAG-B850-TOMAHAWK-MAX-WIFI |
| Chipset | AMD B850 |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 1DPC 2R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking frequency: |
| Memory type | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | • 1DPC 1R Max speed up to 8400+ MT/s |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only* |
| Memory type | * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
| Memory type | • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Memory type | • The DIMM slots on this motherboard have double-sided latches. |
| Memory type | • 2DPC 2R Max speed up to 6400+ MT/s |
| Form Factor | ATX, 243.84mmx304.8mm |
| Audio | Supports S/PDIF output |
| Audio | Realtek® ALC4080 Codec |
| Audio | 7.1-Channel USB High Performance Audio |
| Audio | Supports up to 32-bit/384kHz playback on front panel |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | Flash BIOS button |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | Clear CMOS Button |
| Rear panel I/O | 5G LAN |
| Rear panel I/O | USB 10Gbps Type-A |
| Rear panel I/O | USB 10Gbps Type-C |
| Rear panel I/O | USB 5Gbps Type-A |
| LAN | Realtek® 8126VB 5G LAN |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | 3x PCI-E x16 slot |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E1 slot |
| Expansion Slots | • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Expansion Slots | • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Expansion Slots | *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Wi-Fi 7 Solution |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Wireless | * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* |
| Graphics | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage | 4x SATA 6G |
| Storage | 4x M.2 |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices |
| Storage | M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | M2_2 slot |
| Storage | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices |
| Storage | M2_1 slot |
| Storage | • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Storage | ** Please refer to the manual for M.2 SSD heatsink restrictions |
| Storage | *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot. |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Bluetooth | ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 6x System Fan |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x Power Connector(PCIE_PWR 8pin) |
| Connectors | 4x USB 5Gbps Type A ports |
| Connectors | 1x EZ Conn-header (JAF_2) |
| Connectors | 1x USB 20Gbps Type C ports |
| USB | 4x USB 2.0 (Front) |
| USB | 4x USB 2.0 (Rear) |
| USB | 1x USB 5Gbps Type A (Rear) |
| USB | 4x USB 5Gbps Type A (Front) |
| USB | 2x USB 10Gbps Type A (Rear) |
| USB | 3x USB 10Gbps Type C (Rear) |
| USB | 1x USB 20Gbps Type C (Front) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
| Атрибут | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B850 |
| Тип памет | DDR5 |
| Слотове за памет (count) | 4 |
| Максимална памет (GB) | 256 |
| M.2 слотове (count) | 3 |
| SATA портове (count) | 4 |
| PCIe x16 слотове (count) | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (count) | 2 |
| RGB подсветка | Да |
| Тегло | 0.00кг |
Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.

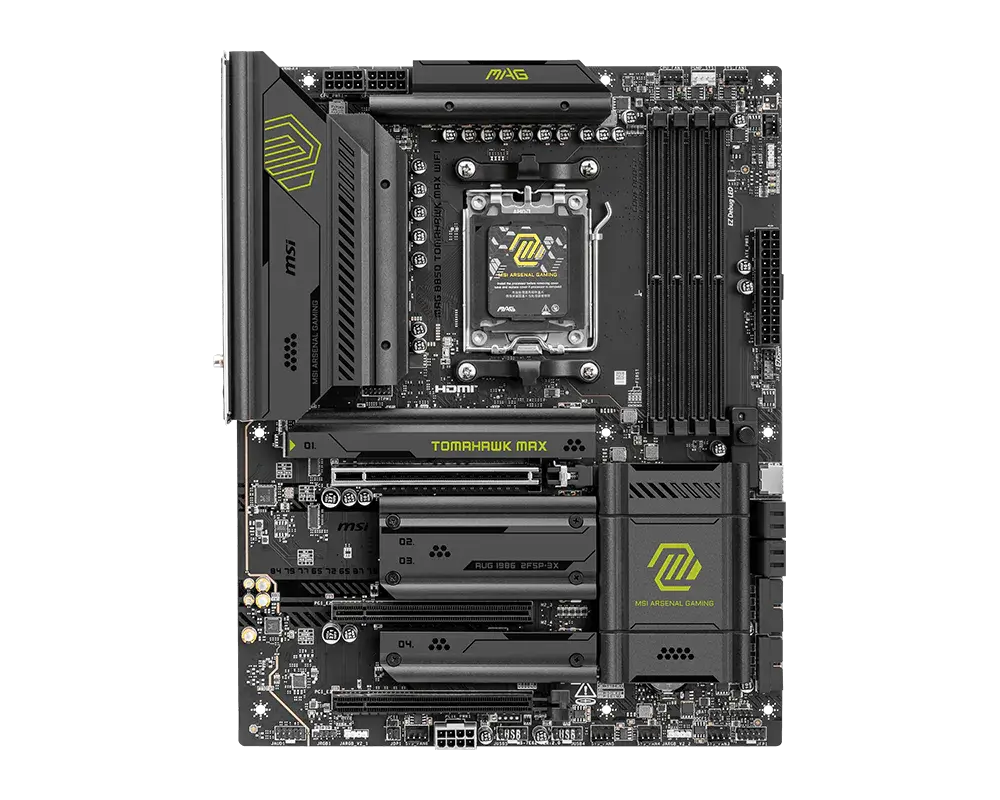

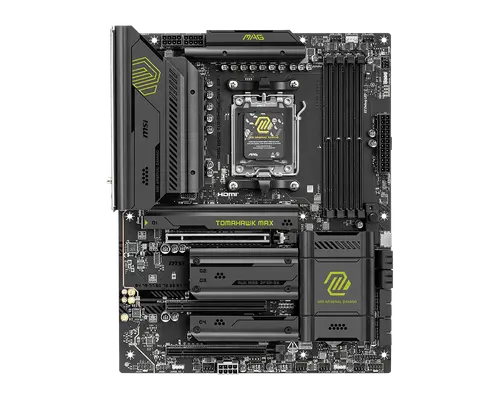

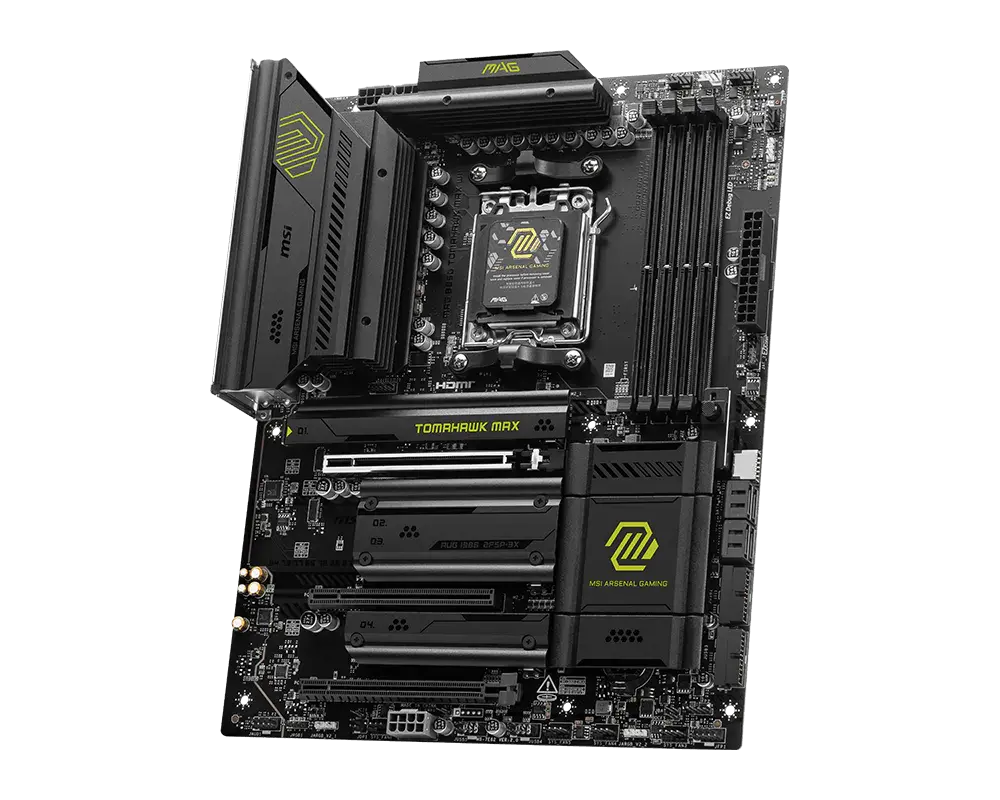

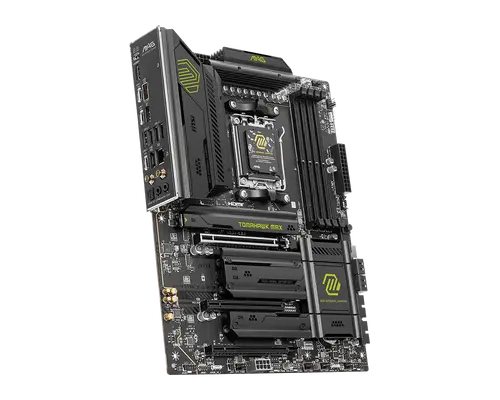

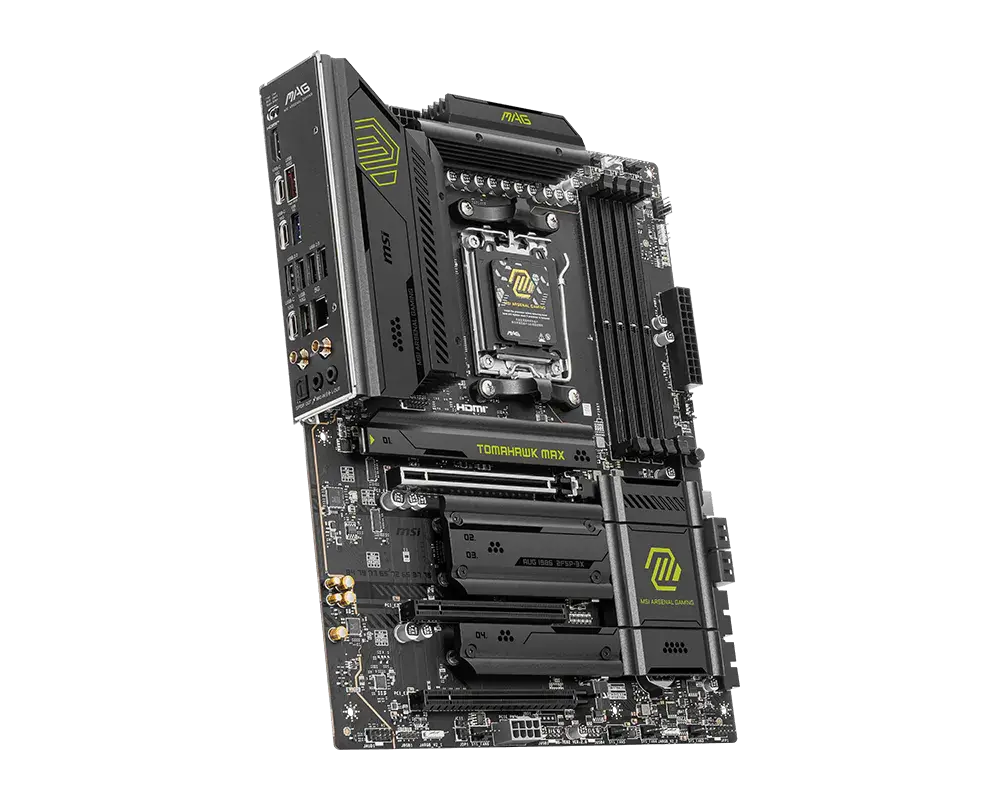

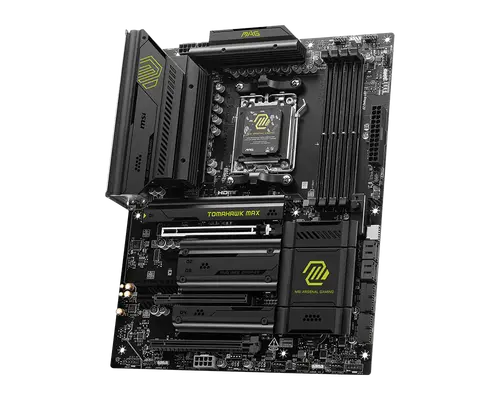

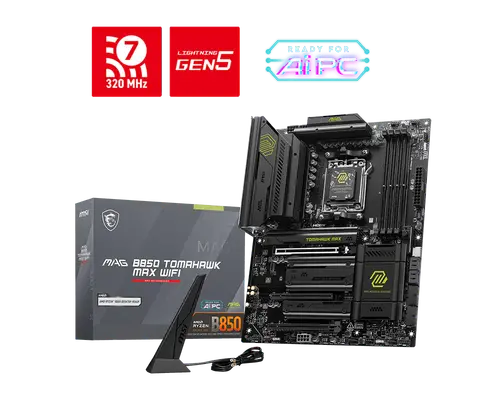

MSI MAG B850 TOMAHAWK MAX WIFI II — мощ за AM5 и скорост с Wi-Fi 7
Създайте следващата си AMD Ryzen конфигурация на дънна платка, проектирана за PCIe 5.0 устройства, DDR5 памет и безжична връзка от ново поколение. MAG B850 TOMAHAWK MAX WIFI II съчетава стабилно захранване 14+2+1 Duet Rail с Wi-Fi 7 и 2.5G LAN за ниска латентност и бърз трансфер на данни.
Ключови Предимства
- Готовност за AMD Ryzen 9000/8000/7000 — AM5 сокет с DDR5 и PCIe 5.0 за дългосрочна платформа.
- Wi-Fi 7 + 2.5G LAN — свръхбърза безжична и кабелна връзка за състезателен онлайн гейминг.
- PCIe 5.0 M.2 — светкавично бърз NVMe сторидж с охлаждащ радиатор MSI Frozr.
- Увеличен VRM радиатор — стабилно захранване и постоянни boost честоти под натоварване.
- EZ DIY дизайн — EZ M.2 Clip, EZ PCIe Release и предварително монтиран I/O панел улесняват сглобяването.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Чипсет | AMD B850 |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 3 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |

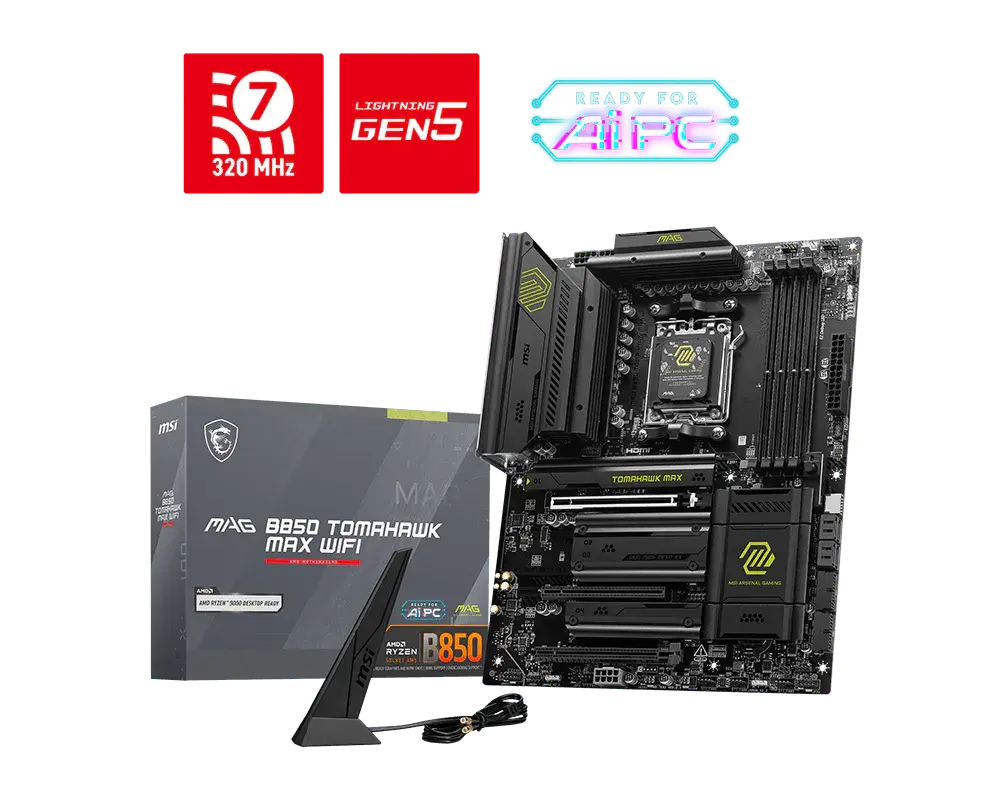

Какво има в кутията
- Дънна платка MSI MAG B850 TOMAHAWK MAX WIFI II
- Wi-Fi антена
- SATA кабели
- Ръководство за бърза инсталация
- Диск или USB с драйвери и утилити
