- MSI
- Ново
Цена
€598 92 / 1171 39 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
Безплатна Доставка
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.msi.com/Motherboard/MPG-X870E-CARBON-MAX-WIFI
Socket
Socket AM5
Graphics
1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD X870E
Expansion slots
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4
PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4
Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2*/** slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors
M.2_3 slot
• Supports up to PCIe 4.0 x4
M.2_4 slot
• Supports up to PCIe 4.0 x4
*The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series.
** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
RAID
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
** RAID 10 configuration is only supported by Ryzen™ 9000/7000 series processors.
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

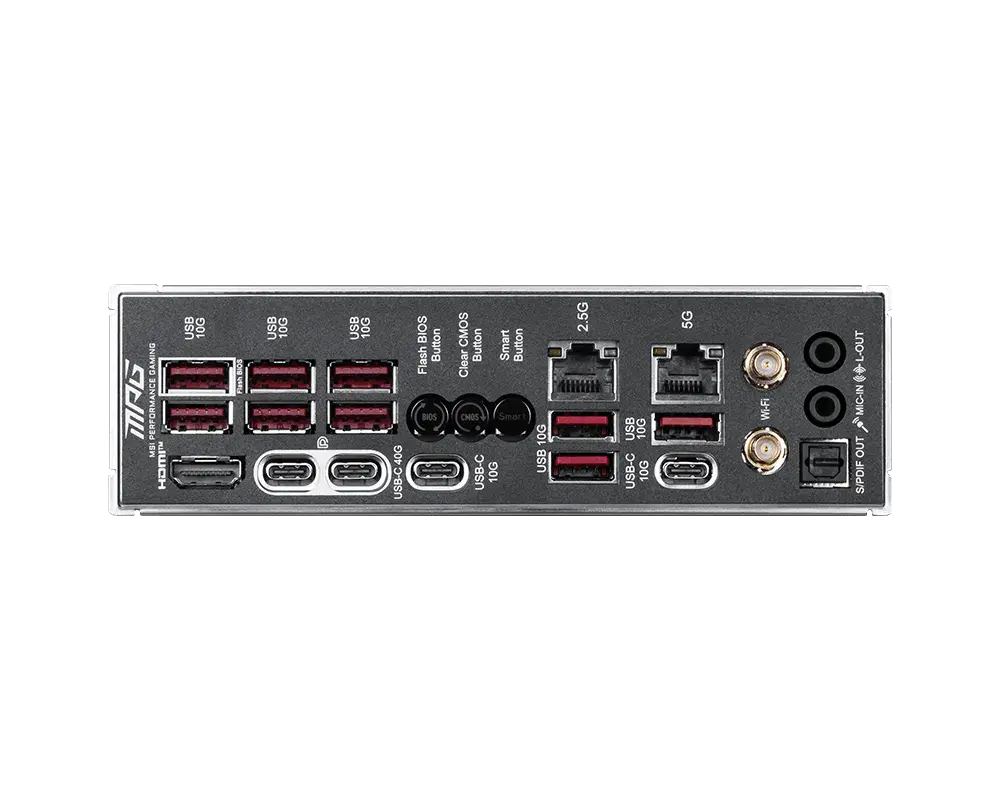

Rear panel I/O
USB 10Gbps Type-A
Flash BIOS Button
Clear CMOS Button
Smart Button
2.5G LAN
5G LAN
Audio Connectors
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
USB 10Gbps Type-C
Wi-Fi / Bluetooth
Optical S/PDIF Out
USB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
9x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Audio
Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Lan
1x Realtek® 8126 5G LAN
1x Realtek® 8125 2.5G LAN
Wireless
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2
Form factor
ATX, 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Socket | Socket AM5 |
| Vendor_url | https://www.msi.com/Motherboard/MPG-X870E-CARBON-MAX-WIFI |
| Chipset | AMD X870E |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 1DPC 2R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | • 1DPC 1R Max speed up to 8400+ MT/s |
| Memory type | Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only* |
| Memory type | * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
| Memory type | • The DIMM slots on this motherboard only have single-sided latches. |
| Memory type | • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Memory type | • 2DPC 2R Max speed up to 6400+ MT/s |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking: |
| Form Factor | ATX, 243.84mmx304.8mm |
| Audio | Supports S/PDIF output |
| Audio | Realtek® ALC4080 Codec |
| Audio | Supports up to 32-Bit/384 kHz playback on front panel |
| Audio | 7.1-Channel USB High-Performance Audio |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | Flash BIOS button |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | Optical S/PDIF OUT |
| Rear panel I/O | Clear CMOS Button |
| Rear panel I/O | Smart Button |
| Rear panel I/O | 5G LAN |
| Rear panel I/O | USB 10Gbps Type-A |
| Rear panel I/O | USB 10Gbps Type-C |
| Rear panel I/O | USB 40Gbps Type-C |
| LAN | 1x Realtek® 8126 5G LAN |
| LAN | 1x Realtek® 8125 2.5G LAN |
| Expansion Slots | 3x PCI-E x16 slot |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E1 & PCI_E2 slots |
| Expansion Slots | • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) |
| Expansion Slots | PCI_E3 slot |
| Expansion Slots | • Supports up to PCIe 4.0 x4 |
| Expansion Slots | PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 |
| Expansion Slots | • Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen™ 9000/ 7000 Series processors) |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Wi-Fi 7 Solution |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Wireless | * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. |
| Wireless | ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Graphics | 1x HDMI™ |
| Graphics | 2x Type-C DisplayPort |
| Graphics | Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* |
| Graphics | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Graphics | USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* |
| Storage | 4x SATA 6G |
| Storage | 4x M.2 |
| Storage | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | M.2_1 slot |
| Storage | • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors |
| Storage | M.2_2*/** slot |
| Storage | M.2_3 slot |
| Storage | M.2_4 slot |
| Storage | *The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series. |
| Storage | ** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Bluetooth | ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2 |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 5x System Fan |
| Connectors | 1x Thermal Sensor connectors(T_SEN) |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x Power Connector(PCIE_PWR 8pin) |
| Connectors | 4x USB 5Gbps Type A ports |
| Connectors | 1x EZ Conn-header (JAF_2) |
| Connectors | 1x USB 20Gbps Type C ports |
| USB | 4x USB 2.0 (Front) |
| USB | 4x USB 5Gbps Type A (Front) |
| USB | 2x USB 10Gbps Type C (Rear) |
| USB | 1x USB 20Gbps Type C (Front) |
| USB | 2x USB 40Gbps Type C (Rear) |
| USB | 9x USB 10Gbps Type A (Rear) |
| RAID | *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. |
| RAID | •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| RAID | •Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices |
| RAID | ** RAID 10 configuration is only supported by Ryzen™ 9000/7000 series processors. |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
| Атрибут | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Форм фактор | ATX |
| Чипсет | AMD X870E |
| Тип памет | DDR5 |
| Слотове за памет (count) | 4 |
| Максимална памет (GB) | 256 |
| M.2 слотове (count) | 4 |
| SATA портове (count) | 4 |
| PCIe x16 слотове (count) | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 5 Gbps |
| USB-C портове (count) | 2 |
| RGB подсветка | Да |
| Тегло | 0.00кг |
Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.

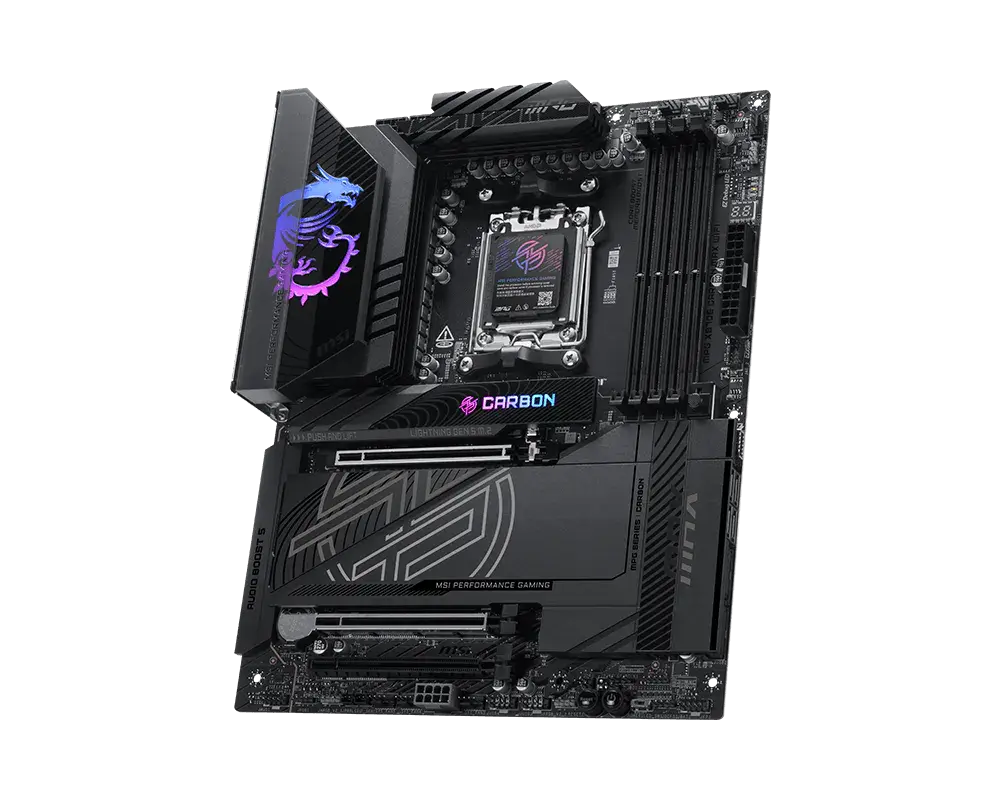

MSI MPG X870E CARBON MAX WIFI — Върхова производителност за AM5 с връзка от ново поколение
MSI MPG X870E CARBON MAX WIFI е висок клас дънна платка във форм фактор ATX, създадена за най-новите процесори AMD Ryzen на платформата AM5. Тя съчетава мощна захранваща схема с PCIe 5.0, поддръжка на DDR5 памет и Wi-Fi 7, за да осигури бъдещеустойчива основа за геймърски и професионални конфигурации.
Ключови Предимства
- Платформа AMD AM5 — Готовност за процесори AMD Ryzen 7000, 8000 и 9000 серии с чипсет X870E.
- PCIe 5.0 и DDR5 — Поддръжка на най-новите видеокарти, NVMe SSD и високоскоростна DDR5 памет за максимална пропускателна способност.
- Wi-Fi 7 и 5 Gbps LAN — Свръхбърза безжична и кабелна връзка за ниска латентност и трансфер на големи файлове.
- Цялостно охлаждане — Увеличени радиатори и M.2 Shield Frozr поддържат температурите на VRM и storage устройствата под контрол.
- Улеснен монтаж — EZ DIY функции като безвинтово поставяне на M.2 и предварително монтиран I/O панел улесняват сглобяването.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Чипсет | AMD X870E |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Wi-Fi | Wi-Fi 7 |
| LAN | 5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
Какво има в кутията

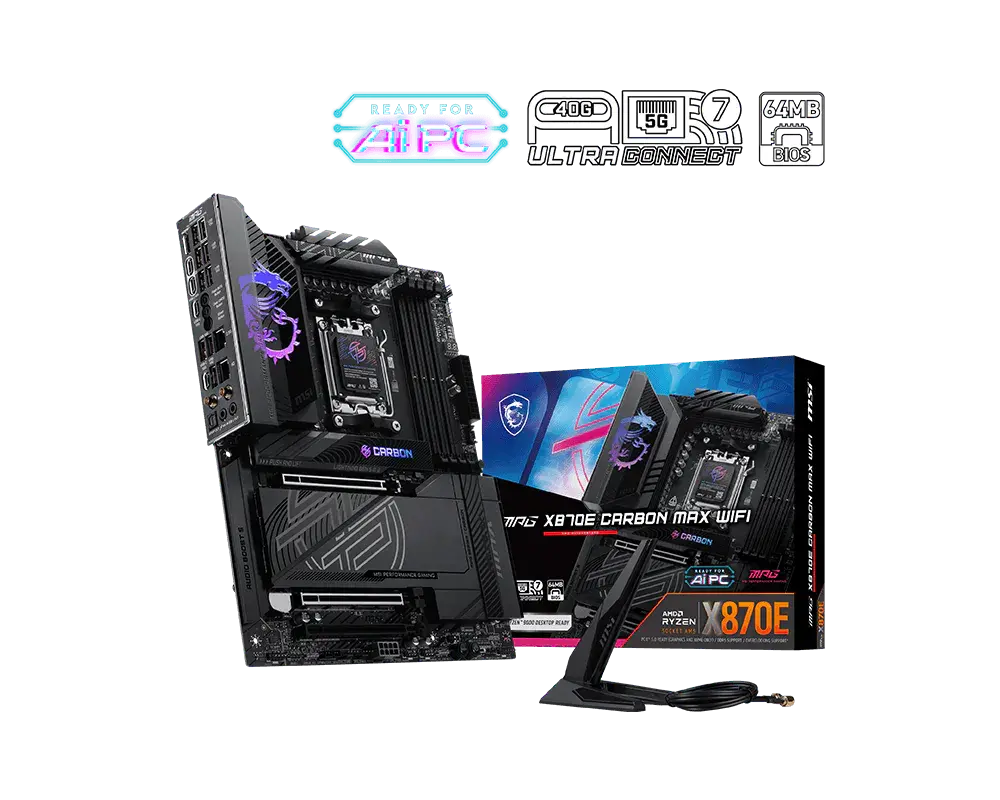

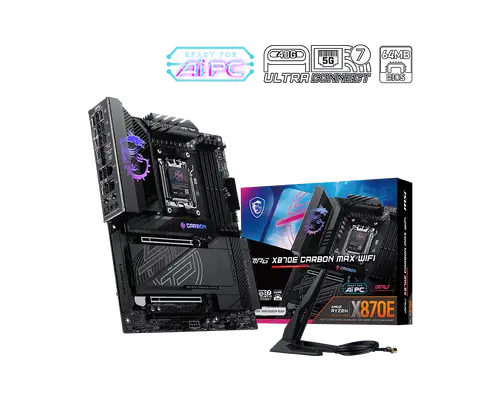

- Дънна платка MSI MPG X870E CARBON MAX WIFI
- Ръководство за бърза инсталация
- Драйвер диск / USB флаш памет
- SATA кабели
- Wi-Fi антена
- Винтове и стойки за M.2
Запишете се за нашият Бюлетин
Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.
ЕИК: 203294915 · ДДС №: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Методи за Плащане
- Наложен Платеж
- Кредитна/Дебитна Карта
- Банков Превод
- На изплащане ПБ Лични Финанси
