- MSI
- Ново
Цена
€254 64 / 498 03 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.msi.com/Motherboard/PRO-X870E-S-EVO-WIFI
Socket
Socket AM5
Graphics
1x HDMI™
Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD X870E
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0 , RAID 1, RAID 5, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000/ 7000 series processors.
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have single-sided latch.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

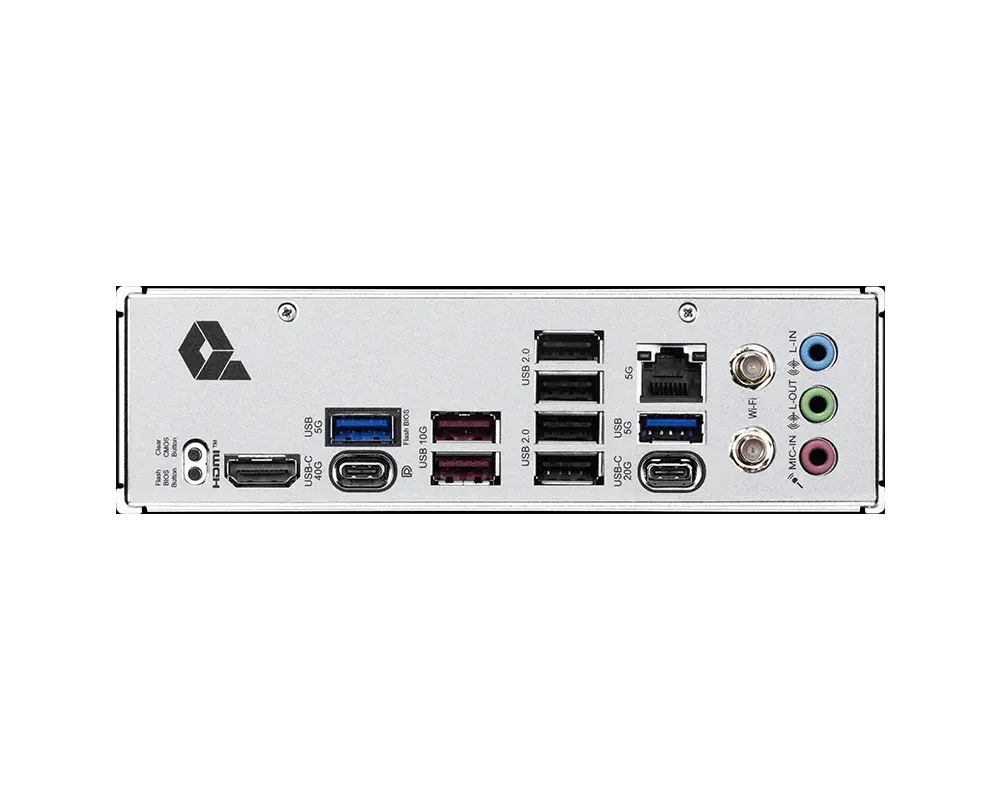

Rear panel I/O
Clear CMOS Button
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 20Gbps Type-C
USB 5Gbps Type-A
USB
4x USB 2.0 (Rear)
6x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Lan
Realtek® 8126VB 5G LAN
Wireless
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2
Form factor
ATX, 304.8mmx243.84mm
OS
Support for Windows® 11 64-bit
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Socket | Socket AM5 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-X870E-S-EVO-WIFI |
| Chipset | AMD X870E |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 1DPC 2R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | • 1DPC 1R Max speed up to 8200+ MT/s |
| Memory type | • 2DPC 2R Max speed up to 6000+ MT/s |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only* |
| Memory type | * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
| Memory type | • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking: |
| Memory type | • The DIMM slots on this motherboard only have single-sided latch. |
| Form Factor | ATX, 304.8mmx243.84mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | Flash BIOS button |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | Clear CMOS Button |
| Rear panel I/O | 5G LAN |
| Rear panel I/O | USB 10Gbps Type-A |
| Rear panel I/O | USB 5Gbps Type-A |
| Rear panel I/O | USB 40Gbps Type-C |
| Rear panel I/O | USB 20Gbps Type-C |
| LAN | Realtek® 8126VB 5G LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E1 slot |
| Expansion Slots | • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) |
| Expansion Slots | • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Expansion Slots | PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Wireless | Wi-Fi 7 |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps |
| Wireless | * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. |
| Graphics | 1x HDMI™ |
| Graphics | 1x Type-C DisplayPort |
| Graphics | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Graphics | USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz* |
| Graphics | Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz* |
| Storage | 4x SATA 6G |
| Storage | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | 3x M.2 |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | M2_1 slot |
| Storage | • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices |
| Storage | *Please refer to the manual for M.2 SSD heatsink restrictions. |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Bluetooth | ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2 |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 6x System Fan |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 1x USB 10Gbps Type C ports |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x Power Connector(PCIE_PWR 8pin) |
| Connectors | 4x USB 5Gbps Type A ports |
| Connectors | 6x USB 2.0 ports |
| USB | 2x USB 5Gbps Type A (Rear) |
| USB | 1x USB 10Gbps Type C (Front) |
| USB | 1x USB 20Gbps Type C (Rear) |
| USB | 4x USB 2.0 (Rear) |
| USB | 4x USB 5Gbps Type A (Front) |
| USB | 2x USB 10Gbps Type A (Rear) |
| USB | 1x USB 40Gbps Type C (Rear) |
| USB | 6x USB 2.0 (Front) |
| RAID | Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| RAID | Supports RAID 0 , RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| RAID | *RAID 5 configuration is only supported by Ryzen™ 9000/ 7000 series processors. |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
| Атрибут | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Форм фактор | ATX |
| Чипсет | AMD X870E |
| Тип памет | DDR5 |
| Слотове за памет (count) | 4 |
| M.2 слотове (count) | 4 |
| SATA портове (count) | 4 |
| PCIe x16 слотове (count) | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (count) | 2 |
| RGB подсветка | Да |
| Тегло | 0.00кг |
Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.

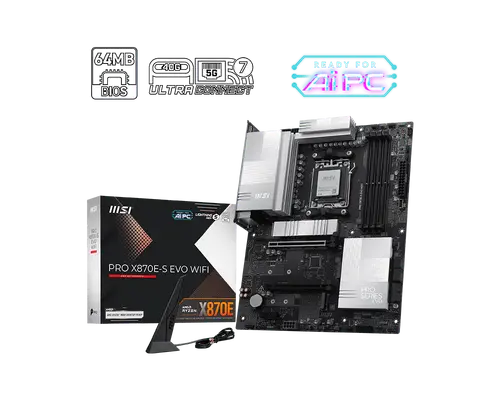

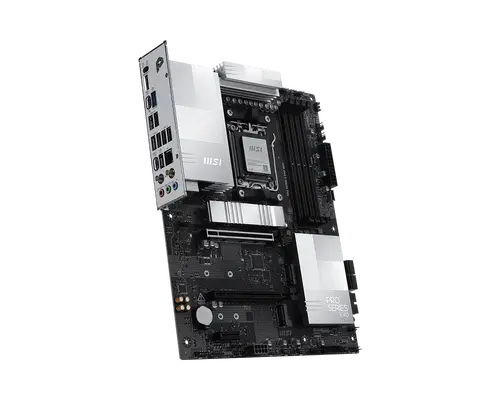

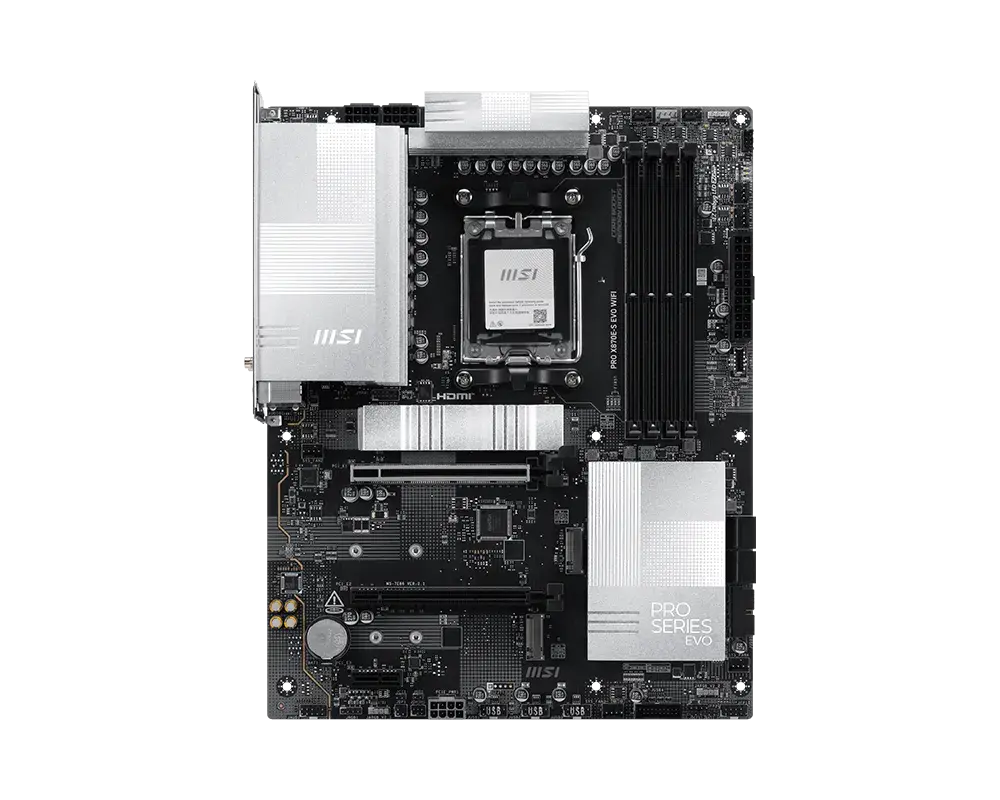

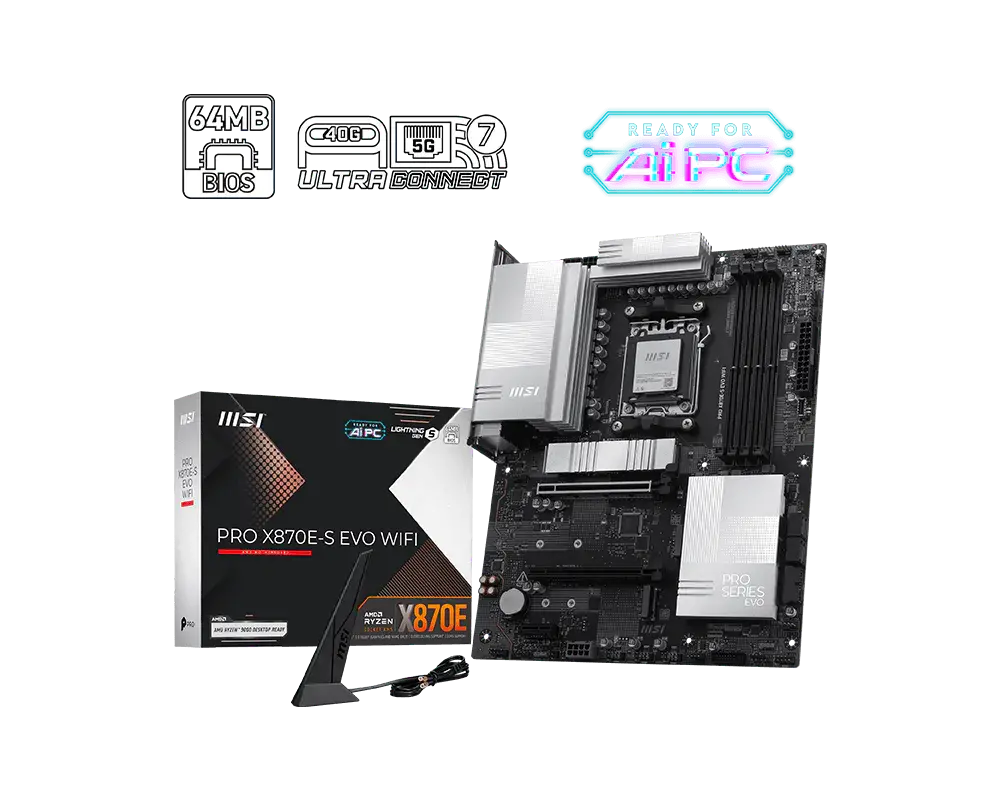

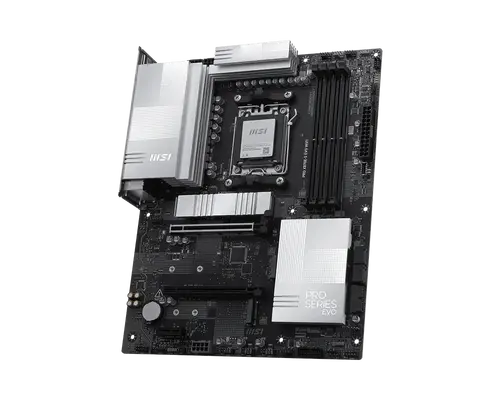

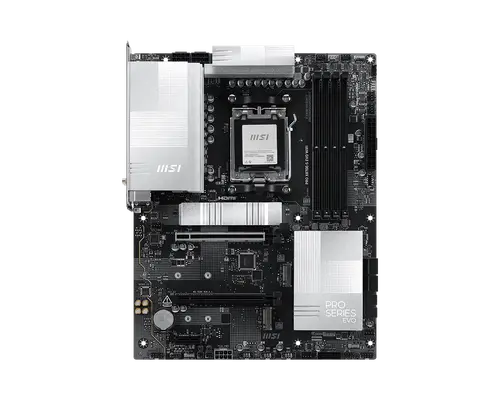

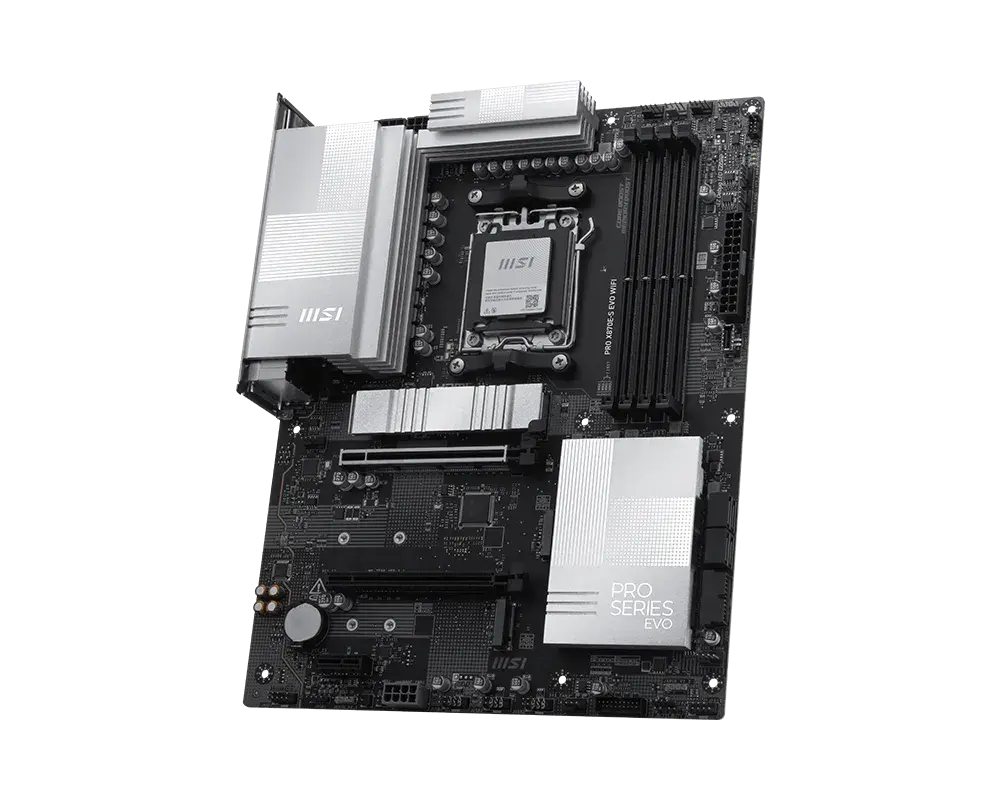

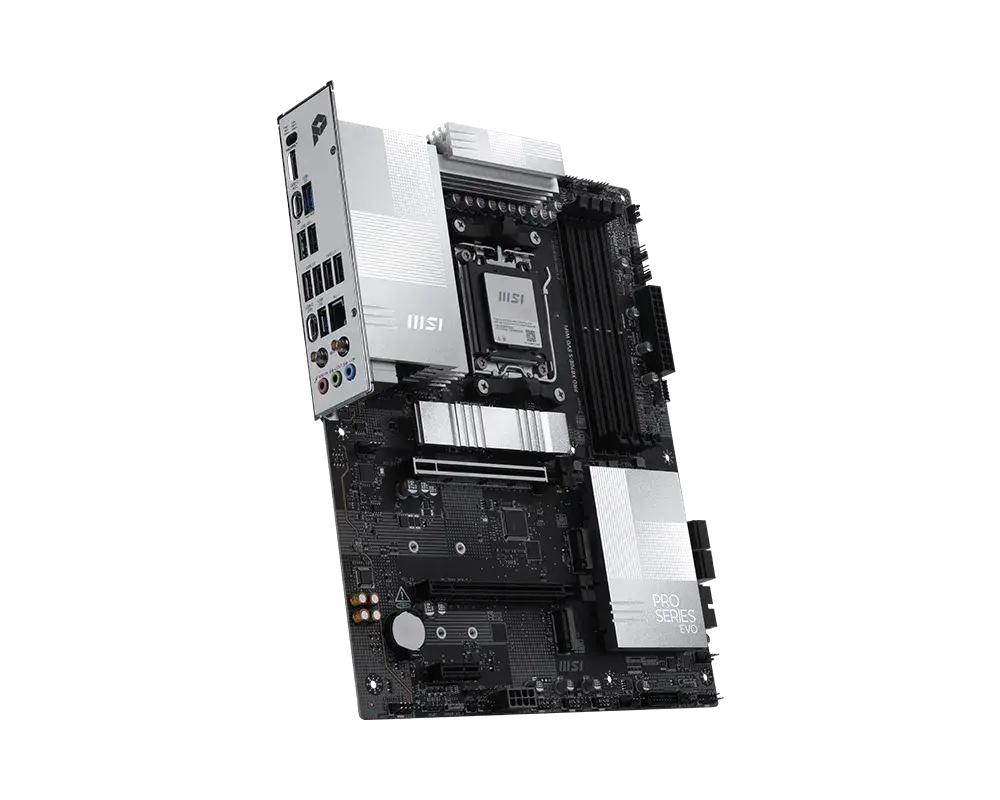

MSI PRO X870E-S EVO WIFI — професионална AM5 дънна платка с Wi-Fi 7
Изградете бърза и надеждна работна станция или геймърска конфигурация с AMD Ryzen 9000 на дънната платка MSI PRO X870E-S EVO WIFI. Тя съчетава чипсета AMD X870E с DDR5 памет, PCIe 5.0 и Wi-Fi 7 за платформа, която остава актуална с години.
Създадена за професионалисти и ентусиасти, тя предлага стабилно захранване, множество M.2 слотове за съхранение и надеждните EZ DIY функции на MSI.
Ключови Предимства
- Платформа AMD X870E — Пълна поддръжка на процесори AMD Ryzen 9000, 8000 и 7000 серии на сокет AM5.
- DDR5 производителност — Четири DIMM слота с високи честоти на паметта за взискателни задачи и създаване на съдържание.
- Вграден Wi-Fi 7 — Изключително бърза безжична връзка с ниска латентност плюс 2.5G LAN за надеждна кабелна мрежа.
- Готовност за PCIe 5.0 — Пропускателна способност от ново поколение за видео карти и NVMe устройства.
- Множество M.2 слотове — Няколко M.2 слота с радиатори за бързи и хладни SSD дискове.
- Надеждност MSI PRO — Стабилно захранване и EZ DIY функции за лесно сглобяване и дълготрайна работа.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Чипсет | AMD X870E |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Wi-Fi | Wi-Fi 7 |
| LAN | 2.5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI PRO X870E-S EVO WIFI
- Wi-Fi антена
- SATA кабели
- I/O панел
- Ръководство за бърза инсталация
- Диск/USB с драйвери и помощни програми
