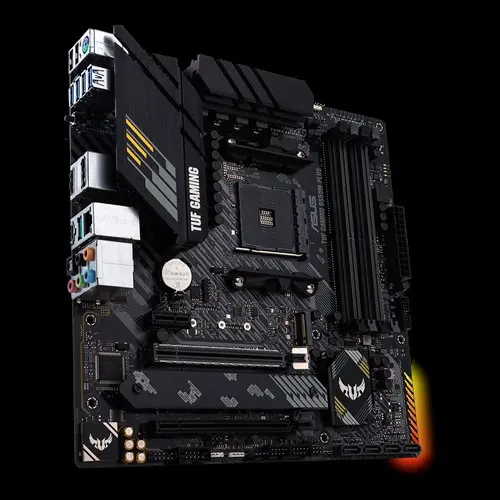

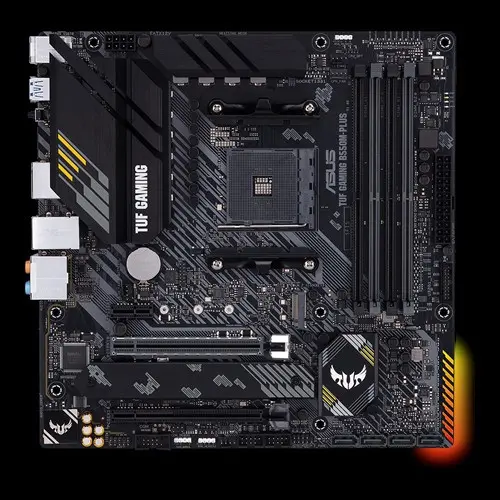

Name: Дънна платка, ASUS TUF GAMING B550M-PLUS/AM4
Brand: ASUS
SKU: 90MB14A0-M0EAY0
Price: 103.08 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

ASUS

Дънна платка, ASUS TUF GAMING B550M-PLUS/AM4

Цена

€103⁰⁸ / 201⁶¹ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 14€

+2 години: + 20€

Код: 90MB14A0-M0EAY0
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.asus.com/bg/Motherboards/TUF-GAMING-B550M-PLUS/specifications/

Graphics

1 x DisplayPort 1.2

1 x HDMI 2.1(4K@60HZ)

Chipset

AMD B550

Expansion slots

3rd Gen AMD Ryzen™ Processors

1 x PCIe 4.0 x16 (x16 mode)

3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors

1 x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode)

1 x PCIe 3.0 x1

Storage

Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports

3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

Memory type

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Rear panel I/O

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (2.5G) port(s)

2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

2 x USB 2.0

4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x BIOS FlashBack™ Button(s)

Connectors

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

1 x SPI TPM header

4 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

1 x Speaker connector

Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets.

- Optical S/PDIF out port(s) at back panel

- Audio cover

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

Lan

Realtek RTL8125B 2.5Gb Ethernet

TUF LANGuard

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Form factor

mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Windows® 10 64-bit

Warranty

36 Months

Атрибут	Стойност
Vendor_url	https://www.asus.com/bg/Motherboards/TUF-GAMING-B550M-PLUS/specifications/
Chipset	AMD B550
OS	Windows® 10 64-bit
Warranty	36 Months
Memory type	Dual channel memory architecture
Memory type	ECC Memory (ECC mode) support varies by CPU.
Memory type	3rd Gen AMD Ryzen™ Processors
Memory type	4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Memory type	3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Memory type	4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Form Factor	mATX Form Factor
Form Factor	9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio	- Dedicated audio PCB layers
Audio	- Audio Shielding
Audio	- Premium Japanese audio capacitors
Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Audio	- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets.
Audio	- Optical S/PDIF out port(s) at back panel
Audio	- Audio cover
Rear panel I/O	1 x DisplayPort
Rear panel I/O	1 x PS/2 keyboard/mouse combo port(s)
Rear panel I/O	1 x HDMI
Rear panel I/O	2 x USB 2.0
Rear panel I/O	1 x BIOS FlashBack™ Button(s)
Rear panel I/O	1 x LAN (2.5G) port(s)
Rear panel I/O	2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
Rear panel I/O	4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
Rear panel I/O	1 x Optical S/PDIF out
Rear panel I/O	5 x Audio jack(s)
LAN	TUF LANGuard
LAN	Realtek RTL8125B 2.5Gb Ethernet
Expansion Slots	1 x PCIe 3.0 x16 (x16 mode)
Expansion Slots	1 x PCIe 3.0 x16 (x4 mode)
Expansion Slots	3rd Gen AMD Ryzen™ Processors
Expansion Slots	1 x PCIe 4.0 x16 (x16 mode)
Expansion Slots	3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Expansion Slots	AMD B550 Chipset
Expansion Slots	1 x PCIe 3.0 x1
Graphics	1 x HDMI 2.1(4K@60HZ)
Graphics	1 x DisplayPort 1.2
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Storage	Support Raid 0, 1, 10
Storage	Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
Storage	4 x SATA 6Gb/s port(s),
Storage	3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
Storage	3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
Storage	AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
Connectors	1 x SPI TPM Header
Connectors	1 x CPU Fan connector(s)
Connectors	1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
Connectors	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Connectors	4 x SATA 6Gb/s connector(s)
Connectors	1 x 24-pin EATX Power connector(s)
Connectors	1 x 8-pin EATX 12V Power connectors
Connectors	1 x Front panel audio connector(s) (AAFP)
Connectors	1 x Clear CMOS jumper(s)
Connectors	1 x System panel connector
Connectors	1 x COM port header
Connectors	1 x Speaker connector
Connectors	2 x Chassis Fan connector(s)
Connectors	1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
Connectors	1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
Connectors	1 x CPU OPT Fan connector(s)
Connectors	2 x Aura RGB Strip Headers
Connectors	1 x Addressable Gen 2 header(s)
Тегло	0.00кг

Дънна платка ASUS TUF GAMING B550M-PLUS (AM4)

Създадена за издръжливост и производителност, ASUS TUF GAMING B550M-PLUS осигурява стабилна основа за AMD Ryzen 3000/5000 серия процесори. Благодарение на компоненти с военен клас, ефективно охлаждане и поддръжка на PCIe 4.0, тази Micro-ATX платка е идеалният избор за надеждна игрална или работна станция.

Ключови Предимства

TUF Издръжливост — Дросели и кондензатори с военен клас и Digi+ VRM гарантират дълготрайна надеждност при високо натоварване.
PCIe 4.0 — Поддръжка на най-новите видеокарти и NVMe SSD за изключително бърз трансфер на данни.
Цялостно Охлаждане — Множество вентилаторни конектори, радиатор за VRM и радиатор за M.2 поддържат ниски температури.
Realtek 2.5Gb Ethernet — Високоскоростна мрежа с ниска латентност за онлайн игри и стрийминг.

Технически Спецификации

Спецификация	Стойност
Сокет	AM4
Форм фактор	Micro-ATX
Чипсет	AMD B550
Тип памет	DDR4
Слотове за памет	4
Максимална памет	128 GB
M.2 слотове	2
SATA портове	6
PCIe x16 слотове	2
Скорост на LAN	2.5 Gbps
USB-C портове	1
RGB подсветка	Не
