Name: Дънна платка, ASROCK B650 PG LIGHTNING /AM5
Brand: ASROCK
SKU: B650 PG LIGHTNING
Price: 131.88 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

ASROCK

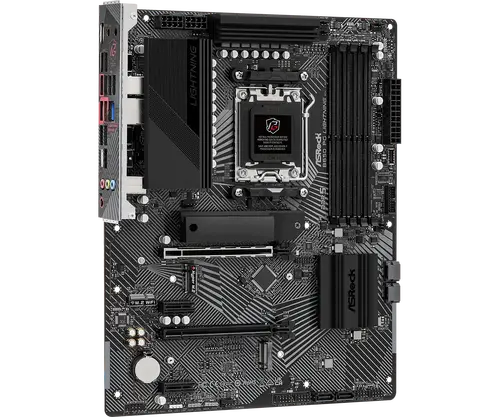

Дънна платка, ASROCK B650 PG LIGHTNING /AM5

Цена

€131⁸⁸ / 257⁹³ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 18€

+2 години: + 26€

Код: B650 PG LIGHTNING
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.asrock.com/mb/AMD/B650%20PG%20Lightning/#Specification

Graphics

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Chipset

- AMD B650

Expansion slots

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*

- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15? Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

Memory type

- Dual Channel DDR5 Memory Technology

- 4 x DDR5 DIMM Slots

- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*

- Max. capacity of system memory: 128GB*

- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Rear panel I/O

- 2 x Antenna Mounting Points

- 1 x HDMI Port

- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)

- 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)

- 4 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- 1 x BIOS Flashback Button

- HD Audio Jacks: Line in / Front Speaker / Microphone

Connectors

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Nahimic Audio

Lan

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Phantom Gaming LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Form factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 8 Layer PCB

- Microsoft® Windows® 10 64-bit / 11 64-bit

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.asrock.com/mb/AMD/B650%20PG%20Lightning/#Specification
Chipset	- AMD B650
OS	- Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty	36 Months
CPU's supported	- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Memory type	- Max. capacity of system memory: 128GB*
Memory type	- Dual Channel DDR5 Memory Technology
Memory type	- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Memory type	- 4 x DDR5 DIMM Slots
Memory type	- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Form Factor	- 8 Layer PCB
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Audio	- Nahimic Audio
Rear panel I/O	- 1 x HDMI Port
Rear panel I/O	- HD Audio Jacks: Line in / Front Speaker / Microphone
Rear panel I/O	- 2 x Antenna Mounting Points
Rear panel I/O	- 1 x RJ-45 LAN Port
Rear panel I/O	- 1 x BIOS Flashback Button
Rear panel I/O	- 4 x USB 2.0 Ports
Rear panel I/O	- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
Rear panel I/O	- 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LAN	- Dragon RTL8125BG
LAN	- Smart Auto Adjust Bandwidth Control
LAN	- Visual User Friendly UI
LAN	- Visual Network Usage Statistics
LAN	- Optimized Default Setting for Game, Browser, and Streaming Modes
LAN	- User Customized Priority Control
LAN	- Supports Phantom Gaming LAN Software
Expansion Slots	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Expansion Slots	- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Expansion Slots	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Expansion Slots	Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*
Expansion Slots	- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)*
Expansion Slots	- 15? Gold Contact in VGA PCIe Slot (PCIE1)
Graphics	Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
Graphics	- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
I/O	- 1 x HDMI Port
I/O	- HD Audio Jacks: Line in / Front Speaker / Microphone
I/O	- 2 x Antenna Mounting Points
I/O	- 1 x RJ-45 LAN Port
I/O	- 1 x BIOS Flashback Button
I/O	- 4 x USB 2.0 Ports
I/O	- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
I/O	- 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
Storage	- 4 x SATA3 6.0 Gb/s Connectors
Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Storage	- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Storage	Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
Connectors	- 1 x Power LED and Speaker Header
Connectors	- 1 x RGB LED Header*
Connectors	- 1 x 24 pin ATX Power Connector
Connectors	- 1 x Front Panel Audio Connector
Connectors	- 1 x SPI TPM Header
Connectors	- 1 x CPU Fan Connector (4-pin)***
Connectors	- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
Connectors	- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
Connectors	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
Connectors	- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Connectors	- 3 x Addressable LED Headers**
Connectors	- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Connectors	- 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)
Тегло	1.95кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	AM5
Форм фактор	ATX
Чипсет	AMD B650
Тип памет	DDR5
Слотове за памет (count)	4
Максимална памет (GB)	192
M.2 слотове (count)	2
SATA портове (count)	4
PCIe x16 слотове (count)	2
Вграден Wi-Fi	Не
Скорост на LAN	2.5 Gbps
USB-C портове (count)	1
RGB подсветка	Да
Тегло	1.95кг

ASRock B650 PG Lightning – Дънна платка AM5 за игри от ново поколение

Извлечете максимума от процесорите AMD Ryzen 7000/8000/9000 с дънната платка ASRock B650 PG Lightning. Базирана на AM5 сокет с поддръжка на DDR5, тази ATX платка предлага стабилно захранване, готовност за PCIe 5.0 и богат набор от връзки за геймъри и творци.

Ключови Предимства

AMD AM5 платформа — Поддържа най-новите Ryzen процесори с PCIe 5.0 за графика и съхранение.
DDR5 памет — Двуканална DDR5 до 7200+ MHz (OC) за светкавична производителност.
Премиум захранване — 14+2+1 фази с 50A Dr.MOS за стабилен овърклок.
Високоскоростна свързаност — 2.5G LAN, PCIe 5.0 x16 слот и два M.2 слота (един PCIe 5.0).

Технически Спецификации

Спецификация	Стойност
Сокет	AM5
Форм фактор	ATX
Чипсет	AMD B650
Тип памет	DDR5
Слотове за памет	4
Максимална памет	192 GB
M.2 слотове	2
SATA портове	4
PCIe x16 слотове	2
Скорост на LAN	2.5 Gbps
USB-C портове	1
RGB подсветка	Да
