- ASROCK
Цена
€91 92 / 179 78 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.asrock.com/mb/AMD/B550%20Pro4/index.asp#Specification
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft® PlayReady
Chipset
- AMD B550
Expansion slots
AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode
PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode
PCIE3: Gen3 x4 mode)*
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**
- 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
Memory type
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB*
- Supports Extreme Memory Profile (XMP) memory modules
- 15? Gold Contact in DIMM Slots

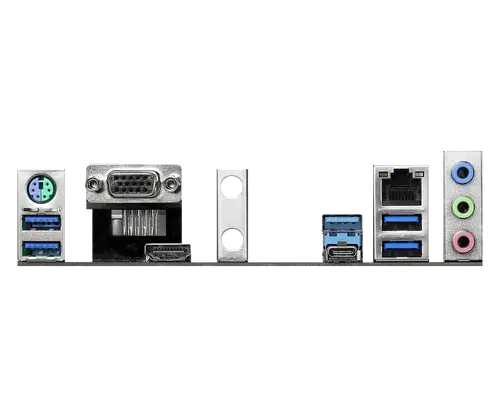

Rear panel I/O
- Antenna Bracket
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Form factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Solid Capacitor design
- 2oz Copper PCB
OS
- Microsoft® Windows® 10 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.asrock.com/mb/AMD/B550%20Pro4/index.asp#Specification |
| Chipset | - AMD B550 |
| OS | - Microsoft® Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Digi Power design |
| CPU's supported | - 8 Power Phase design |
| CPU's supported | - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* |
| Memory type | - Dual Channel DDR4 Memory Technology |
| Memory type | - Supports Extreme Memory Profile (XMP) memory modules |
| Memory type | - 15μ Gold Contact in DIMM Slots |
| Memory type | - 4 x DDR4 DIMM Slots |
| Memory type | - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memo |
| Memory type | - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & no |
| Memory type | - Max. capacity of system memory: 128GB* |
| Memory type | - 15? Gold Contact in DIMM Slots |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Form Factor | - Solid Capacitor design |
| Form Factor | - 2oz Copper PCB |
| Audio | - Supports Surge Protection |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) |
| Audio | - Premium Blu-ray Audio support |
| Audio | - PCB Isolate Shielding |
| Audio | - Individual PCB Layers for R/L Audio Channel |
| Audio | - Nahimic Audio |
| Rear panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| Rear panel I/O | - 1 x D-Sub Port |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) |
| Rear panel I/O | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) |
| Rear panel I/O | - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Rear panel I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - Antenna Bracket |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| LAN | - Realtek RTL8111H |
| LAN | - Supports Wake-On-LAN |
| LAN | - Supports Lightning/ESD Protection |
| LAN | - Supports Energy Efficient Ethernet 802.3az |
| LAN | - Supports PXE |
| Expansion Slots | - Supports AMD Quad CrossFireX™ and CrossFireX™ |
| Expansion Slots | AMD Ryzen series CPUs (Matisse) |
| Expansion Slots | - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode |
| Expansion Slots | PCIE3: Gen3 x4 mode)* |
| Expansion Slots | - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode |
| Expansion Slots | - 2 x PCI Express 3.0 x1 Slots |
| Expansion Slots | AMD Ryzen series APUs |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Graphics | - DirectX 12, Pixel Shader 5.0 |
| Graphics | - Shared memory default 2GB. Max Shared memory supports up to 16GB.** |
| Graphics | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Graphics | - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| Graphics | - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) |
| Graphics | - Supports HDR (High Dynamic Range) with HDMI 2.1 |
| Graphics | - Supports Microsoft® PlayReady |
| Graphics | - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port |
| Graphics | - Supports HDCP 2.3 with HDMI 2.1 Port |
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* |
| Graphics | - Dual graphics output: support HDMI and D-Sub ports by independent display controllers |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| BIOS | - Supports "Plug and Play" |
| BIOS | - ACPI 5.1 compliance wake up events |
| BIOS | - Supports jumperfree |
| BIOS | - SMBIOS 2.3 support |
| BIOS | - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
| I/O | - 1 x PS/2 Mouse/Keyboard Port |
| I/O | - 1 x D-Sub Port |
| I/O | - 1 x HDMI Port |
| I/O | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) |
| I/O | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) |
| I/O | - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| I/O | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - Antenna Bracket |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* |
| Storage | - 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** |
| Storage | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)** |
| Connectors | - 1 x COM Port Header |
| Connectors | - 1 x Power LED and Speaker Header |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x 8 pin 12V Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Connectors | - 1 x 4 pin 12V Power Connector |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 2 x RGB LED Headers* |
| Connectors | - 2 x Addressable LED Headers** |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** |
| Тегло | 2.00кг |
ASRock B550 PRO4 /AM4 Дънна платка – Мощност и Производителност за Вашия AMD Сглобка
Освободете пълния потенциал на вашия AMD Ryzen процесор с ASRock B550 PRO4 дънната платка. Проектирана за геймъри, креатори и професионалисти, тази платка предлага изключителна производителност, бъдещо-устойчиви връзки и стабилност.
Защо да изберете ASRock B550 PRO4?
- Свръхбърза производителност: Поддръжка на PCIe 4.0 осигурява ултрабързи NVMe SSD скорости и пропусклива способност за гладко гейминг и мултитаскинг.
- Напреднали захранващи решения: 8-фазно захранване поддържа вашия Ryzen процесор хладен и стабилен дори при тежки натоварвания.
- Модерни връзки: Два M.2 слота, USB 3.2 Gen2 и 2.5G LAN за бързи трансфери и без забавяне мрежа.
- Висококачествен звук: Nahimic Audio подобрява звука за игри, филми и музика.
- Съвместимост: Сокет AM4 поддържа AMD Ryzen 5000, 4000 и 3000 серии, гарантирайки дългосрочна употреба.
Технически спецификации:
- Сокет: AM4 (Поддръжка на AMD Ryzen™ 5000, 4000 G-Series, 3000 Series)
- Чипсет: AMD B550
- Памет: 4x DDR4 DIMM слота (до 128GB, 4733+ MHz OC)
- Разширителни слотове: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1
- Съхранение: 6x SATA III, 2x M.2 (1x PCIe 4.0 x4, 1x PCIe 3.0 x4 & SATA)
- Мрежа: 2.5 Gigabit Ethernet
- Звук: 7.1 CH HD Audio (Realtek ALC897)
Надградете вашия компютър днес! ASRock B550 PRO4 е идеалният избор за баланс между производителност, издръжливост и цена за вашата AMD система.
