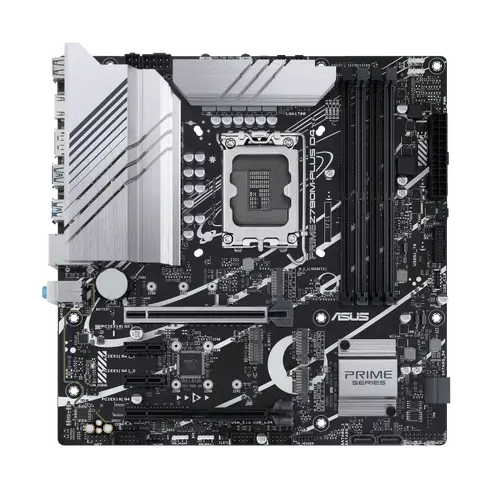

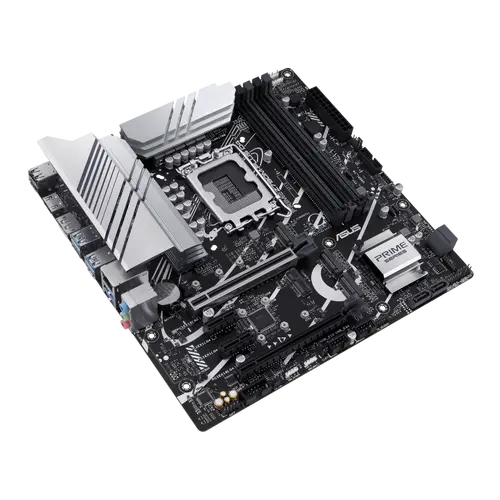

Дънна платка, ASUS PRIME Z790M-PLUS D4

4 x DIMM, Max. 128GB, DDR4 5333(OC) / 5133(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

1 x DisplayPort**

1 x HDMI® port***

Intel® 13th & 12th Gen Processors*

1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2 x PCIe 4.0 x1 slots

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

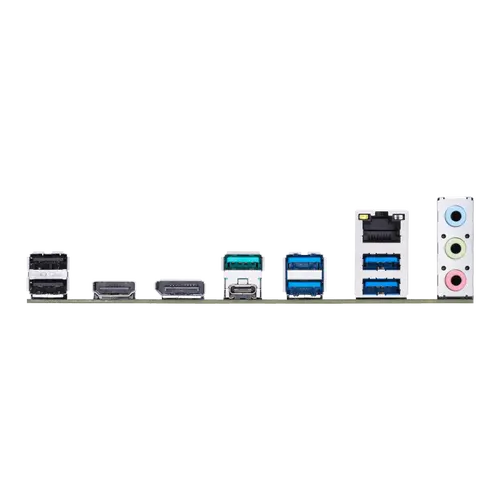

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Intel® 1Gb Ethernet port

3 x Audio jacks

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

1 x 24-pin Main Power connector

1 x 8-pin + 12V Power connector

1 x 4-pin + 12V Power connector

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4®) header

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

1 x Intel® 1Gb Ethernet

ASUS LANGuard

mATX Form Factor

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
