Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-ii/
Graphics
1 x DisplayPort
1 x HDMI™ port
CPU's supported
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®
Chipset
Intel® B760 Chipset
Expansion slots
Intel®Core™Processors (14th& 13th& 12th Gen)
1 x PCIe 5.0 x16 slot
Intel®B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel®Core™Processors (14th& 13th& 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
Intel®B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Memory type
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)

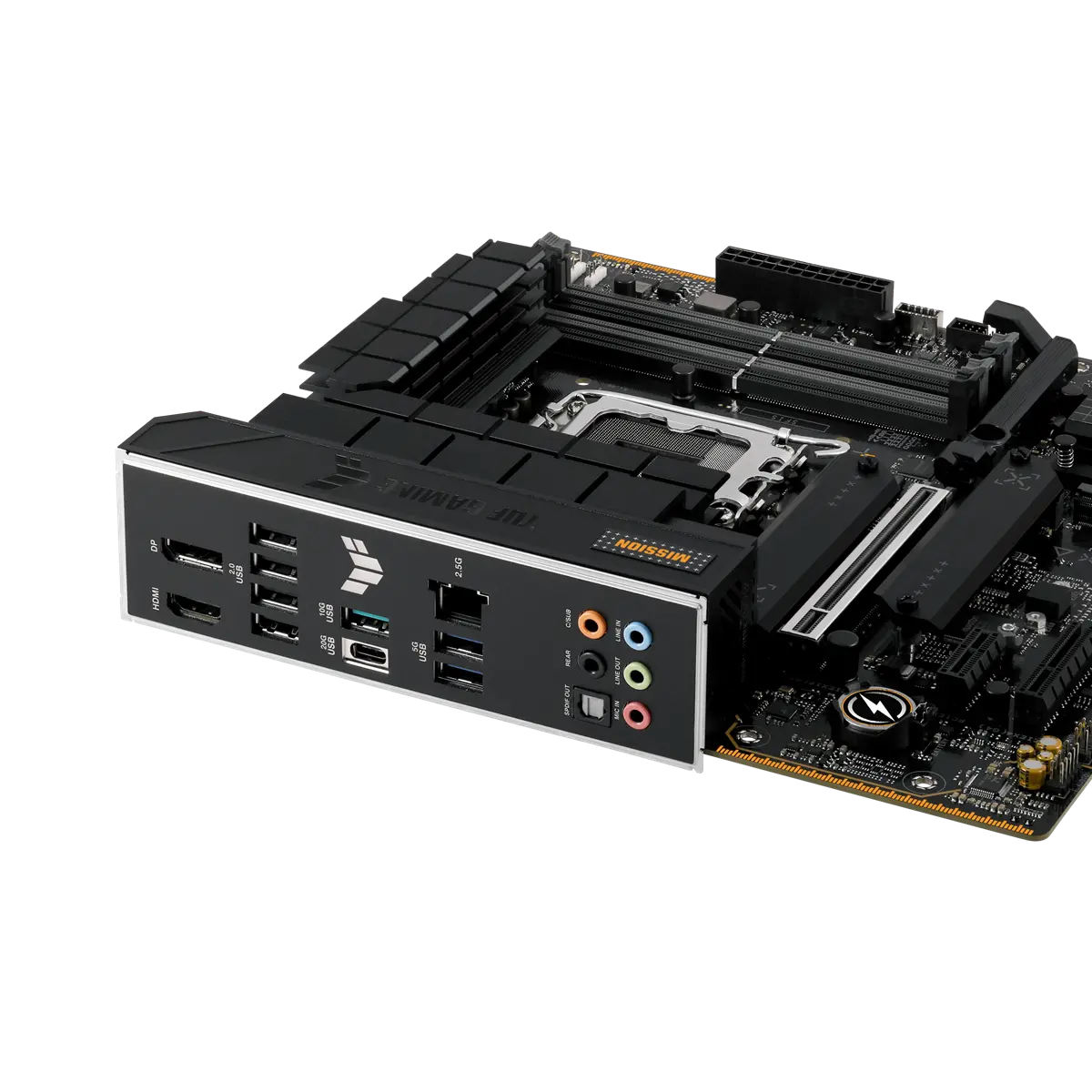

Rear panel I/O
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (F-AUDIO)
1 x20-3 pin System Panel header with chassis intrusion function
1 x Thunderbolt™ (USB4®) header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming,
Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers
Lan
1 x Realtek 2.5Gb Ethernet, TUF LANGuard
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
OS
Windows®11, Windows®10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-ii/ |
| Chipset | Intel® B760 Chipset |
| OS | Windows®11, Windows®10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® |
| Memory type | Dual channel memory architecture |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | ASUS Enhanced Memory Profile II (AEMP II) |
| Memory type | 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Audio | Audio Shielding |
| Audio | Audio Features |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio | Supports up to 24-Bit/192 kHz playback |
| Audio | Premium audio capacitors |
| Audio | Dedicated audio PCB layers |
| Audio | Supports: Jack-detection, Multi-streaming, |
| Audio | Front Panel Jack-retasking |
| Audio | Rear optical S/PDIF out port |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 5 x Audio jacks |
| Rear panel I/O | 1 x Optical S/PDIF out port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | Back Panel I/O Ports |
| Rear panel I/O | 2 x USB 5Gbps ports (2 x Type-A) |
| Rear panel I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| Rear panel I/O | 1 x USB 10Gbps port (1 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Expansion Slots | 1 x PCIe 3.0 x1 slot |
| Expansion Slots | 1 x PCIe 5.0 x16 slot |
| Expansion Slots | 1 x PCIe 4.0 x4 slot |
| Expansion Slots | Intel®Core™Processors (14th& 13th& 12th Gen) |
| Expansion Slots | Intel®B760 Chipset |
| Graphics | 1 x HDMI™ port |
| Graphics | 1 x DisplayPort |
| Features | ASUS EZ DIY |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | Aura Sync |
| Features | ASUS TUF PROTECTION |
| Features | Overvoltage Protection |
| Features | Safeslot Core+ |
| Features | Stainless-Steel Back I/O |
| Features | Q-DIMM |
| Features | Addressable Gen 2 headers |
| Features | DIGI+ VRM (- Digital power design with DrMOS) |
| Features | ESD Guards |
| Features | TUF LANGuard |
| Features | M.2 Q-Latch |
| Features | Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Features | VRM heatsink design |
| Features | ProCool |
| Features | Pre-mounted I/O shield |
| Features | SafeDIMM |
| Features | PCIe Slot Q-Release |
| Features | M.2 heatsinks |
| Features | CPU Socket lever protector |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 5 x audio jacks |
| I/O | 1 x HDMI™ port |
| I/O | 1 x Realtek 2.5Gb Ethernet port |
| I/O | 1 x Optical S/PDIF out port |
| I/O | 4 x USB 2.0 ports (4 x Type-A) |
| I/O | Back Panel I/O Ports |
| I/O | 2 x USB 5Gbps ports (2 x Type-A) |
| I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| I/O | 1 x USB 10Gbps port (1 x Type-A) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) |
| Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
| Storage | Intel®Core™Processors (14th& 13th& 12th Gen) |
| Storage | Intel®B760 Chipset |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 3 x 4-pin Chassis Fan headers |
| Connectors | 1 x Thunderbolt™ (USB4®) header |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 3 x M.2 slots (Key M) |
| Connectors | 2 x 8-pin +12V Power connectors |
| Connectors | 1 x USB 10Gbps connector (supports USB Type-C®) |
| Connectors | 3 x USB 2.0 headers support 5 additional USB 2.0 ports |
| Connectors | 1 x Front Panel Audio header (F-AUDIO) |
| Connectors | 1 x20-3 pin System Panel header with chassis intrusion function |
| Βάρος | 1.65kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 96 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6 |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Βάρος | 1.65kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.

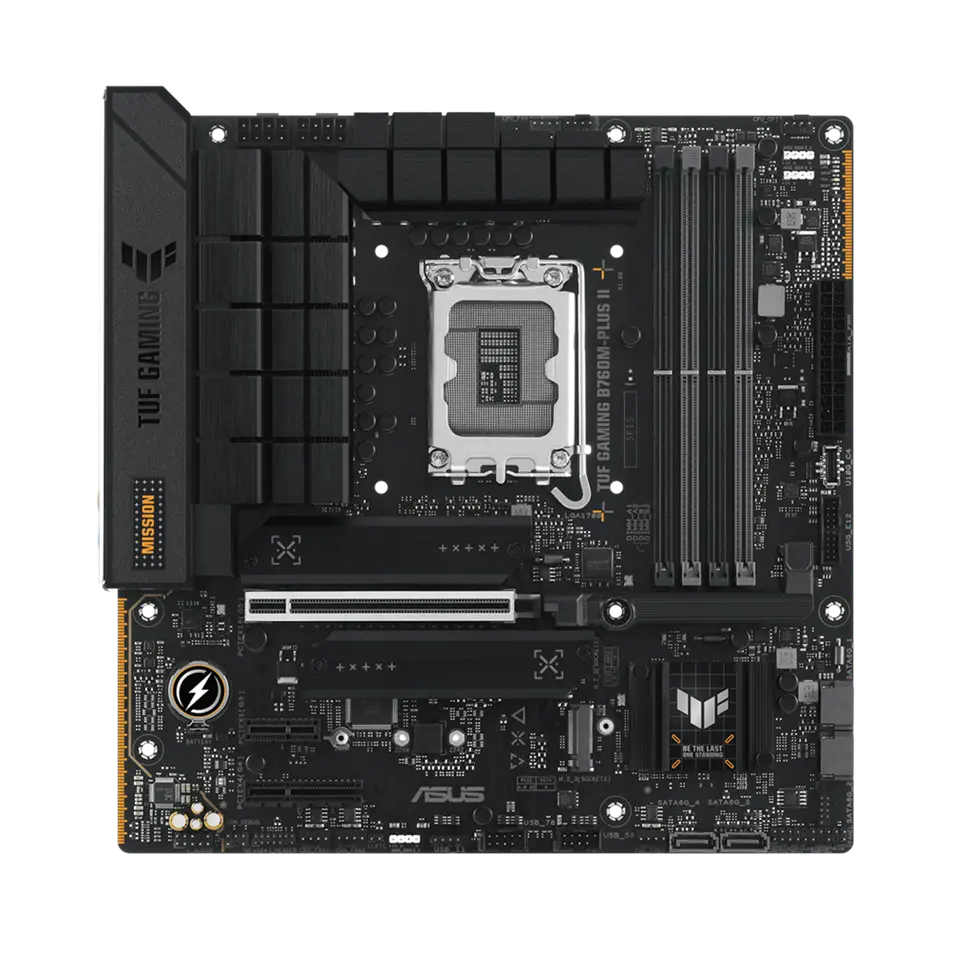

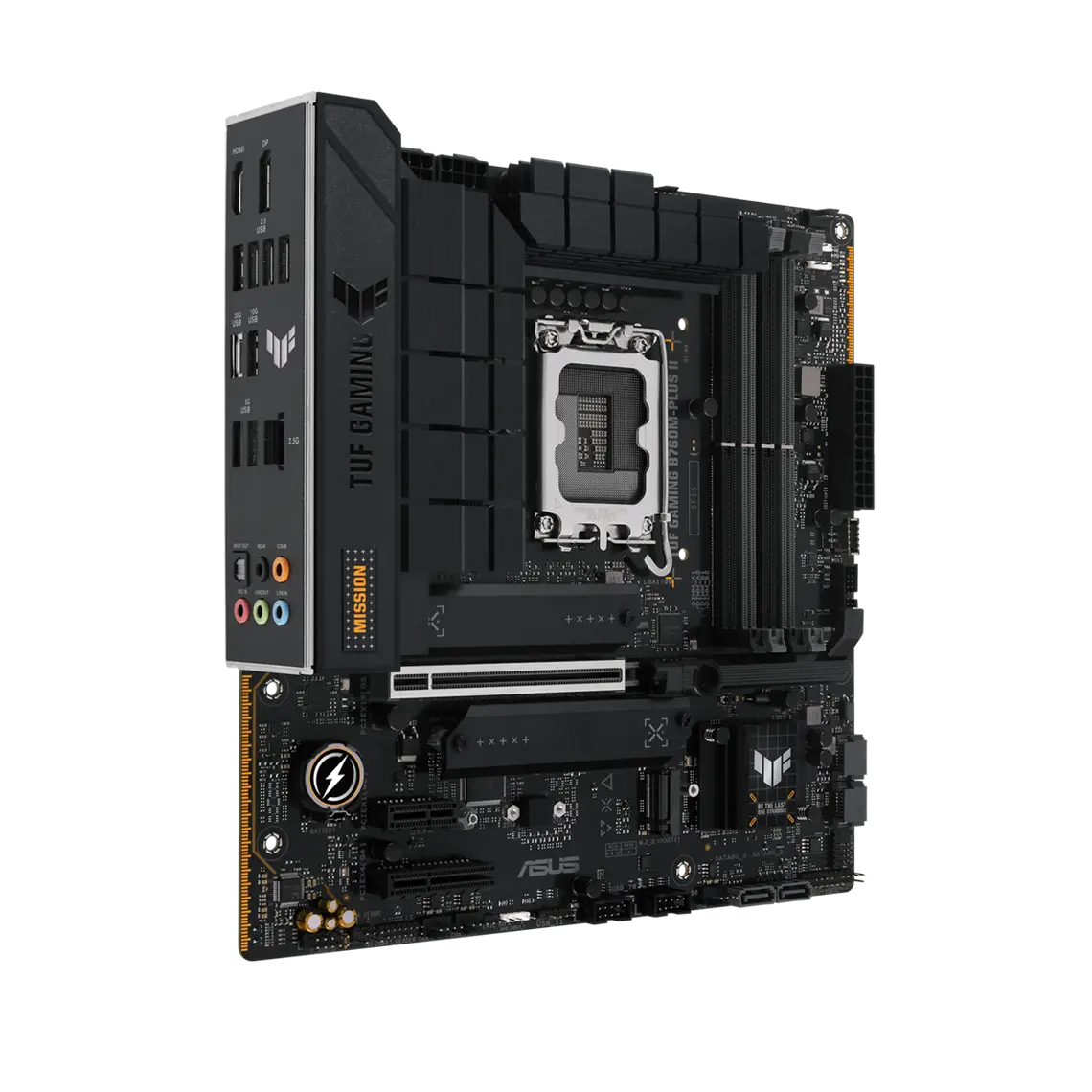

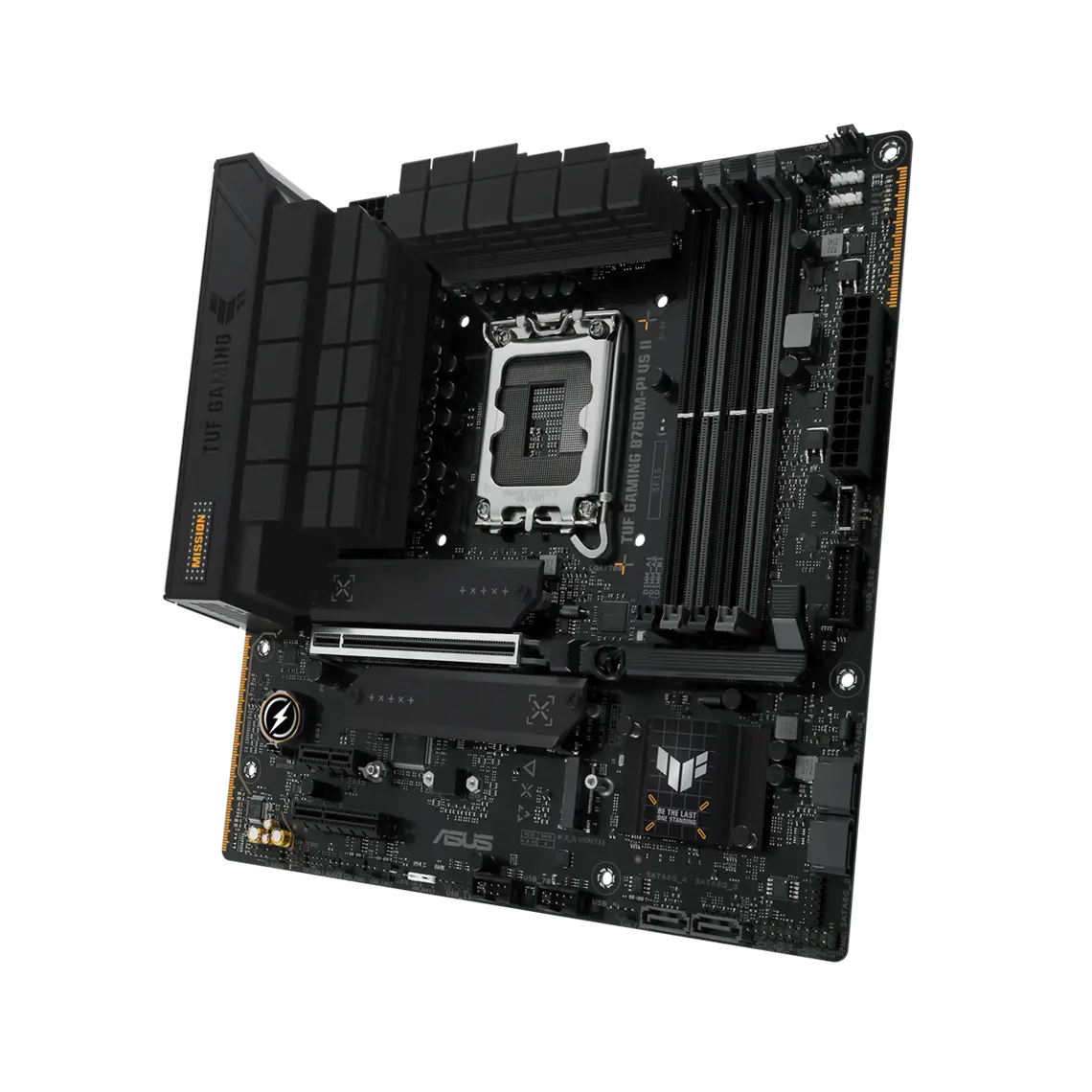

Дънна платка Asus TUF Gaming B760M Plus II
Създадена за издръжливост и производителност, Asus TUF Gaming B760M Plus II осигурява стабилна работа за игри и продуктивност. С компоненти от военен клас и подобрено охлаждане, тази Micro-ATX платка е готова за процесори Intel Core от 13-то и 14-то поколение.
Ключови Предимства
- Надеждно захранване — 12+1 DrMOS фази осигуряват стабилно напрежение за висок клас процесори.
- Бързи връзки — PCIe 5.0 за графични карти и SSD, плюс 2.5 Gb Ethernet и Wi-Fi 6.
- Ефективно охлаждане — Множество вентилаторни конектори, радиатори за VRM и термо подложки за M.2 поддържат ниски температури.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 96 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка Asus TUF Gaming B760M Plus II
- Ръководство за потребителя
- I/O скоба
- SATA кабели (2)
- M.2 гумени пакети
- Wi-Fi антена
