- GIGABYTE
Τιμή
€73 77 / 144 28 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj
* Support for DisplayPort 1.2 version and HDCP 2.3
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® H610 Express Chipset
Expansion slots
CPU
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage
Chipset
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
Memory type
14th and 13th Generation Intel® Core™ i9/i7 Pocessors
- Support for DDR5 5600/ 5200/ 4800/ 4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Rear panel I/O
Chipset
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub
- 4 x USB 2.0/1.1 ports available through the internal USB headers

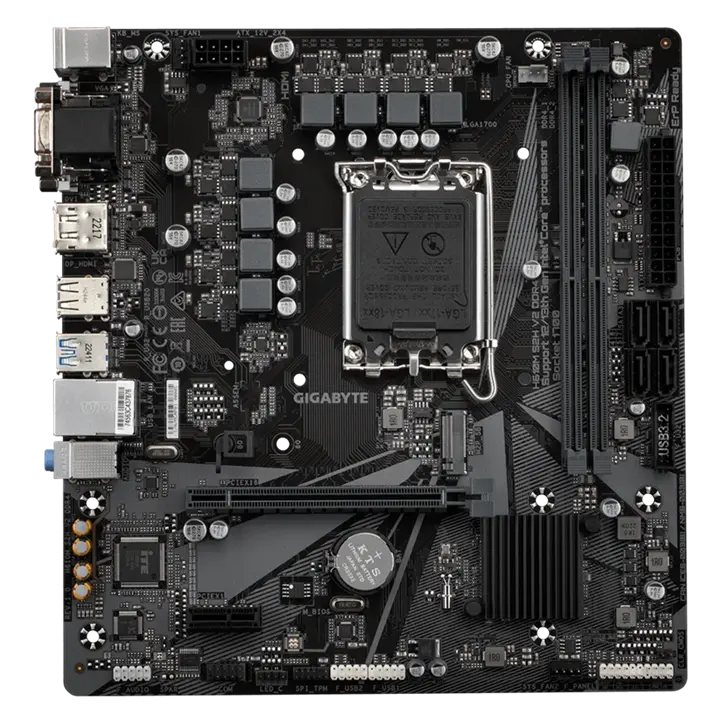

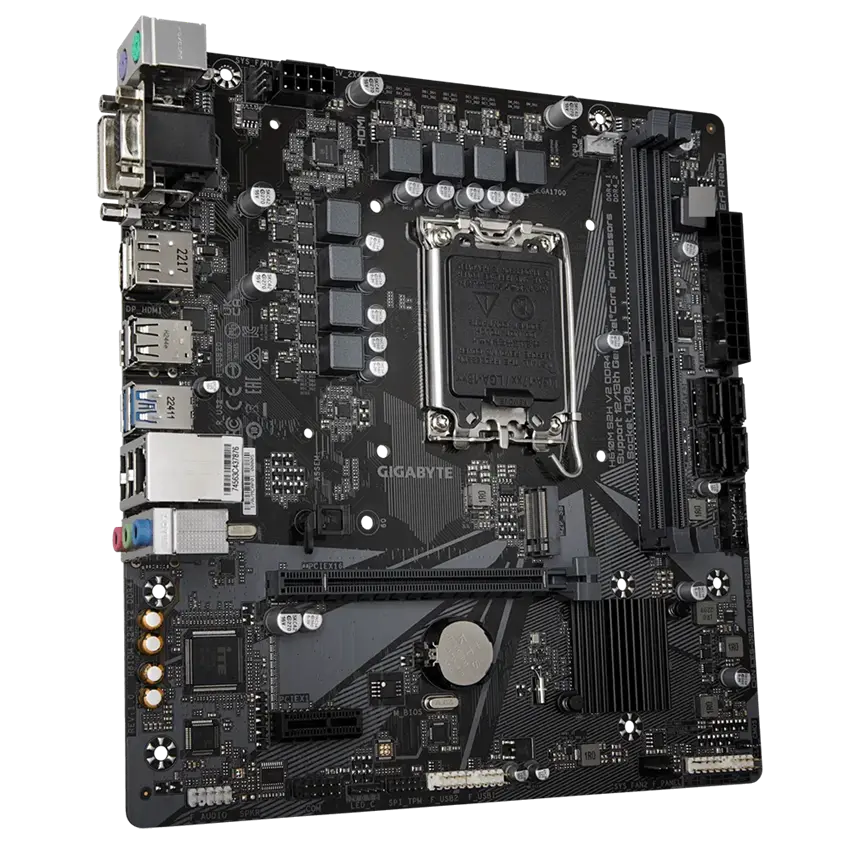

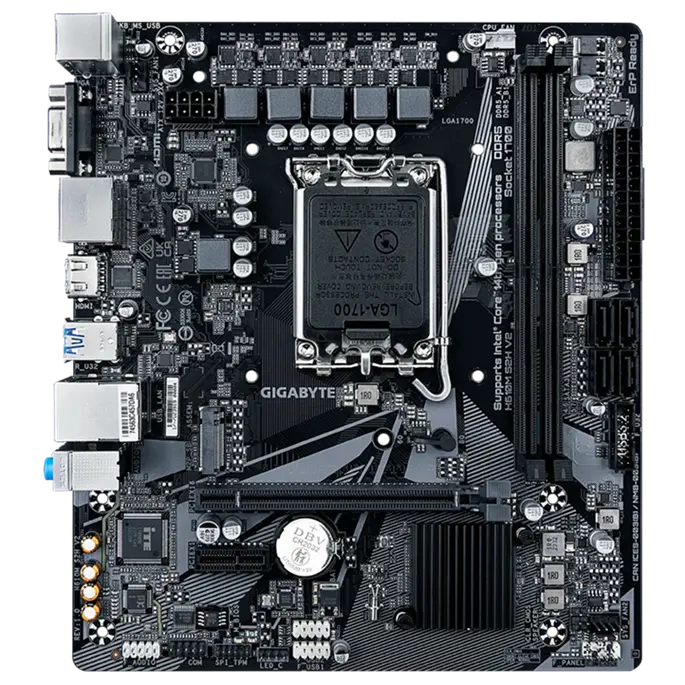

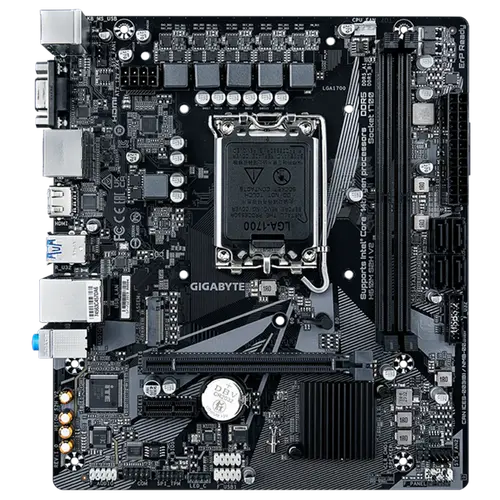

Connectors
iTE® I/O Controller Chip
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

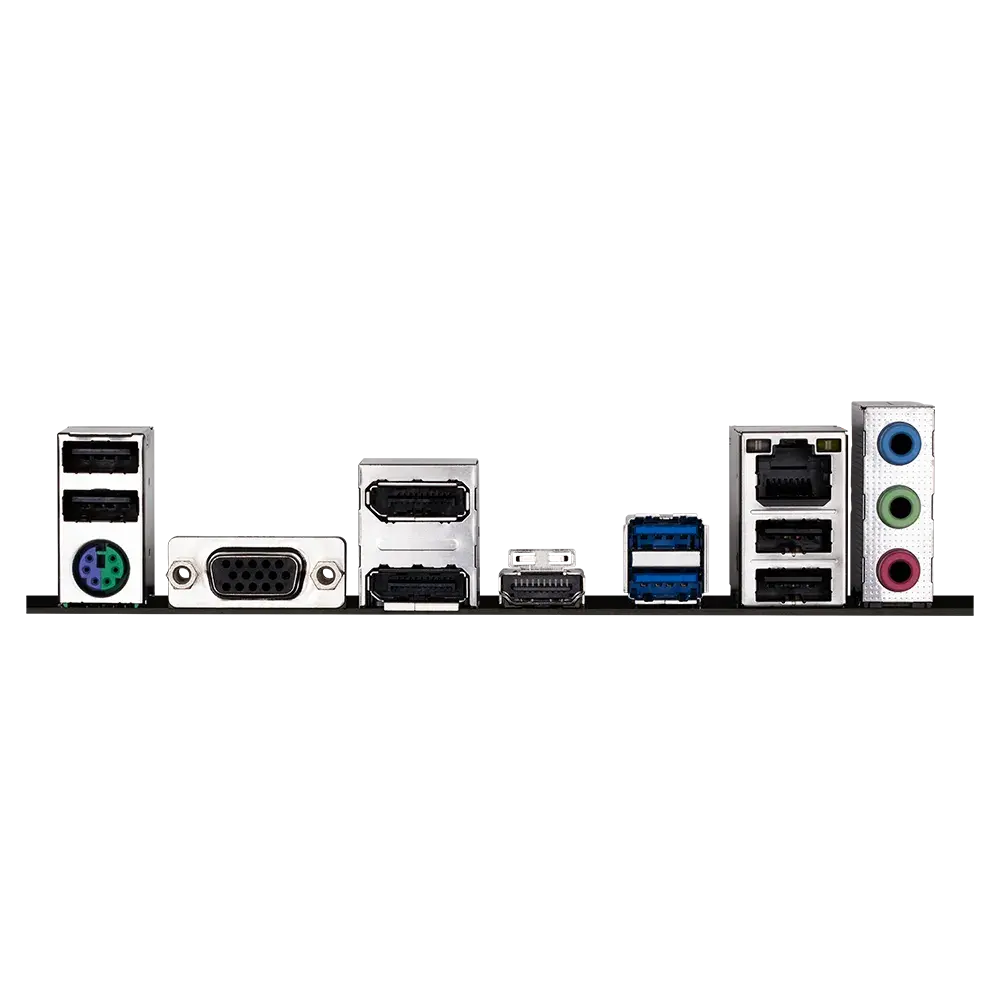

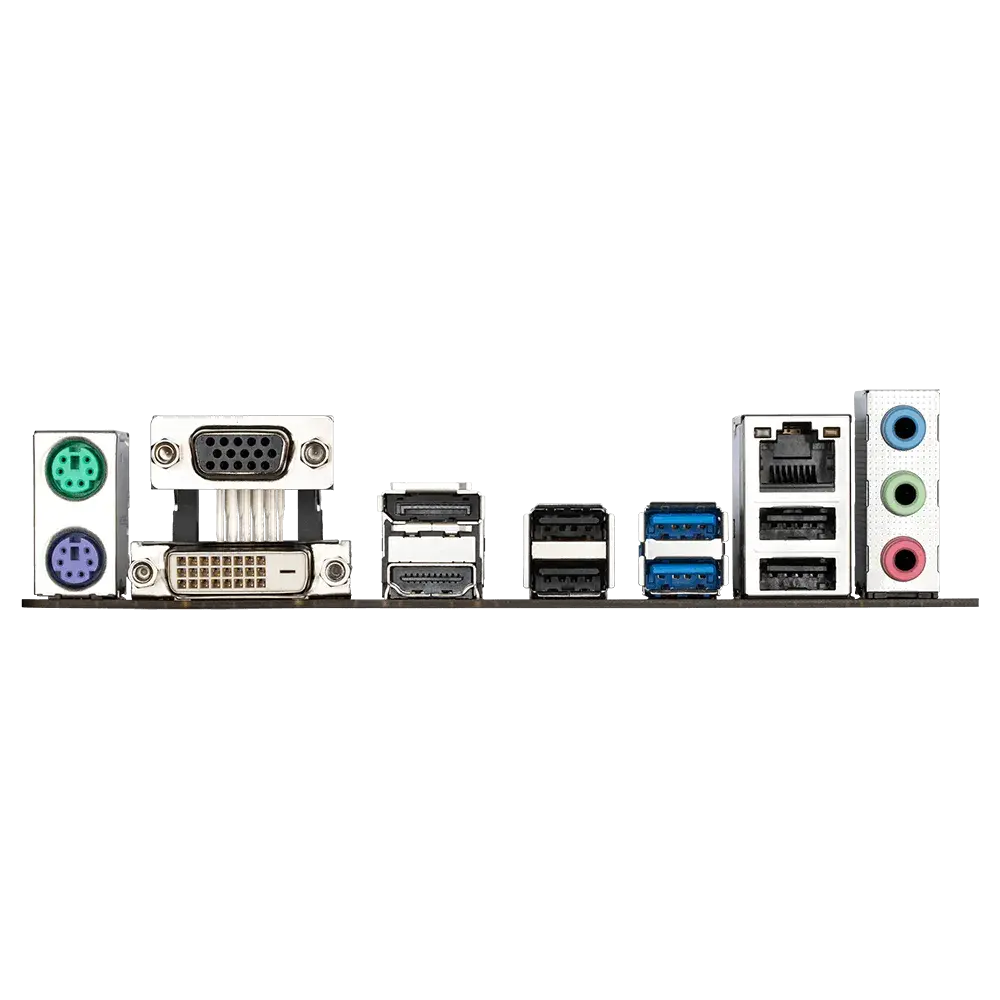

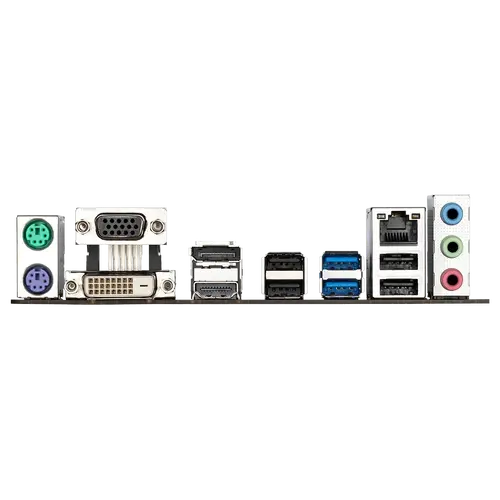

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
22.3cm x 19.6cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf |
| Chipset | Intel® H610 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Memory type | 14th and 13th Generation Intel® Core™ i9/i7 Pocessors |
| Memory type | 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Memory type | - Support for DDR5 4800/4400 MT/s memory modules |
| Memory type | 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Memory type | - Support for DDR5 5600/ 5200/ 4800/ 4400 MT/s memory modules |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 22.3cm x 19.6cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Rear panel I/O | Chipset |
| Rear panel I/O | - 4 x USB 2.0/1.1 ports on the back panel |
| Rear panel I/O | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Rear panel I/O | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Rear panel I/O | Chipset+USB 2.0 Hub |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots | CPU |
| Expansion Slots | Chipset |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
| Expansion Slots | - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| Graphics | ** Support native HDMI 2.1 TMDS compatible ports. |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk |
| Graphics | - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj |
| Features | Support for APP Center |
| Features | * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Features | - @BIOS |
| Features | - EasyTune |
| Features | - Smart Backup |
| Features | - System Information Viewer |
| Features | Support for Q-Flash |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | Chipset |
| I/O | - 4 x USB 2.0/1.1 ports on the back panel |
| I/O | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| I/O | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| I/O | Chipset+USB 2.0 Hub |
| Storage | Chipset |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) |
| Storage | - 4 x SATA 6Gb/s connectors |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 1 x speaker header |
| Connectors | 1 x chassis intrusion header |
| Connectors | 2 x system fan headers |
| Connectors | 1 x RGB LED strip header |
| Connectors | Back Panel Connectors |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 4 x USB 2.0/1.1 ports |
| Connectors | 2 x USB 3.2 Gen 1 ports |
| Connectors | 1 x HDMI port |
| Connectors | iTE® I/O Controller Chip |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) |
| Connectors | 1 x D-Sub port |
| Connectors | 1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors |
| Connectors | 2 x DisplayPort |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
GIGABYTE H610M S2H V2: Вашата основа за мощен и надежден компютър
Изградете вашата система от следващо поколение върху основа от доказана стабилност и интелигентни функции. Дънната платка GIGABYTE GB H610M S2H V2 е създадена да освободи мощта на процесорите Intel 12-то и 13-то поколение, предоставяйки сериозна платформа за вашия домашен, офис или начален геймърски компютър. Тя е перфектният синтез между основна производителност, бъдещо-устойчива свързаност и renowned издръжливост на GIGABYTE.
Ключови ползи за вас:
- Отключете производителността на ново поколение: Подготвена за процесори с сокет Intel® LGA 1700, тази платка е вашият вход към впечатляваща изчислителна мощ за мултитаскинг, продуктивност и всекидневие.
- Свързаност за бъдещето: Разполага със слот PCIe 4.0 M.2 за ултра-бързи NVMe SSD дискове, което драстично намалява времето за зареждане и подобрява отзивчивостта на системата.
- Впечатляващ видео и аудио изход: Раздели HDMI и D-Sub за гъвкави опции за дисплей, както и висококачествени аудио кондензатори за кристално чист звук във филми и игри.
- Построена за дълготрайност: С фирмената издръжливост на GIGABYTE, анти-серни резистори и солиден дизайн на PCB, платката гарантира дългосрочна надеждност и защитава вашата инвестиция.
- Интелигентно управление на вентилаторите: Поддържа системата ви хладна и тиха, автоматично регулирайки скоростите на вентилаторите въз основа на реални температурни сензори, удължавайки живота на компонентите.
Технически спецификации (Проверени):
- Поддържан процесор: Intel® Socket LGA 1700 за процесори 12-то и 13-то поколение Core™
- Чипсет: Intel® H610 Express
- Памет: 2 слота DDR4 DIMM, поддържащи до 64GB
- Съхранение: 1 x M.2 connector (PCIe 4.0 x4), 4 x SATA 3.0
- Разширение: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Видео изходи: HDMI, D-Sub
- Аудио: Realtek® Audio Codec
- Мрежа: Gigabit LAN
- Форм фактор: Micro ATX
SKU: H610M S2H V2 1.0
