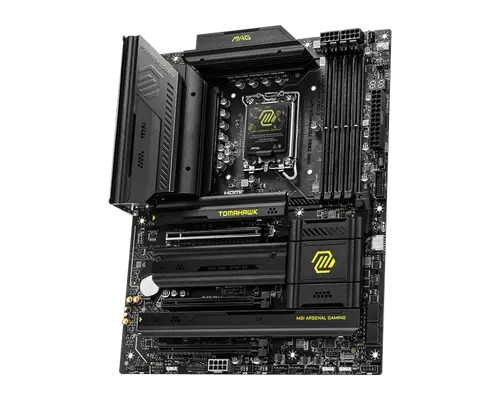

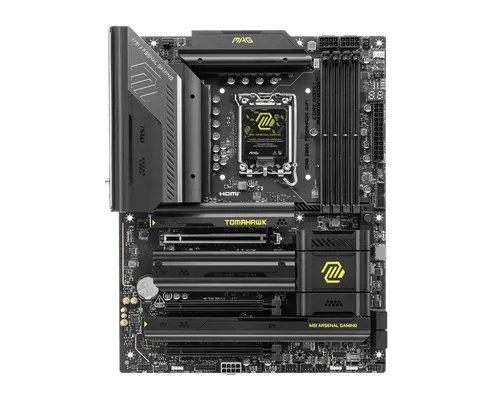

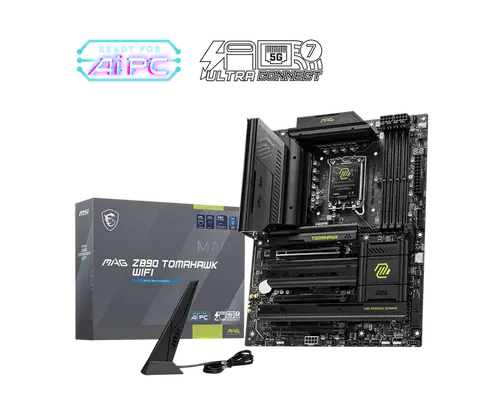

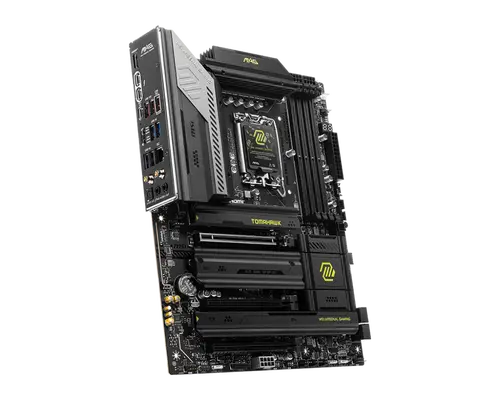

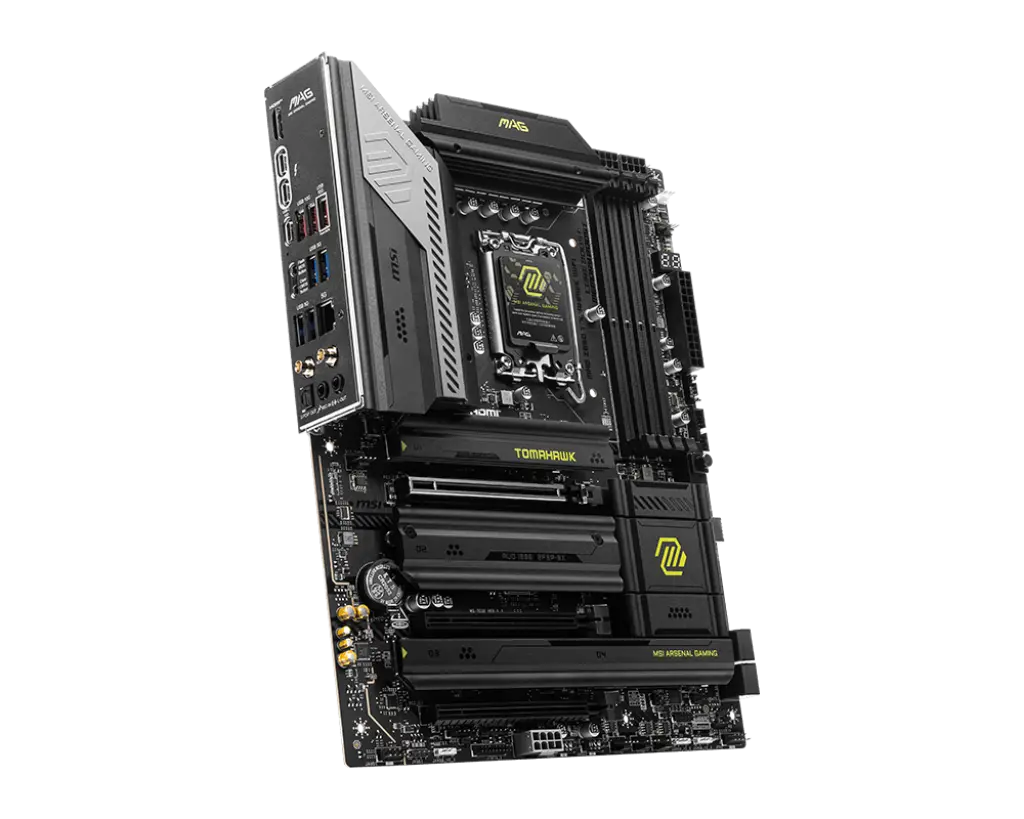

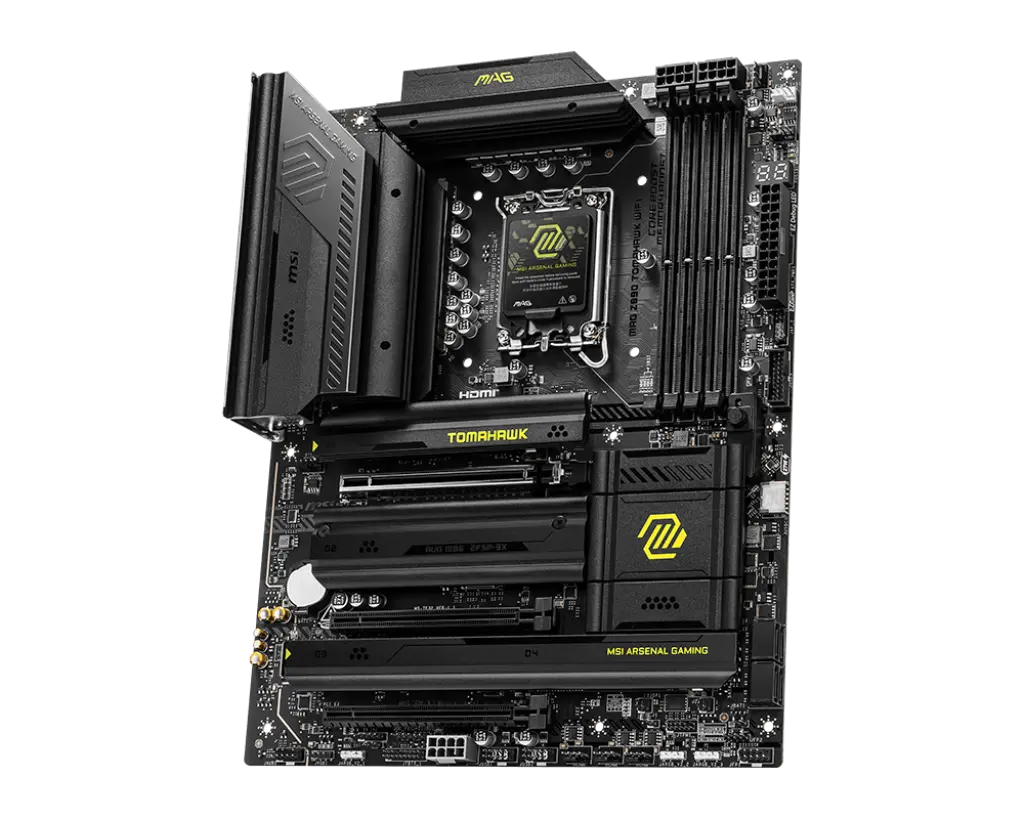

Name: Дънна платка, MSI MAG Z890 TOMAHAWK WIFI
Brand: MSI
SKU: 911-7E32-003
Price: 259.32 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

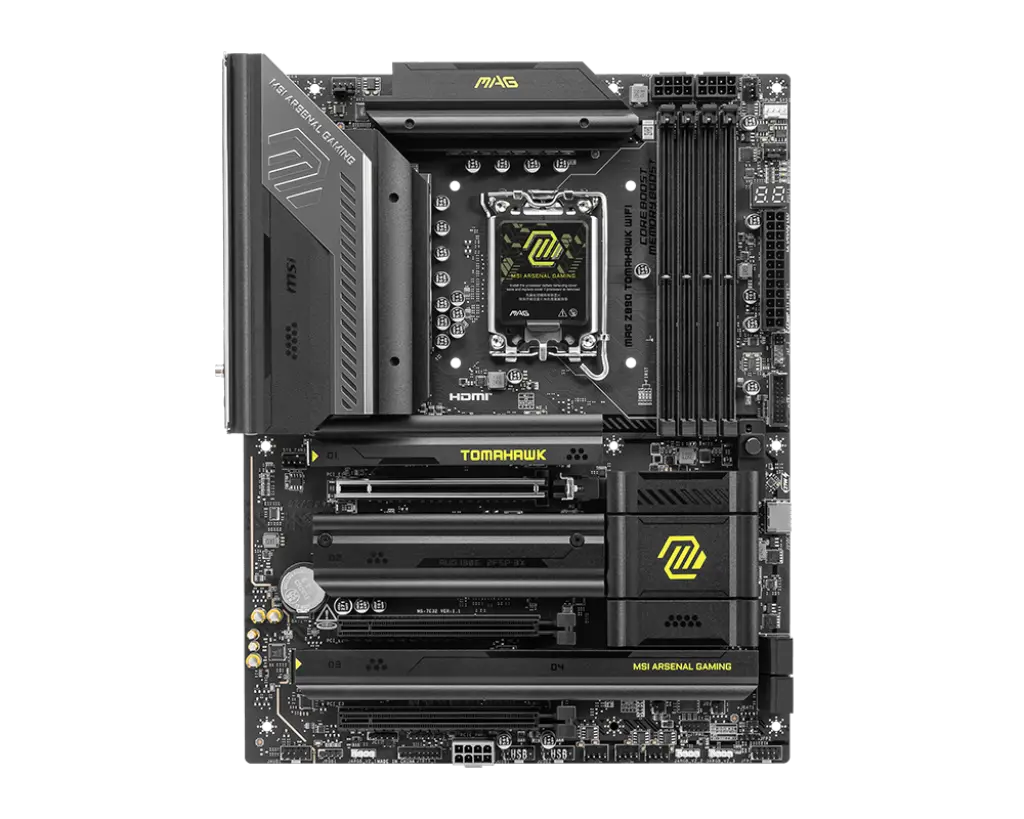

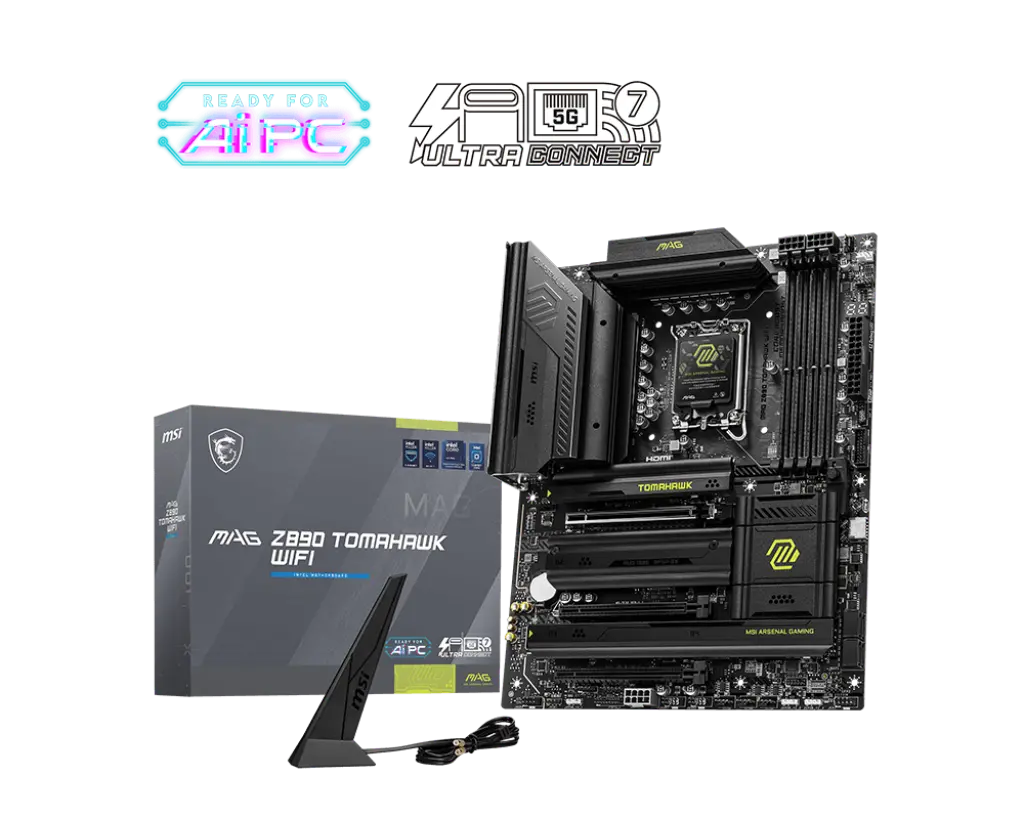

Дънна платка, MSI MAG Z890 TOMAHAWK WIFI

Цена

€259³² / 507¹⁹ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 34€

+2 години: + 50€

Код: 911-7E32-003
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.msi.com/Motherboard/MAG-Z890-TOMAHAWK-WIFI

Graphics

1x HDMI™

Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz

2x Type-C DisplayPort

Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Chipset

INTEL Z890

Expansion slots

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

4x M.2

-M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

-M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

-M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

-M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Memory type

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 9200+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

• 2DPC 1R Max speed up to 4800+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel® XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

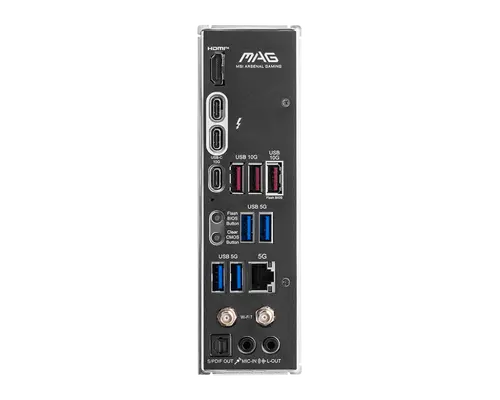

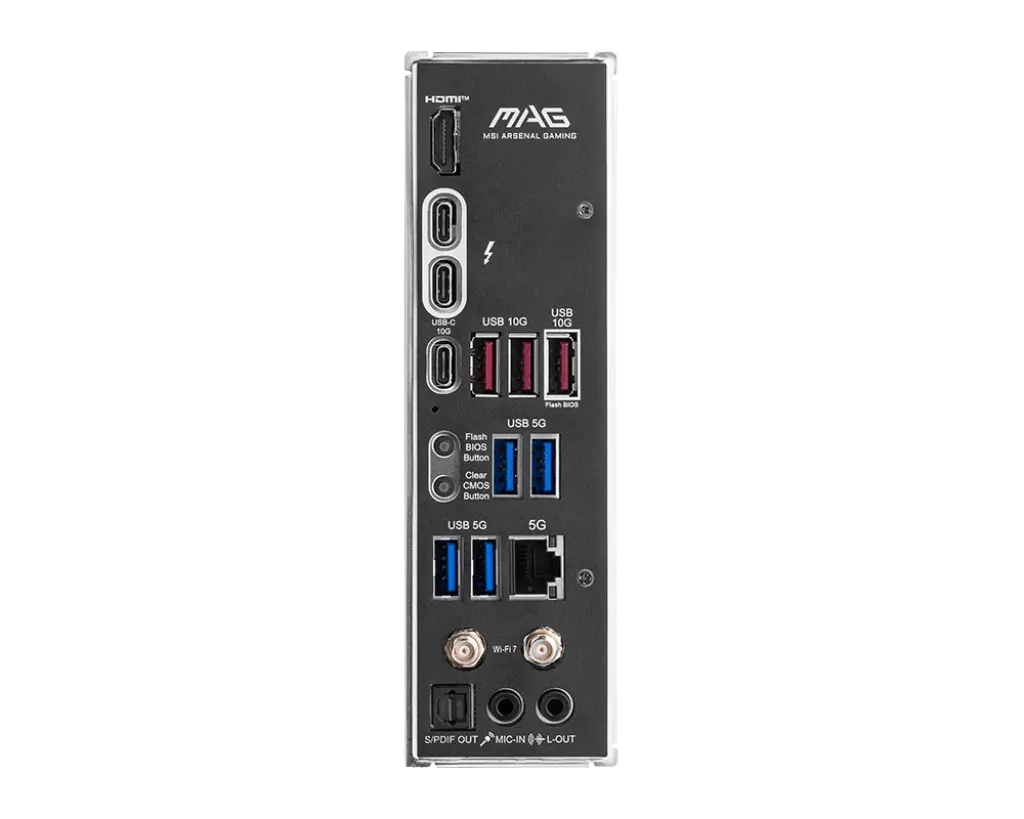

Rear panel I/O

2x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

Connectors

1x Thunderbolt5 card connector(JTBT5, support RTD3)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

Audio

Realtek® ALC1220P Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Lan

Intel® Killer™ E5000 5Gbps LAN

Wireless

Intel® Killer™ BE1750x Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth

5.4

Form factor

ATX 243.84mmx304.8mm

Support for Windows® 11 64-bit

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.msi.com/Motherboard/MAG-Z890-TOMAHAWK-WIFI
Chipset	INTEL Z890
OS	Support for Windows® 11 64-bit
Warranty	36 Months
CPU's supported	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory type	Supports non-ECC, un-buffered memory
Memory type	Max. overclocking frequency:
Memory type	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory type	• 2DPC 2R Max speed up to 4800+ MT/s
Memory type	Supports Dual-Controller Dual-Channel mode
Memory type	• 1DPC 2R Max speed up to 7200+ MT/s
Memory type	Supports Intel® POR Speed and JEDEC Speed
Memory type	Supports Memory Overclocking and Intel® XMP 3.0
Memory type	Supports CUDIMM
Memory type	• 2DPC 1R Max speed up to 4800+ MT/s
Memory type	Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Memory type	• 1DPC 1R Max speed up to 9200+ MT/s
Form Factor	ATX 243.84mmx304.8mm
Audio	7.1-Channel High Definition Audio
Audio	Supports S/PDIF output
Audio	Realtek® ALC1220P Codec
Rear panel I/O	2x USB 5Gbps Type A (Front)
Rear panel I/O	3x USB 10Gbps Type A (Rear)
Rear panel I/O	4x USB 2.0 (Front)
Rear panel I/O	1x USB 10Gbps Type C (Rear)
Rear panel I/O	1x USB 20Gbps Type C (Front)
Rear panel I/O	Supports up to 40Gbps transfer rate with Thunderbolt devices
Rear panel I/O	Supports up to 20Gbps transfer rate with USB4 devices
Rear panel I/O	Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Rear panel I/O	Supports up to 8K display
Rear panel I/O	2x Thunderbolt4 ports (Rear)
Rear panel I/O	4x USB 5Gbps Type A (Rear)
Rear panel I/O	Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging
LAN	Intel® Killer™ E5000 5Gbps LAN
Expansion Slots	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Expansion Slots	3x PCI-E x16 slot
Expansion Slots	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Expansion Slots	PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Wireless	The Wireless module is pre-installed in the M.2 (Key-E) slot
Wireless	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Wireless	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Wireless	Intel® Killer™ BE1750x Wi-Fi 7
Graphics	1x HDMI™
Graphics	2x Type-C DisplayPort
Graphics	Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Graphics	Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz
Features	4x EZ Debug LED
Features	1x EZ Digit Debug LED
I/O	2x USB 5Gbps Type A (Front)
I/O	3x USB 10Gbps Type A (Rear)
I/O	4x USB 2.0 (Front)
I/O	1x USB 10Gbps Type C (Rear)
I/O	1x USB 20Gbps Type C (Front)
I/O	4x USB 5Gbps Type A (Rear)
I/O	Supports up to 40Gbps transfer rate with Thunderbolt devices
I/O	Supports up to 20Gbps transfer rate with USB4 devices
I/O	Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
I/O	Supports up to 8K display
I/O	2x Thunderbolt4 ports (Rear)
I/O	Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging
Storage	4x SATA 6G
Storage	4x M.2
Storage	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Storage	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Storage	-M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
Storage	-M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
Storage	-M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Storage	-M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Bluetooth	5.4
Connectors	1x Power Connector(ATX_PWR)
Connectors	1x CPU Fan
Connectors	2x Front Panel (JFP)
Connectors	1x Chassis Intrusion (JCI)
Connectors	1x Front Audio (JAUD)
Connectors	1x TPM pin header(Support TPM 2.0)
Connectors	4x USB 2.0 ports
Connectors	1x RGB LED connector(JRGB)
Connectors	2x USB 5Gbps Type A ports
Connectors	2x Power Connector(CPU_PWR)
Connectors	6x System Fan
Connectors	3x Addressable V2 RGB LED connector (JARGB_V2)
Connectors	1x Combo Fan (Pump_Sys Fan)
Connectors	1x Power Connector(PCIE_PWR 8pin)
Connectors	1x EZ Conn-header (JAF_2)
Connectors	1x USB 20Gbps Type C ports
Connectors	1x Thunderbolt5 card connector(JTBT5, support RTD3)
Тегло	0.00кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	LGA1851
Форм фактор	ATX
Чипсет	Intel Z890
Тип памет	DDR5
Слотове за памет (count)	4
Максимална памет (GB)	256
M.2 слотове (count)	5
SATA портове (count)	6
PCIe x16 слотове (count)	3
Вграден Wi-Fi	Wi-Fi 7
Скорост на LAN	2.5 Gbps
USB-C портове (count)	2
RGB подсветка	Да
Тегло	0.00кг

Дънна платка MSI MAG Z890 TOMAHAWK WIFI

Освободете пълния потенциал на процесорите Intel Core Ultra с дънната платка MSI MAG Z890 TOMAHAWK WIFI. Проектирана с мощна 16+1+1 Duet Rail захранваща система и усъвършенстван термичен дизайн, тази ATX платка осигурява стабилна производителност за игри и създаване на съдържание.

Ключови Предимства

Свързаност от ново поколение — Поддръжка на PCIe 5.0 за графики и съхранение, както и Wi-Fi 7 за ултрабърза безжична мрежа.
Поддръжка на DDR5 памет — До 256GB DDR5 RAM с технология Memory Boost за подобрена скорост и стабилност.
Разширени опции за съхранение — 5 M.2 слота (включително 1 PCIe 5.0) и 6 SATA порта за гъвкаво високоскоростно съхранение.
Премиум аудио — Realtek ALC4080 кодек с 7.1-канален HD звук за потапящо изживяване.

Технически Спецификации

Спецификация	Стойност
Сокет	LGA1851
Форм фактор	ATX
Чипсет	Intel Z890
Тип памет	DDR5
Слотове за памет	4
Максимална памет	256 GB
M.2 слотове	5
SATA портове	6
PCIe x16 слотове	3
Вграден Wi-Fi	Wi-Fi 7
Скорост на LAN	2.5 Gbps
USB-C портове	2
RGB подсветка	Да
