Name: Дънна платка, MSI MPG B850 EDGE TI WIFI /AM5
Brand: MSI
SKU: 911-7E62-001
Price: 284.50 EUR
Availability: InStock
Rating: 5 (1 reviews)

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

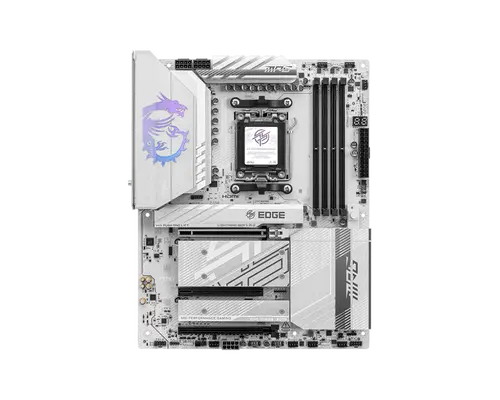

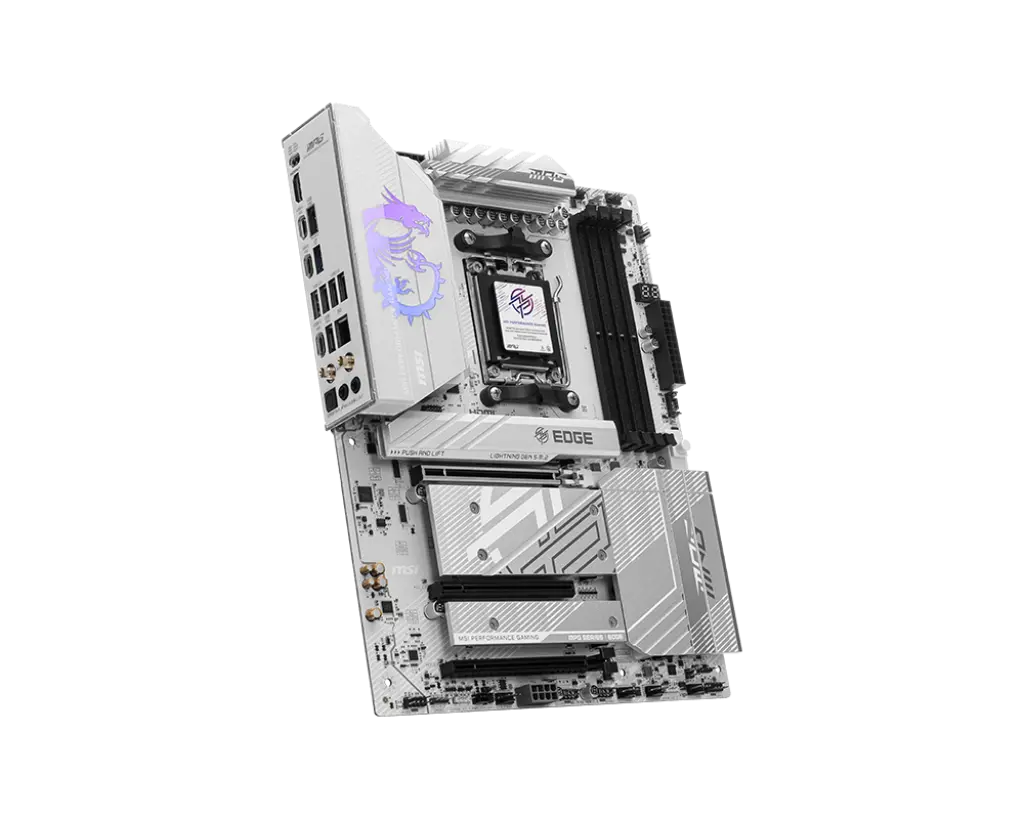

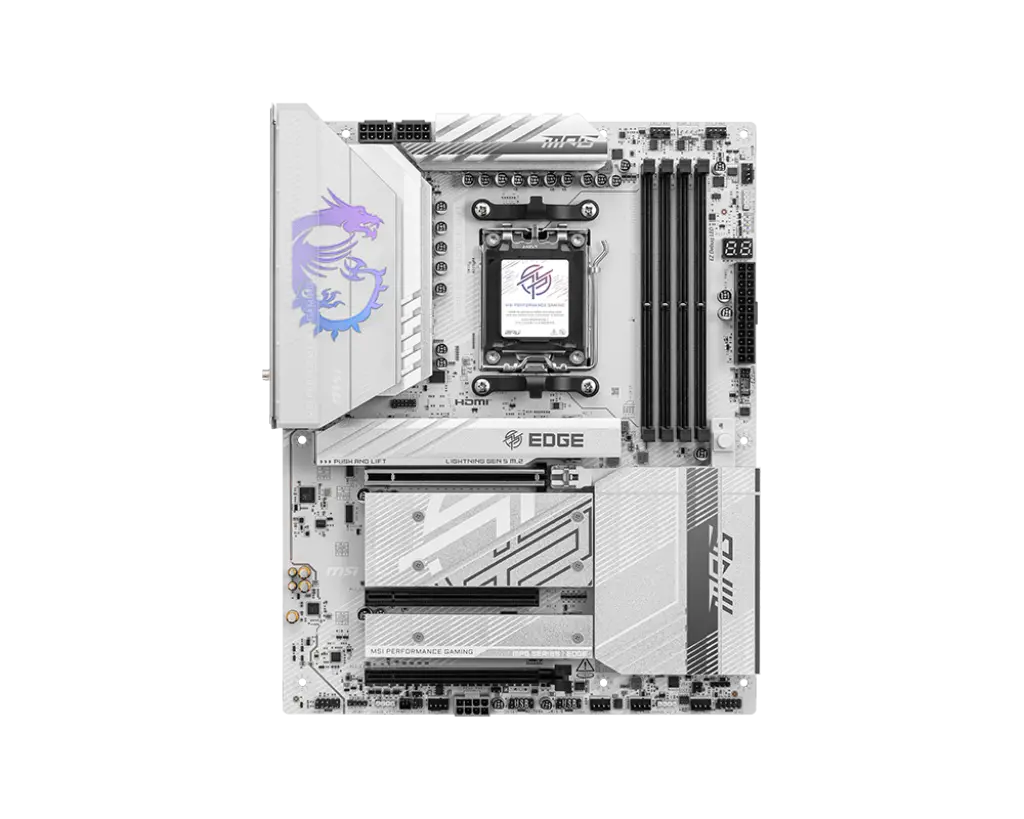

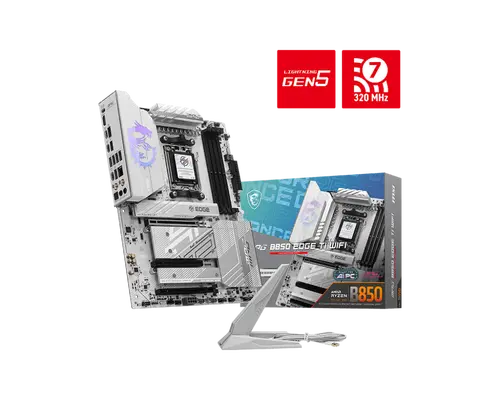

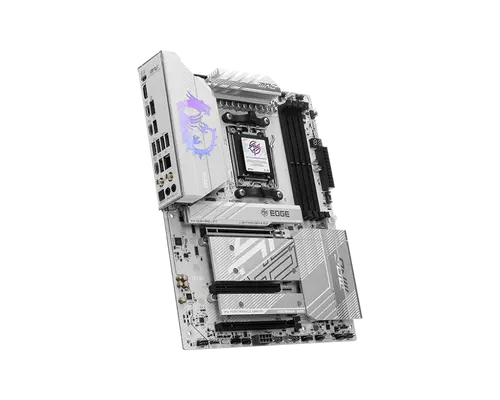

Дънна платка, MSI MPG B850 EDGE TI WIFI /AM5 - 1

Дънна платка, MSI MPG B850 EDGE TI WIFI /AM5 - 2

Дънна платка, MSI MPG B850 EDGE TI WIFI /AM5 - 3

Дънна платка, MSI MPG B850 EDGE TI WIFI /AM5 - 4

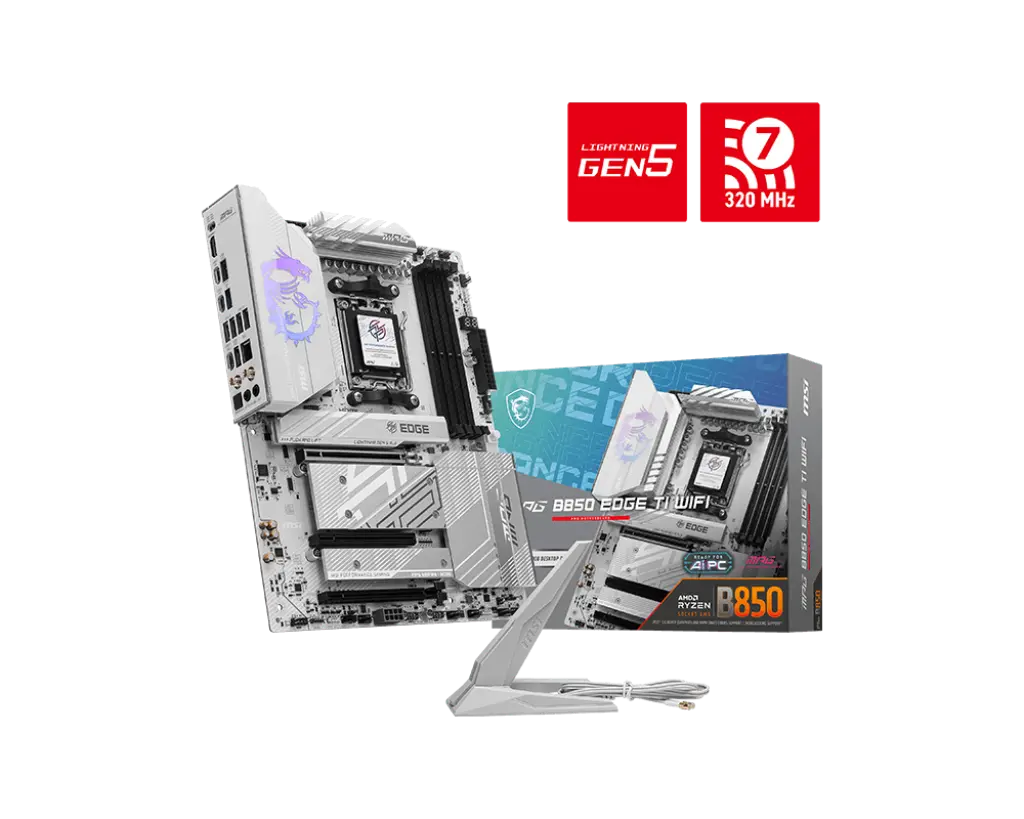

Дънна платка, MSI MPG B850 EDGE TI WIFI /AM5

Цена

€284⁵⁰ / 556⁴³ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 37€

+2 години: + 55€

Код: 911-7E62-001
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.msi.com/Motherboard/MPG-B850-EDGE-TI-WIFI

Graphics

1x HDMI™

Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz

Chipset

AMD B850

Expansion slots

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

*PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot

Storage

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M.2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors)

• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

• Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices

*RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU

Memory type

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8400+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only

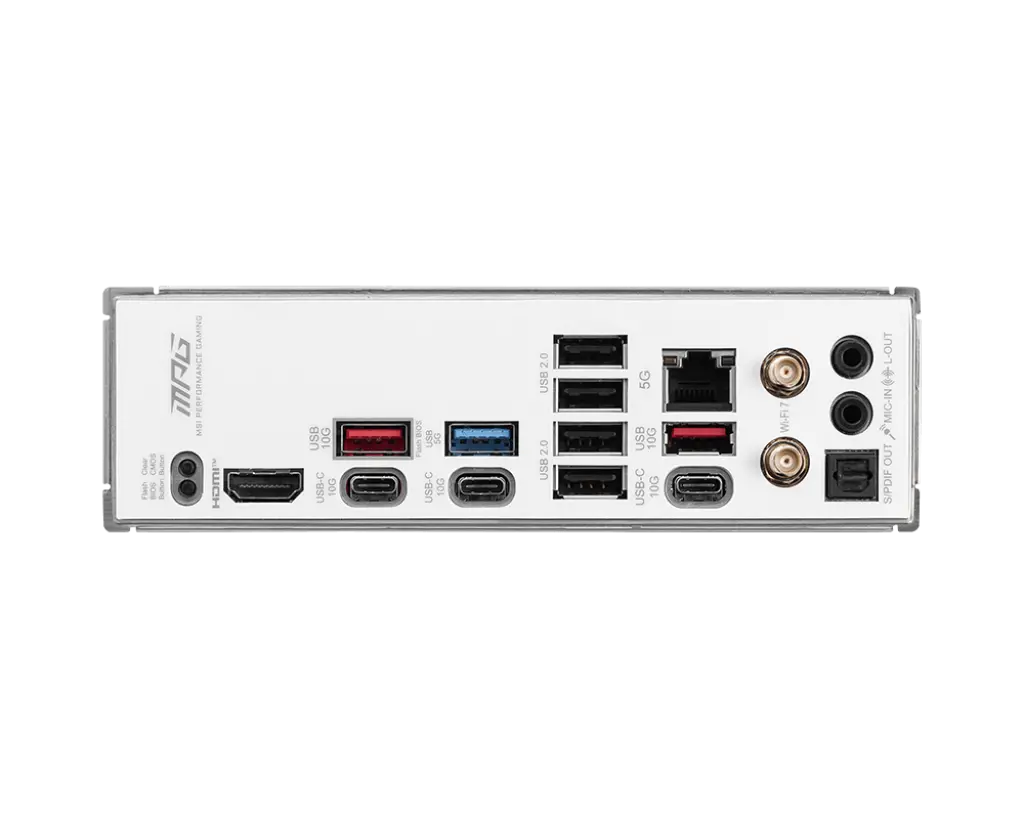

Rear panel I/O

Clear CMOS Button

USB 10Gbps Type-A

USB 5Gbps Type-A

USB 2.0

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

HDMI™

USB 10Gbps Type-C

USB 10Gbps Type-A

USB 10Gbps Type-C

Optical S/PDIF Out

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

2x USB 10Gbps Type A (Rear)

3x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

Connectors

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

Audio

Realtek® ALC4080 Codec

7.1-Channel USB High-Performance Audio

Supports up to 32-Bit/384 kHz playback on front panel

Supports S/PDIF output

Lan

1x Realtek® 8126 5G LAN

Wireless

Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth

Supports Bluetooth® 5.4**, MLO, 4KQAM

Form factor

ATX

304.8mmx243.84mm

Support for Windows® 11 64-bit

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.msi.com/Motherboard/MPG-B850-EDGE-TI-WIFI
Chipset	AMD B850
OS	Support for Windows® 11 64-bit
Warranty	36 Months
CPU's supported	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
CPU's supported	Socket AM5
Memory type	Supports Dual-Channel mode
Memory type	Supports non-ECC, un-buffered memory
Memory type	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory type	• 1DPC 2R Max speed up to 6400+ MT/s
Memory type	• 2DPC 1R Max speed up to 6400+ MT/s
Memory type	• 2DPC 2R Max speed up to 4800+ MT/s
Memory type	Supports AMD POR Speed and JEDEC Speed
Memory type	Supports Memory Overclocking and AMD EXPOTM
Memory type	Supports CUDIMM, Clock Driver bypass mode only
Memory type	Ryzen™ 9000 Series Processors max. overclocking frequency:
Memory type	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Memory type	• 1DPC 1R Max speed up to 8400+ MT/s
Form Factor	ATX
Form Factor	304.8mmx243.84mm
Audio	Supports S/PDIF output
Audio	Realtek® ALC4080 Codec
Audio	Supports up to 32-Bit/384 kHz playback on front panel
Audio	7.1-Channel USB High-Performance Audio
Rear panel I/O	Audio Connectors
Rear panel I/O	HDMI™
Rear panel I/O	Flash BIOS button
Rear panel I/O	USB 2.0
Rear panel I/O	Wi-Fi / Bluetooth
Rear panel I/O	Optical S/PDIF OUT
Rear panel I/O	Clear CMOS Button
Rear panel I/O	5G LAN
Rear panel I/O	USB 10Gbps Type-A
Rear panel I/O	USB 10Gbps Type-C
Rear panel I/O	USB 5Gbps Type-A
LAN	1x Realtek® 8126 5G LAN
Expansion Slots	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion Slots	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Expansion Slots	3x PCI-E x16 slot
Expansion Slots	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Expansion Slots	PCI_E1 slot
Expansion Slots	• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Expansion Slots	• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Expansion Slots	• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
Expansion Slots	*PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot
Wireless	The Wireless module is pre-installed in the M.2 (Key-E) slot
Wireless	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Wireless	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Wireless	Wi-Fi 7
Graphics	1x HDMI™
Graphics	Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz
Features	4x EZ Debug LED
Features	1x EZ Memory Detection LED
Features	1x EZ Digit Debug LED
I/O	Audio Connectors
I/O	HDMI™
I/O	USB 2.0
I/O	Flash BIOS button
I/O	Wi-Fi / Bluetooth
I/O	Optical S/PDIF OUT
I/O	Clear CMOS Button
I/O	5G LAN
I/O	USB 10Gbps Type-A
I/O	USB 10Gbps Type-C
I/O	USB 5Gbps Type-A
Storage	4x SATA 6G
Storage	4x M.2
Storage	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
Storage	M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Storage	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
Storage	• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Storage	• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
Storage	• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Storage	M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
Storage	M.2_1 slot
Storage	M.2_2 slot
Storage	• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors)
Storage	• Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices
Storage	*RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU
Bluetooth	Supports Bluetooth® 5.4**, MLO, 4KQAM
Connectors	1x Power Connector(ATX_PWR)
Connectors	1x CPU Fan
Connectors	2x Front Panel (JFP)
Connectors	1x Chassis Intrusion (JCI)
Connectors	1x Front Audio (JAUD)
Connectors	1x TPM pin header(Support TPM 2.0)
Connectors	4x USB 2.0 ports
Connectors	1x RGB LED connector(JRGB)
Connectors	2x Power Connector(CPU_PWR)
Connectors	6x System Fan
Connectors	3x Addressable V2 RGB LED connector (JARGB_V2)
Connectors	1x Combo Fan (Pump_Sys Fan)
Connectors	1x Power Connector(PCIE_PWR 8pin)
Connectors	4x USB 5Gbps Type A ports
Connectors	1x EZ Conn-header (JAF_2)
Connectors	1x USB 20Gbps Type C ports
USB	4x USB 2.0 (Front)
USB	4x USB 2.0 (Rear)
USB	1x USB 5Gbps Type A (Rear)
USB	4x USB 5Gbps Type A (Front)
USB	2x USB 10Gbps Type A (Rear)
USB	3x USB 10Gbps Type C (Rear)
USB	1x USB 20Gbps Type C (Front)
Тегло	0.00кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.

Дънна платка MSI MPG B850 EDGE TI WIFI – Мощност и Прецизност

Освободете пълния потенциал на вашия геймърски или работен компютър с MSI MPG B850 EDGE TI WIFI дънна платка. Проектирана за върхова производителност, тази ATX платка предлага модерна свързаност, стабилно захранване и завладяващ дизайн.

Защо да изберете MSI MPG B850 EDGE TI WIFI?

Следващо ниво производителност: Поддръжка на AMD Ryzen™ 8000/7000 процесори и DDR5 памет за невероятни скорости.
Безкомпромисна свързаност: Двойни PCIe 4.0 x16 слотове, Wi-Fi 6E и 2.5G LAN за игри без закъснения и плавна мултизадачност.
Интелигентно охлаждане: Разширени радиатори, M.2 Shield Frozr и управление на вентилатори за оптимални температури.
Завладяващ RGB ефект: Персонализирани Mystic Light RGB ефекти, синхронизирани с вашата система.
Подготвена за бъдещето: USB4® и PCIe 5.0 поддръжка за следващо поколение технологии.
