Name: Дънна платка, MSI PRO B860M-A WIFI /LGA1851
Brand: MSI
SKU: 911-7E42-002
Price: 173.40 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

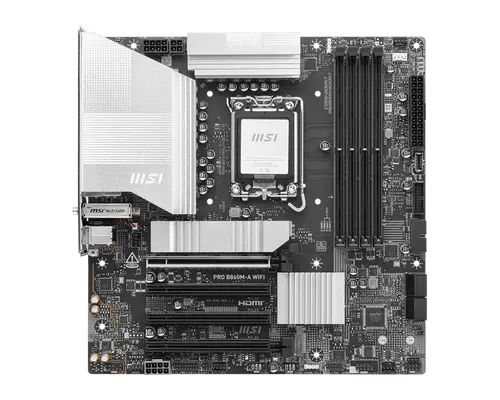

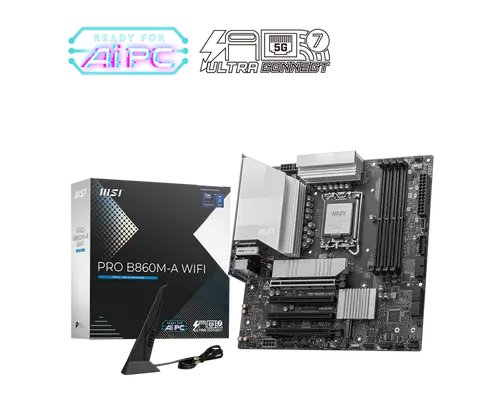

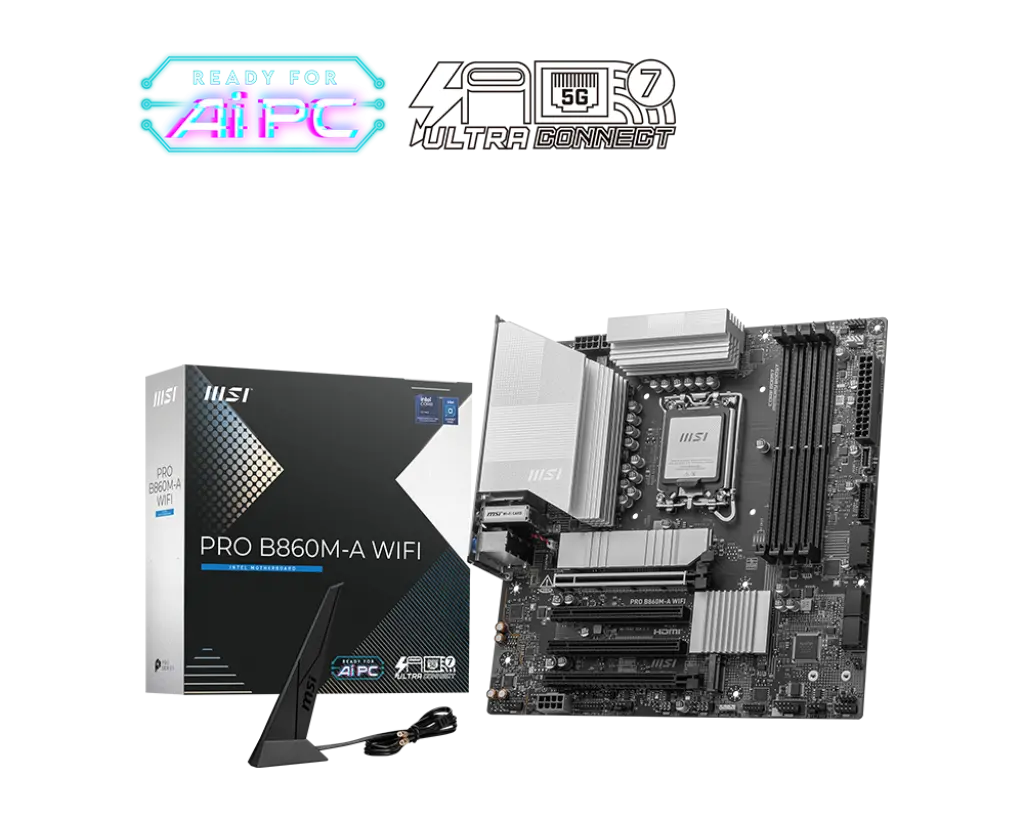

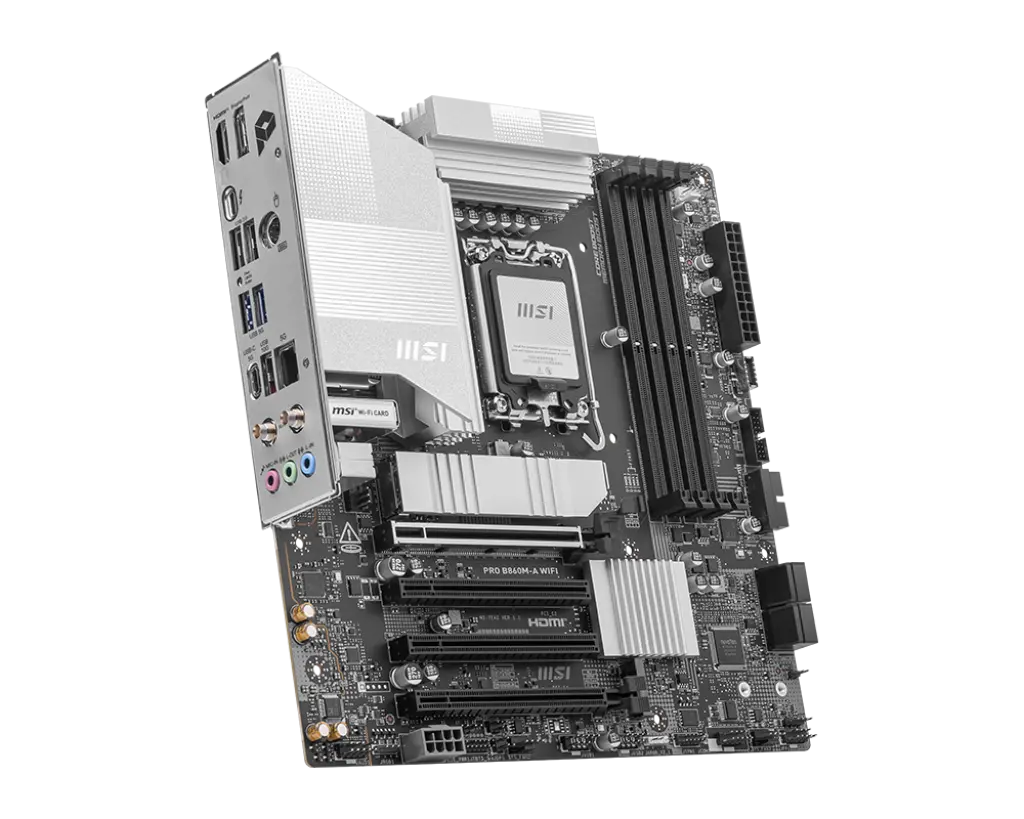

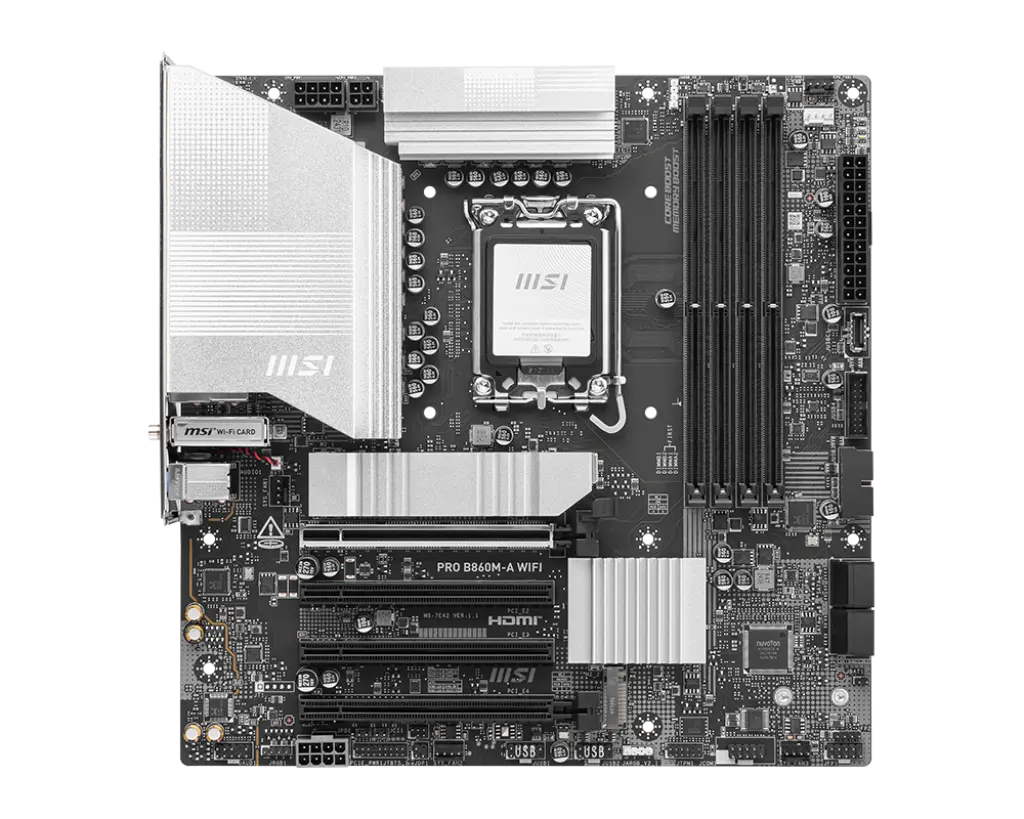

Дънна платка, MSI PRO B860M-A WIFI /LGA1851

Цена

€173⁴⁰ / 339¹⁴ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 23€

+2 години: + 33€

Код: 911-7E42-002
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.msi.com/Motherboard/PRO-B860M-A-WIFI/Overview

Graphics

1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz

1x Type-C DisplayPort

Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Chipset

INTEL B860

Expansion slots

4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices

4x SATA 6G

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Memory type

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8800+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel® XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

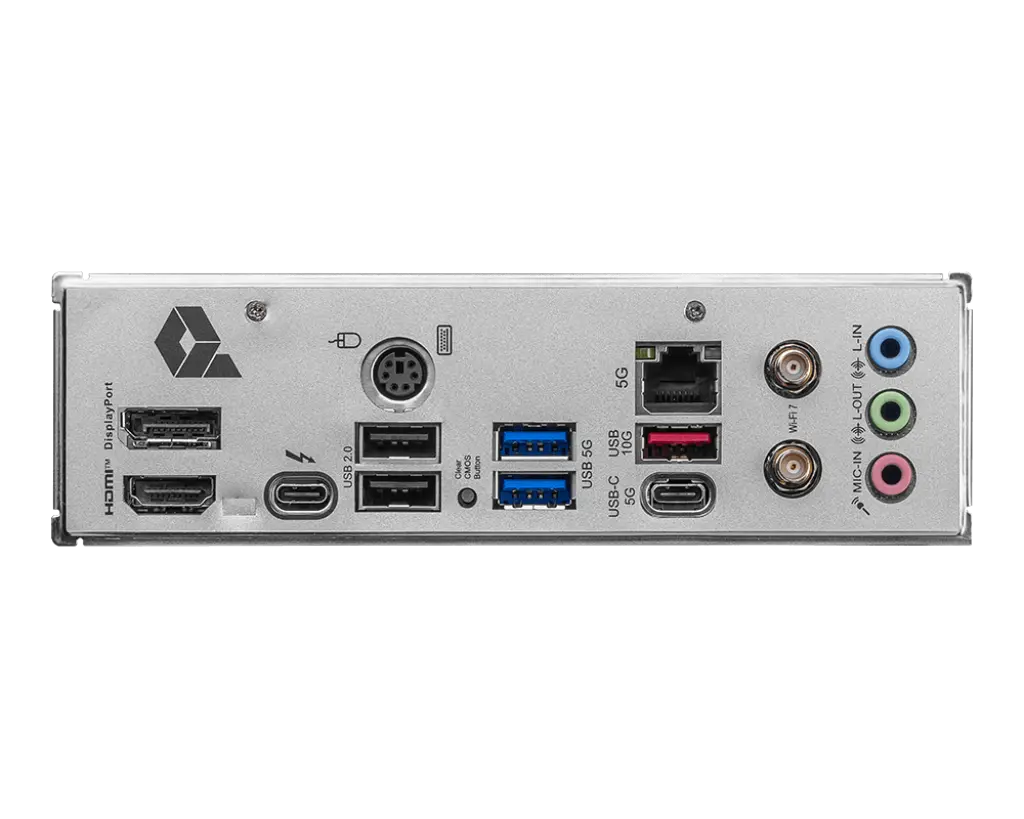

Rear panel I/O

DisplayPort

Keyboard / Mouse

USB 5Gbps Type-A

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

HDMI™

Thunderbolt™ 4 40Gbps (Type-C)

USB 2.0

Clear CMOS Button

USB 10Gbps Type-A

USB 5Gbps Type-C

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

1x USB 5Gbps Type C (Rear)

4x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

Connectors

1x Thunderbolt5 card connector(JTBT5, support RTD3)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Lan

Realtek® 8126 5Gbps LAN

Wireless

Intel® Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth

Supports Bluetooth® 5.4**, MLO, 4KQAM

Form factor

mATX

243.84mmx243.84mm

Support for Windows® 11 64-bit

Other

1x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.msi.com/Motherboard/PRO-B860M-A-WIFI/Overview
Chipset	INTEL B860
OS	Support for Windows® 11 64-bit
Warranty	36 Months
CPU's supported	Supports Intel® Core™ Ultra Processors (Series 2)
CPU's supported	LGA 1851
Memory type	Supports non-ECC, un-buffered memory
Memory type	Max. overclocking frequency:
Memory type	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory type	• 2DPC 1R Max speed up to 6400+ MT/s
Memory type	Supports Dual-Controller Dual-Channel mode
Memory type	Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Memory type	• 1DPC 1R Max speed up to 8800+ MT/s
Memory type	• 1DPC 2R Max speed up to 7200+ MT/s
Memory type	• 2DPC 2R Max speed up to 5600+ MT/s
Memory type	Supports Intel® POR Speed and JEDEC Speed
Memory type	Supports Memory Overclocking and Intel® XMP 3.0
Memory type	Supports CUDIMM
Form Factor	mATX
Form Factor	243.84mmx243.84mm
Audio	7.1-Channel High Definition Audio
Audio	Realtek® ALC897 Codec
Rear panel I/O	Keyboard / Mouse
Rear panel I/O	Audio Connectors
Rear panel I/O	HDMI™
Rear panel I/O	DisplayPort
Rear panel I/O	USB 2.0
Rear panel I/O	Wi-Fi / Bluetooth
Rear panel I/O	Clear CMOS Button
Rear panel I/O	5G LAN
Rear panel I/O	USB 10Gbps Type-A
Rear panel I/O	USB 5Gbps Type-A
Rear panel I/O	Thunderbolt™ 4 40Gbps (Type-C)
Rear panel I/O	USB 5Gbps Type-C
LAN	Realtek® 8126 5Gbps LAN
Expansion Slots	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Expansion Slots	PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Expansion Slots	4x PCI-E x16 slot
Expansion Slots	PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
Expansion Slots	PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Wireless	The Wireless module is pre-installed in the M.2 (Key-E) slot
Wireless	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Wireless	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Wireless	Intel® Wi-Fi 7
Graphics	1x HDMI™
Graphics	Support HDMITM 2.1, maximum resolution of 4K 60Hz
Graphics	1x DisplayPort
Graphics	1x Type-C DisplayPort
Graphics	Support HDMI™ 2.1, maximum resolution of 4K 60Hz
Graphics	Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Graphics	Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Other	1x Thunderbolt4 ports (Rear)
Other	Supports up to 40Gbps transfer rate with Thunderbolt devices
Other	Supports up to 20Gbps transfer rate with USB4 devices
Other	Supports up to 10Gbps transfer rate with USB 3.2 devices
Other	Supports up to 5V/3A,15W power charging
Other	Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Other	Supports up to 8K display
Features	4x EZ Debug LED
I/O	Keyboard / Mouse
I/O	Audio Connectors
I/O	HDMI™
I/O	DisplayPort
I/O	USB 2.0
I/O	Wi-Fi / Bluetooth
I/O	Clear CMOS Button
I/O	5G LAN
I/O	USB 10Gbps Type-A
I/O	USB 5Gbps Type-A
I/O	Thunderbolt™ 4 40Gbps (Type-C)
I/O	USB 5Gbps Type-C
Storage	4x SATA 6G
Storage	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Storage	3x M.2
Storage	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
Storage	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Storage	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
Bluetooth	Supports Bluetooth® 5.4**, MLO, 4KQAM
Connectors	1x Power Connector(ATX_PWR)
Connectors	1x CPU Fan
Connectors	2x Front Panel (JFP)
Connectors	1x Chassis Intrusion (JCI)
Connectors	1x Front Audio (JAUD)
Connectors	1x Com Port (JCOM)
Connectors	1x TPM pin header(Support TPM 2.0)
Connectors	4x USB 2.0 ports
Connectors	1x RGB LED connector(JRGB)
Connectors	2x Power Connector(CPU_PWR)
Connectors	1x Tuning Controller connector(JDASH)
Connectors	2x Addressable V2 RGB LED connector (JARGB_V2)
Connectors	3x System Fan
Connectors	1x USB 10Gbps Type C ports
Connectors	1x Combo Fan (Pump_Sys Fan)
Connectors	1x Power Connector(PCIE_PWR 8pin)
Connectors	4x USB 5Gbps Type A ports
Connectors	1x Thunderbolt5 card connector(JTBT5, support RTD3)
USB	2x USB 2.0 (Rear)
USB	4x USB 2.0 (Front)
USB	2x USB 5Gbps Type A (Rear)
USB	1x USB 10Gbps Type C (Front)
USB	4x USB 5Gbps Type A (Front)
USB	1x USB 10Gbps Type A (Rear)
USB	1x USB 5Gbps Type C (Rear)
Тегло	0.00кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	LGA1851
Форм фактор	Micro-ATX
Чипсет	Intel B860
Тип памет	DDR5
Слотове за памет (count)	2
Максимална памет (GB)	96
M.2 слотове (count)	3
SATA портове (count)	4
PCIe x16 слотове (count)	1
Вграден Wi-Fi	Wi-Fi 6E
Скорост на LAN	2.5 Gbps
USB-C портове (count)	1
RGB подсветка	Не
Тегло	0.00кг

Дънна платка MSI PRO B860M-A WIFI LGA1851

Освободете пълния потенциал на процесорите Intel Core Ultra с MSI PRO B860M-A WIFI. Тази Micro-ATX дънна платка, базирана на сокет LGA1851 и чипсет Intel B860, предлага висока производителност, свързаност от ново поколение и изключителна стабилност за професионални и геймърски конфигурации.

Ключови Предимства

Производителност от ново поколение — Поддръжка на Intel Core Ultra (LGA1851) с DDR5 памет до 7200+ MHz за бърза многозадачност.
Ултра-бърза свързаност — Вграден Wi-Fi 6E и 2.5G LAN осигуряват ниска латентност, а PCIe 5.0 x16 слот дава максимална честотна лента за видеокартата.
Съхранение за бъдещето — Три M.2 слота (включително един PCIe 5.0) и четири SATA порта предлагат множество опции за бързо съхранение.
Стабилно захранване — 12+1+1 Duet Rail захранваща система с премиум охлаждане гарантира стабилна работа при натоварване.

Технически Спецификации

Спецификация	Стойност
Сокет	LGA1851
Форм фактор	Micro-ATX
Чипсет	Intel B860
Тип памет	DDR5
Слотове за памет	2
Максимална памет	96 GB
M.2 слотове	3
SATA портове	4
PCIe x16 слотове	1
Вграден Wi-Fi	Wi-Fi 6E
Скорост на LAN	2.5 Gbps
USB-C портове	1
RGB подсветка	Не
