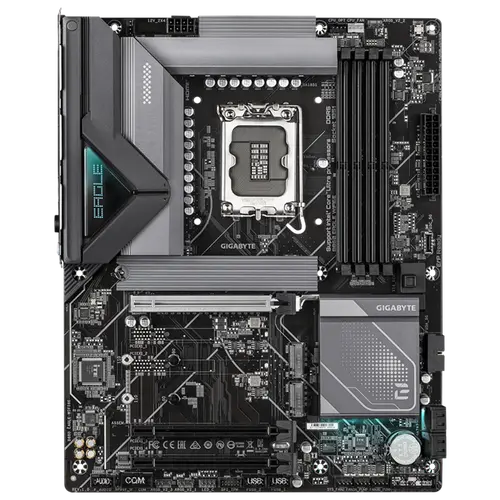

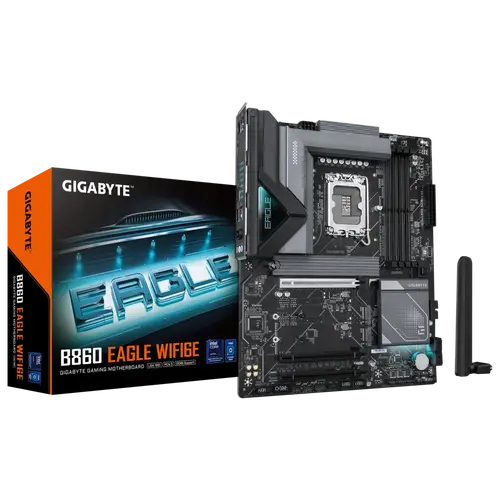

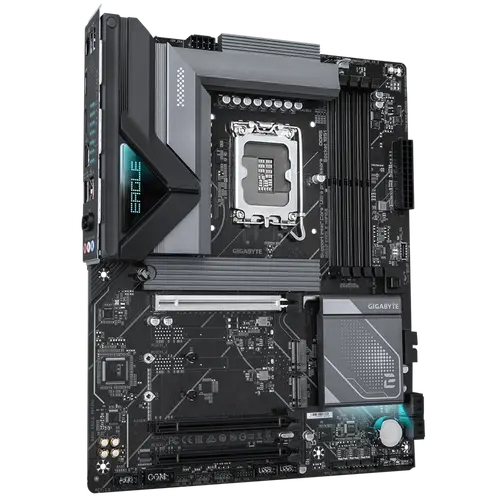

Дънна платка, GIGABYTE GB B860 EAGLE WIFI6E /LGA1851

  • GIGABYTE
Дънна платка, GIGABYTE GB B860 EAGLE WIFI6E /LGA1851
Цена
€181 86 / 355 69 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 24€
+2 години: + 35€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
CreditCredit
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B860-EAGLE-WIFI6E#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
Chipset
Intel ® B860 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE®I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB headers
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

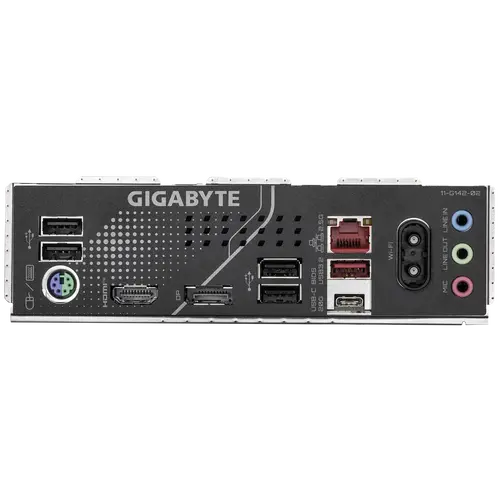

Back Panel Connectors:
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel® NPU driver is only supported on Windows 11
Software: Norton®Internet Security (OEM version)
LAN bandwidth management software
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://www.gigabyte.com/Motherboard/B860-EAGLE-WIFI6E#kf
ChipsetIntel ® B860 Express Chipset
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
OSLAN bandwidth management software
OS* The Intel® NPU driver is only supported on Windows 11
OSSoftware: Norton®Internet Security (OEM version)
Warranty36 Months
CPU's supportedL3 cache varies with CPU
CPU's supportedLGA1851 socket: Support for Intel ® Core™ Ultra Processors
Memory typeDual channel memory architecture
Memory typeSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Form Factor30.5cm x 24.4cm
Form FactorATX Form Factor
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
Rear panel I/OiTE®I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
Wireless- BLUETOOTH 5.3
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless- Support for 11ax 160MHz wireless standard
WirelessRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WirelessIntel® Wi-Fi 6E AX211 (PCB rev. 1.0)
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics* Support for HDMI 2.1 version and HDCP 2.3.
Graphics- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
Graphics* Support for DisplayPort 2.1 version.
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
Features* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
FeaturesSupport for Smart Backup
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OiTE®I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
StorageCPU:
StorageChipset:
Storage- 4 x SATA 6Gb/s connectors
Storage- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Storage- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
Storage- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
Bluetooth5.3
Connectors1 x 24-pin ATX main power connector
Connectors1 x CPU fan header
Connectors3 x M.2 Socket 3 connectors
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x S/PDIF Out header
Connectors1 x USB Type-C® header, with USB 3.2 Gen 1 support
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x serial port header
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors4 x SATA 6Gb/s connectors
Connectors2 x system fan headers
Connectors1 x RGB LED strip header
Connectors1 x PS/2 keyboard/mouse port
Connectors1 x HDMI port (Note)
Connectors1 x DisplayPort (Note)
Connectors1 x RJ-45 port
Connectors3 x audio jacks
Connectors1 x CPU fan/water cooling pump header
Connectors4 x USB 2.0/1.1 ports
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors2 x antenna connectors (2T2R)
ConnectorsBack Panel Connectors:
Connectors1 x USB 3.2 Gen 2 Type-A port (red)
Connectors2 x system fan/water cooling pump headers
Connectors1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
USBChipset:
USB- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USBChipset+USB 2.0 Hub:
USB- 4 x USB 2.0/1.1 ports on the back panel
USB- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
USB- 2 x USB 3.2 Gen 1 ports available through the internal USB headers
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетLGA1851
Форм факторATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет (count)2
Максимална памет (GB)96
M.2 слотове (count)2
SATA портове (count)4
PCIe x16 слотове (count)1
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове (count)1
RGB подсветкаНе
Тегло0.00кг

Дънна платка GIGABYTE GB B860 EAGLE WIFI6E (LGA1851)

Освободете пълния потенциал на процесорите Intel Core Ultra с дънната платка GIGABYTE B860 EAGLE WIFI6E. С поддръжка на DDR5, PCIe 5.0 и вграден Wi-Fi 6E, тази платка осигурява изключителна скорост и свързаност за геймъри и създатели на съдържание.

Ключови Предимства

  • Производителност от ново поколение — Цокъл LGA1851 с чипсет Intel B860 поддържа най-новите Intel Core Ultra процесори и DDR5 памет за изключителна бързина.
  • Ултра-бърза свързаност — Вграден Wi-Fi 6E и 2.5 GbE LAN осигуряват ниска латентност за онлайн игри и стрийминг.
  • Разширено съхранение — Два M.2 слота с PCIe 5.0 поддръжка осигуряват светкавично бързи SSD скорости.

Технически Спецификации

СпецификацияСтойност
СокетLGA1851
Форм факторATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет2
Максимална памет96 GB
M.2 слотове2
SATA портове4
PCIe x16 слотове1
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове1
RGB подсветкаНе

Какво има в кутията

  • Дънна платка GIGABYTE B860 EAGLE WIFI6E
  • Ръководство за потребителя
  • I/O скоба
  • SATA кабел (x2)
  • Wi-Fi антена
