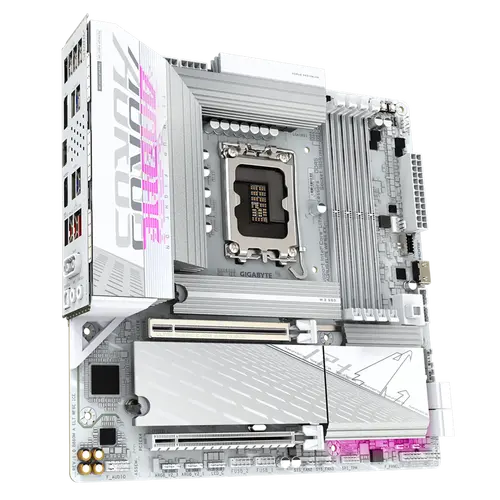

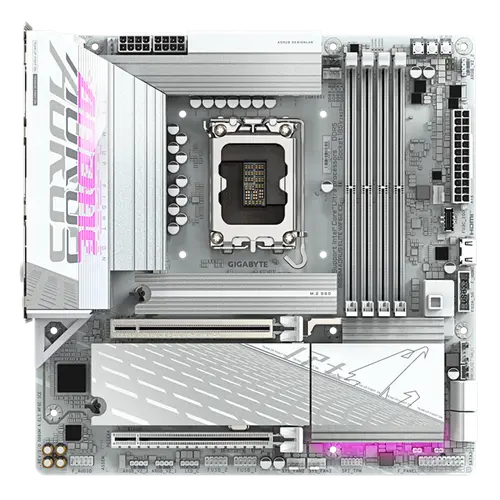

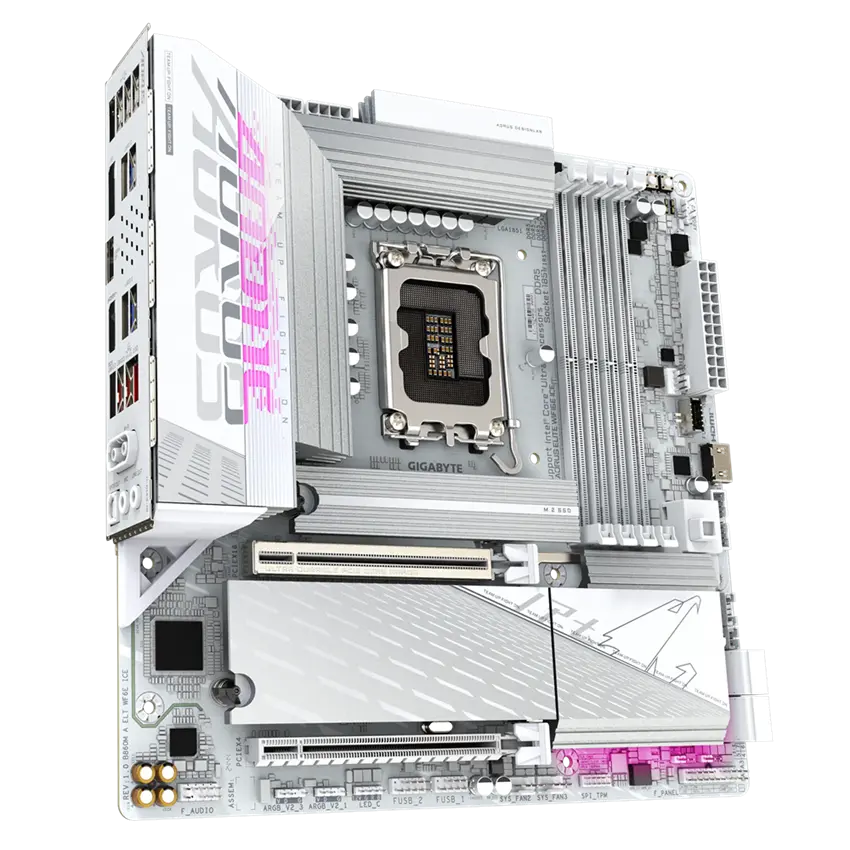

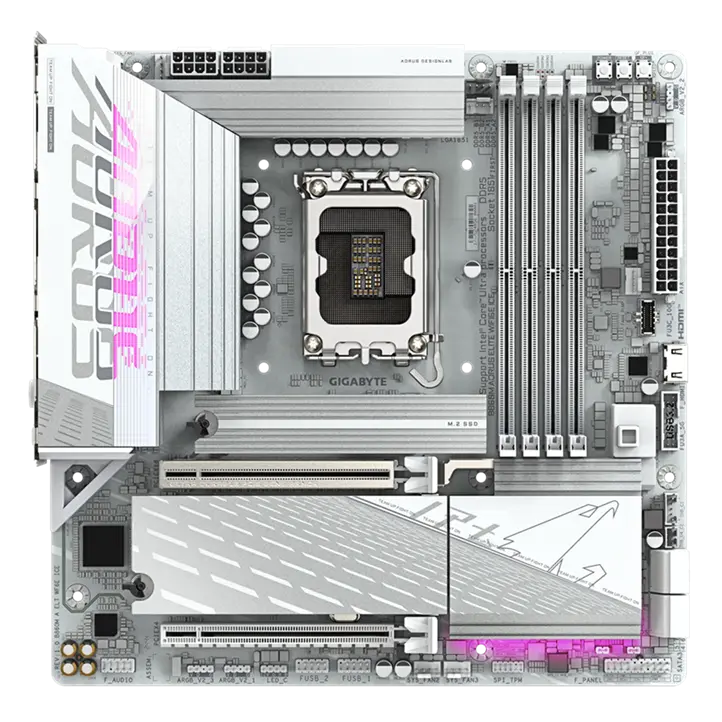

Дънна платка, GIGABYTE GB B860M A ELT WF6E ICE /1851

  • GIGABYTE
  • Няма Наличност
Дънна платка, GIGABYTE GB B860M A ELT WF6E ICE /1851
Няма Наличност
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Удължи гаранцията си
+1 година: + 27€
+2 години: + 39€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B860M-AORUS-ELITE-WIFI6E-ICE#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time
Chipset
Intel ® B860 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

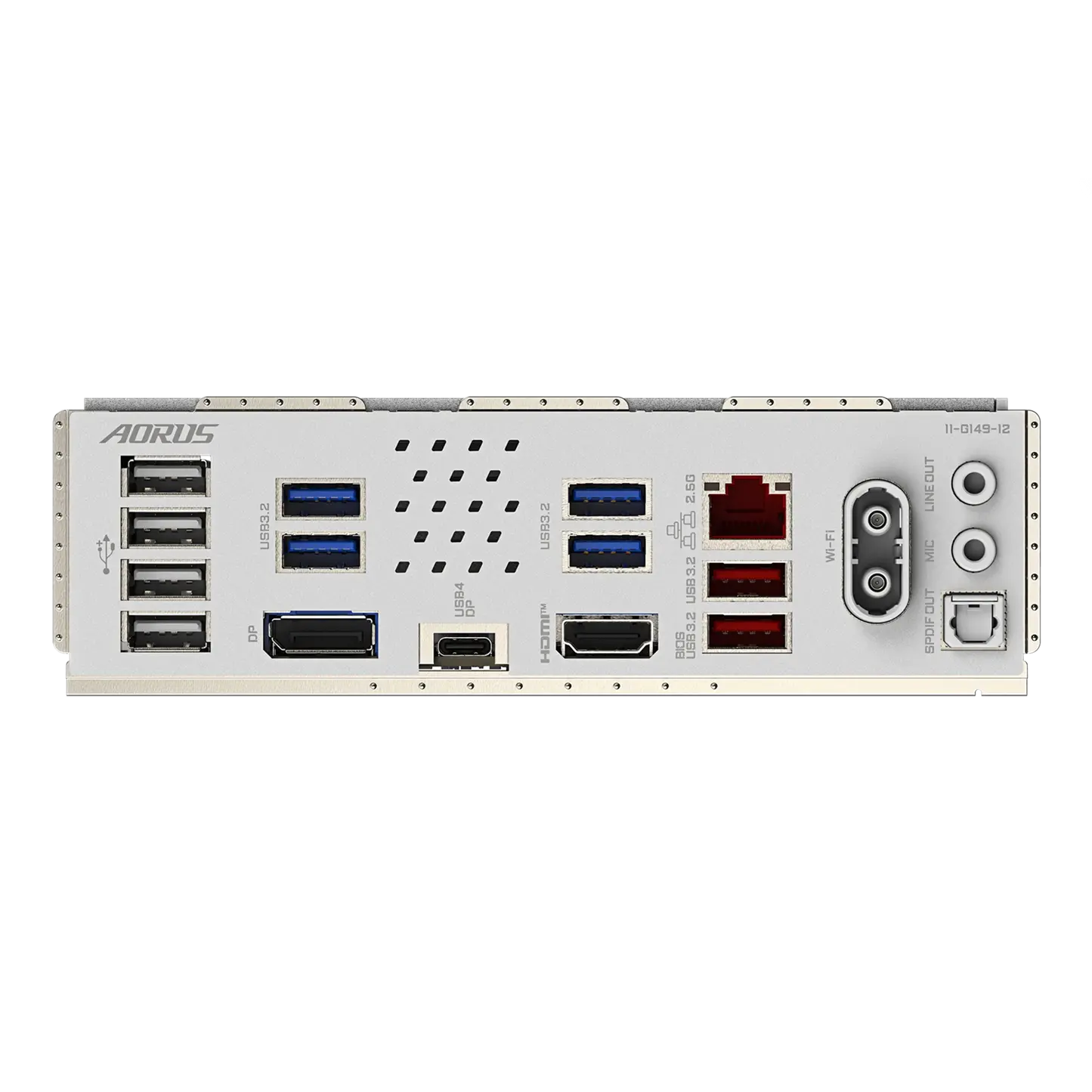

Back Panel Connectors:
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://www.gigabyte.com/Motherboard/B860M-AORUS-ELITE-WIFI6E-ICE#kf
ChipsetIntel ® B860 Express Chipset
OSSupport for Windows 11 64-bit
OSLAN bandwidth management software
OSSoftware: Norton® Internet Security (OEM version)
Warranty36 Months
CPU's supportedL3 cache varies with CPU
CPU's supportedLGA1851 socket: Support for Intel ® Core™ Ultra Processors
Memory typeDual channel memory architecture
Memory typeSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Form FactorMicro ATX Form Factor
Form Factor24.4cm x 24.4cm
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Wireless- BLUETOOTH 5.3
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless- Support for 11ax 160MHz wireless standard
WirelessRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WirelessIntel® Wi-Fi 6E AX211 (PCB rev. 1.0)
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics* Support for HDMI 2.1 version and HDCP 2.3.
Graphics- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Graphics- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
GraphicsSupport for up to quad-display at the same time
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
Graphics* Support for DisplayPort 2.1 version.
Graphics- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
Graphics* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
Features* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
FeaturesSupport for Smart Backup
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
StorageCPU:
StorageChipset:
Storage- 4 x SATA 6Gb/s connectors
Storage- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Storage- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
Storage- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
Bluetooth5.3
Connectors1 x 24-pin ATX main power connector
Connectors2 x 8-pin ATX 12V power connectors
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x system fan/water cooling pump header
Connectors3 x M.2 Socket 3 connectors
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors2 x Thunderbolt™ add-in card connectors
Connectors1 x reset button
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
Connectors4 x USB 3.2 Gen 1 ports
Connectors1 x RJ-45 port
Connectors1 x CPU fan/water cooling pump header
Connectors4 x USB 2.0/1.1 ports
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors2 x USB 3.2 Gen 2 Type-A ports (red)
Connectors2 x antenna connectors (2T2R)
ConnectorsBack Panel Connectors:
Connectors1 x USB Type-C® header, with USB 3.2 Gen 2 support
Connectors1 x HDMI port*
Connectors1 x optical S/PDIF Out connector
Connectors2 x audio jacks
Connectors1 x power button
Connectors1 x DisplayPort*
Connectors1 x USB4® USB Type-C® port (DisplayPort*)
USBCPU:
USB- 4 x USB 3.2 Gen 1 ports on the back panel
USBChipset:
USB- 2 x USB 3.2 Gen 1 ports available through the internal USB header
USB- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USBChipset+USB 3.2 Gen 1 Hub:
USB- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
USB- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
USBChipset+2 USB 2.0 Hubs:
USB- 1 x USB4® USB Type-C® port on the back panel
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетLGA1851
Форм факторMicro-ATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет (count)2
Максимална памет (GB)96
M.2 слотове (count)2
SATA портове (count)4
PCIe x16 слотове (count)1
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове (count)1
RGB подсветкаНе
Тегло0.00кг

Дънна платка GIGABYTE GB B860M A ELT WF6E ICE (LGA1851)

Изживейте производителност от ново поколение с GIGABYTE B860M A ELT WF6E ICE, проектирана за процесори Intel Core Ultra с гнездо LGA1851. Елегантният бял дизайн и богатият набор от функции я правят идеална основа за високопроизводителна система.

Ключови Предимства

  • Свързаност от ново поколение — Поддържа DDR5 памет и PCIe 5.0 за изключително бърз трансфер на данни и бъдеща съвместимост.
  • Интегриран Wi-Fi 6E — Насладете се на ултра-бърза безжична мрежа с ниско закъснение за игри и стрийминг.
  • Изцяло бял дизайн — Перфектен за изграждане на чист, модерен компютър с унифицирана цветова схема.

Технически Спецификации

СпецификацияСтойност
СокетLGA1851
Форм факторMicro-ATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет2
Максимална памет96 GB
M.2 слотове2
SATA портове4
PCIe x16 слотове1
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове1
RGB подсветкаНе

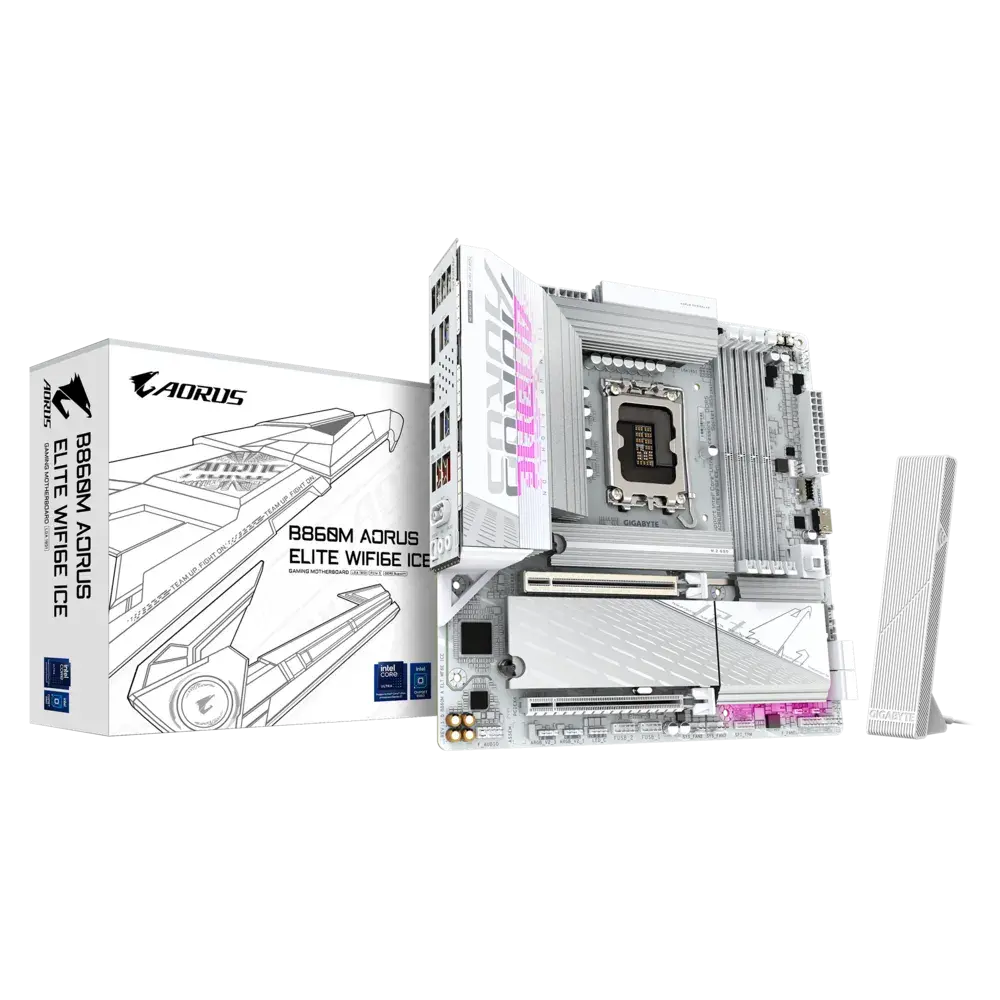

Какво има в кутията

  • Дънна платка
  • Ръководство за потребителя
  • I/O скоба
  • SATA кабели (2)

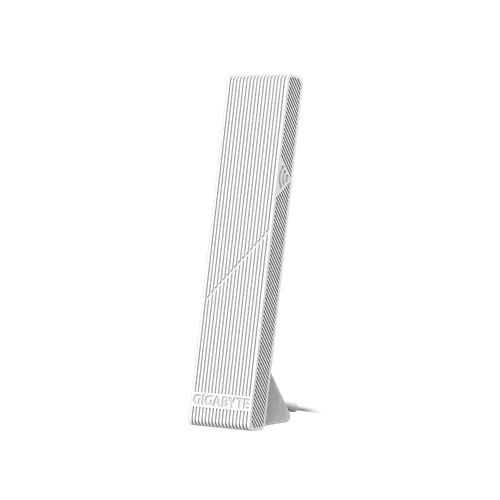

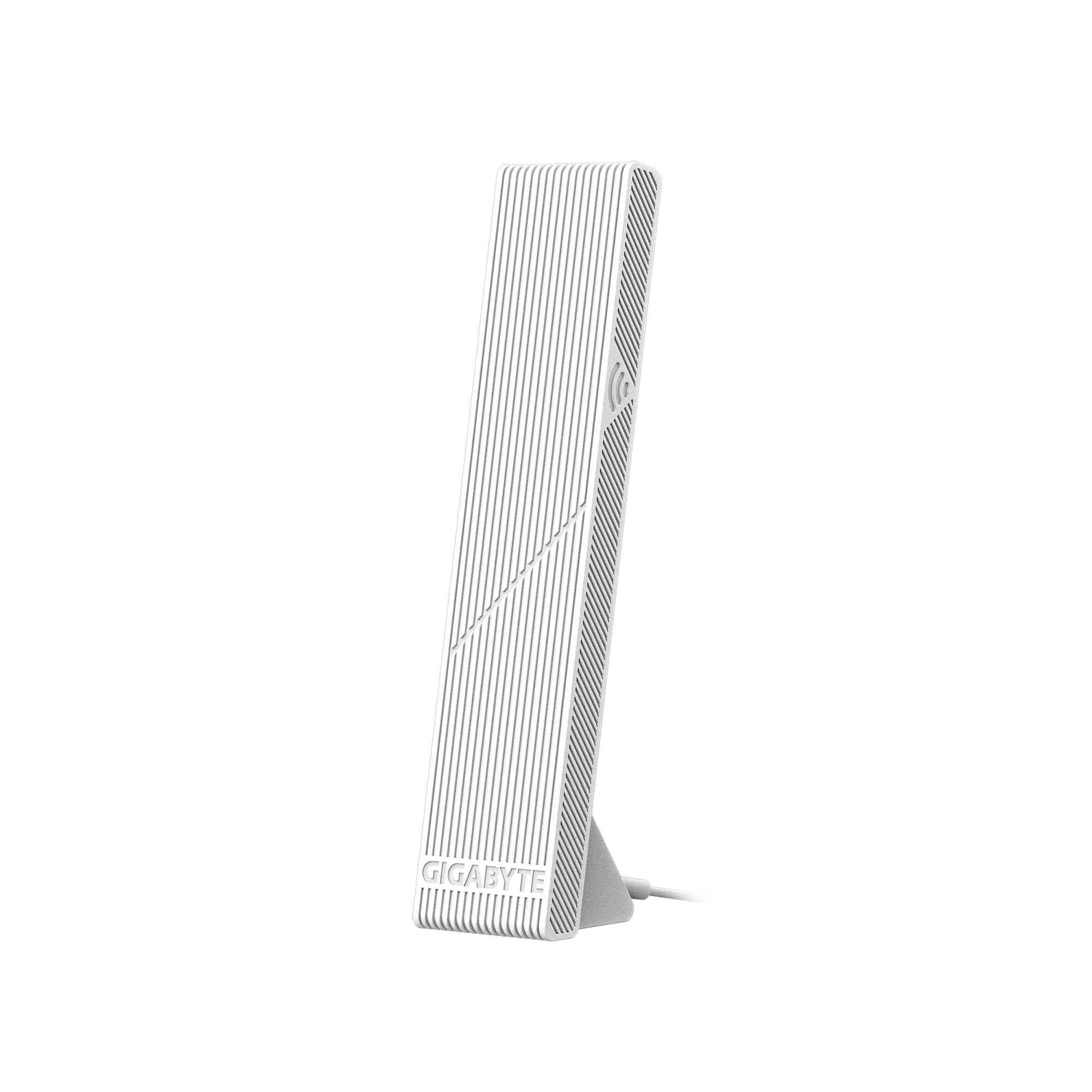

  • Wi-Fi антена
