- ASUS
Preț
€49 66 / 97 13 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Serie: Prime
Procesor: Intel 1700
Chipset: Intel H610
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Memorie: DDR5
Număr de sloturi: 2 DIMM Slots, Max. capacity of system memory: 96GB
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Rețea wireless: -
Conectori: 24-pin Main Power connector, 4-pin +12V Power connector
Sloturi: PCIe 4.0 x16 slot, PCIe 3.0 x1 slot
Slot M.2: M.2 slot (Key M)
Interfață: 2 USB 3.2 Gen 1(5G), 2 USB 2.0 ports, DisplayPort, VGA port, HDMI, Realtek 1Gb Ethernet port, 3 Audio jacks, PS/2 Keyboard (purple) port, PS/2 Mouse (green) port
Software: ASUS Exclusive Software
Sistem de operare: Windows 11 64-bit, Windows 10 64-bit
Form factor: mATX
Funcții speciale: ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution
Aplicație: pentru utilizare specializată
Procesor: Intel 1700
Chipset: Intel H610
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Memorie: DDR5
Număr de sloturi: 2 DIMM Slots, Max. capacity of system memory: 96GB
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Rețea wireless: -
Conectori: 24-pin Main Power connector, 4-pin +12V Power connector
Sloturi: PCIe 4.0 x16 slot, PCIe 3.0 x1 slot
Slot M.2: M.2 slot (Key M)
Interfață: 2 USB 3.2 Gen 1(5G), 2 USB 2.0 ports, DisplayPort, VGA port, HDMI, Realtek 1Gb Ethernet port, 3 Audio jacks, PS/2 Keyboard (purple) port, PS/2 Mouse (green) port
Software: ASUS Exclusive Software
Sistem de operare: Windows 11 64-bit, Windows 10 64-bit
Form factor: mATX
Funcții speciale: ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution
Aplicație: pentru utilizare specializată
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-r/
Graphics
1 x DisplayPort
1 x VGA port
1 x HDMITM port
CPU's supported
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports up to Intel® 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® H610 Chipset
Expansion slots
Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Memory type
2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

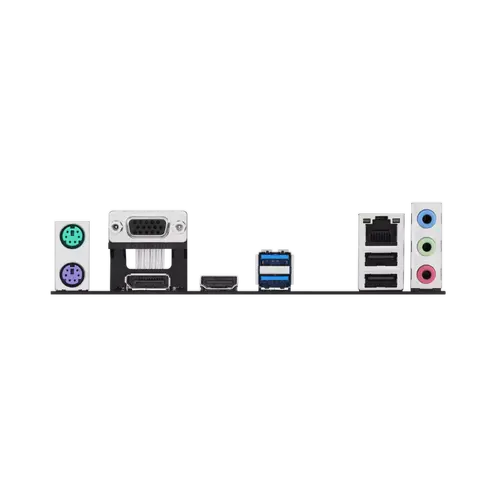

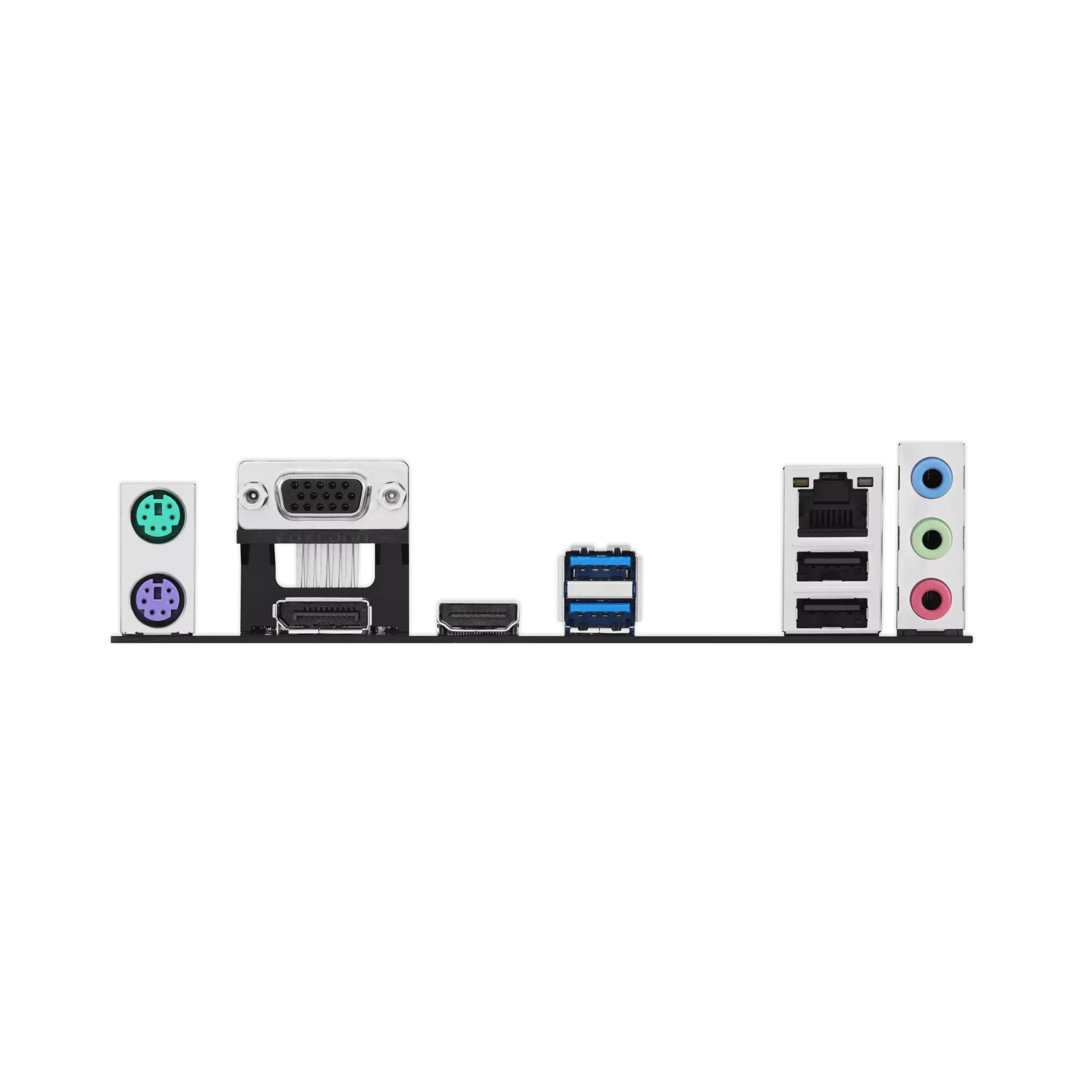

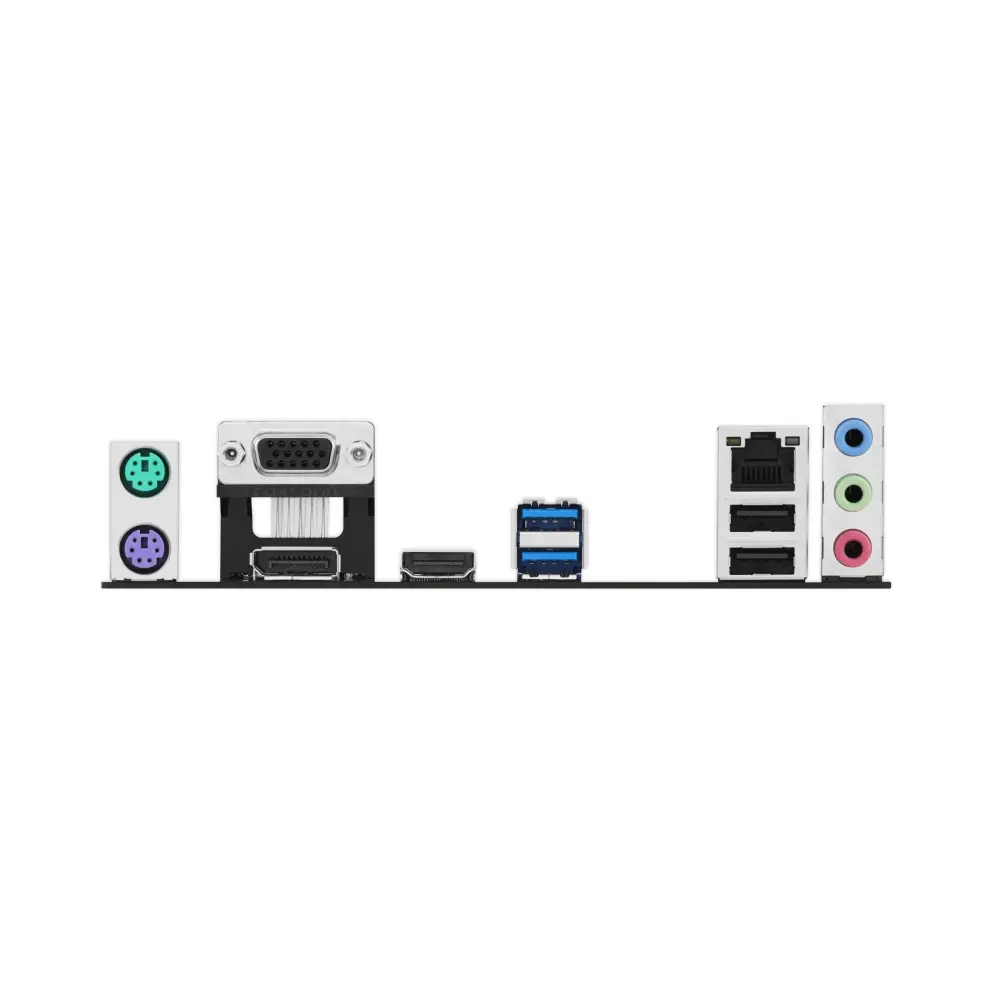

Rear panel I/O
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Lan
1 x Realtek 1Gb Ethernet
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form factor
mATX Form Factor, 22.6 cm x 19.5 cm
OS
Windows® 11 64-bit, Windows® 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-r/ |
| Chipset | Intel® H610 Chipset |
| OS | Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| Warranty | 24 Months |
| CPU's supported | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| CPU's supported | Supports up to Intel® 65W CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | 2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Form Factor | mATX Form Factor, 22.6 cm x 19.5 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio | * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 2 x USB 2.0 ports (2 x Type-A) |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x Realtek 1Gb Ethernet port |
| Rear panel I/O | 1 x PS/2 Keyboard (purple) port |
| Rear panel I/O | 1 x PS/2 Mouse (green) port |
| Rear panel I/O | 1 x VGA port |
| Rear panel I/O | 1 x HDMITM port |
| Rear panel I/O | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) |
| LAN | 1 x Realtek 1Gb Ethernet |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot |
| Expansion Slots | Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot |
| Graphics | 1 x HDMI™ port |
| Graphics | 1 x HDMITM port |
| Graphics | 1 x DisplayPort |
| Graphics | 1 x VGA port |
| Features | ASUS 5X PROTECTION III |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | - Aluminum heatsink design |
| Features | - DIGI+ VRM |
| Features | - LANGuard |
| Features | - Overvoltage Protection |
| Features | - SafeSlot Core |
| Features | - Stainless-Steel Back I/O |
| Features | - Q-DIMM |
| Features | - Q-LED Core |
| Features | - Q-Slot |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 3 x audio jacks |
| I/O | 2 x USB 2.0 ports (2 x Type-A) |
| I/O | 1 x Realtek 1Gb Ethernet port |
| I/O | 1 x PS/2 Keyboard (purple) port |
| I/O | 1 x PS/2 Mouse (green) port |
| I/O | 1 x VGA port |
| I/O | 1 x HDMITM port |
| I/O | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| Storage | Intel® H610 Chipset |
| Storage | M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Connectors | 1 x speaker header |
| Connectors | 1 x chassis intrusion header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 1 x M.2 slot (Key M) |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x Front Panel Audio header (AAFP) |
| Connectors | 1 x LPT header |
| Connectors | 1 x 10-1 pin System Panel header |
| Connectors | 1 x SPI TPM header (14-1 pin) |
| Connectors | 1 x 4-pin Chassis Fan header |
| Connectors | 1 x 4-pin +12V Power connector |
| Connectors | 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports |
| USB | 2 x USB 2.0 ports (2 x Type-A) |
| USB | 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| USB | Front USB (Total 6 ports) |
| USB | Rear USB (Total 4 ports) |
| USB | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) |
| USB | 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports |
| Greutate | 0.68kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel H610 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Greutate | 0.68kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Дънна платка Asus Prime H610M-R – Надеждна производителност за ежедневни задачи
Създайте стабилна и ефективна компютърна система с Asus Prime H610M-R – micro-ATX платка, проектирана за процесори Intel Core от 12-о, 13-о и 14-о поколение. Тя предлага основните функции с ASUS 5X Protection III за дълготрайна издръжливост, което я прави идеална основа за домашни и офис системи.
Ключови Предимства
- Цялостна защита — ASUS 5X Protection III предпазва компонентите с LANGuard, защита от пренапрежение и неръждаем заден панел.
- Свръхбърза свързаност — PCIe 4.0 M.2 слот поддържа NVMe SSD за бърз достъп до данни и зареждане на системата.
- Гъвкава поддръжка на памет — Два DDR4 DIMM слота позволяват до 64 GB памет за плавна многозадачна работа.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel H610 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
Какво има в кутията
- Дънна платка Asus Prime H610M-R

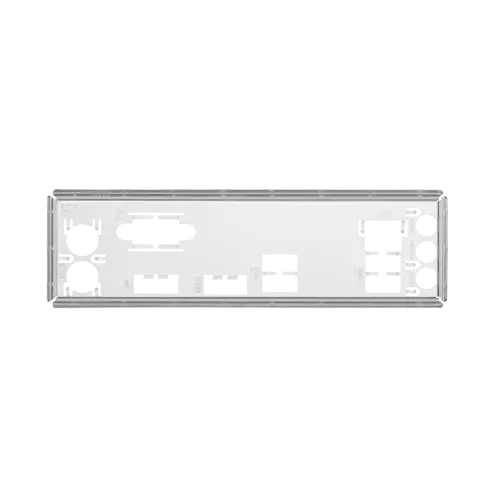

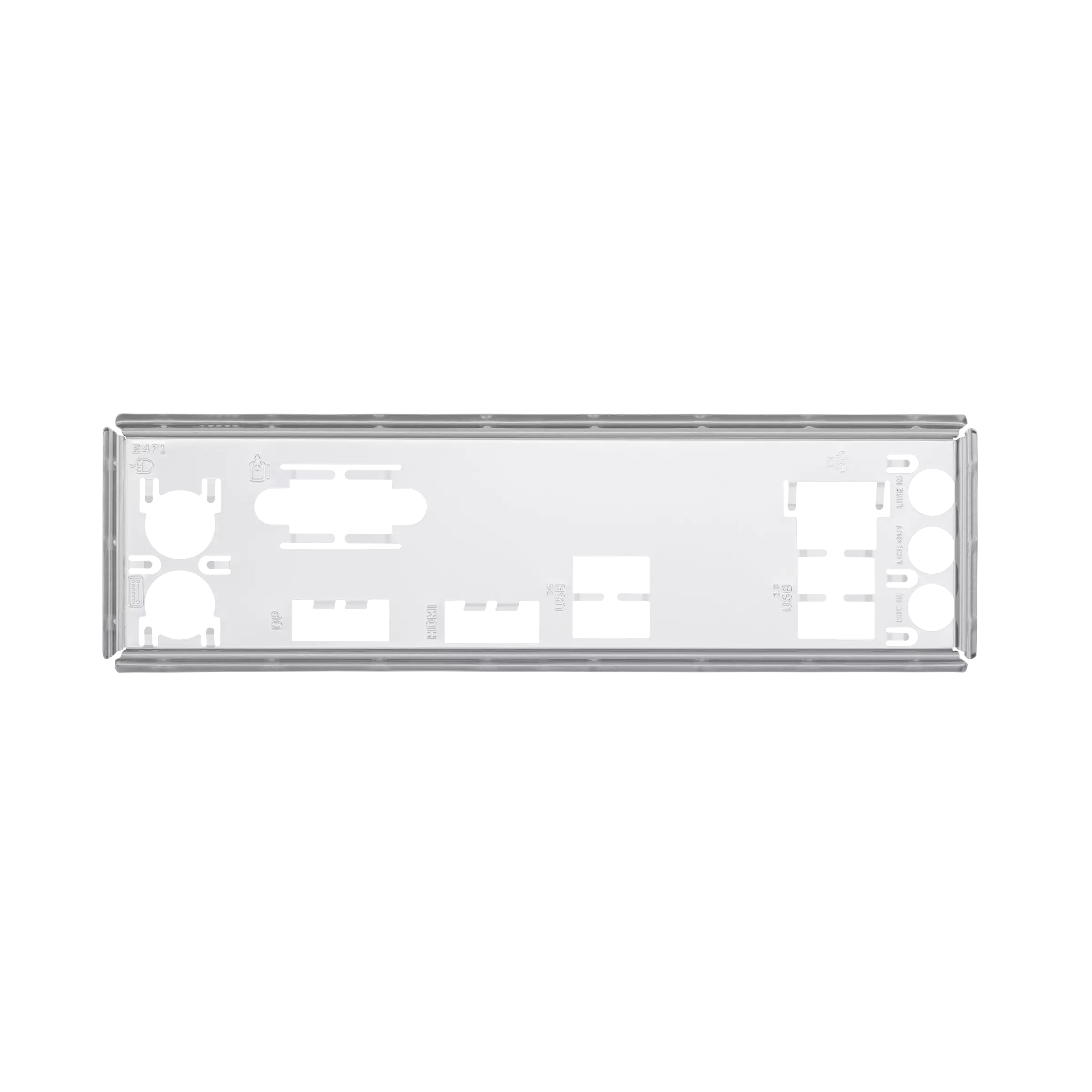

- I/O щит
- SATA кабели
- Пакет с винтове за M.2
- Ръководство на потребителя
