Name: Дънна платка, ASROCK B850M PRO-A WIFI /AM5
Brand: ASROCK
SKU: B850M PRO-A WIFI
Price: 122.14 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

ASROCK

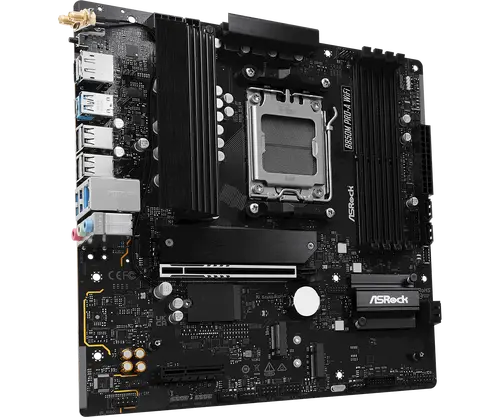

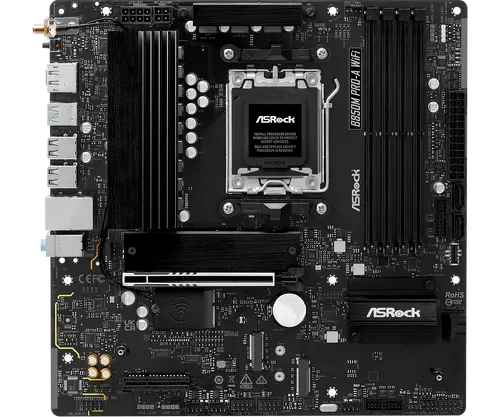

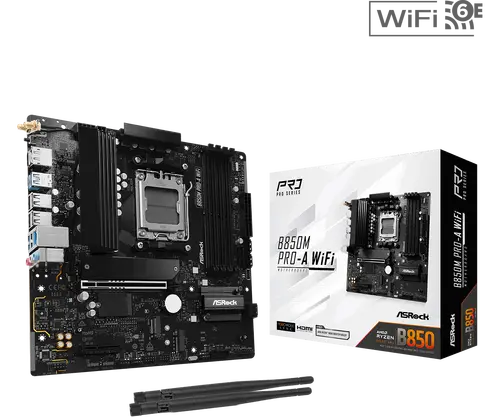

Дънна платка, ASROCK B850M PRO-A WIFI /AM5

Цена

€122¹⁴ / 238⁸⁹ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 16€

+2 години: + 24€

Код: B850M PRO-A WIFI
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.asrock.com/mb/AMD/B850M%20Pro-A%20WiFi/index.asp

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

CPU's supported

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

AMD B850

Expansion slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode

Chipset:

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

- 4 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Memory type

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)

Max. capacity of system memory: 256GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Rear panel I/O

2 x Antenna Ports

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

1 x USB 3.2 Gen2 Type-C Port

2 x USB 3.2 Gen1 Ports

4 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x BIOS Flashback Button

HD Audio Jacks: Line in / Front Speaker / Microphone

USB

CPU:

- 1 x USB 3.2 Gen2 Type-C (Rear)

- 1 x USB 3.2 Gen2 Type-A (Rear)

Chipset:

- 1 x USB 3.2 Gen1 Type-C (Front)

- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)

- 8 x USB 2.0 (4 Rear, 4 Front)

Connectors

1 x SPI TPM Header

1 x Power LED and Speaker Header

1 x RGB LED Header

3 x Addressable LED Headers

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)

3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen1 Header

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Lan

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Wireless

802.11axe Wi-Fi 6E Module

Supports IEEE 802.11a/b/g/n/ac/ax/axe

Supports Dual-Band 2x2 with extended 6GHz band* support

2 antennas to support 2 (Transmit) x 2 (Receive) diversity technolog

Supports Bluetooth 5.2

Supports MU-MIMO

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Form factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Microsoft Windows® 10 64-bit / 11 64-bit

Other

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Dragon 2.5G LAN Software

- ASRock Polychrome SYNC

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.asrock.com/mb/AMD/B850M%20Pro-A%20WiFi/index.asp
Chipset	AMD B850
OS	Microsoft Windows® 10 64-bit / 11 64-bit
Warranty	36 Months
CPU's supported	Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Memory type	Dual Channel DDR5 Memory Technology
Memory type	4 x DDR5 DIMM Slots
Memory type	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Memory type	Max. capacity of system memory: 256GB
Memory type	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Rear panel I/O	1 x HDMI port
Rear panel I/O	4 x USB 2.0 Ports
Rear panel I/O	1 x RJ-45 LAN Port
Rear panel I/O	1 x BIOS Flashback Button
Rear panel I/O	HD Audio Jacks: Line in / Front Speaker / Microphone
Rear panel I/O	2 x Antenna Ports
Rear panel I/O	1 x DisplayPort 1.4
Rear panel I/O	1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
Rear panel I/O	2 x USB 3.2 Gen1 Ports
Rear panel I/O	1 x USB 3.2 Gen2 Type-C Port
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LAN	Dragon RTL8125BG
LAN	Smart Auto Adjust Bandwidth Control
LAN	Visual User Friendly UI
LAN	Visual Network Usage Statistics
LAN	Optimized Default Setting for Game, Browser, and Streaming Modes
LAN	User Customized Priority Control
LAN	Supports Dragon 2.5G LAN Software
Expansion Slots	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Expansion Slots	- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Expansion Slots	Chipset:
Expansion Slots	CPU:
Expansion Slots	- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Expansion Slots	- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode
Wireless	802.11axe Wi-Fi 6E Module
Wireless	Supports IEEE 802.11a/b/g/n/ac/ax/axe
Wireless	Supports Bluetooth 5.2
Wireless	Supports MU-MIMO
Wireless	Supports Dual-Band 2x2 with extended 6GHz band* support
Wireless	2 antennas to support 2 (Transmit) x 2 (Receive) diversity technolog
Graphics	- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Graphics	- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
Other	Software
Other	UEFI
Other	- ASRock Motherboard Utility (A-Tuning)
Other	- ASRock Dragon 2.5G LAN Software
Other	- ASRock Polychrome SYNC
Other	- ASRock EZ Mode
Other	- ASRock Full HD UEFI
Other	- ASRock Auto Driver Installer
Other	- ASRock Instant Flash
Features	Superb Productivity
Features	- Dual Channel DDR5
Features	Rock-Solid Durability
Features	- ASRock Auto Driver Installer
Features	EZ Troubleshooter
Features	Ultrafast Connectivity
Features	- 2.5G LAN, 802.11axe Wi-Fi 6E Module
Features	- ASRock Post Status Checker
Features	- PCIe Gen5 (Graphics, M.2)
Features	- 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
Features	EZ Update- BIOS Flashback Button
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
I/O	1 x HDMI Port
I/O	1 x DisplayPort 1.4
I/O	HD Audio Jacks: Line in / Front Speaker / Microphone
I/O	2 x Antenna Ports
I/O	4 x USB 2.0 Ports
I/O	1 x RJ-45 LAN Port
I/O	1 x BIOS Flashback Button
I/O	1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
I/O	2 x USB 3.2 Gen1 Ports
I/O	1 x USB 3.2 Gen2 Type-C Port
Storage	- 4 x SATA3 6.0 Gb/s Connectors
Storage	CPU:
Storage	Chipset:
Storage	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Storage	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Storage	- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Storage	- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Storage	- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Connectors	1 x SPI TPM Header
Connectors	1 x Power LED and Speaker Header
Connectors	1 x 24 pin ATX Power Connector
Connectors	1 x Front Panel Audio Connector
Connectors	1 x RGB LED Header
Connectors	3 x Addressable LED Headers
Connectors	2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
Connectors	3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
Connectors	1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Connectors	2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
Connectors	1 x Front Panel Type C USB 3.2 Gen1 Header
Connectors	2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
Connectors	1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
USB	CPU:
USB	Chipset:
USB	- 1 x USB 3.2 Gen1 Type-C (Front)
USB	- 8 x USB 2.0 (4 Rear, 4 Front)
USB	- 1 x USB 3.2 Gen2 Type-C (Rear)
USB	- 1 x USB 3.2 Gen2 Type-A (Rear)
USB	- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
Тегло	1.27кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	AM5
Форм фактор	Micro-ATX
Чипсет	AMD B850
Тип памет	DDR5
Слотове за памет (count)	4
Максимална памет (GB)	256
M.2 слотове (count)	3
SATA портове (count)	4
PCIe x16 слотове (count)	2
Вграден Wi-Fi	Wi-Fi 6E
Скорост на LAN	2.5 Gbps
USB-C портове (count)	1
RGB подсветка	Да
Тегло	1.27кг

Дънна платка ASRock B850M PRO-A WIFI – надеждна производителност за AMD Ryzen™ 9000 серия

Базирана на чипсет AMD B850, ASRock B850M PRO-A WIFI осигурява стабилна и богата на функции основа за вашата next-gen AM5 конфигурация. С поддръжка на DDR5 памет, PCIe 5.0 и вграден Wi-Fi 6E, тя е проектирана да се справя с взискателни натоварвания и високоскоростен гейминг без компромиси.

Ключови Предимства

Готова за бъдещето свързаност — PCIe 5.0 x16 слот и M.2 Gen5 поддръжка осигуряват максимална честотна лента за графични карти и NVMe SSD дискове.
Високоскоростна мрежа — Вграденият Wi-Fi 6E и 2.5 Gbps LAN предлагат нисколатентни безжични и кабелни връзки за гейминг и стрийминг.
Здраво захранване — Dr.MOS захранващи фази и 8-слойна печатна платка осигуряват стабилно захранване за продължителна производителност под натоварване.
Интелигентно охлаждане — Уголемени VRM радиатори и M.2 термичен предпазител поддържат критичните компоненти хладни по време на интензивни сесии.

Технически Спецификации

Спецификация	Стойност
Чипсет	AMD B850
Сокет	AM5
Форм фактор	Micro-ATX
Тип памет	DDR5
Слотове за памет	4
Максимална памет	256 GB
PCIe x16 слотове	2
M.2 слотове	3
SATA портове	4
Wi-Fi	Wi-Fi 6E
Скорост на LAN	2.5 Gbps
USB-C портове	1
RGB подсветка	Да
