Vendor_url
https://www.asrock.com/MB/AMD/B850M-X%20R2.0/index.asp
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
AMD B850
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Memory type
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Rear panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
USB
CPU:
- 3 x USB 3.2 Gen1 Type-A (Rear)
- 1 x USB 2.0 (Rear (USB_2))
Chipset:
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 2 x USB 3.2 Gen1 Type-A (Front)
- 5 x USB 2.0 (1 Rear (USB_1), 4 Front)
Connectors
1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Other
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Chipset | AMD B850 |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Memory type | 2 x DDR5 DIMM Slots |
| Memory type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) |
| Memory type | Max. capacity of system memory: 128GB |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Audio | Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Dragon RTL8125BG |
| LAN | Smart Auto Adjust Bandwidth Control |
| LAN | Visual User Friendly UI |
| LAN | Visual Network Usage Statistics |
| LAN | Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | User Customized Priority Control |
| LAN | Supports Dragon 2.5G LAN Software |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 1 x PCIe 4.0 x1 Slot (PCIE2) |
| Expansion Slots | - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode |
| Graphics | - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Other | Software |
| Other | UEFI |
| Other | - ASRock Motherboard Utility (A-Tuning) |
| Other | - ASRock Dragon 2.5G LAN Software |
| Other | - ASRock Polychrome SYNC |
| Other | - ASRock EZ Mode |
| Other | - ASRock Full HD UEFI |
| Other | - ASRock Auto Driver Installer |
| Other | - ASRock Instant Flash |
| Features | Superb Productivity |
| Features | - Dual Channel DDR5 |
| Features | Rock-Solid Durability |
| Features | EZ Update |
| Features | - BIOS Flashback Button |
| Features | - ASRock Auto Driver Installer |
| Features | EZ Troubleshooter |
| Features | Ultrafast Connectivity |
| Features | - PCIe Gen5 (Graphics, M.2) |
| Features | - 2.5G LAN |
| Features | - 6+1+1 Power Phase, Dr.MOS for VCore |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| I/O | 2 x Antenna Mounting Points |
| I/O | 1 x HDMI Port |
| I/O | 1 x DisplayPort 1.4 |
| I/O | HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | 3 x USB 3.2 Gen1 Type-A Ports |
| I/O | 1 x USB 3.2 Gen1 Type-C Port |
| I/O | 1 x RJ-45 LAN Port |
| I/O | 1 x BIOS Flashback Button |
| I/O | 2 x USB 2.0 Ports |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Storage | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Connectors | 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x Thermistor Cable Header |
| USB | CPU: |
| USB | Chipset: |
| USB | - 3 x USB 3.2 Gen1 Type-A (Rear) |
| USB | - 1 x USB 2.0 (Rear (USB_2)) |
| USB | - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) |
| USB | - 2 x USB 3.2 Gen1 Type-A (Front) |
| USB | - 5 x USB 2.0 (1 Rear (USB_1), 4 Front) |
| Тегло | 1.00кг |

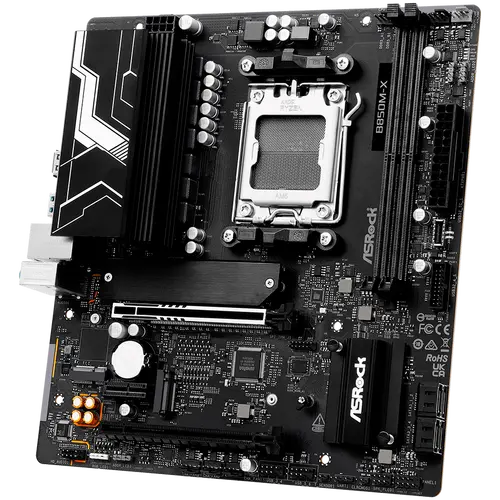

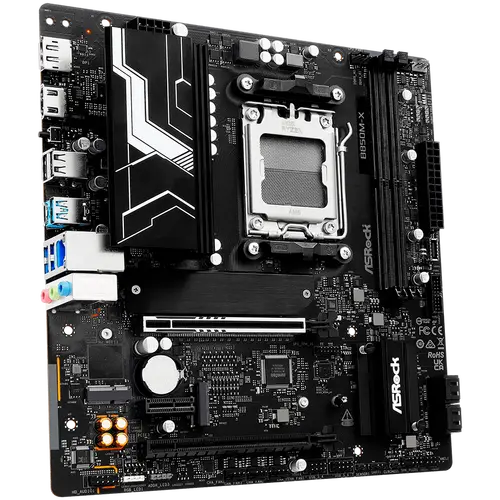

Дънна платка ASRock B850M-X R2.0
ASRock B850M-X R2.0 е надеждна micro-ATX дънна платка, базирана на сокет AMD AM5. Тя осигурява отлична производителност за процесорите AMD Ryzen от серии 7000, 8000 и 9000, като съчетава съвременна DDR5 памет и стабилна свързаност.
Ключови Предимства
- Платформа AMD AM5 — Съвместима с най-новите процесори за върховна изчислителна мощ.
- DDR5 Памет — Два слота за памет с поддръжка на високоскоростна DDR5, за по-бърза обработка на данни.
- 2.5 GbE LAN — Интегрирана мрежова карта с висока скорост за гладко онлайн гейминг и стрийминг.
- Гъвкави възможности за съхранение — Един M.2 слот и четири SATA порта дават свобода при избор на дискове.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD B850 |
| Тип памет | DDR5 |
| Слотове за памет | 2 (Dual Channel) |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| LAN скорост | 2.5 GbE |
| USB-C портове (отзад) | 1 |
Какво има в кутията
- Дънна платка ASRock B850M-X R2.0
- Ръководство за потребителя
- Задна броня за I/O
- 2 x SATA кабела за данни
