- GIGABYTE
Preț
€126 06 / 246 55 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.gigabyte.com/Motherboard/B760-DS3H-GEN5
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

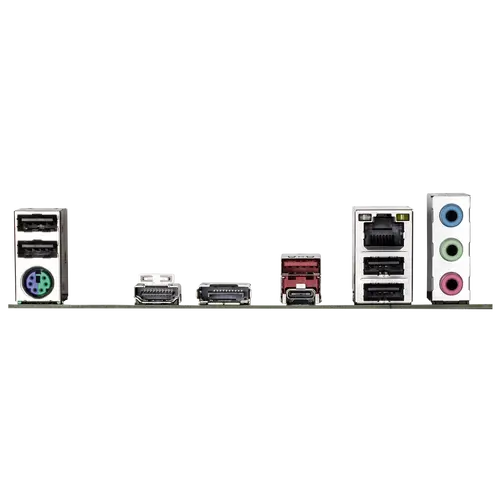

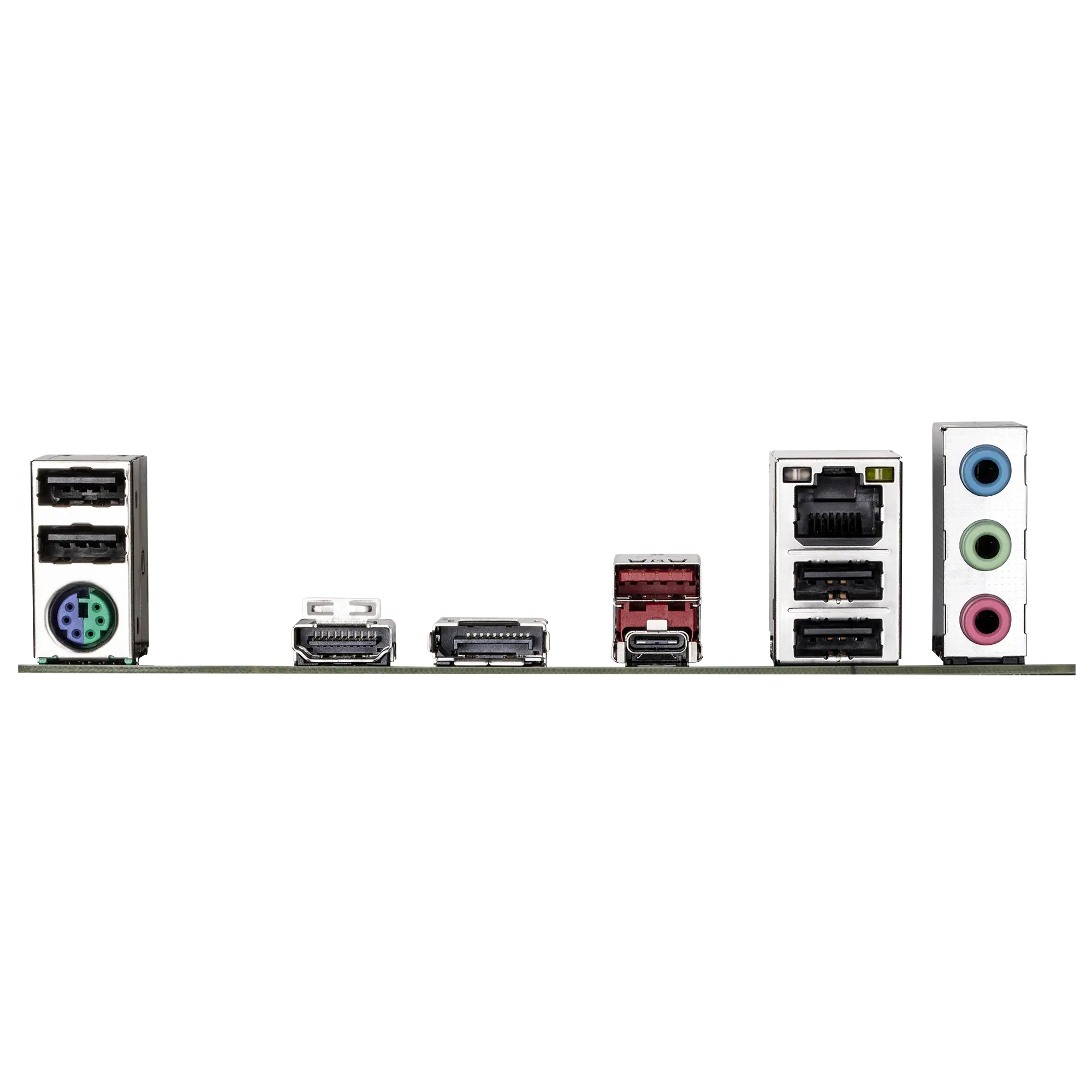

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B760-DS3H-GEN5 |
| Chipset | Intel® B760 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Support for S/PDIF Out |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| Expansion Slots | - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Graphics | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Features | Support for Smart Backup |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 128 Mbit flash |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 4 x SATA 6Gb/s connectors |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 3 x system fan headers |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x reset button |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | Back Panel Connectors |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 1 x HDMI port (Note) |
| Connectors | 1 x DisplayPort (Note) |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 4 x USB 2.0/1.1 ports |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| USB | - 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| USB | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| USB | Chipset+USB 2.0 Hub: |
| USB | - 4 x USB 2.0/1.1 ports on the back panel |
| USB | - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
GIGABYTE GB B760 DS3H GEN5 — Дънна платка LGA1700 DDR5
Извлечете максимума от вашия процесор Intel Core от 13-то/14-то поколение с GIGABYTE B760 DS3H GEN5. С поддръжка на PCIe 5.0 за графики и памет от ново поколение, DDR5 и стабилно захранване, тази ATX платка осигурява отлична производителност за игри и работа.
Ключови Предимства
- PCIe 5.0 — Слотът PCIe x16 и единият M.2 слот поддържат Gen5, подготвяйки системата ви за най-бързите GPU и SSD.
- DDR5 Памет — Двуканална DDR5 поддръжка с до 64GB капацитет осигурява бърза многозадачност и по-висока честотна лента.
- 2.5GbE LAN — Високоскоростна мрежа намалява латенцията за онлайн игри и големи трансфери.
- Smart Fan 6 — Няколко температурни сензора и хибридни конектори за вентилатори позволяват прецизен контрол на охлаждането.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Чипсет | Intel B760 |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 2 (Dual Channel) |
| Максимална памет | 64GB |
| M.2 слотове | 2 (1x Gen5, 1x Gen4) |
| SATA портове | 4 |
| PCIe x16 слотове | 1 (PCIe 5.0) |
| Скорост на LAN | 2.5GbE |
| USB-C портове | 1 (отзад) |
| Вграден Wi-Fi | Не |
| RGB подсветка | Да (RGB headers) |
Какво има в кутията
- Дънна платка GIGABYTE B760 DS3H GEN5
- Ръководство за потребителя
- Ръководство за инсталиране
- I/O панел
- 2x SATA кабела
- M.2 винтове и дистанционери
