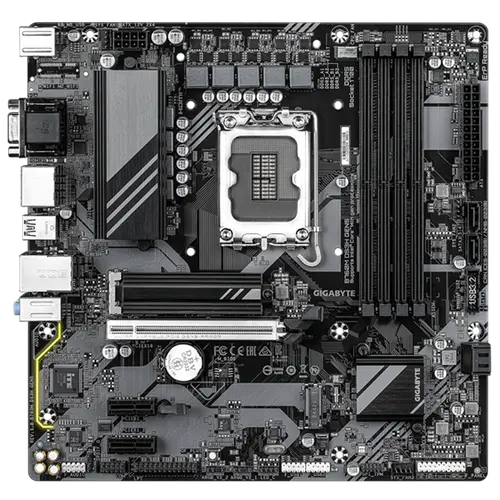

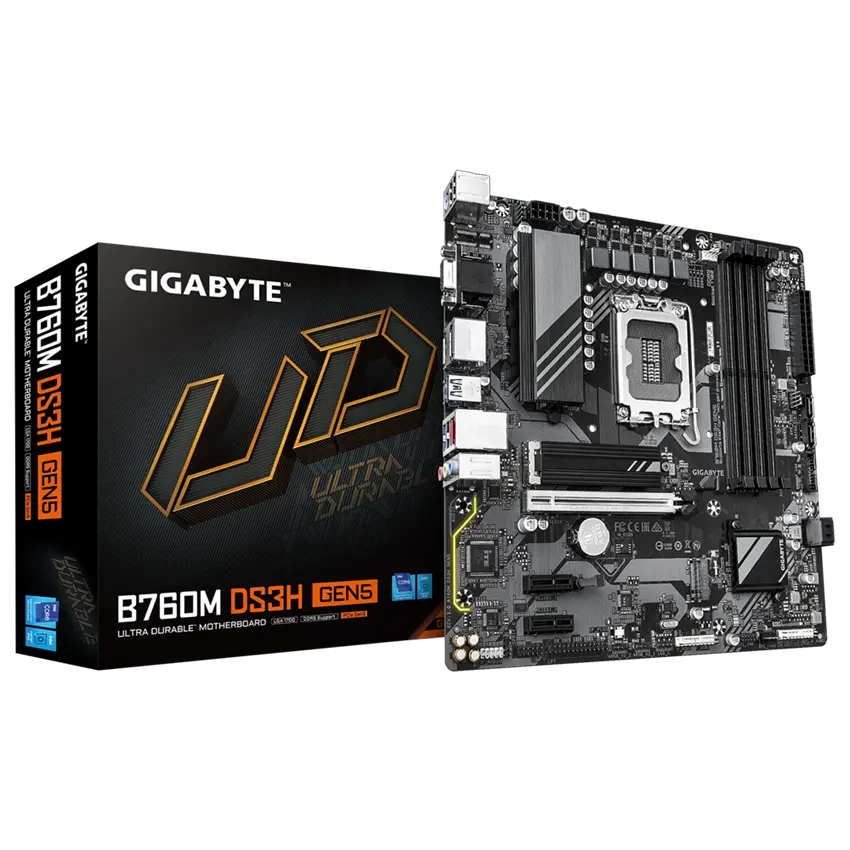

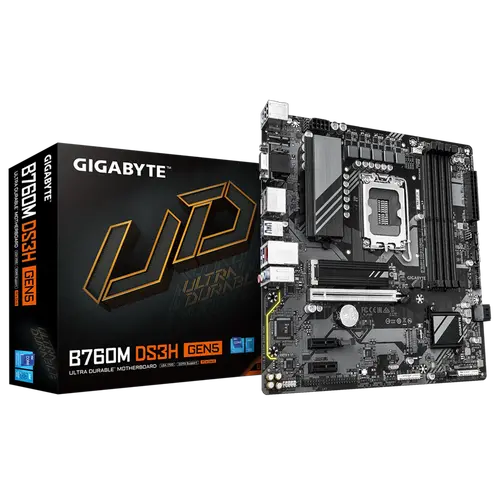

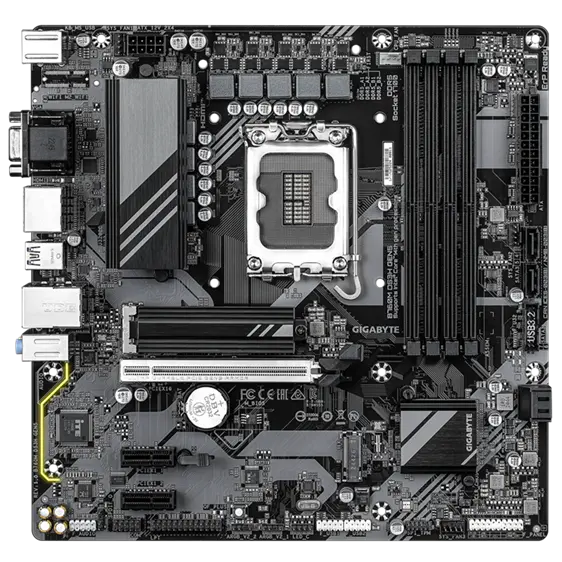

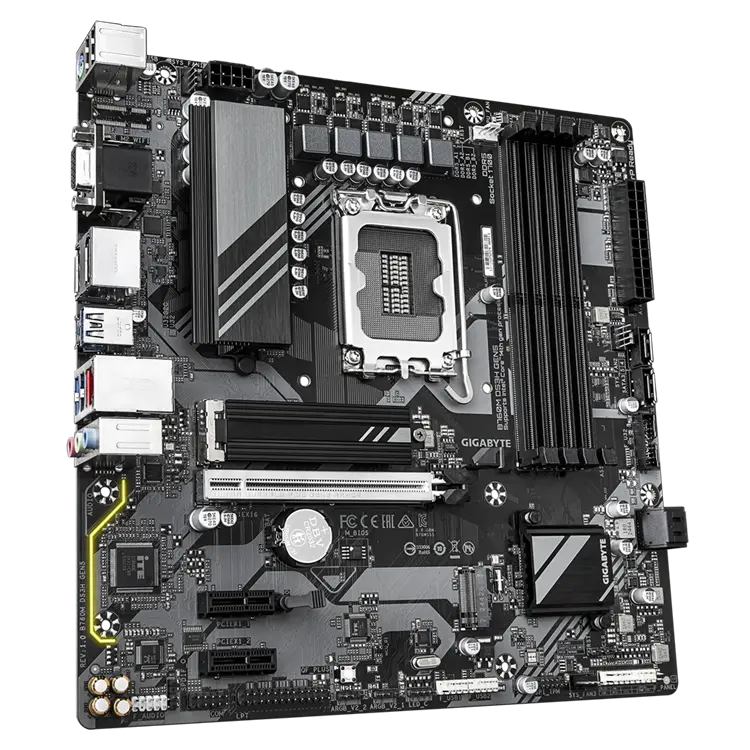

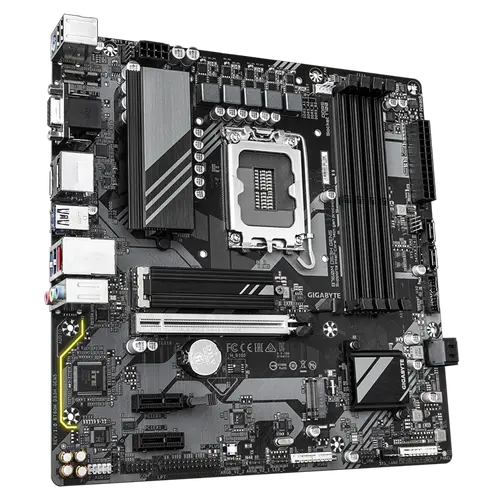

Placă de bază, GIGABYTE GB B760M DS3H GEN5 / LGA1700

  • Placă de bază, GIGABYTE GB B760M DS3H GEN5 / LGA1700 - 1
  • Placă de bază, GIGABYTE GB B760M DS3H GEN5 / LGA1700 - 2
  • Placă de bază, GIGABYTE GB B760M DS3H GEN5 / LGA1700 - 3
  • Placă de bază, GIGABYTE GB B760M DS3H GEN5 / LGA1700 - 4
  • GIGABYTE
Placă de bază, GIGABYTE GB B760M DS3H GEN5 / LGA1700
Preț
€118 75 / 232 25 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 16€
+2 ani: + 23€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
Support for up to quad-display at the same time
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
14th and 13th Generation Intel® Core™ i9/i7 Processors:
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

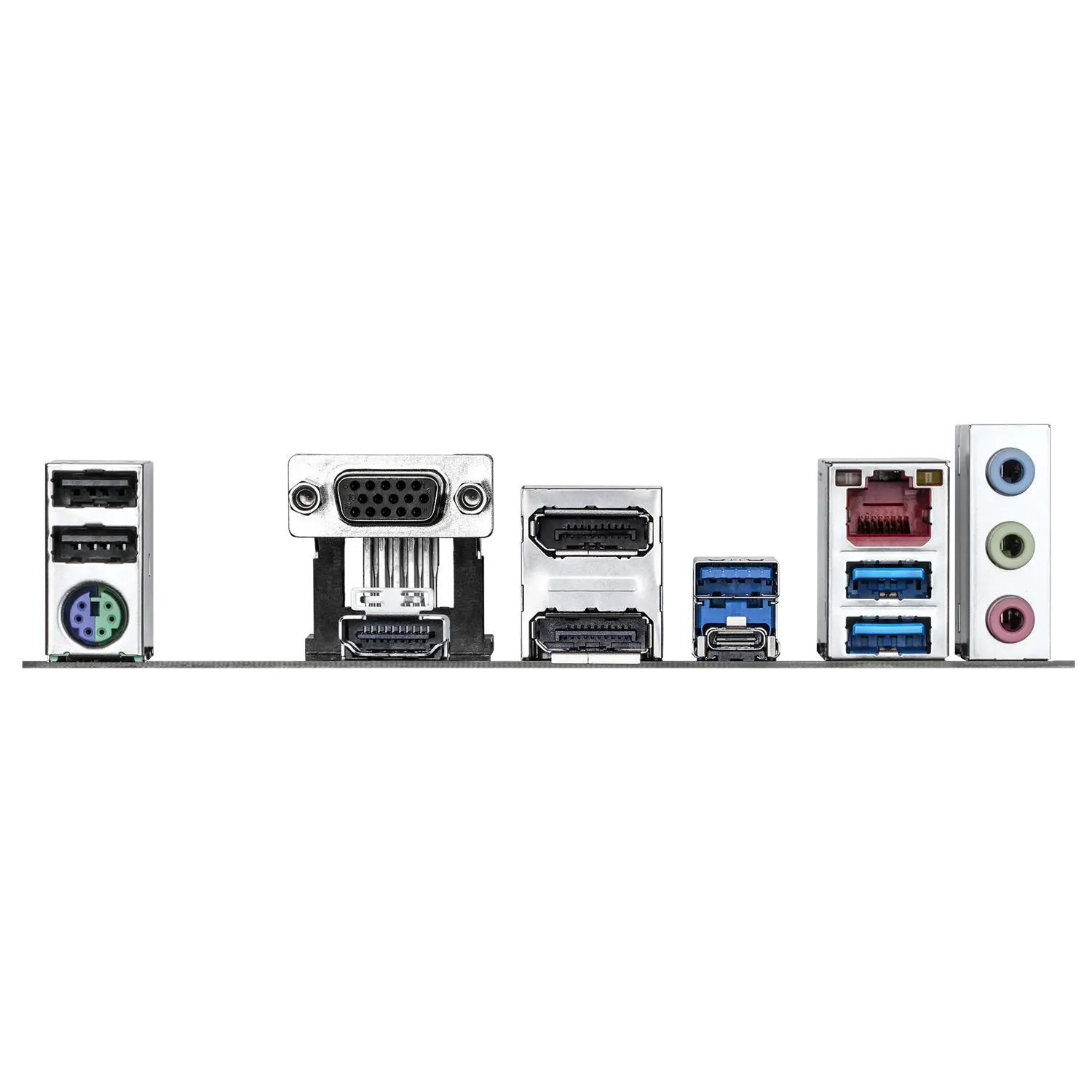

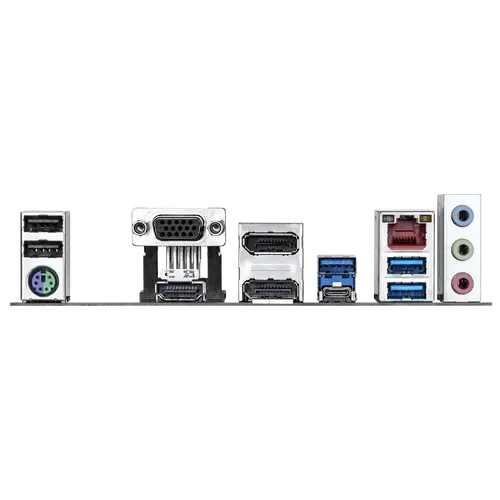

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port (Note)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
Vendor_urlhttps://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5
ChipsetIntel® B760 Express Chipset
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
CPU's supportedL3 cache varies with CPU
Memory typeDual channel memory architecture
Memory typeSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type14th and 13th Generation Intel® Core™ i9/i7 Processors:
Memory typeSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules
Memory type13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Memory typeSupport for DDR5 4800/4400 MT/s memory modules
Form FactorMicro ATX Form Factor
Form Factor24.4cm x 24.4cm
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Expansion Slots- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
Graphics* Support for DisplayPort 1.2 version and HDCP 2.3
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics* Support for HDMI 2.1 version and HDCP 2.3.
Graphics- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
GraphicsSupport for up to quad-display at the same time
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
Graphics- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Graphics* Support for DisplayPort 1.2 version.
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
Features* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
FeaturesSupport for Smart Backup
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS1 x 128 Mbit flash
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
StorageCPU:
StorageChipset:
Storage- 4 x SATA 6Gb/s connectors
Storage- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Connectors1 x 24-pin ATX main power connector
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x S/PDIF Out header
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x serial port header
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
Connectors2 x M.2 Socket 3 connectors
ConnectorsBack Panel Connectors
Connectors2 x USB 2.0/1.1 ports
Connectors1 x PS/2 keyboard/mouse port
Connectors1 x HDMI port (Note)
Connectors1 x RJ-45 port
Connectors3 x audio jacks
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors1 x USB Type-C® port, with USB 3.2 Gen 2 support
Connectors3 x USB 3.2 Gen 1 ports
Connectors2 x addressable RGB Gen2 LED strip headers
Connectors2 x DisplayPorts (Note)
Connectors1 x parallel port header
Connectors1 x D-Sub port (Note)
USBChipset:
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USBChipset+USB 2.0 Hub:
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
USB- 2 x USB 2.0/1.1 ports on the back panel
Greutate0.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketLGA1700
Form FactorMicro-ATX
ChipsetIntel B760
Memory TypeDDR5
Memory Slots (count)2
Max Memory (GB)128
M.2 Slots (count)2
SATA Ports (count)4
PCIe x16 Slots (count)1
Wi-Fi Built-inNo
LAN Speed2.5 Gbps
USB-C Ports (count)1
RGB LightingNo
Greutate0.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка GIGABYTE B760M DS3H GEN5 (LGA1700, DDR5, Micro-ATX)

Изживейте следващото поколение производителност с дънната платка GIGABYTE B760M DS3H GEN5. Създадена за процесори Intel от 12-то, 13-то и 14-то поколение, тя предлага поддръжка на PCIe 5.0 и DDR5 памет за светкавично бърз трансфер на данни и многозадачност.

Ключови Предимства

  • Поддръжка на PCIe 5.0 — Първият слот PCIe 5.0 x16 и M.2 слот предлагат двойна честотна лента спрямо PCIe 4.0, готови за бъдещи графични карти и SSD.
  • DDR5 памет — Двуканална DDR5 с поддръжка на XMP 3.0 осигурява превъзходна скорост и ефективност за взискателни приложения.
  • 2.5GbE LAN — Високоскоростна мрежа за гладко онлайн игри и прехвърляне на големи файлове.
  • Изчерпателна свързаност — Включва USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort и множество USB портове.
  • Ultra Durable дизайн — Доказана издръжливост с висококачествени компоненти и защита.

Технически Спецификации

СпецификацияСтойност
СокетLGA1700
ЧипсетIntel B760
Форм факторMicro-ATX
Тип паметDDR5
Слотове за памет2 (Dual Channel)
Максимална памет128 GB
M.2 слотове2 (1 x PCIe 5.0, 1 x PCIe 4.0)
SATA портове4
PCIe x16 слотове1 (PCIe 4.0 x16)
LAN2.5 GbE Realtek
Wi-FiНе
USB-C портове1 (USB 3.2 Gen2x2)
RGB подсветкаНе

Какво има в кутията

  • Дънна платка GIGABYTE B760M DS3H GEN5
  • Ръководство за употреба
  • I/O щит
  • 2 x SATA кабела
  • M.2 винтове
