- MSI
Preț
€148 56 / 290 56 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI/Specification
Graphics
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Expansion slots
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Memory type
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

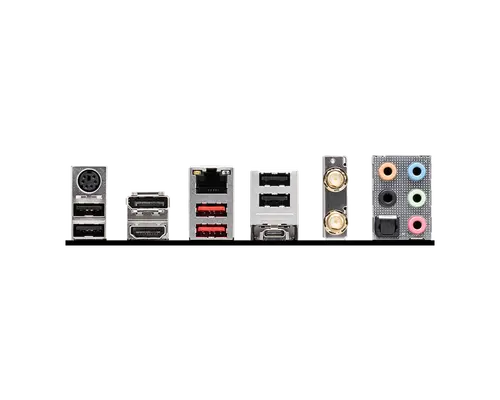

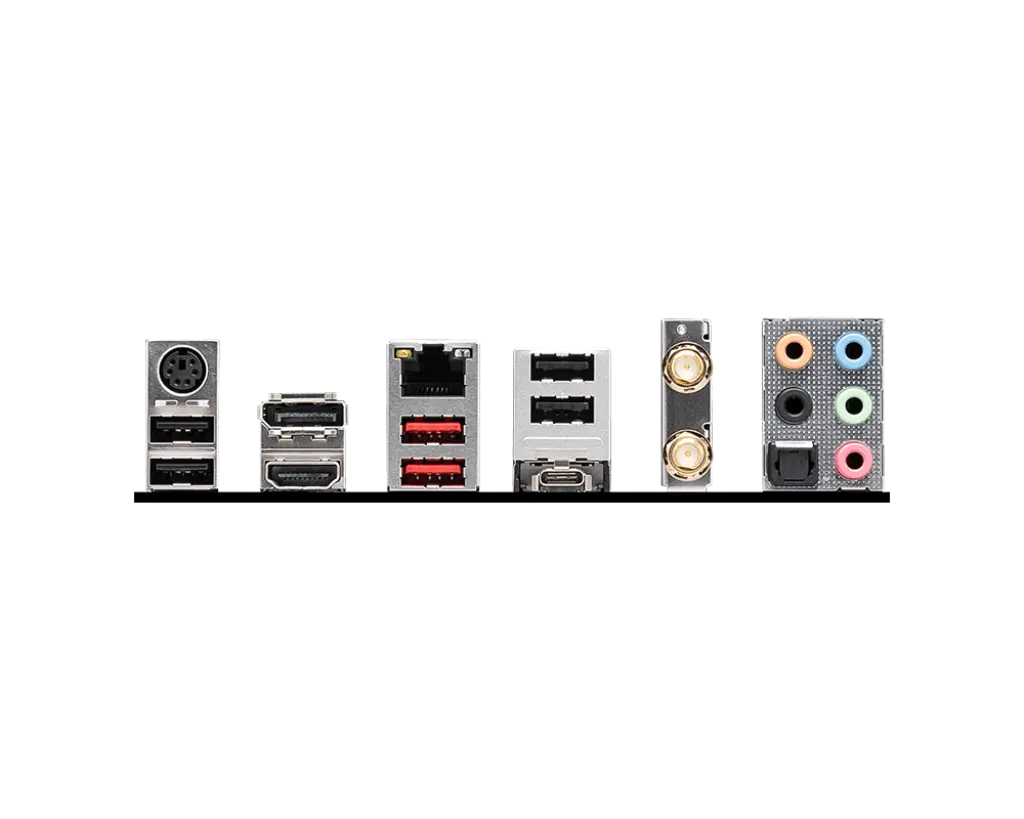

Rear panel I/O
Keyboard / Mouse
DisplayPort
2.5G LAN
USB 2.0
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
S/PDIF-OUT
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Lan
Realtek® RTL8125BG 2.5G LAN
Form factor
ATX ,243.84mmx304.8mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Other
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI/Specification |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | • 2DPC 1R Max speed up to 6000+ MHz |
| Memory type | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory type | Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz |
| Memory type | • 1DPC 2R Max speed up to 6400+ MHz |
| Memory type | Supports Intel® XMP 3.0 OC |
| Memory type | Supports Dual-Controller Dual-Channel mode |
| Memory type | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory type | • 2DPC 2R Max speed up to 5600+ MHz |
| Form Factor | ATX ,243.84mmx304.8mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Audio | Supports S/PDIF output |
| Rear panel I/O | Keyboard / Mouse |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | USB 3.2 Gen 2 10Gbps (Type-A) |
| Rear panel I/O | USB 3.2 Gen 2 10Gbps (Type-C) |
| Rear panel I/O | S/PDIF-Out |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | 5x PCI-E x16 slot |
| Expansion Slots | PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics | 1x HDMI™ |
| Graphics | 1x DisplayPort |
| Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* |
| Graphics | Support DP 1.4, maximum resolution of 4K 60Hz* |
| Graphics | Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* |
| Other | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Other | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Other | Intel® Wi-Fi 6E |
| Other | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Other | Supports Bluetooth® 5.3, FIPS, FISMA |
| I/O | Keyboard / Mouse |
| I/O | Audio Connectors |
| I/O | HDMI™ |
| I/O | DisplayPort |
| I/O | 2.5G LAN |
| I/O | USB 2.0 |
| I/O | Wi-Fi / Bluetooth |
| I/O | USB 3.2 Gen 2 10Gbps (Type-A) |
| I/O | USB 3.2 Gen 2 10Gbps (Type-C) |
| I/O | S/PDIF-Out |
| Storage | 4x SATA 6G |
| Storage | 2x M.2 |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x USB 3.2 Gen1 Type A ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Pump Fan |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 1x TBT connector (JTBT, supports RTD3) |
| Connectors | 5x System Fan |
| Connectors | 1x Printer Port (JLPT) |
| Connectors | 1x USB 3.2 Gen1 Type C ports |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 192 |
| M.2 Slots (count) | 3 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

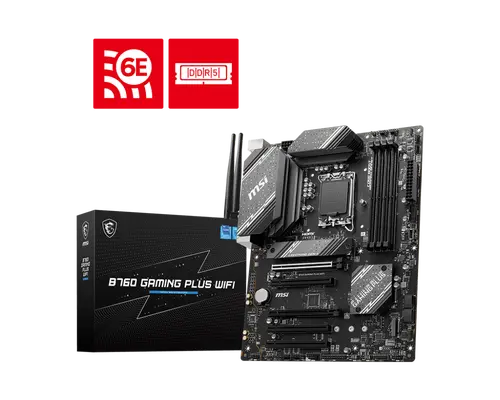

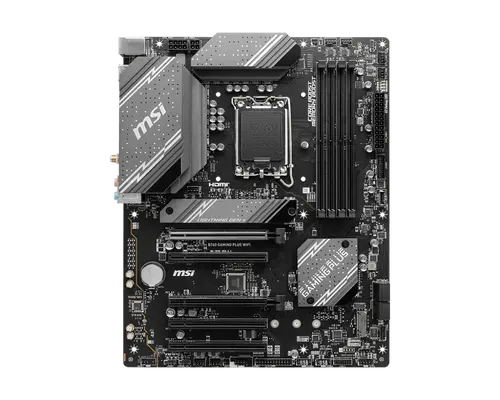

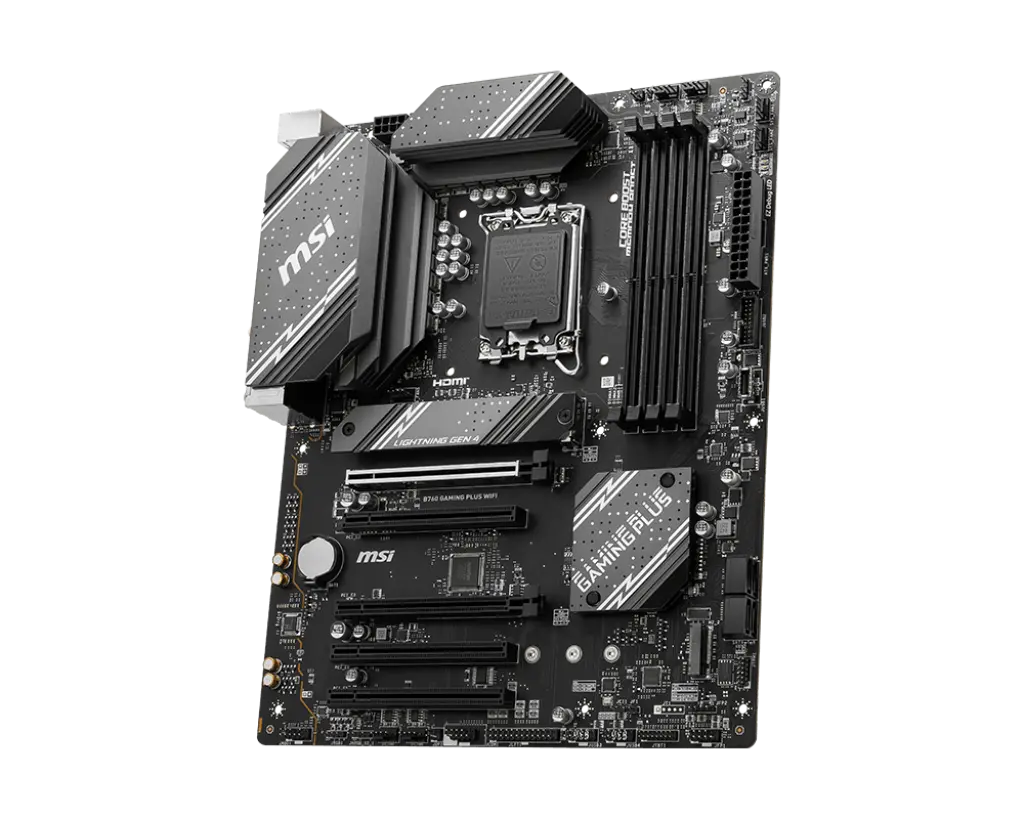

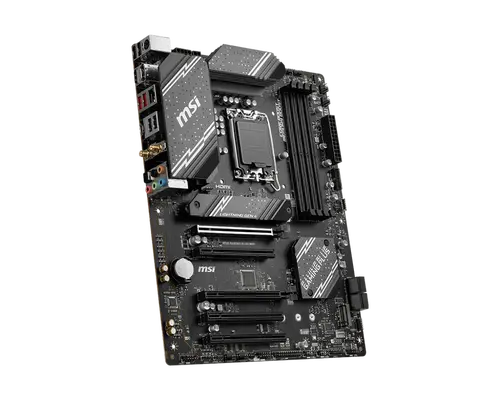

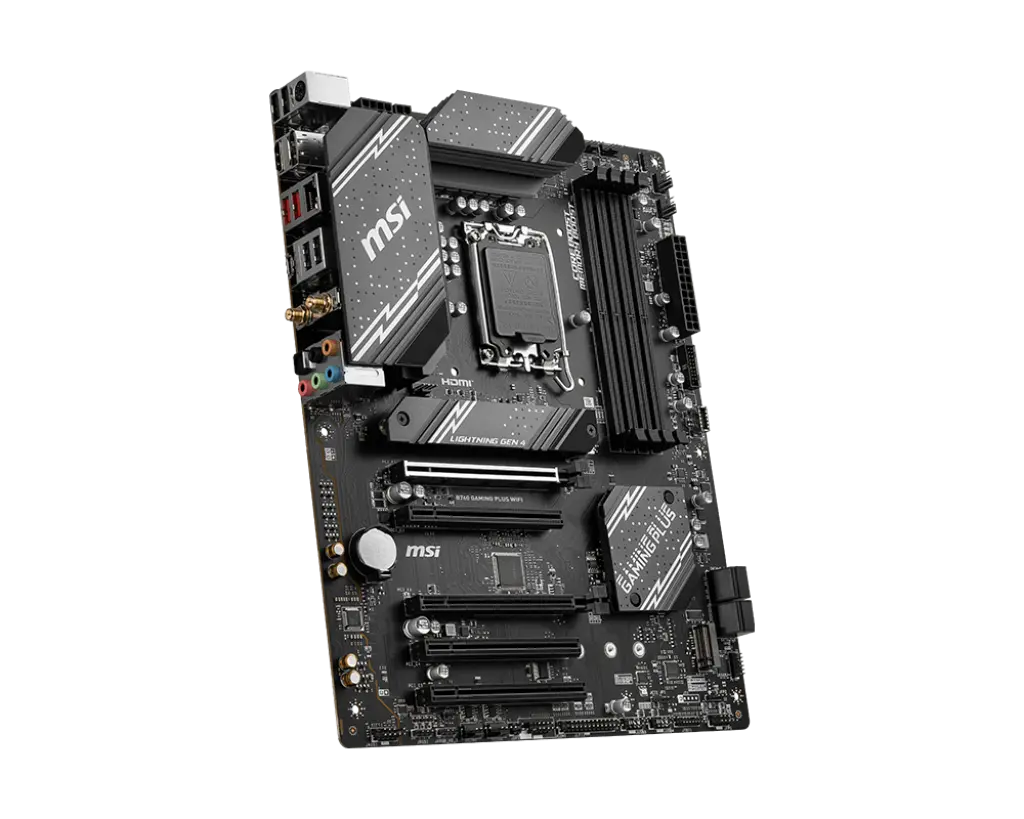

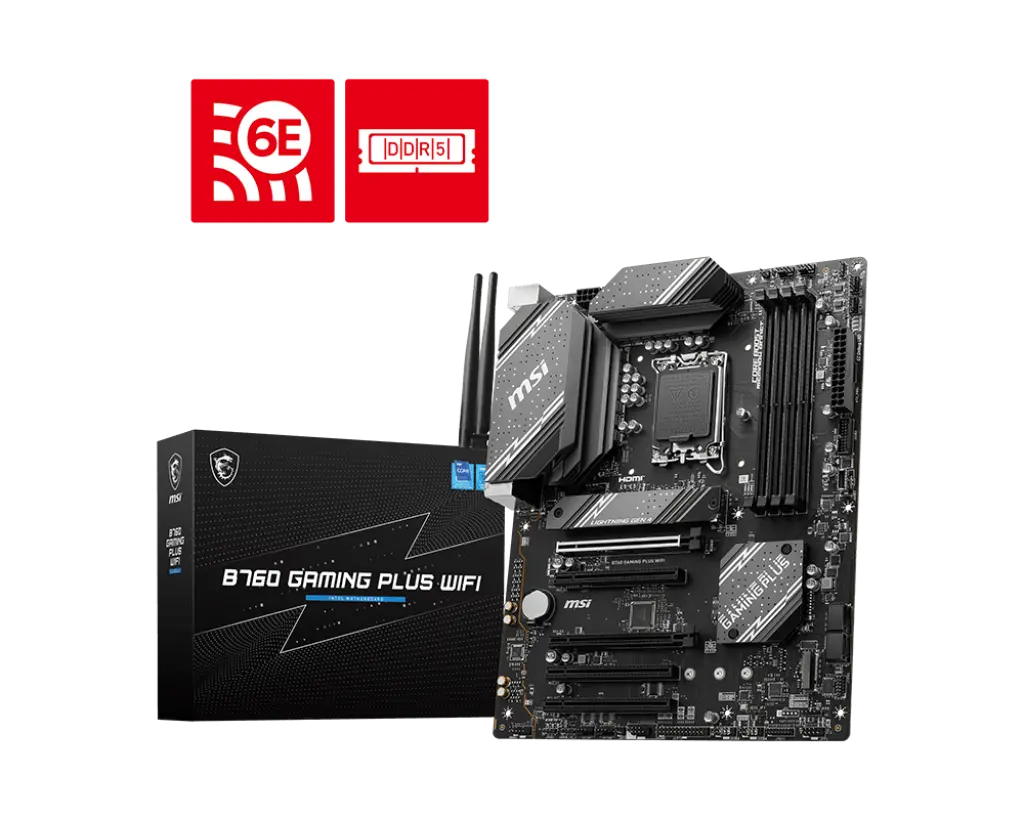

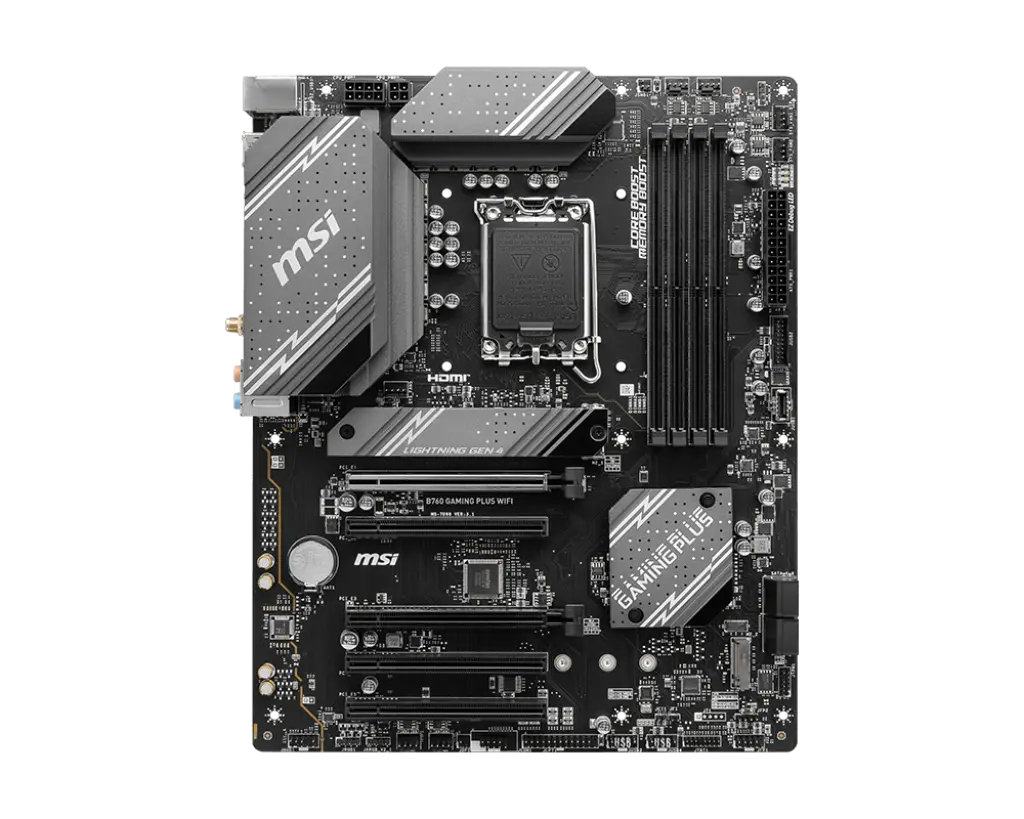

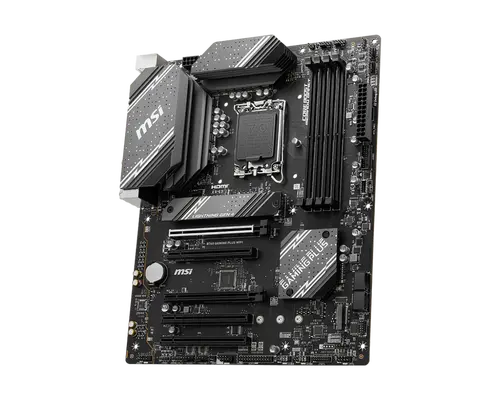

Дънна платка MSI B760 GAMING PLUS WIFI
Изведете игровото си представяне на ново ниво с MSI B760 GAMING PLUS WIFI – дънна платка, създадена за процесори Intel 12-то, 13-то и 14-то поколение. С поддръжка на DDR5, бърз Wi-Fi 6E и стабилно захранване, този ATX модел осигурява скоростта и надеждността, от които се нуждаете за потапящ гейминг и многозадачна работа.
Ключови Предимства
- Поддръжка на DDR5 памет — По-висока честотна лента и по-ниска латентност за по-плавен геймплей и по-бързо зареждане.
- Чипсет Intel B760 — Оптимизиран за производителност и ефективност, с поддръжка на PCIe 4.0 и модерни връзки.
- Вграден Wi-Fi 6E и 2.5G LAN — Насладете се на безжична свързаност с изключително ниско закъснение и стабилна кабелна връзка за безпроблемно онлайн гейминг.
- Здрава захранваща система — 12+1+1 фази Duet Rail с DrMOS осигуряват стабилно захранване дори при натоварване.
- M.2 Shield Frozr — Поддържайте NVMe SSD-тата си хладни за устойчива високоскоростна работа.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 3 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI B760 GAMING PLUS WIFI
- 2x SATA кабела
- Заден I/O панел
- Wi-Fi антена
- Ръководство за потребителя и бързо ръководство за инсталиране
- DVD с драйвери
- M.2 винтове
