- MSI
Preț
€147 00 / 287 51 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/B760M-PROJECT-ZERO
Graphics
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
CPU's supported
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
Chipset
INTEL B760
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Memory type
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7800+ MHz
1DPC 2R Max speed up to 6600+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile

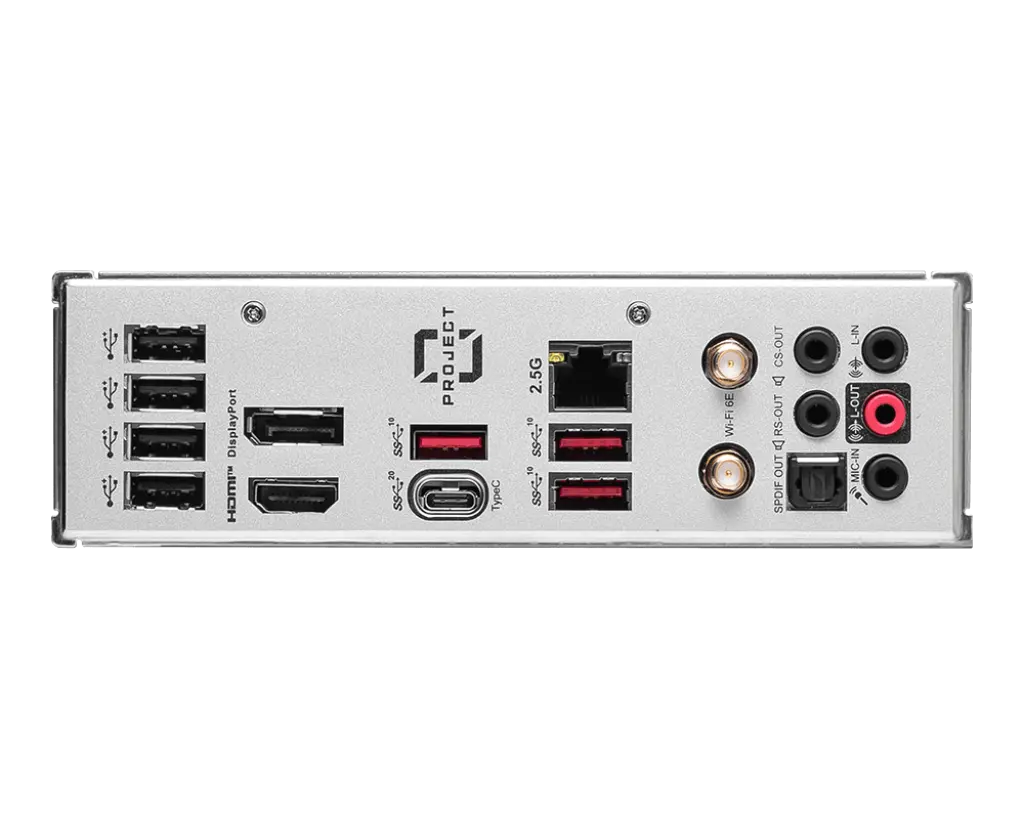

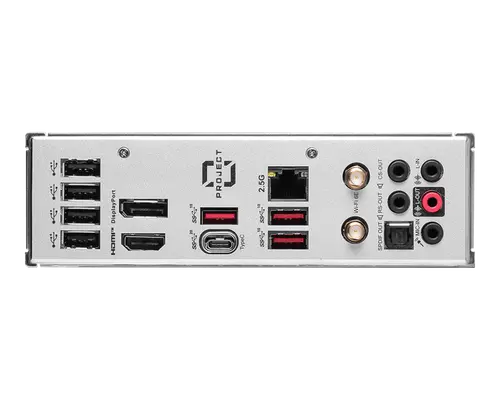

Rear panel I/O
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Lan
Realtek® 2.5Gbps LAN
Wireless
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth
5.3
Form factor
mATX 243.84mmx243.84mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/B760M-PROJECT-ZERO |
| Chipset | INTEL B760 |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700 |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | Max. overclocking frequency: |
| Memory type | 4x DDR5, Maximum Memory Capacity 256GB |
| Memory type | Supports Intel® Extreme Memory Profile |
| Memory type | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory type | 1DPC 1R Max speed up to 7800+ MHz |
| Memory type | 1DPC 2R Max speed up to 6600+ MHz |
| Memory type | 2DPC 1R Max speed up to 6400+ MHz |
| Memory type | 2DPC 2R Max speed up to 5600+ MHz |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek® ALC897 Codec |
| Audio | Supports S/PDIF output |
| Audio | 7.1-Channel High Performance Audio |
| Rear panel I/O | 2x USB 5Gbps Type A (Front) |
| Rear panel I/O | 3x USB 10Gbps Type A (Rear) |
| Rear panel I/O | 1x USB 10Gbps Type C (Front) |
| Rear panel I/O | 1x USB 20Gbps Type C (Rear) |
| Rear panel I/O | 4x USB 2.0 (Rear) |
| Rear panel I/O | 4x USB 2.0 (Front) |
| LAN | Realtek® 2.5Gbps LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Wireless | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Graphics | 1x HDMI™ |
| Graphics | 1x DisplayPort |
| Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* |
| Graphics | Support DP 1.4, maximum resolution of 4K 60Hz |
| I/O | 2x USB 5Gbps Type A (Front) |
| I/O | 3x USB 10Gbps Type A (Rear) |
| I/O | 1x USB 10Gbps Type C (Front) |
| I/O | 1x USB 20Gbps Type C (Rear) |
| I/O | 4x USB 2.0 (Rear) |
| I/O | 4x USB 2.0 (Front) |
| Storage | 4x SATA 6G |
| Storage | 2x M.2 |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Bluetooth | 5.3 |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Pump Fan |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 2x RGB LED connector(JRGB) |
| Connectors | 1x USB 10Gbps Type C ports |
| Connectors | 4x System Fan |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

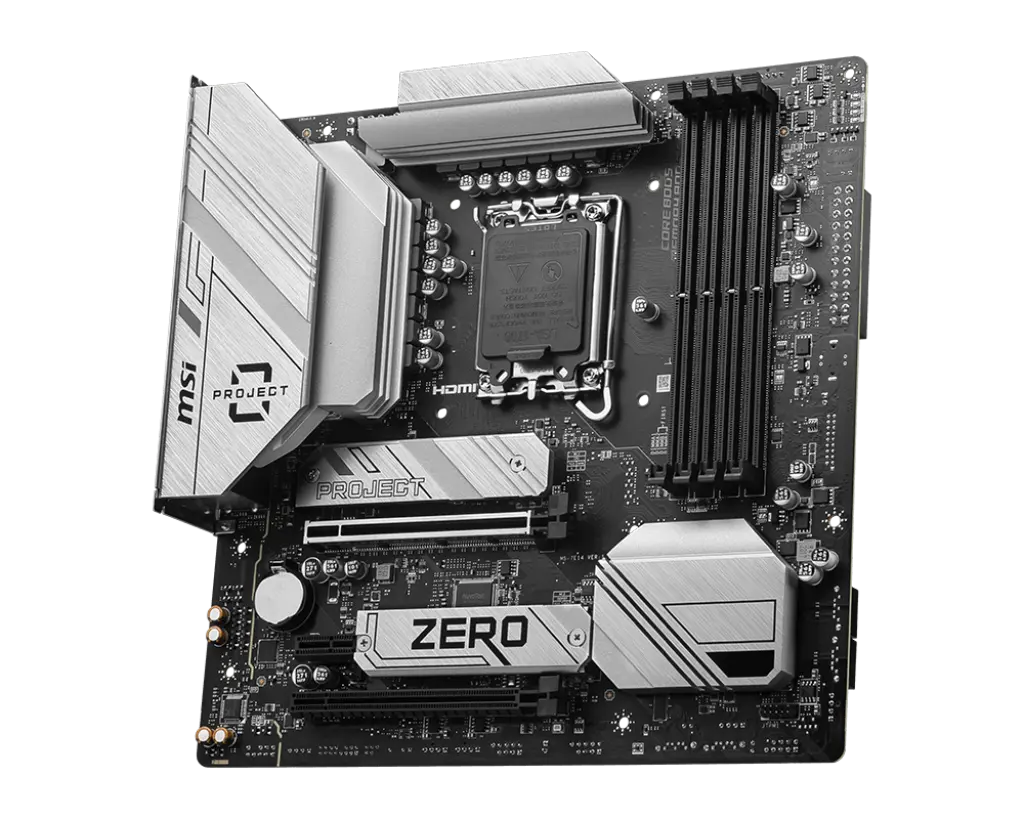

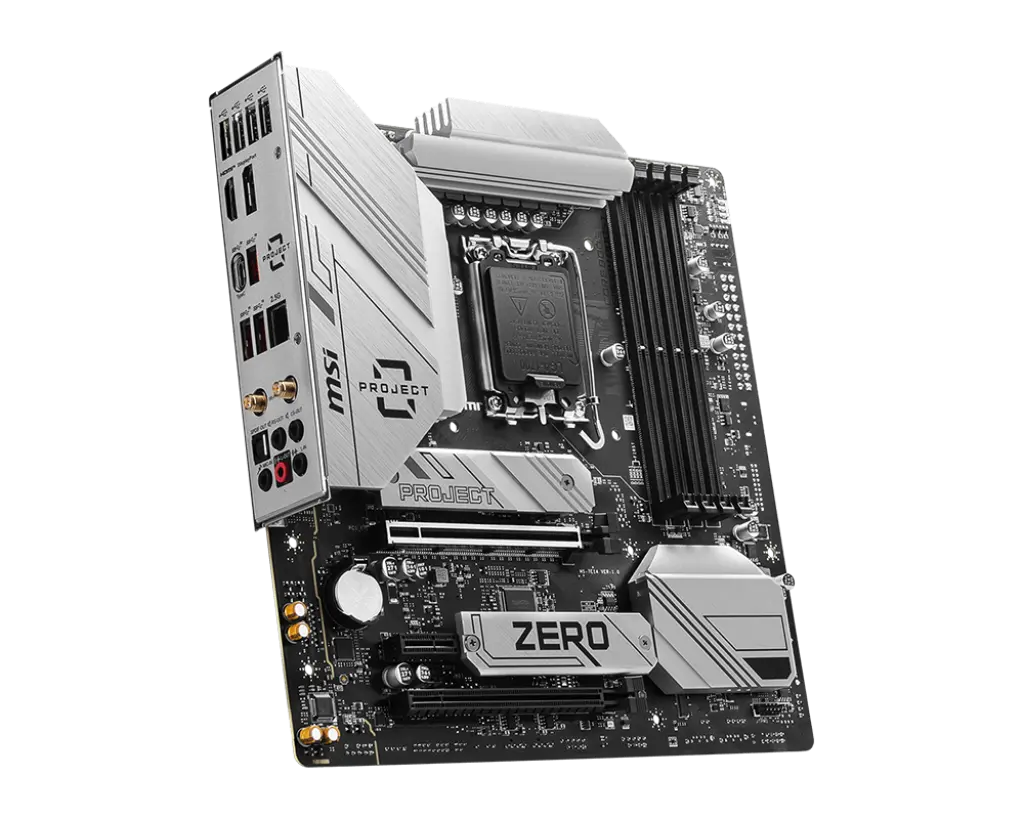

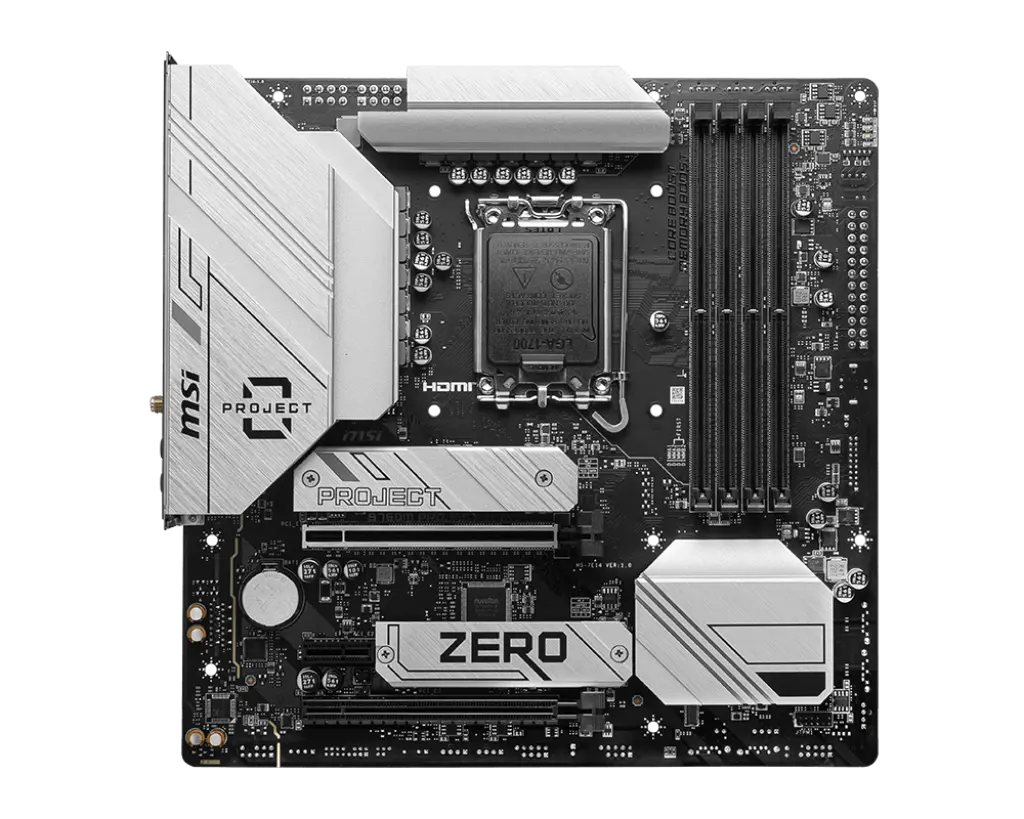

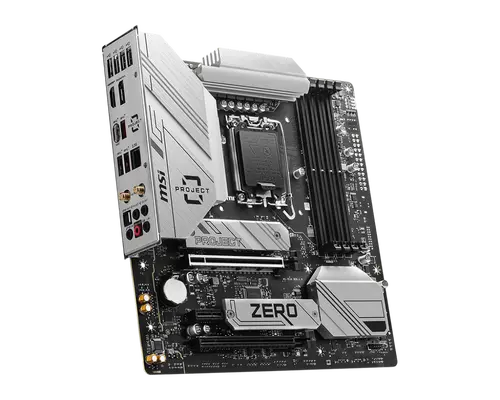

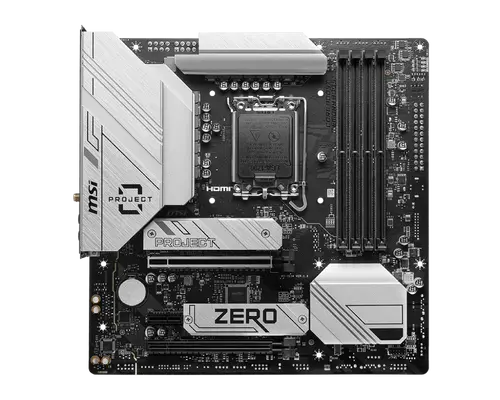

MSI B760M PROJECT ZERO — Най-чистото изграждане на мечтите ви
Кажете „сбогом“ на заплетените кабели. MSI B760M PROJECT ZERO предефинира изграждането на компютър с иновативния си дизайн, при който всички конектори са преместени на гърба на платката, осигурявайки безупречен изглед отпред. С чипсет Intel B760 и поддръжка на процесори от 13-то и 14-то поколение, тази Micro-ATX дънна платка предлага изключителна производителност с DDR5 памет и бъдещо-устойчива свързаност.
Ключови Предимства
- Нулево кабелно безпокойство — Всички захранващи и даннови конектори са преместени отзад, за чист и организиран вид без видими кабели.
- Памет и съхранение от ново поколение — Поддържа DDR5 памет до 64 GB и два M.2 Gen4 слота за светкавично зареждане.
- Безпроблемна свързаност — Вграденият Wi-Fi 6E и 2.5G LAN осигуряват безпроблемна онлайн игра и стрийминг.
- Зашеметяваща RGB персонализация — Технологията Mystic Light ви позволява да синхронизирате RGB осветлението за персонализиран вид.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 2 (Gen4 x4) |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Wi-Fi | Wi-Fi 6E |
| LAN | 2.5 Gbps |
| USB-C (отзад) | 1 |
| RGB | Да (Mystic Light) |

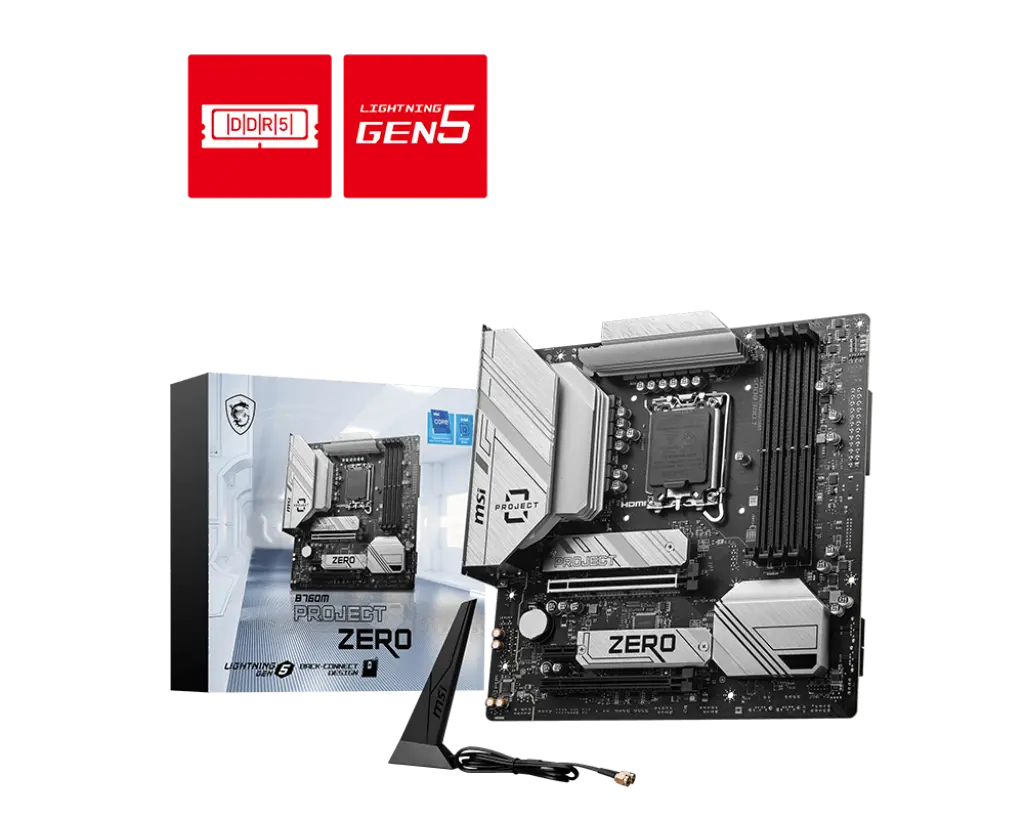

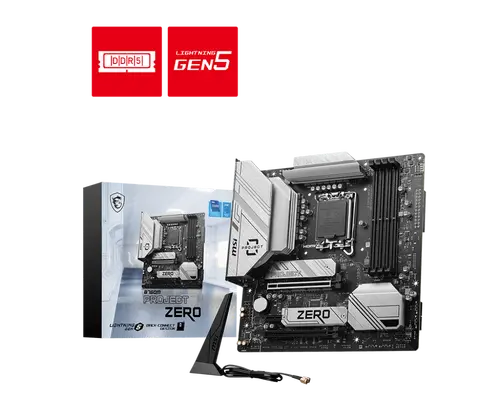

Какво има в кутията
- Дънна платка MSI B760M PROJECT ZERO
- Ръководство за потребителя
- 2 x SATA кабела
- I/O скоба
- M.2 винтове и дистанционери
- Wi-Fi антена
