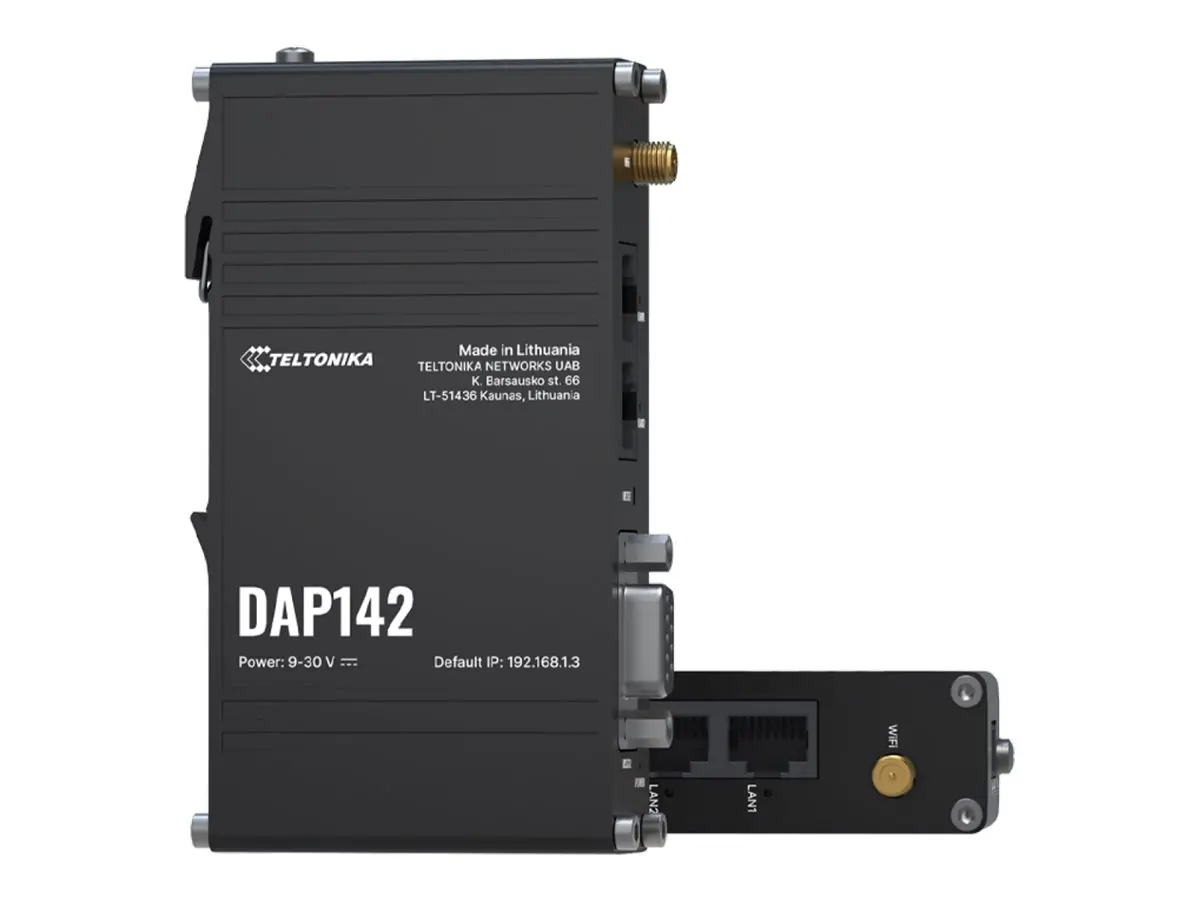

TELTONIKA NETWORKS DAP142 RS232 Punct de acces wireless

The Teltonika DAP142 is a reliable wireless access point designed for industrial environments, featuring performance and versatility. With an external antenna and the capability to support up to 50 simultaneous connections, this device ensures consistent connectivity and efficiency for demanding applications. It operates in extreme temperatures, ranging from -40°C to 75°C, making it suitable for various operational settings. Equipped with extensive encryption algorithms such as WPA3, SSL, and MODBUS, the DAP142 prioritizes security. Its wall or DIN rail mountable form factor enhances installation flexibility, while remote management protocols like SSH and SNMP allow for streamlined operations and monitoring. Features like firewall protection, DDoS attack prevention, and real-time traffic statistics enable businesses to maintain high standards of connectivity and security.

Description
Marketing Description	The Teltonika DAP142 is a reliable wireless access point designed for industrial environments, featuring performance and versatility. With an external antenna and the capability to support up to 50 simultaneous connections, this device ensures consistent connectivity and efficiency for demanding applications. It operates in extreme temperatures, ranging from -40°C to 75°C, making it suitable for various operational settings. Equipped with extensive encryption algorithms such as WPA3, SSL, and MODBUS, the DAP142 prioritizes security. Its wall or DIN rail mountable form factor enhances installation flexibility, while remote management protocols like SSH and SNMP allow for streamlined operations and monitoring. Features like firewall protection, DDoS attack prevention, and real-time traffic statistics enable businesses to maintain high standards of connectivity and security.
General
Device Type	Radio access point
Width	11.578 cm
Depth	6.86 cm
Height	2.5 cm
Weight	149.2 g
Processor / Memory / Storage
Processors Installed	1 x MediaTek MIPS 24Kec 580 GHz
Max Supported Qty	1
RAM	128 MB DDR2 SDRAM
Flash Memory	16 MB
Networking
Form Factor	Wall / DIN rail mountable
Connectivity Technology	Wireless
Data Link Protocol	Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, PPP
Network / Transport Protocol	TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, FTP, SMTP, ARP, DHCP, Telnet, IPSec
Routing Protocol	BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, PPPoE, GRE
Remote Management Protocol	TLS, SSH, SNMP, MQTT, CLI, SNMP 1, SNMP 2, SNMP 3
Capacity	Simultaneous connections: up to 50
Status Indicators	Power, status 1, status 2
Features	Virtual Route Redundancy Protocol (VRRP) support, Point-to-Point Protocol (PPP), UPnP, wake on LAN (WOL), Smart Queue Management (SQM), Virtual Routing and Forwarding (VRF), real-time traffic statistics, firewall protection, Web Filtering, Simple Certificate Enrollment Protocol (SCEP), OpenVPN encryption, ZeroTier VPN client support, WireGuard, Tinc encryption, Tailscale encryption, DLMS support, Firmware Over-the-Air (FOTA), reset button, aluminium housing, DDos attack prevention, port scan prevention
Encryption Algorithm	MODBUS, WPA2-EAP, WPA3-EAP, WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, Opportunistic Wireless Encryption (OWE), SSL
Authentication Method	Secure Shell (SSH), X.509 certificates, TACACS+, RADIUS
Compliant Standards	IEEE 802.11s, IEEE 802.11r, IEEE 802.11k, IEEE 802.11e, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3at, IEEE 802.3bt
Aerial
Antenna	External
Antenna Qty	1
Expansion / Connectivity
Interfaces	2 x 10/100Base-T - RJ-45 1 x RS-232 - DB-9 1 x aerial - RP-SMA
Miscellaneous
Included Accessories	Mounting bracket, 3-pin power connector
Compliant Standards	CB, IP30, UKCA
Power
Power Over Ethernet (PoE) Supported	Passive PoE
Voltage Required	DC 9 - 30 V
Software / System Requirements
OS Provided	RutOS
Dimensions & Weight (Shipping)
Shipping Width	14.1 cm
Shipping Depth	7.45 cm
Shipping Height	2.82 cm
Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	75 °C
Humidity Range Operating	10 - 90% (non-condensing)
