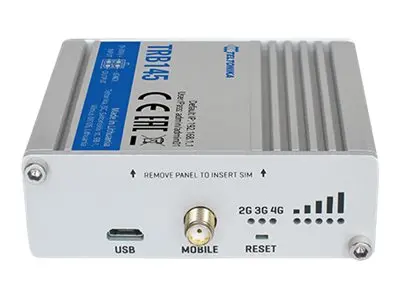

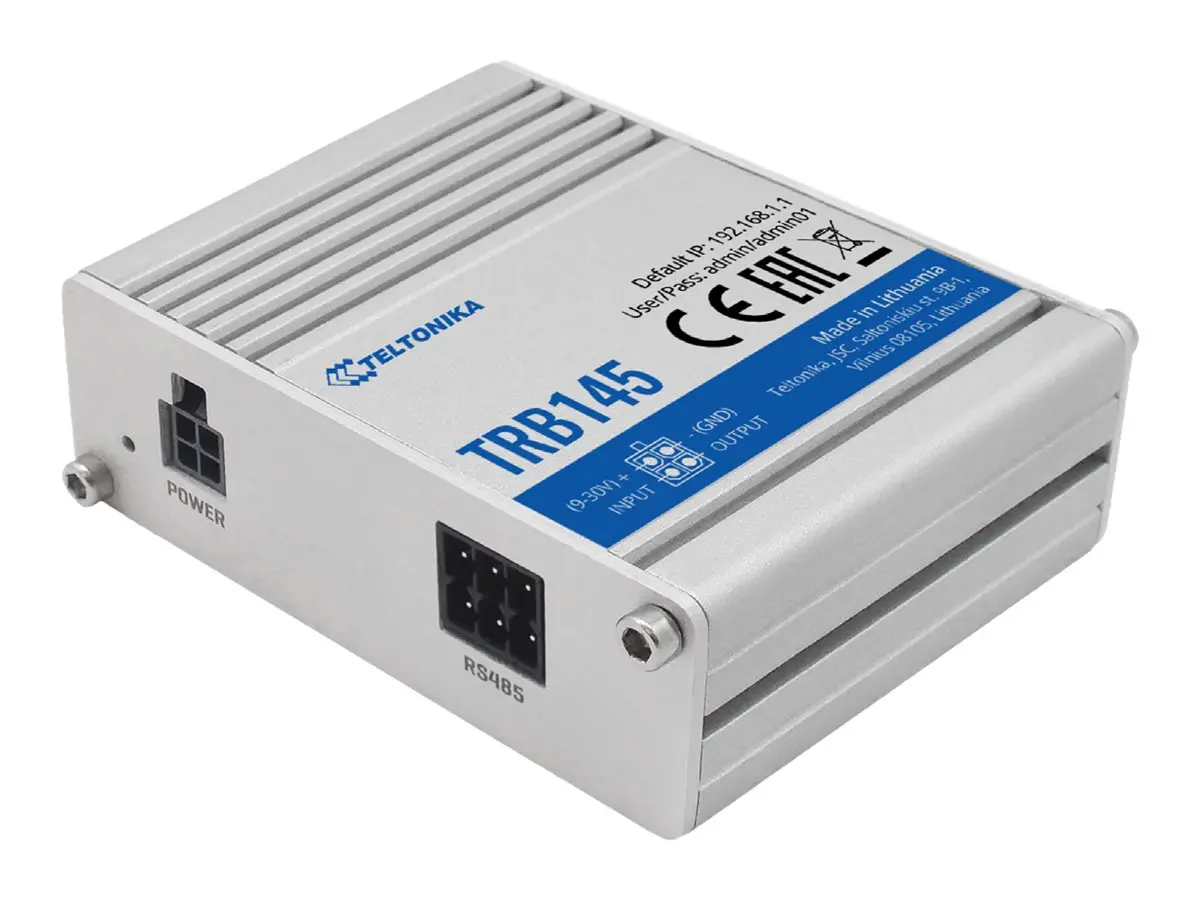

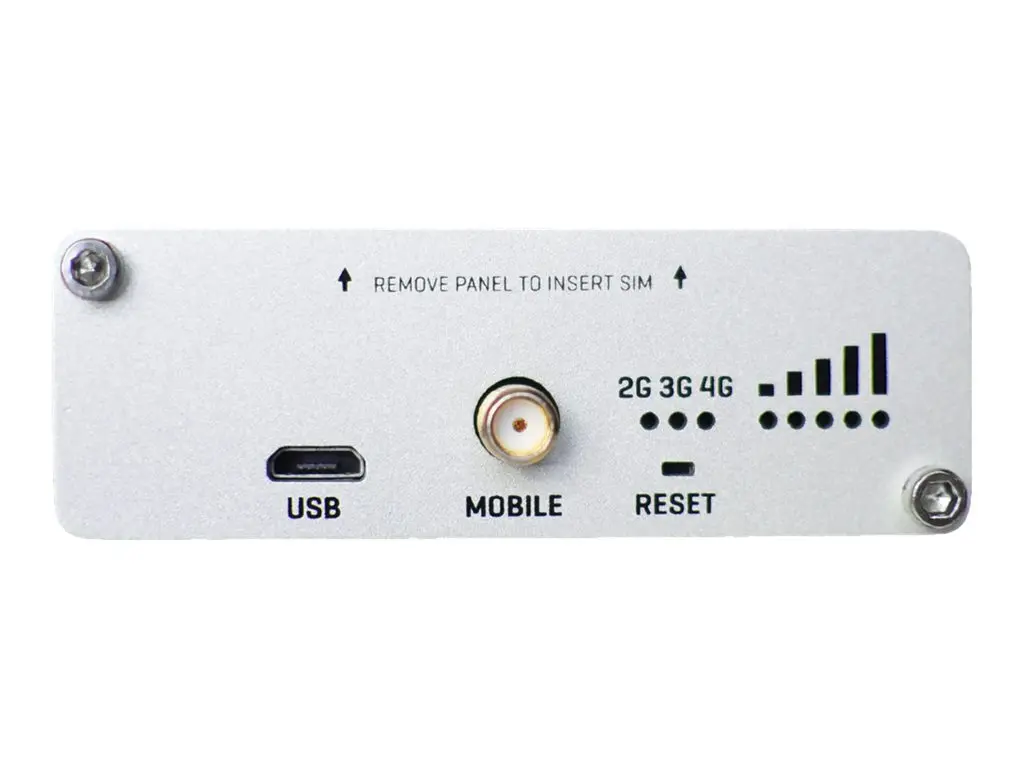

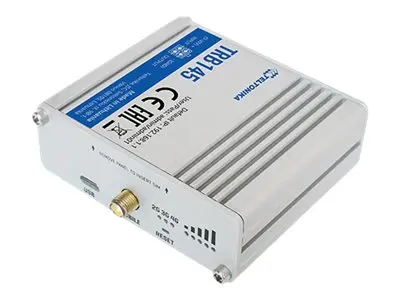

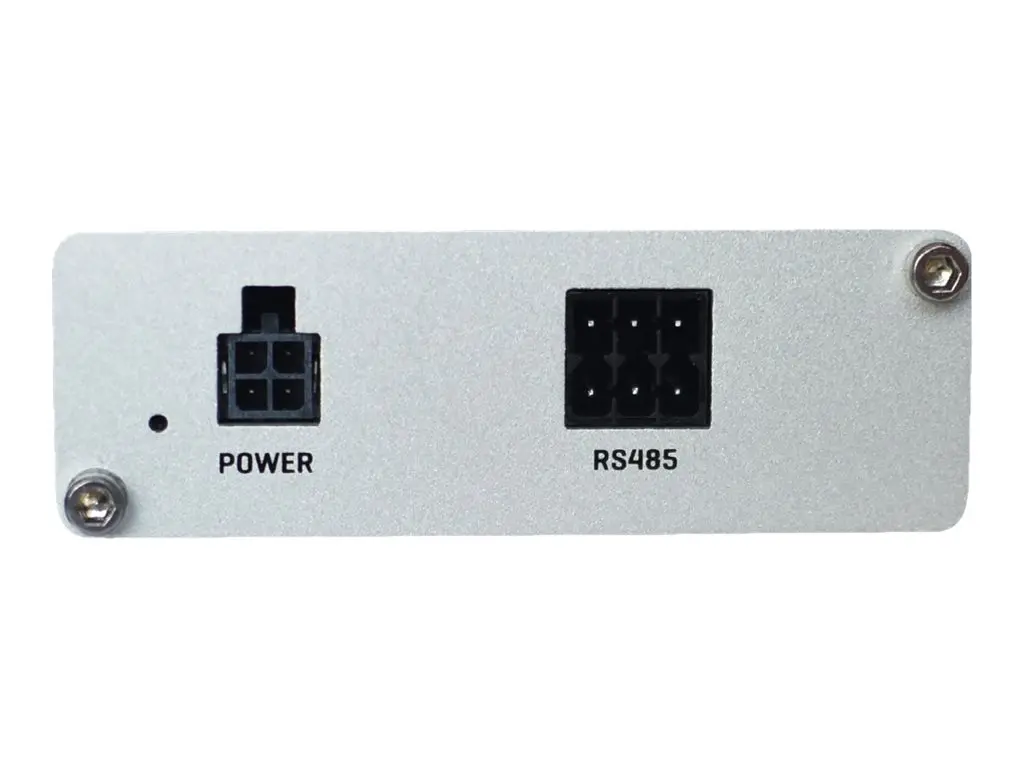

Teltonika TRB145 - Gateway - alimentare DC
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
TRB145 is a mission-critical LTE Cat 1 gateway, equipped with RS485 interface.
Compact design and easy installation make this gateway perfect for applications, where a sole gadget must be remotely controlled over the RS485 serial interface.
Just like the rest of TRB products, TRB145 is engineered to be used in industrial applications. Therefore, it has a wide range of software features, such as SMS control, Firewall, Open VPN, IPsec, Teltonika Networks Remote Management System (RMS), and FOTA support.
Compact design and easy installation make this gateway perfect for applications, where a sole gadget must be remotely controlled over the RS485 serial interface.
Just like the rest of TRB products, TRB145 is engineered to be used in industrial applications. Therefore, it has a wide range of software features, such as SMS control, Firewall, Open VPN, IPsec, Teltonika Networks Remote Management System (RMS), and FOTA support.
| Description | |
|---|---|
| Marketing Description | TRB145 is a mission-critical LTE Cat 1 gateway, equipped with RS485 interface. |
| General | |
| Device Type | Gateway |
| Width | 7 cm |
| Depth | 1.8 cm |
| Height | 6 cm |
| Weight | 130 g |
| Processor / Memory / Storage | |
| Processors Installed | 1 x ARM Cortex-A7 1.2 GHz |
| Max Supported Qty | 1 |
| RAM | 128 MB |
| Flash Memory | 512 MB |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, DHCP, DNS, DDNS, IPv4, IPv6 |
| Routing Protocol | GRE |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, SSH-2, CLI, Modbus, MQTT |
| Capacity | VPN tunnels: 5 |
| Status Indicators | Power, status, connection status |
| Features | Firewall protection, NAT support, interrupt status port (ISP), firmware upgradable, port forwarding, GRE tunneling, static routing, Teltonika Remote Management System (RMS) |
| Encryption Algorithm | DES, Triple DES, RC2, CAST5, IKE, SSL, TLS, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2 |
| Communications | |
| Mobile Broadband Access | Yes |
| Mobile Communication Protocol | LTE |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SIM card |
| Interfaces | 1 x RS-485 2 x digital input/output 1 x USB 1 x aerial - SMA |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE, X.509, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, ETSI EN 301-489-1 V2.2.0, RED, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 489-52 V1.1.0, EN 301 489-19 V2.1.0, EN 61000-4-4:2012, EN 300-511 V12.5.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2, EN 50385:2017, EN 62232:2017 |
| Power | |
| Voltage Required | DC 9 - 30 V |
| Power Consumption Operational | 5 Watt |
| Software / System Requirements | |
| OS Provided | RutOS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Device Type | Gateway |
| Marketing Description | TRB145 is a mission-critical LTE Cat 1 gateway, equipped with RS485 interface. |
| Marketing Description | TRB145 is a mission-critical LTE Cat 1 gateway, equipped with RS485 interface. |
| Device Type | Gateway |
| Connectivity Technology | Wired |
| Width | 7 cm |
| Depth | 1.8 cm |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, DHCP, DNS, DDNS, IPv4, IPv6 |
| Height | 6 cm |
| Encryption Algorithm | DES, Triple DES, RC2, CAST5, IKE, SSL, TLS, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2 |
| Weight | 130 g |
| Features | Firewall protection, NAT support, interrupt status port (ISP), firmware upgradable, port forwarding, GRE tunneling, static routing, Teltonika Remote Management System (RMS) |
| Compliant Standards | RoHS, WEEE, X.509, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, ETSI EN 301-489-1 V2.2.0, RED, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, ETSI EN 301 908-1 V11. |
| Processors Installed | 1 x ARM Cortex-A7 1.2 GHz |
| Processors Installed | 1 x ARM Cortex-A7 1.2 GHz |
| Status Indicators | Power, status, connection status |
| Max Supported Qty | 1 |
| Max Supported Qty | 1 |
| RAM | 128 MB |
| Mobile Communication Protocol | LTE |
| Flash Memory | 512 MB |
| Interfaces | 1 x RS-485 2 x digital input/output 1 x USB 1 x aerial - SMA |
| Form Factor | External |
| Expansion Slots | 1 (total) / 1 (free) x SIM card |
| Connectivity Technology | Wired |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, DHCP, DNS, DDNS, IPv4, IPv6 |
| Routing Protocol | GRE |
| Width | 7 cm |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, SSH-2, CLI, Modbus, MQTT |
| Depth | 1.8 cm |
| Capacity | VPN tunnels: 5 |
| Height | 6 cm |
| Status Indicators | Power, status, connection status |
| Weight | 130 g |
| Features | Firewall protection, NAT support, interrupt status port (ISP), firmware upgradable, port forwarding, GRE tunneling, static routing, Teltonika Remote Management System (RMS) |
| Min Operating Temperature | -40 °C |
| Encryption Algorithm | DES, Triple DES, RC2, CAST5, IKE, SSL, TLS, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2 |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Form Factor | External |
| Mobile Broadband Access | Yes |
| Mobile Broadband Access | Yes |
| Mobile Communication Protocol | LTE |
| Expansion Slots | 1 (total) / 1 (free) x SIM card |
| Interfaces | 1 x RS-485 2 x digital input/output 1 x USB 1 x aerial - SMA |
| Routing Protocol | GRE |
| Compliant Standards | RoHS, WEEE, X.509, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, ETSI EN 301-489-1 V2.2.0, RED, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, ETSI EN 301 908-1 V11. |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, SSH-2, CLI, Modbus, MQTT |
| Power Consumption Operational | 5 Watt |
| RAM | 128 MB |
| OS Provided | RutOS |
| Flash Memory | 512 MB |
| Min Operating Temperature | -40 °C |
| Voltage Required | DC 9 - 30 V |
| Max Operating Temperature | 75 °C |
| Power Consumption Operational | 5 Watt |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| OS Provided | RutOS |
| Voltage Required | DC 9 - 30 V |
| Capacity | VPN tunnels: 5 |
| Greutate | 0.13kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Router Type | 4G/5G LTE |
| Wi-Fi Standard | None (wired only) |
| WAN Port Speed | 100 Mbps |
| LAN Ports (count) | 1 |
| LAN Port Speed | 100 Mbps |
| Max Wireless Speed (Mbps) | 150 |
| Antennas | External detachable |
| Number of Antennas (count) | 2 |
| USB Ports (count) | 1 |
| VPN Support | Yes |
| Mesh Support | No |
| MU-MIMO | No |
| PoE Support | PoE In |
| SIM Slot | Yes |
| Greutate | 0.13kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Индустриален шлюз Teltonika TRB145 – 4G/LTE с RS485
Свържете серийни устройства към клетъчната мрежа с Teltonika TRB145 – компактен и здрав индустриален шлюз с 4G LTE Cat 4 и RS485 интерфейс за Modbus комуникация. Насладете се на надежден отдалечен мониторинг и управление с вградена VPN защита.
Ключови Предимства
- Надеждна 4G LTE свързаност — Cat 4 модем с резервен 3G/2G режим.
- RS485 Modbus интеграция — Лесно свързване на индустриални сензори, PLC и измервателни уреди.
- Сигурен отдалечен достъп — Вграден VPN (OpenVPN, IPsec) за криптирани тунели.
- Здрав индустриален дизайн — Работен температурен диапазон от -40 до 75°C и монтаж на DIN шина.
- Множество опции за захранване — 9-30 V DC или пасивен PoE.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Процесор | ARM Cortex-A7 550 MHz |
| RAM | 128 MB |
| Флаш памет | 256 MB |
| Клетъчна връзка | 4G LTE Cat 4 (150/50 Mbps), 3G/2G резерв |
| Ethernet порт | 1 x 10/100 Mbps |
| RS485 | 1 x RS485 (Modbus) |
| USB | 1 x USB 2.0 Type-A |
| SIM слот | 1 x micro-SIM |
| Антенни конектори | 2 x SMA за LTE |
| Захранване | 9-30 V DC или пасивен PoE |
| Работна температура | -40 до 75 °C |
| Размери | 100 x 25 x 75 мм |
Какво има в кутията
- Устройство TRB145
- 2 x LTE антени
- Захранващ адаптер (24 V DC)
- RS485 клемен конектор
- Кратко ръководство
