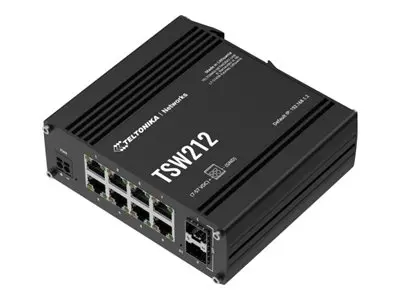

Teltonika TSW212 - Switch - Administrabil - 8 x 10/100/1000 + 2 x SFP - montabil pe șină DIN, montabil pe suprafață
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
The Teltonika TSW212 is an industrial-grade switch designed to meet the demands of modern networks. With its robust data processing capabilities, including a 20 Gbps non-blocking bandwidth and a 14.88 Mpps forwarding rate, it ensures smooth and efficient operation. Security is a priority, with features like RADIUS and TACACS+ authentication providing protection against unauthorized access. The switch's versatile connectivity options, including 8 Gigabit Ethernet ports and 2 SFP slots, make it suitable for a wide range of applications. Its durable, anodized aluminum housing and IP30 protection rating allow it to operate in extreme environmental conditions, from -40 °C to 75 °C. Additionally, the TSW212 supports the Teltonika Remote Management System (RMS), enabling efficient network management and monitoring. Whether deployed in industrial, commercial, or office settings, the TSW212 delivers reliable, secure, and high-speed network connectivity.
| Description | |
|---|---|
| Marketing Description | The Teltonika TSW212 is an industrial-grade switch designed to meet the demands of modern networks. With its robust data processing capabilities, including a 20 Gbps non-blocking bandwidth and a 14.88 Mpps forwarding rate, it ensures smooth and efficient operation. Security is a priority, with features like RADIUS and TACACS+ authentication providing protection against unauthorized access. The switch's versatile connectivity options, including 8 Gigabit Ethernet ports and 2 SFP slots, make it suitable for a wide range of applications. Its durable, anodized aluminum housing and IP30 protection rating allow it to operate in extreme environmental conditions, from -40 °C to 75 °C. Additionally, the TSW212 supports the Teltonika Remote Management System (RMS), enabling efficient network management and monitoring. Whether deployed in industrial, commercial, or office settings, the TSW212 delivers reliable, secure, and high-speed network connectivity. |
| General | |
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | DIN rail mountable, surface-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x SFP |
| Performance | Non-blocking bandwidth: 20 Gbps Forwarding rate: 14.88 Mpps |
| Capacity | Packet buffer size: 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | STP, RSTP, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP 3, SNMP 2, DHCP, RADIUS |
| Authentication Method | RADIUS, TACACS+ |
| Features | Auto-uplink (auto MDI/MDI-X), EtherNet/IP enabled, PROFINET, LLDP support, VLAN support, MRP support, loop protection, DHCP server, DHCP client, port isolation, EEE, port mirroring, DHCPv6 client, PAM, PSK, QoS, DSCP prioritisation, ToS, rate limit, Storm Control, traffic shaping, Teltonika RMS, FOTA, reset button, ground points, anodised aluminium housing |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3az |
| RAM | 128 MB DDR3 SDRAM |
| Flash Memory | 16 MB |
| Status Indicators | Power, AUX, Ethernet link/activity, SFP |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 2 x 1000Base-X SFP |
| Power | |
| Voltage Required | DC 7 - 57 V |
| Miscellaneous | |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, NBTC, EN 55032:2015+A1:2020+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN IEC 61000-3-2:2019+A1:2021, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, IEC 61000-4-3:2020, AS/NZS 62368-1:2022, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018 |
| Software / System Requirements | |
| Software Included | WitchOS |
| Dimensions & Weight | |
| Width | 13.2 cm |
| Depth | 12.22 cm |
| Height | 4.42 cm |
| Weight | 615 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Device Type | Switch - 8 ports - Managed |
| Marketing Description | The Teltonika TSW212 is an industrial-grade switch designed to meet the demands of modern networks. With its robust data processing capabilities, including a 20 Gbps non-blocking bandwidth and a 14.88 Mpps forwarding rate, it ensures smooth and efficient |
| Enclosure Type | DIN rail mountable, surface-mountable |
| Subtype | Gigabit Ethernet |
| Enclosure Type | DIN rail mountable, surface-mountable |
| Ports | 8 x 10/100/1000 + 2 x SFP |
| Subtype | Gigabit Ethernet |
| Performance | Non-blocking bandwidth: 20 Gbps Forwarding rate: 14.88 Mpps |
| Capacity | Packet buffer size: 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Performance | Non-blocking bandwidth: 20 Gbps Forwarding rate: 14.88 Mpps |
| Routing Protocol | STP, RSTP, static IPv4 routing, static IPv6 routing |
| Width | 13.2 cm |
| Remote Management Protocol | SNMP 3, SNMP 2, DHCP, RADIUS |
| Depth | 12.22 cm |
| MAC Address Table Size | 8K entries |
| Height | 4.42 cm |
| Jumbo Frame Support | 10000 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), EtherNet/IP enabled, PROFINET, LLDP support, VLAN support, MRP support, loop protection, DHCP server, DHCP client, port isolation, EEE, port mirroring, DHCPv6 client, PAM, PSK, QoS, DSCP prioritisation, ToS, rate limit, Storm |
| Min Operating Temperature | -40 °C |
| Remote Management Protocol | SNMP 3, SNMP 2, DHCP, RADIUS |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3az |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, NBTC, EN 55032:2015+A1:2020+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN IEC 61000-3-2:2019+A1:2021, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1: |
| Max Operating Temperature | 75 °C |
| RAM | 128 MB DDR3 SDRAM |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Marketing Description | The Teltonika TSW212 is an industrial-grade switch designed to meet the demands of modern networks. With its robust data processing capabilities, including a 20 Gbps non-blocking bandwidth and a 14.88 Mpps forwarding rate, it ensures smooth and efficient |
| Flash Memory | 16 MB |
| Device Type | Switch - 8 ports - Managed |
| RAM | 128 MB DDR3 SDRAM |
| Status Indicators | Power, AUX, Ethernet link/activity, SFP |
| Flash Memory | 16 MB |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 2 x 1000Base-X SFP |
| Status Indicators | Power, AUX, Ethernet link/activity, SFP |
| Ports | 8 x 10/100/1000 + 2 x SFP |
| Weight | 615 g |
| Features | Auto-uplink (auto MDI/MDI-X), EtherNet/IP enabled, PROFINET, LLDP support, VLAN support, MRP support, loop protection, DHCP server, DHCP client, port isolation, EEE, port mirroring, DHCPv6 client, PAM, PSK, QoS, DSCP prioritisation, ToS, rate limit, Storm |
| Voltage Required | DC 7 - 57 V |
| Capacity | Packet buffer size: 512 KB |
| Width | 13.2 cm |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3az |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, NBTC, EN 55032:2015+A1:2020+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN IEC 61000-3-2:2019+A1:2021, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1: |
| Routing Protocol | STP, RSTP, static IPv4 routing, static IPv6 routing |
| Depth | 12.22 cm |
| Authentication Method | RADIUS, TACACS+ |
| Height | 4.42 cm |
| Software Included | WitchOS |
| Weight | 615 g |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 2 x 1000Base-X SFP |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Voltage Required | DC 7 - 57 V |
| Authentication Method | RADIUS, TACACS+ |
| Software Included | WitchOS |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Number of Ports (count) | 8 |
| Port Speed | 10/100/1000 Mbps |
| Switch Type | Managed |
| PoE Support | No |
| Form Factor | Wall Mount |
| Layer | Layer 3 |
| SFP Ports (count) | 2 |
| SFP+ Ports (count) | 0 |
| Switching Capacity (Gbps) | 20 |
| PoE Power Budget (W) | 0 |
| VLAN Support | Yes |
| Stackable | No |
| Fanless | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Teltonika Networks TSW212 – Индустриален управляем суич ниво 2/3
TSW212 е здрав индустриален управляем суич, който предлага както Layer 2, така и разширени Layer 3 функции за маршрутизация. С 8 Gigabit Ethernet порта и 2 SFP слота, той осигурява надеждна и високоскоростна свързаност за взискателни среди. Безвентилаторният му дизайн гарантира безшумна работа и дълъг живот дори при екстремни температури.
Ключови Предимства
- Поддръжка на Layer 2 и Layer 3 — Пълно управлявано комутиране със статична маршрутизация за сегментиране на мрежата и ефективен трафик.
- Индустриална издръжливост — Безвентилаторен, метален корпус с широк температурен диапазон (-40°C до 75°C) за тежки условия.
- Гъвкава свързаност — 8 Gigabit RJ45 порта плюс 2 SFP слота за оптични връзки.
- Разширена сигурност — VLAN, QoS, IGMP snooping, защита на портовете и ACL за защита на мрежата.
- Лесно управление — Уеб интерфейс, SNMP, CLI и Teltonika Remote Management System (RMS) за облачно управление.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Брой Gigabit портове | 8 |
| SFP слотове | 2 (1000BASE-X) |
| Капацитет на превключване | 20 Gbps |
| Слой | Layer 2 / Layer 3 (статична маршрутизация) |
| Форм фактор | Монтаж на DIN шина (на стена) |
| Работна температура | -40°C до 75°C |
| Захранване | 9-50 VDC (резервен вход) |
| PoE поддръжка | Не |
| VLAN поддръжка | Да |
| Стекируем | Не |
| Без вентилатор | Да |
Какво има в кутията
- Teltonika TSW212 суич
- Захранващ адаптер
- Комплект за монтаж на DIN шина
- Кратко ръководство за употреба
