- TELTONIKA NETWORKS
Preț
€70 79 / 138 45 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta

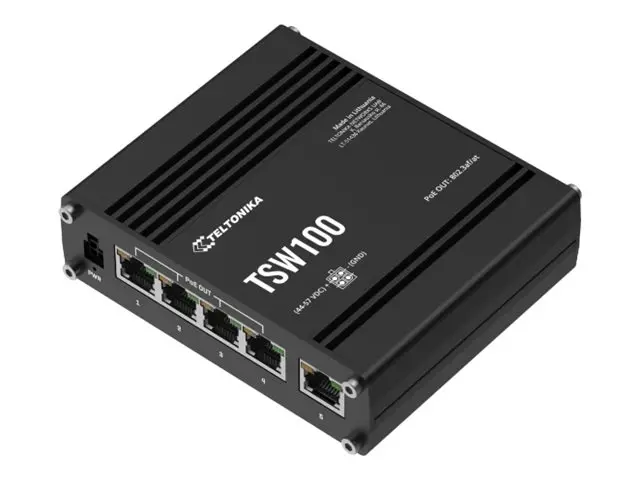

Teltonika TSW100 - Switch - neadministrabil - 5 x 10/100/1000 (4 PoE) - montabil pe șină DIN, montabil pe suprafață, montabil pe perete - PoE (120 W)
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
The Teltonika TSW100 is designed to optimize network performance with its non-blocking bandwidth of 10 Gbps, allowing for seamless data transfers across all connected devices. Built with an aluminum housing, it ensures durability and resilience under demanding conditions. The switch is equipped with a robust packet buffer size of 128 KB, supporting a MAC address table size of 2K entries, facilitating improved management of network resources.
Operating efficiently in extreme temperatures ranging from -40°C to 75°C, the TSW100 delivers reliable performance in various environmental conditions. It features Power over Ethernet (PoE) capability, with a budget of 120 W spread across five Gigabit Ethernet ports. Compliant with various IEEE standards, including IEEE 802.3u, IEEE 802.3af, and IEEE 802.3at, this switch is equipped to handle networking needs with flexibility and reliability.
Operating efficiently in extreme temperatures ranging from -40°C to 75°C, the TSW100 delivers reliable performance in various environmental conditions. It features Power over Ethernet (PoE) capability, with a budget of 120 W spread across five Gigabit Ethernet ports. Compliant with various IEEE standards, including IEEE 802.3u, IEEE 802.3af, and IEEE 802.3at, this switch is equipped to handle networking needs with flexibility and reliability.
| General | |
|---|---|
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable, surface-mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (4 PoE) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 120 W |
| Performance | Non-blocking bandwidth: 10 Gbps |
| Capacity | Packet buffer size: 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, ground points, aluminium housing |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Power, status |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE - 30 W 1 x 1000Base-T RJ-45 |
| Power | |
| Power Device | External power adapter |
| Power Provided | 62 Watt - DC 48 V - 1.3 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 1.5 A |
| Miscellaneous | |
| Compliant Standards | IP30, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, ANATEL, CB, E Mark, EN 55032:2015, EN 55035:2017, EN 301 489-1 V2.2.3, EN 61000-4-2:2009, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-11:2004, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020 |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 11.5 cm |
| Depth | 10.12 cm |
| Height | 3.22 cm |
| Weight | 350 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17.5 cm |
| Shipping Depth | 15 cm |
| Shipping Height | 3.5 cm |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable, surface-mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Enclosure Type | DIN rail mountable, surface-mountable, wall-mountable |
| Ports | 5 x 10/100/1000 (4 PoE) |
| Subtype | Gigabit Ethernet |
| Performance | Non-blocking bandwidth: 10 Gbps |
| Capacity | Packet buffer size: 128 KB |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 2K entries |
| PoE Budget | 120 W |
| Jumbo Frame Support | 9216 bytes |
| Performance | Non-blocking bandwidth: 10 Gbps |
| Width | 11.5 cm |
| Depth | 10.12 cm |
| Power Device | External power adapter |
| MAC Address Table Size | 2K entries |
| Height | 3.22 cm |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, ground points, aluminium housing |
| Min Operating Temperature | -40 °C |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | IP30, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, ANATEL, CB, E Mark, EN 55032:2015, EN 55035:2017, EN 301 489-1 V2.2.3, EN 61000-4-2:2009, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-11:20 |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Device Type | Switch - 5 ports - unmanaged |
| Localisation | Europe |
| Status Indicators | Power, status |
| Interfaces | 4 x 1000Base-T RJ-45 PoE - 30 W 1 x 1000Base-T RJ-45 |
| Status Indicators | Power, status |
| Ports | 5 x 10/100/1000 (4 PoE) |
| Power Device | External power adapter |
| Weight | 350 g |
| Power Provided | 62 Watt - DC 48 V - 1.3 A |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, ground points, aluminium housing |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Capacity | Packet buffer size: 128 KB |
| Width | 11.5 cm |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | IP30, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, ANATEL, CB, E Mark, EN 55032:2015, EN 55035:2017, EN 301 489-1 V2.2.3, EN 61000-4-2:2009, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-11:20 |
| Depth | 10.12 cm |
| Height | 3.22 cm |
| Weight | 350 g |
| Min Operating Temperature | -40 °C |
| Electric Current Required | 1.5 A |
| Shipping Width | 17.5 cm |
| Max Operating Temperature | 75 °C |
| Interfaces | 4 x 1000Base-T RJ-45 PoE - 30 W 1 x 1000Base-T RJ-45 |
| Shipping Depth | 15 cm |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shipping Height | 3.5 cm |
| Shipping Width | 17.5 cm |
| Shipping Depth | 15 cm |
| Power Provided | 62 Watt - DC 48 V - 1.3 A |
| Shipping Height | 3.5 cm |
| Electric Current Required | 1.5 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 120 W |
| Localisation | Europe |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Number of Ports (count) | 8 |
| Port Speed | 10/100/1000 Mbps |
| Switch Type | Unmanaged |
| PoE Support | PoE+ |
| Form Factor | Wall Mount |
| Layer | Layer 2 |
| SFP Ports (count) | 2 |
| SFP+ Ports (count) | 0 |
| Switching Capacity (Gbps) | 20 |
| PoE Power Budget (W) | 120 |
| VLAN Support | No |
| Stackable | No |
| Fanless | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Teltonika Networks TSW100 Industrial PoE+ Ethernet Switch
TSW100 е здрав, неуправляем индустриален суич, предназначен за захранване и свързване на PoE+ устройства в тежки условия. С 8 Gigabit PoE+ порта и 2 SFP слота, той осигурява надеждна мрежова производителност и до 120W PoE бюджет за IP камери, точки за достъп и сензори.
Ключови Предимства
- Индустриална издръжливост — Широк работен температурен диапазон, монтаж на DIN-рейка и безвентилаторен дизайн осигуряват работа в екстремни условия.
- Захранване и данни по един кабел — PoE+ (802.3at) елиминира необходимостта от отделно захранване за всяко устройство.
- Гъвкава оптична свързаност — Два SFP порта позволяват дълги разстояния чрез оптични кабели.
- Plug-and-Play — Неуправляем суич – нулева конфигурация, просто свържете и работете.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Брой портове | 8 x Gigabit PoE+ (10/100/1000) |
| SFP портове | 2 |
| Тип суич | Неуправляем |
| PoE стандарт | IEEE 802.3at PoE+ |
| PoE бюджет | 120 W |
| Капацитет на превключване | 20 Gbps |
| Слой | Layer 2 |
| Без вентилатор | Да |
| Монтаж | DIN-рейка |
| Работна температура | -40°C до 75°C |
Какво има в кутията
- TSW100 Industrial PoE+ Switch
- Захранващ терминален блок
- Комплект за монтаж на DIN-рейка
- Бързо ръководство
