- TELTONIKA NETWORKS
Preț
€112 44 / 219 91 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta

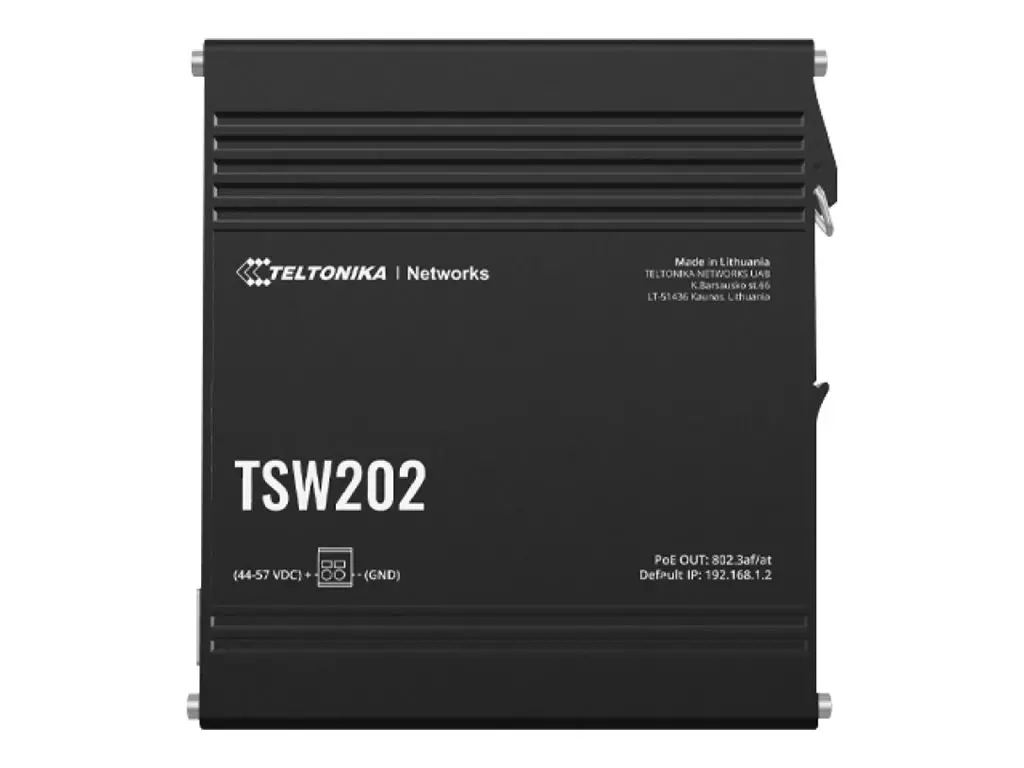

Teltonika TSW202 - Switch - Administrabil - 8 x 10/100/1000 (PoE+) + 2 x SFP - Montabil pe șină DIN - PoE+ (240 W)
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports providing 30W of power each.
| Description | |
|---|---|
| Marketing Description | TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports providing 30W of power each. |
| General | |
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Capacity | Packet buffer size: 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP prioritisation, ToS, SP, WFQ, WRR, traffic shaping, FOTA |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| RAM | 128 MB DDR3 SDRAM |
| Flash Memory | 16 MB |
| Status Indicators | Power, AUX, port status |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 30 W 2 x LAN SFP |
| Power | |
| Voltage Required | DC 7 - 57 V |
| Miscellaneous | |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN IEC 62368-1:2020+A11:2020, AS/NZS 62368-1:2022, IEC 62368-1:2018 |
| Dimensions & Weight | |
| Width | 13.2 cm |
| Depth | 12.22 cm |
| Height | 4.42 cm |
| Weight | 610 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Device Type | Switch - 8 ports - Managed |
| Device Type | Switch - 8 ports - Managed |
| Marketing Description | TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M commu |
| Marketing Description | TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M commu |
| Enclosure Type | DIN rail mountable |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Enclosure Type | DIN rail mountable |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Subtype | Gigabit Ethernet |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Capacity | Packet buffer size: 512 KB |
| Power Over Ethernet (PoE) | PoE+ |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP priorit |
| MAC Address Table Size | 8K entries |
| PoE Budget | 240 W |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:20 |
| Jumbo Frame Support | 10000 bytes |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Status Indicators | Power, AUX, port status |
| Width | 13.2 cm |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Depth | 12.22 cm |
| MAC Address Table Size | 8K entries |
| Height | 4.42 cm |
| Jumbo Frame Support | 10000 bytes |
| Interfaces | 8 x 1000Base-T RJ-45 30 W 2 x LAN SFP |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP priorit |
| Min Operating Temperature | -40 °C |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:20 |
| Max Operating Temperature | 75 °C |
| RAM | 128 MB DDR3 SDRAM |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Marketing Description | TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M commu |
| Flash Memory | 16 MB |
| Device Type | Switch - 8 ports - Managed |
| RAM | 128 MB DDR3 SDRAM |
| Status Indicators | Power, AUX, port status |
| Flash Memory | 16 MB |
| Width | 13.2 cm |
| Interfaces | 8 x 1000Base-T RJ-45 30 W 2 x LAN SFP |
| Status Indicators | Power, AUX, port status |
| Depth | 12.22 cm |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Height | 4.42 cm |
| Weight | 610 g |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Weight | 610 g |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Features | Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP priorit |
| Voltage Required | DC 7 - 57 V |
| Capacity | Packet buffer size: 512 KB |
| Width | 13.2 cm |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:20 |
| Depth | 12.22 cm |
| Height | 4.42 cm |
| Weight | 610 g |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Interfaces | 8 x 1000Base-T RJ-45 30 W 2 x LAN SFP |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Performance | Non-blocking bandwidth: 20 Gbps |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Voltage Required | DC 7 - 57 V |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 128 MB DDR3 SDRAM |
| PoE Budget | 240 W |
| Flash Memory | 16 MB |
| Voltage Required | DC 7 - 57 V |
| Power Over Ethernet (PoE) | PoE+ |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Capacity | Packet buffer size: 512 KB |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Subtype | Gigabit Ethernet |
| PoE Budget | 240 W |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Number of Ports (count) | 2 |
| Port Speed | 10/100/1000 Mbps |
| Switch Type | Managed |
| PoE Support | PoE+ |
| Form Factor | Wall Mount |
| Layer | Layer 3 |
| SFP Ports (count) | 2 |
| SFP+ Ports (count) | 0 |
| Switching Capacity (Gbps) | 8 Gbps |
| PoE Power Budget (W) | 60 |
| VLAN Support | Yes |
| Stackable | No |
| Fanless | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Teltonika Networks TSW202 – Управляем Layer 2/3 PoE+ комутатор с SFP портове
Подобрете вашата индустриална или корпоративна мрежа с Teltonika TSW202 – компактен, но мощен управляем комутатор. Той комбинира два Gigabit PoE+ порта с два SFP слота за гъвкави оптични връзки, като същевременно предлага здрава конструкция за тежки условия. Опростете мрежовата сегментация и сигурност с усъвършенствани Layer 2/3 функции.
Ключови Предимства
- Пълно управление и сигурност — VLAN, QoS, IGMP snooping и port mirroring осигуряват прецизен контрол. Статичното маршрутизиране (L3) позволява комуникация между VLAN без отделен рутер.
- Двойно PoE+ захранване — Всеки RJ45 порт доставя до 30W (IEEE 802.3at) за захранване на IP камери, точки за достъп или сензори.
- Оптична свързаност — Два 100/1000BASE‑X SFP слота поддържат дълги оптични връзки, осигурявайки електрическа изолация.
- Здрав и надежден — Безвентилаторен дизайн с широк работен температурен диапазон (-40°C до 75°C) и възможност за монтаж на стена или DIN шина, идеален за индустриален IoT и външни шкафове.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Брой портове | 2 x Gigabit RJ45 (PoE+) |
| SFP портове | 2 x 100/1000BASE‑X |
| Скорост на портовете | 10/100/1000 Mbps |
| Тип суич | Управляем (L2/L3) |
| PoE поддръжка | PoE+ (IEEE 802.3at) |
| PoE бюджет | До 60 W (30 W на порт) |
| Капацитет на превключване | 8 Gbps |
| Слой | Layer 2+ / Layer 3 (статично маршрутизиране) |
| VLAN поддръжка | Да, до 4094 VLAN-а |
| Форм фактор | За монтаж на стена / DIN шина (опция) |
| Без вентилатор | Да |
| Работна температура | -40°C до 75°C |
Какво има в кутията
- Комутатор Teltonika TSW202
- Кратко ръководство за употреба
- Захранващ адаптер (конектор за клемна връзка)
- Скоби за монтаж на стена
- Клип за DIN шина (опционален аксесоар)
