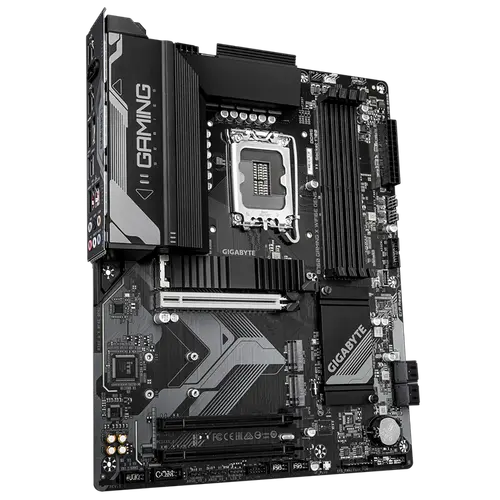

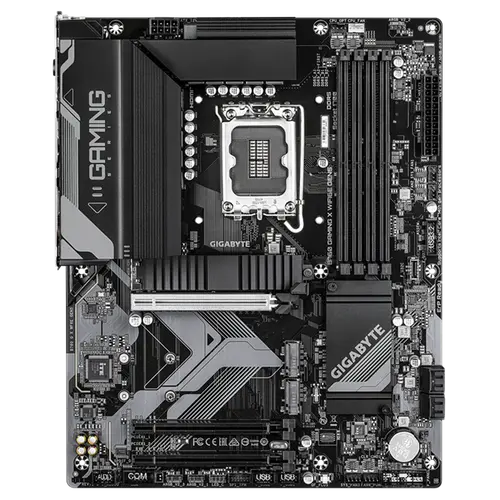

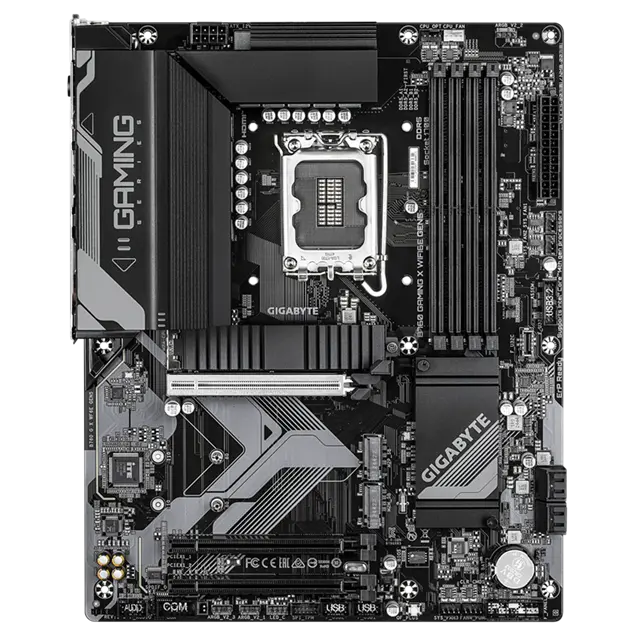

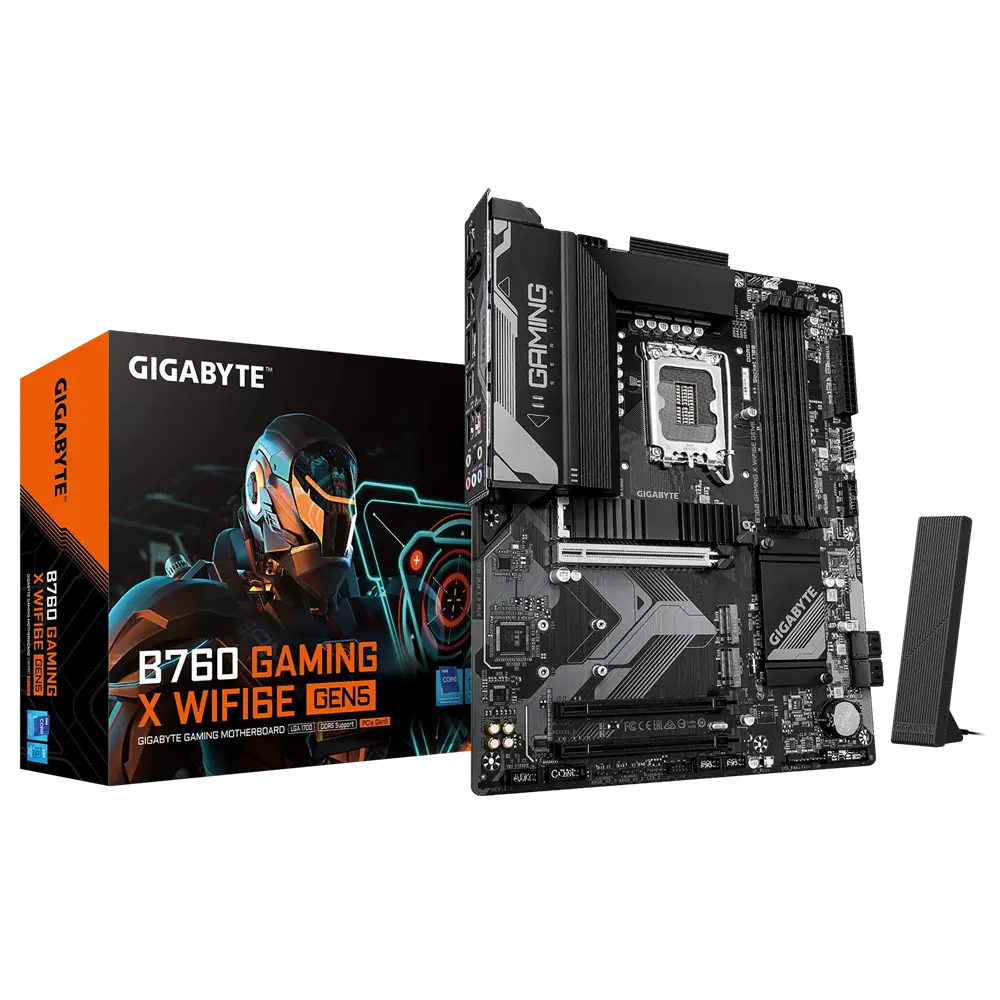

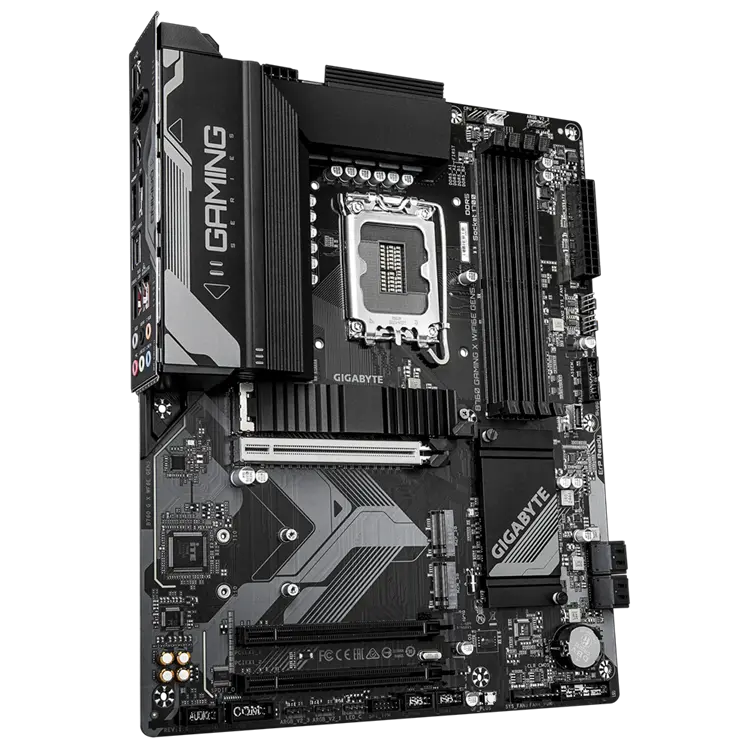

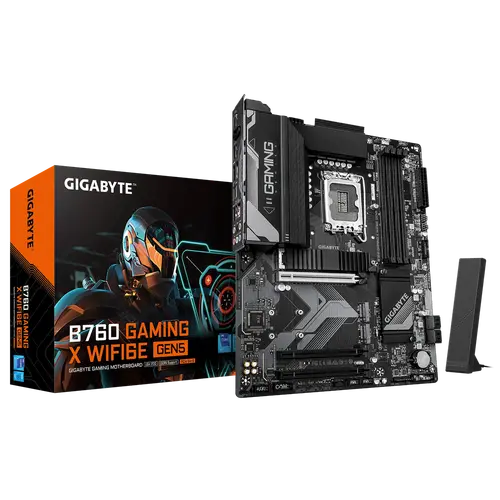

Placă de bază, GIGABYTE GB B760 GAMING X WF6E GEN5

  • Placă de bază, GIGABYTE GB B760 GAMING X WF6E GEN5 - 1
  • Placă de bază, GIGABYTE GB B760 GAMING X WF6E GEN5 - 2
  • Placă de bază, GIGABYTE GB B760 GAMING X WF6E GEN5 - 3
  • Placă de bază, GIGABYTE GB B760 GAMING X WF6E GEN5 - 4
  • GIGABYTE
Placă de bază, GIGABYTE GB B760 GAMING X WF6E GEN5
Preț
€154 51 / 302 20 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 21€
+2 ani: + 30€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
CreditCredit
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.gigabyte.com/Motherboard/B760-GAMING-X-WIFI6E-GEN5
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,
Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

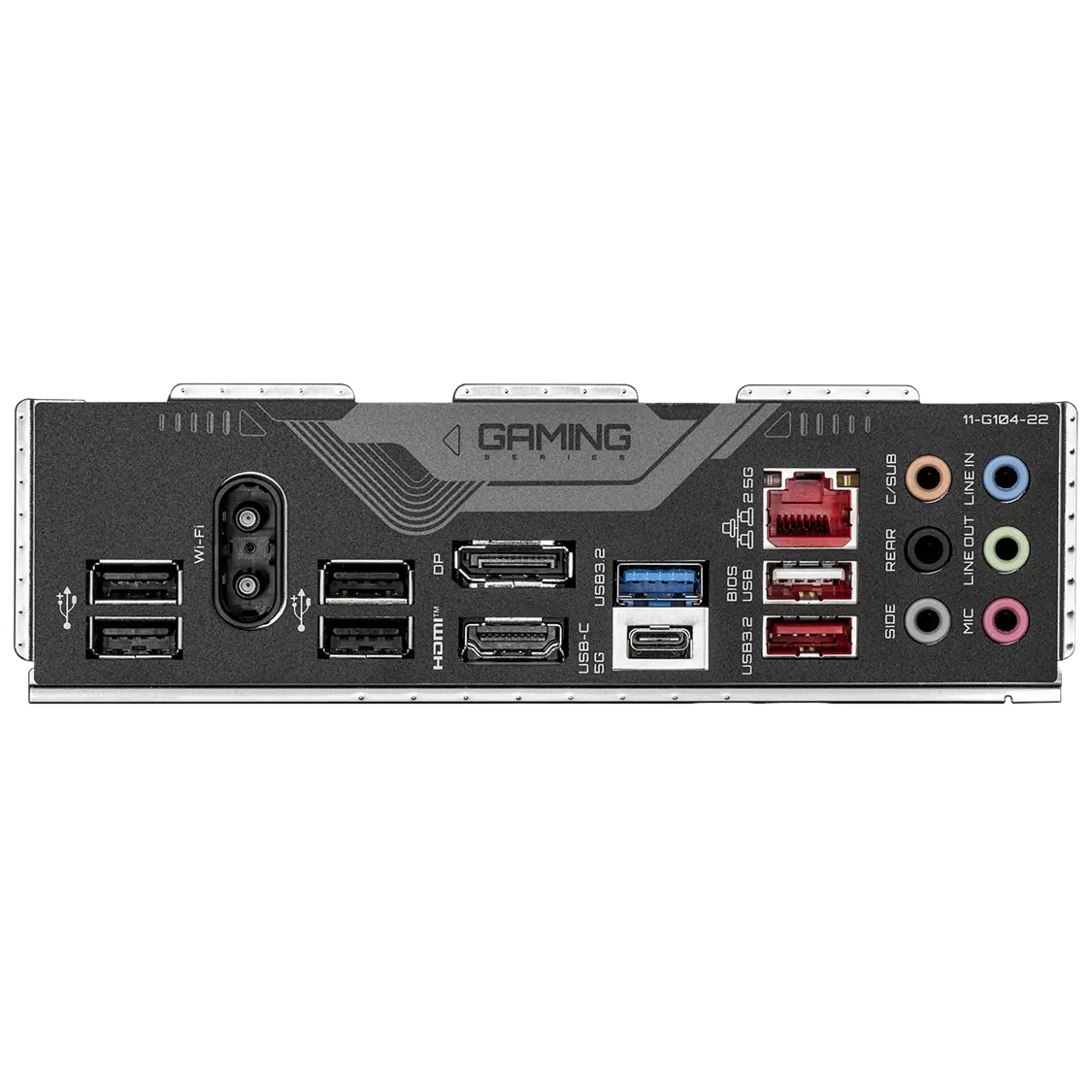

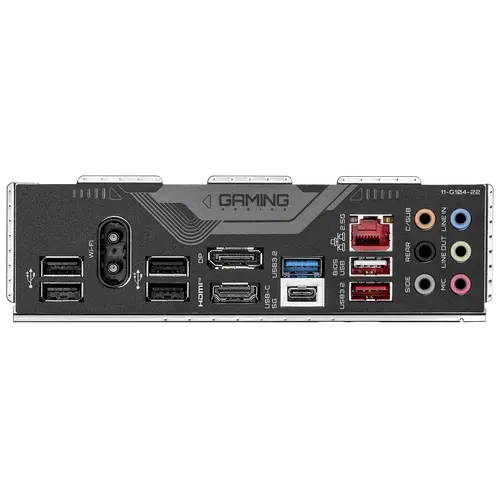

Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x RJ-45 port
6 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
Vendor_urlhttps://www.gigabyte.com/Motherboard/B760-GAMING-X-WIFI6E-GEN5
ChipsetIntel® B760 Express Chipset
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedL3 cache varies with CPU
CPU's supportedPentium® Gold and Celeron® Processors
CPU's supportedLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,
Memory typeDual channel memory architecture
Memory typeSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Memory typeSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Form Factor30.5cm x 24.4cm
Form FactorATX Form Factor
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Wireless- BLUETOOTH 5.3
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless- Support for 11ax 160MHz wireless standard
WirelessIntel® Wi-Fi 6E AX210
Graphics* Support for DisplayPort 1.2 version and HDCP 2.3
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics* Support for HDMI 2.1 version and HDCP 2.3.
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
Graphics- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
Features* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
FeaturesSupport for Smart Backup
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
StorageCPU:
StorageChipset:
Storage- 4 x SATA 6Gb/s connectors
Storage- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
Bluetooth5.3
Connectors1 x 24-pin ATX main power connector
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x system fan/water cooling pump header
Connectors3 x M.2 Socket 3 connectors
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x S/PDIF Out header
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x serial port header
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
ConnectorsBack Panel Connectors
Connectors1 x HDMI port (Note)
Connectors1 x DisplayPort (Note)
Connectors1 x RJ-45 port
Connectors1 x CPU fan/water cooling pump header
Connectors1 x USB Type-C® port, with USB 3.2 Gen 1 support
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors2 x antenna connectors (2T2R)
Connectors1 x USB 3.2 Gen 2 Type-A port (red)
Connectors1 x USB Type-C® header, with USB 3.2 Gen 2 support
Connectors1 x USB 3.2 Gen 1 port
Connectors5 x USB 2.0/1.1 ports
Connectors6 x audio jacks
USBChipset:
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
USB- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
USB- 1 x USB 2.0/1.1 port on the back panel
USB- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
USB- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
USBChipset+2 USB 2.0 Hubs:
Greutate0.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketLGA1700
Form FactorATX
ChipsetIntel B760
Memory TypeDDR5
Memory Slots (count)4
Max Memory (GB)192
M.2 Slots (count)2
SATA Ports (count)4
PCIe x16 Slots (count)2
Wi-Fi Built-inWi-Fi 6E
LAN Speed2.5 Gbps
USB-C Ports (count)1
RGB LightingYes
Greutate0.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка GIGABYTE B760 GAMING X WF6E GEN5

Издигнете вашето гейминг изживяване с дънната платка GIGABYTE B760 GAMING X WF6E GEN5, която предлага поддръжка на PCIe 5.0 и вграден Wi-Fi 6E за свръхбърза връзка. Проектирана за процесори Intel от 12-то и 13-то поколение, тази дънна платка осигурява изключителна производителност и функции, готови за бъдещето.

Ключови Предимства

  • Готовност за PCIe 5.0 — Специалният M.2 слот PCIe 5.0 предлага светкавични скорости за съхранение, а PCIe 5.0 x16 слотът поддържа графични карти от ново поколение.
  • Вграден Wi-Fi 6E — Насладете се на безжична мрежа с ниско закъснение чрез най-новия стандарт Wi-Fi 6E, предлагащ по-висока скорост и намалени смущения.
  • Поддръжка на DDR5 — С 4 DDR5 слота за до 192 GB можете да използвате високоскоростна памет за по-гладка работа и игри.
  • Стабилно захранване — Дизайн с 12+1+1 фази осигурява стабилно захранване дори при големи натоварвания.

Технически Спецификации

СпецификацияСтойност
СокетLGA1700
Форм факторATX
ЧипсетIntel B760
Тип паметDDR5
Слотове за памет4
Максимална памет192 GB
M.2 слотове2 (1 x PCIe 5.0, 1 x PCIe 4.0)
SATA портове4
PCIe x16 слотове2 (1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4)
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове1 (отзад)
RGB подсветкаДа (RGB Fusion)

Какво има в кутията

  • Дънна платка
  • Ръководство за потребителя
  • 2 x SATA кабела
  • I/O панел
  • Винтове за M.2
  • Wi-Fi антена
