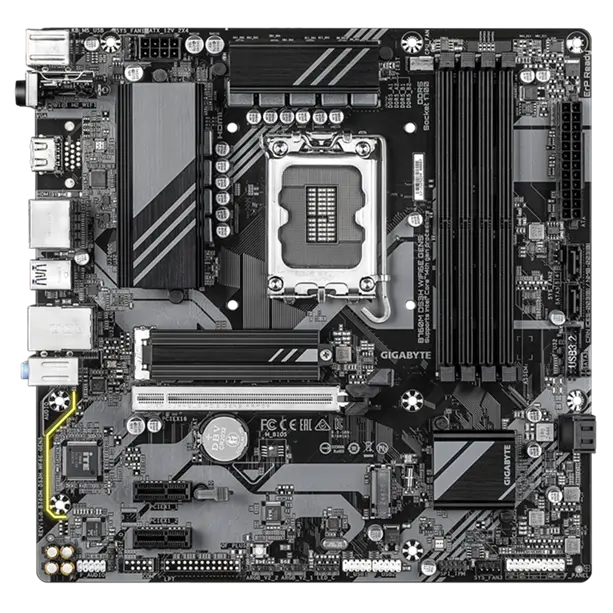

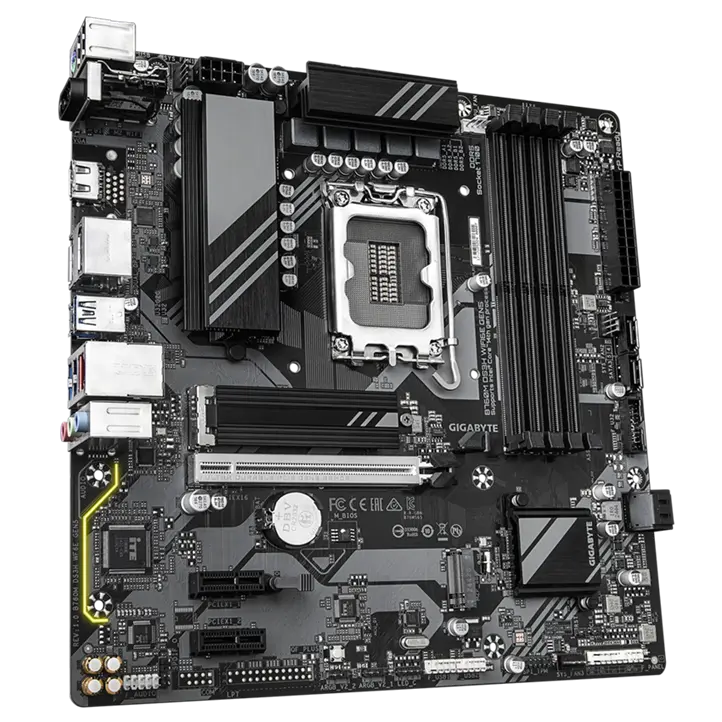

Placă de bază, GIGABYTE GB B760M DS3H WF6E GEN5

  • Placă de bază, GIGABYTE GB B760M DS3H WF6E GEN5 - 1
  • Placă de bază, GIGABYTE GB B760M DS3H WF6E GEN5 - 2
  • Placă de bază, GIGABYTE GB B760M DS3H WF6E GEN5 - 3
  • Placă de bază, GIGABYTE GB B760M DS3H WF6E GEN5 - 4
  • GIGABYTE
Placă de bază, GIGABYTE GB B760M DS3H WF6E GEN5
Preț
€133 43 / 260 97 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 18€
+2 ani: + 26€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.gigabyte.com/Motherboard/B760M-DS3H-WIFI6E-GEN5
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
14th and 13th Generation Intel® Core™ i9/i7 Processors:
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/ 5200/ 4800/ 4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button1 x reset jumper
1 x Clear CMOS jumper

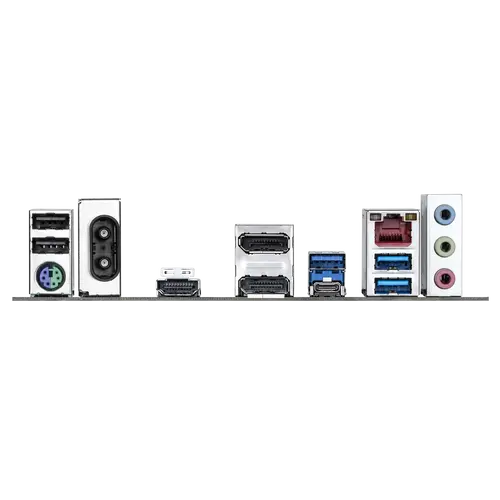

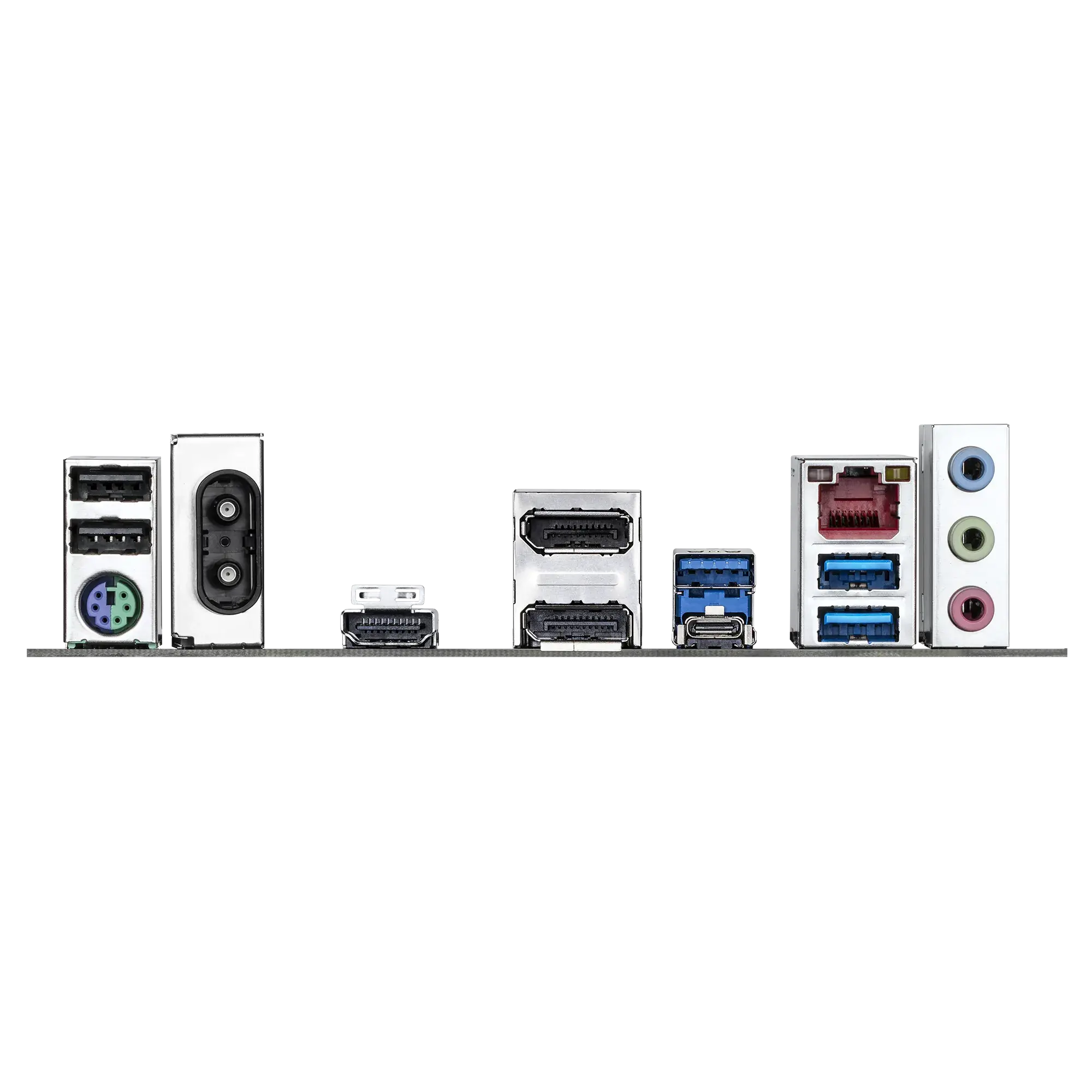

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
Vendor_urlhttps://www.gigabyte.com/Motherboard/B760M-DS3H-WIFI6E-GEN5
ChipsetIntel® B760 Express Chipset
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
CPU's supportedL3 cache varies with CPU
Memory typeDual channel memory architecture
Memory typeSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type14th and 13th Generation Intel® Core™ i9/i7 Processors:
Memory type13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Memory typeSupport for DDR5 4800/4400 MT/s memory modules
Memory typeSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/ 5200/ 4800/ 4400 MT/s memory modules
Form FactorMicro ATX Form Factor
Form Factor24.4cm x 24.4cm
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
AudioSupport for S/PDIF Out
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Expansion Slots- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
Wireless- BLUETOOTH 5.3
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless- Support for 11ax 160MHz wireless standard
WirelessIntel® Wi-Fi 6E AX210
Graphics* Support for DisplayPort 1.2 version and HDCP 2.3
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics* Support for HDMI 2.1 version and HDCP 2.3.
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
Graphics- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Graphics* Support for DisplayPort 1.2 version.
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
FeaturesSupport for Smart Backup
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS1 x 128 Mbit flash
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
StorageCPU:
StorageChipset:
Storage- 4 x SATA 6Gb/s connectors
Storage- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Bluetooth5.3
Connectors1 x 24-pin ATX main power connector
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x S/PDIF Out header
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
Connectors2 x M.2 Socket 3 connectors
ConnectorsBack Panel Connectors
Connectors2 x USB 2.0/1.1 ports
Connectors1 x PS/2 keyboard/mouse port
Connectors1 x HDMI port (Note)
Connectors1 x RJ-45 port
Connectors3 x audio jacks
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors2 x antenna connectors (2T2R)
Connectors1 x USB Type-C® port, with USB 3.2 Gen 2 support
Connectors3 x USB 3.2 Gen 1 ports
Connectors2 x addressable RGB Gen2 LED strip headers
Connectors2 x DisplayPorts (Note)
Connectors1 x Q-Flash Plus button1 x reset jumper
USBChipset:
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USBChipset+USB 2.0 Hub:
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
USB- 2 x USB 2.0/1.1 ports on the back panel
Greutate0.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketLGA1700
Form FactorMicro-ATX
ChipsetIntel B760
Memory TypeDDR5
Memory Slots (count)2
Max Memory (GB)64
M.2 Slots (count)2
SATA Ports (count)4
PCIe x16 Slots (count)1
Wi-Fi Built-inWi-Fi 6E
LAN Speed2.5 Gbps
USB-C Ports (count)1
RGB LightingNo
Greutate0.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка GIGABYTE GB B760M DS3H WF6E GEN5

Изживейте производителност от ново поколение с дънната платка GIGABYTE B760M DS3H WF6E GEN5. Проектирана за процесори Intel от 12-то, 13-то и 14-то поколение, тя разполага с PCIe 5.0 за M.2 SSD, вграден Wi-Fi 6E и стабилно захранване за безупречен гейминг и работа.

Ключови Предимства

  • Gen5 M.2 поддръжка — Един PCIe 5.0 M.2 слот осигурява светкавични скорости на трансфер за най-бързите NVMe SSD.
  • Wi-Fi 6E свързаност — Интегрираният Wi-Fi 6E предлага ултра бързи безжични скорости и ниска латентност за онлайн игри и стрийминг.
  • DDR5 памет — Двуканалната DDR5 поддръжка осигурява по-висока честотна лента и подобрена ефективност спрямо предишните поколения.
  • 2.5GbE LAN — Високоскоростна кабелна мрежа осигурява надеждна и бърза връзка за взискателни задачи.

Технически Спецификации

СпецификацияСтойност
СокетLGA1700
Форм факторMicro-ATX
ЧипсетIntel B760
Тип паметDDR5
Слотове за памет2
Максимална памет64 GB
M.2 слотове2
SATA портове4
PCIe x16 слотове1
Wi-FiWi-Fi 6E
LAN скорост2.5 Gbps
USB-C портове1

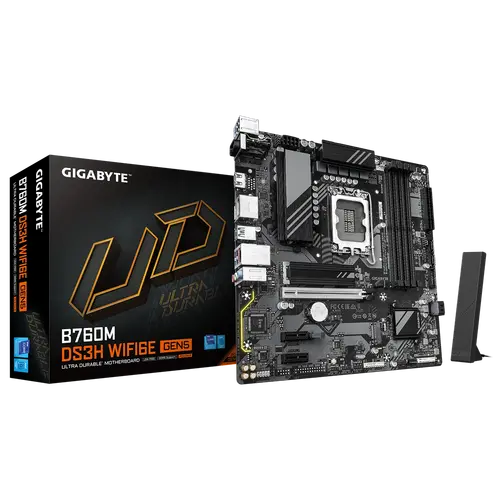

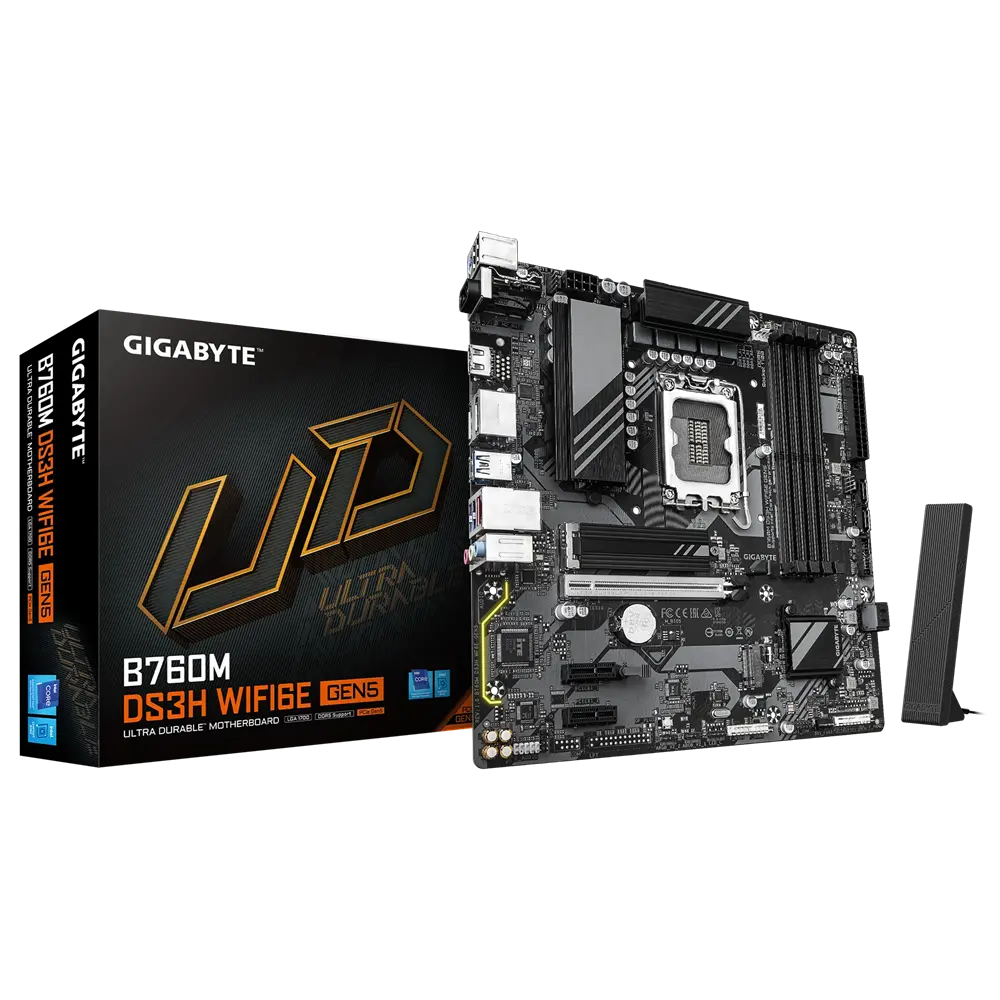

Какво има в кутията

  • Дънна платка
  • Ръководство за потребителя
  • Заден панел
  • SATA кабели
  • Wi-Fi антена
