Vendor_url
gigabyte.com/Motherboard/B860M-D3HP#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
CPU's supported
LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
Chipset
Intel® B860 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

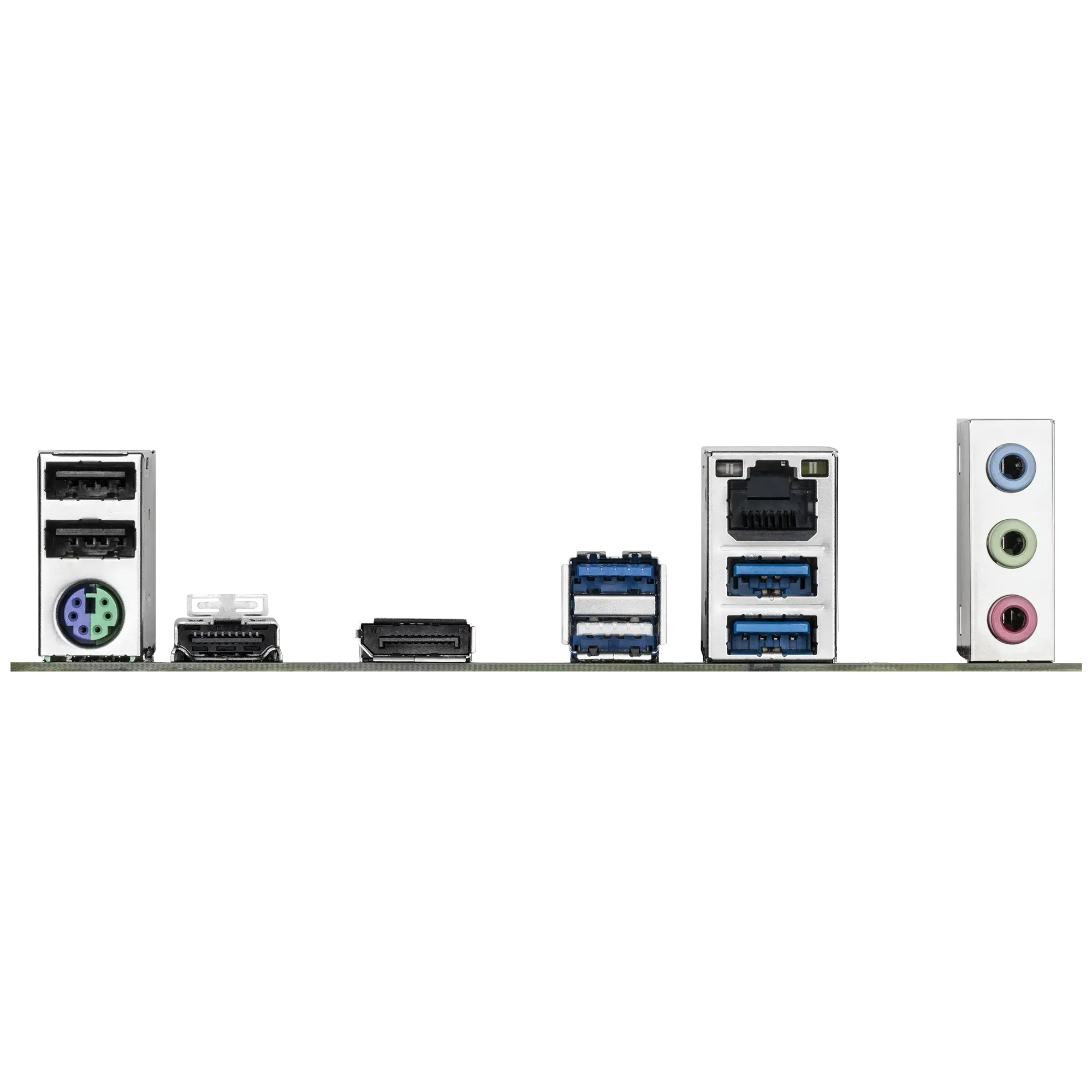

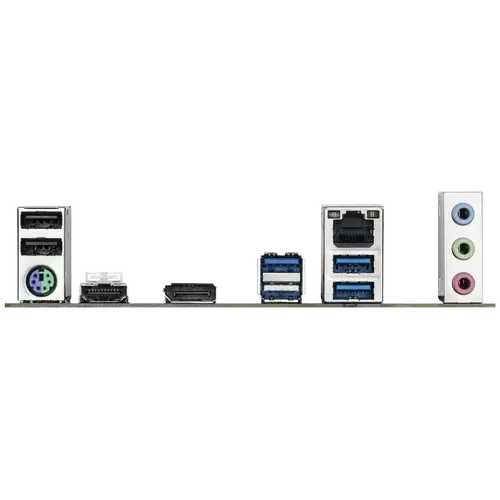

Back Panel Connectors
3 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort*
1 x HDMI port*
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | gigabyte.com/Motherboard/B860M-D3HP#kf |
| Chipset | Intel® B860 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 24.4cm x 24.4cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Expansion Slots | - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| Graphics | * Support for DisplayPort 2.1 version. |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | Support for Smart Backup |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 4 x SATA 6Gb/s connectors |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 1 x system fan header |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | Back Panel Connectors |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 3 x USB 3.2 Gen 1 ports |
| Connectors | 3 x USB 2.0/1.1 ports |
| Connectors | 1 x HDMI port* |
| Connectors | 2 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x DisplayPort* |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| USB | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| USB | Chipset+USB 2.0 Hub: |
| USB | - 3 x USB 2.0/1.1 ports on the back panel |
| USB | - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 96 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Дънна платка GIGABYTE GB B860M D3HP – Мощност за следващото ви изграждане
С чипсет Intel B860 и сокет LGA1851, тази Micro-ATX дънна платка поддържа процесори Intel Core Ultra и DDR5 памет. PCIe 5.0, 2.5GbE LAN и два M.2 слота осигуряват бърз трансфер на данни и гладка свързаност за игри, творческа работа и ежедневна употреба.
Ключови Предимства
- Производителност от ново поколение — Чипсет Intel B860 с LGA1851 сокет за най-новите Core Ultra CPU и поддръжка на DDR5 памет за по-висока скорост и честотна лента.
- Ултра-бързо съхранение — Два M.2 слота с PCIe 5.0 x4 за изключително бързи NVMe SSD дискове и 4 x SATA 6Gb/s порта за допълнителни устройства.
- Надеждна свързаност — 2.5GbE LAN осигурява гладък онлайн гейминг и бърз трансфер на файлове; множество USB портове, включително USB-C за модерни периферни устройства.
- Интелигентен термичен дизайн — Радиатори за VRM и M.2 термични предпазители поддържат компонентите хладни при натоварване за устойчива производителност.
- Персонализируемо RGB — Вградени RGB хедъри ви позволяват да синхронизирате осветлението със съвместими компоненти (RGB Fusion 2.0).
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1851 |
| Чипсет | Intel B860 |
| Форм фактор | Micro-ATX |
| Тип памет | DDR5 |
| Слотове за памет | 2 (Dual Channel) |
| Максимална памет | 96 GB |
| M.2 слотове | 2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4) |
| SATA портове | 4 x SATA 6Gb/s |
| PCIe x16 слотове | 1 (PCIe 5.0 x16) |
| Скорост на LAN | 2.5 GbE |
| USB-C портове | 1 (отзад) |
| Вграден Wi-Fi | Не |
| RGB подсветка | Не (само RGB хедъри) |
| Аудио | Realtek ALC897 7.1-канален |
Какво има в кутията
- Дънна платка GIGABYTE B860M D3HP
- 2 x SATA кабела
- Задна планка за I/O
- Ръководство за потребителя
- DVD с драйвери (ако е приложимо)
