- ASUS
Preț
€251 55 / 491 99 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850m-plus-wifi7/
Graphics
1 x DisplayPort
1 x HDMI™ port
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B850 Chipset
Expansion slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x1 slot
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Memory type
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

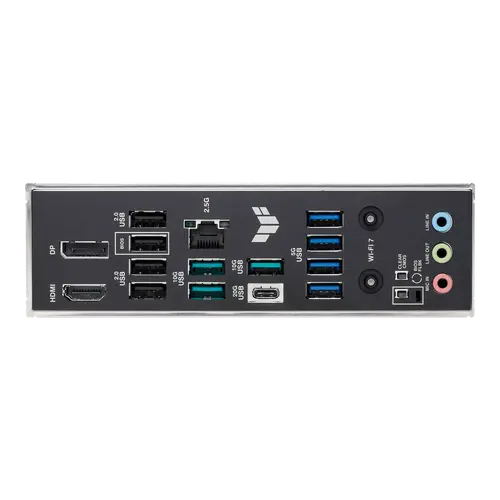

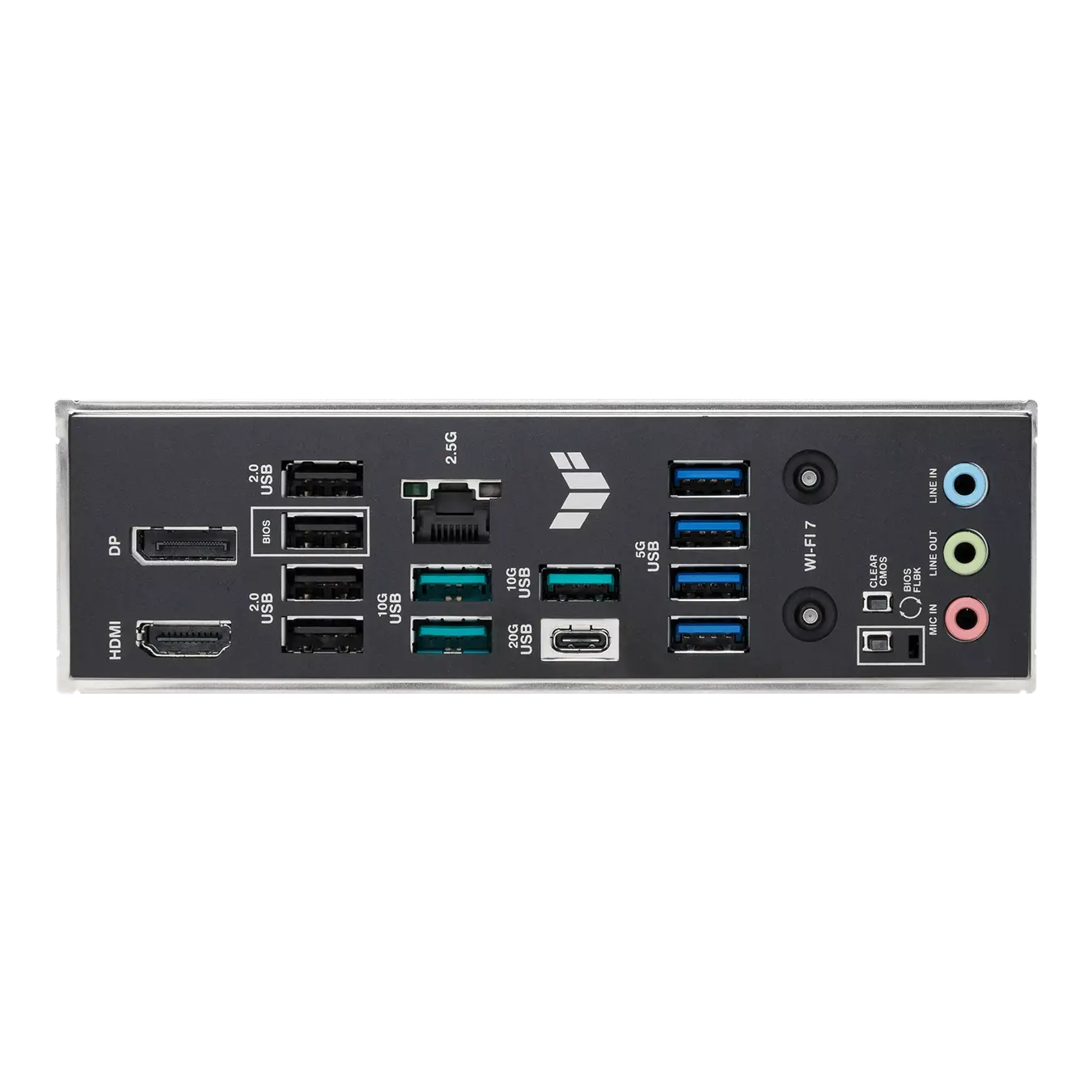

Rear panel I/O
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
USB
Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
Lan
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless
Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4
Bluetooth
5.4
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro-ATX Form Factor 24.4 cm x 24.4 cm
OS
Windows 11
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850m-plus-wifi7/ |
| Chipset | AMD B850 Chipset |
| OS | Windows 11 |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5 |
| Memory type | Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM |
| Memory type | ASUS Enhanced Memory Profile (AEMP) |
| Form Factor | micro-ATX Form Factor 24.4 cm x 24.4 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Premium audio capacitors |
| Audio | - Audio cover |
| Audio | - Unique de-pop circuit |
| Audio | - Impedance sense for front and rear headphone outputs |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Audio | - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
| Audio | - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| Audio | - Supports up to 32-Bit/192 kHz playback |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x BIOS FlashBack™ button |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 1 x Clear CMOS Button |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 1 x Wi-Fi Module |
| Rear panel I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| Rear panel I/O | 3 x USB 10Gbps ports (3 x Type-A) |
| Rear panel I/O | 4 x USB 5Gbps ports (4 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| LAN | TUF LANGuard |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Expansion Slots | AMD Ryzen™ 8000 Series Desktop Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| Expansion Slots | 1 x PCIe 4.0 x1 slot |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| Expansion Slots | AMD B850 Chipset |
| Wireless | Supports 2.4/5/6GHz frequency band |
| Wireless | Bluetooth® v5.4 |
| Wireless | Wi-Fi 7 (MediaTek MT7925) |
| Wireless | 2x2 Wi-Fi 7* (802.11be) |
| Wireless | Supports Wi-Fi 7 160MHz bandwidth |
| Graphics | 1 x HDMI™ port |
| Graphics | 1 x DisplayPort |
| Features | ASUS EZ DIY |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | - Overvoltage Protection |
| Features | - Stainless-Steel Back I/O |
| Features | - Q-DIMM |
| Features | Aura Sync |
| Features | - VRM heatsink design |
| Features | - BIOS FlashBack™ button |
| Features | - BIOS FlashBack™ LED |
| Features | ASUS TUF PROTECTION |
| Features | - ESD Guards |
| Features | - TUF LANGuard |
| Features | - M.2 Q-Latch |
| Features | - ProCool |
| Features | - PCIe Slot Q-Release |
| Features | - M.2 heatsink |
| Features | - Pre-mounted I/O shield |
| Features | - SafeSlot |
| Features | - SafeDIMM |
| Features | - DIGI+ VRM (- Digital power design with DrMOS) |
| Features | - Q-Antenna |
| Features | - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Features | - Q-Dashboard |
| Features | - Addressable RGB Gen 2 headers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI™ port |
| I/O | 1 x BIOS FlashBack™ button |
| I/O | 1 x Realtek 2.5Gb Ethernet port |
| I/O | 1 x Clear CMOS Button |
| I/O | 4 x USB 2.0 ports (4 x Type-A) |
| I/O | 1 x Wi-Fi Module |
| I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| I/O | 3 x USB 10Gbps ports (3 x Type-A) |
| I/O | 4 x USB 5Gbps ports (4 x Type-A) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | AMD RAIDXpert2 Technology |
| Storage | Ryzen™ 9000 Series Processors: RAID 0/1/5/10 |
| Storage | Ryzen™ 8000 Series Processors: RAID 0/1 |
| Storage | Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Storage | AMD B850 Chipset |
| Bluetooth | 5.4 |
| Connectors | 1 x chassis intrusion header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 3 x 4-pin Chassis Fan headers |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 3 x M.2 slots (Key M) |
| Connectors | 2 x 8-pin +12V CPU Power connectors |
| Connectors | 1 x USB 10Gbps connector (supports USB Type-C® ) |
| Connectors | 1 x Front Panel Audio header (F_AUDIO) |
| Connectors | 1 x 10-1 pin Front Panel System header |
| Connectors | 3 x Addressable RGB Gen 2 headers |
| Connectors | 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| USB | Front USB (Total 6 ports) |
| USB | 4 x USB 2.0 ports (4 x Type-A) |
| USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| USB | 1 x USB 20Gbps port (1 x USB Type-C®) |
| USB | 3 x USB 10Gbps ports (3 x Type-A) |
| USB | 1 x USB 10Gbps connector (supports USB Type-C®) |
| USB | 4 x USB 5Gbps ports (4 x Type-A) |
| USB | Rear USB (Total 12 ports) |
| USB | 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
| Chipset | AMD B850 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

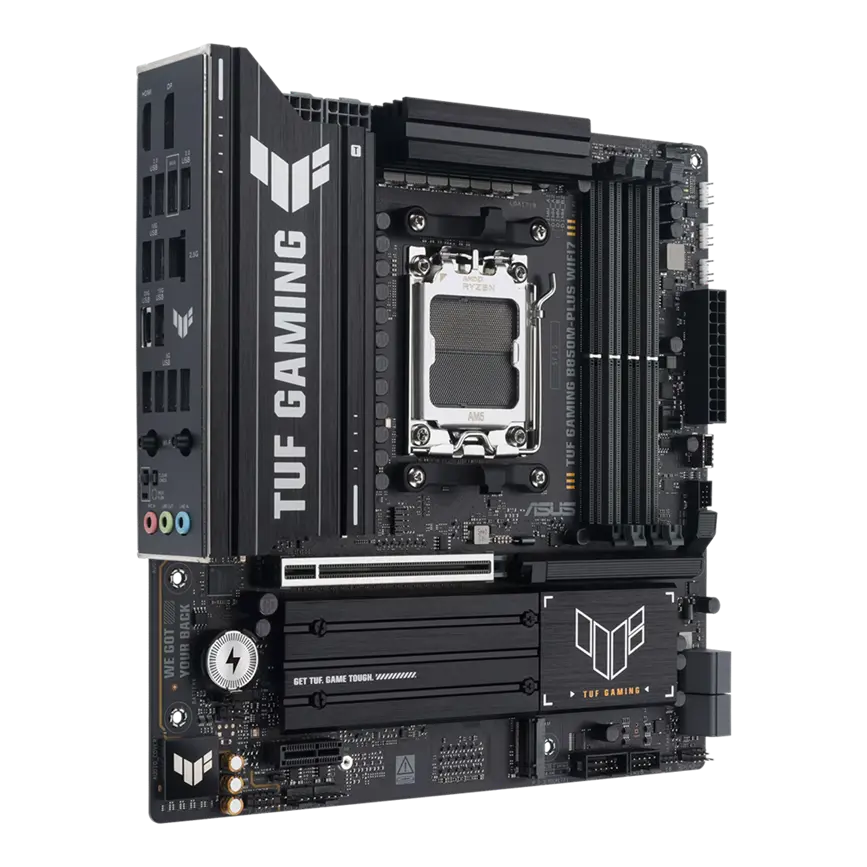

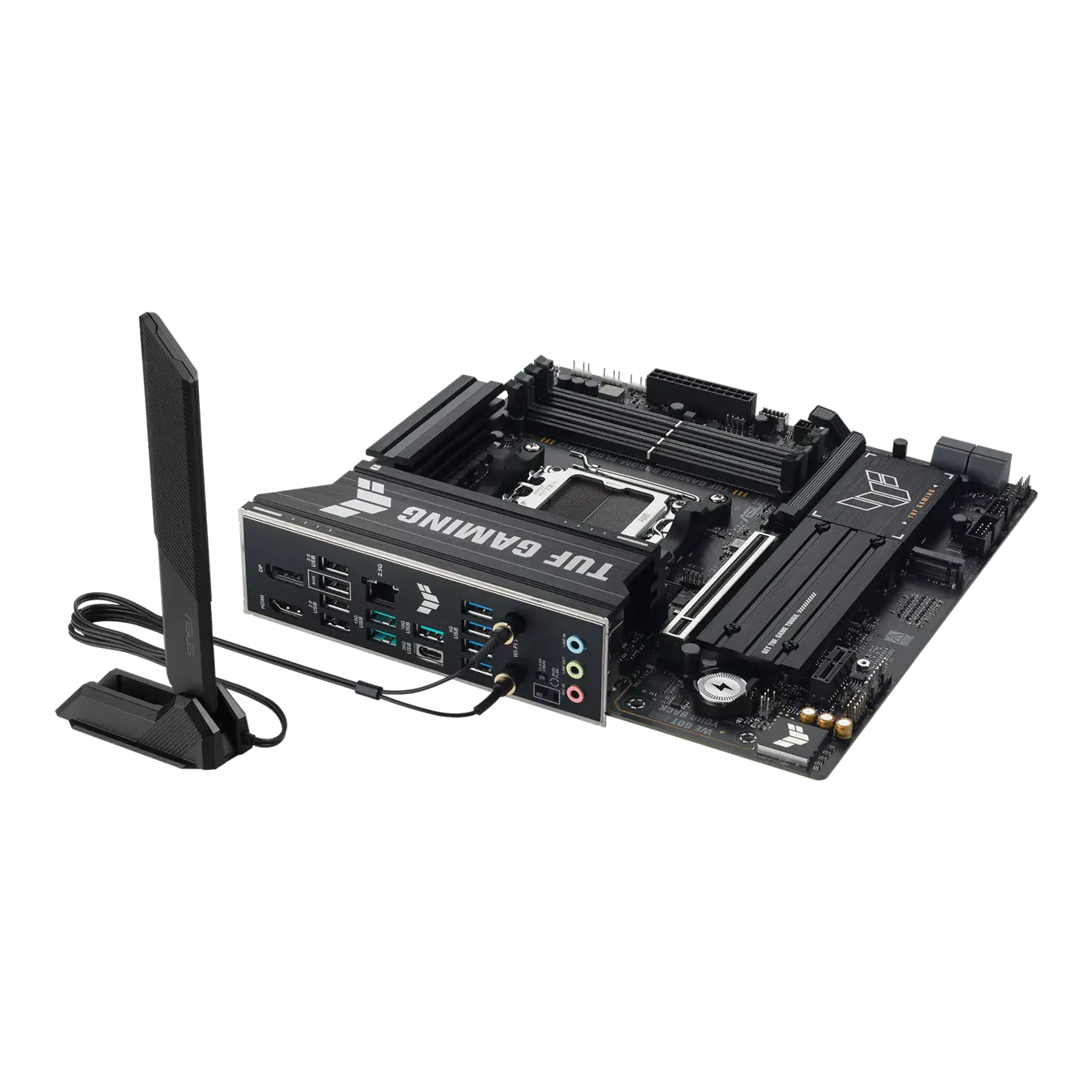

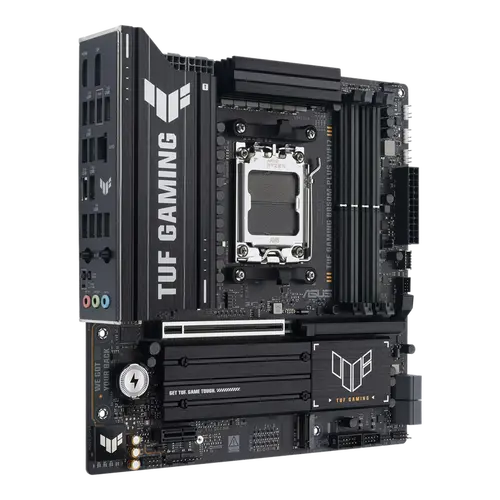

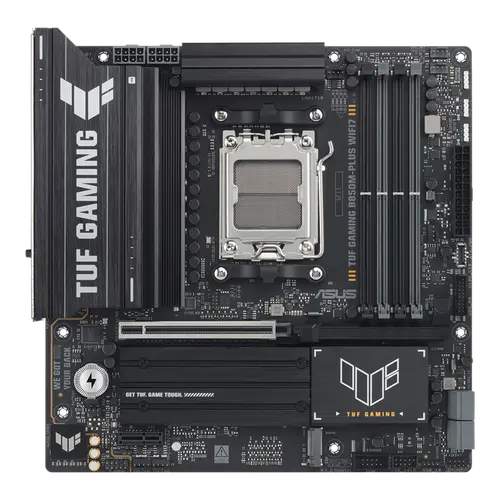

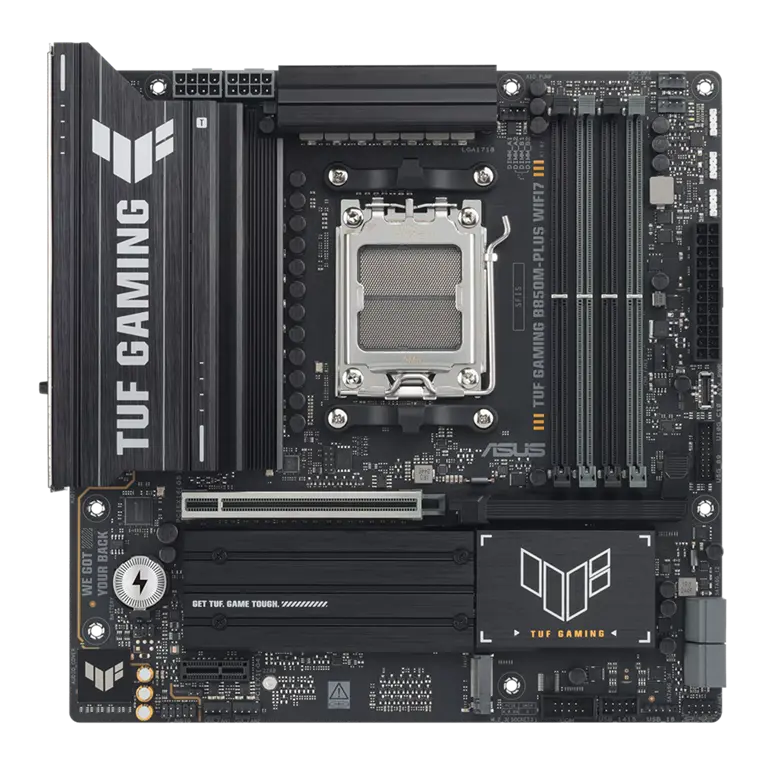

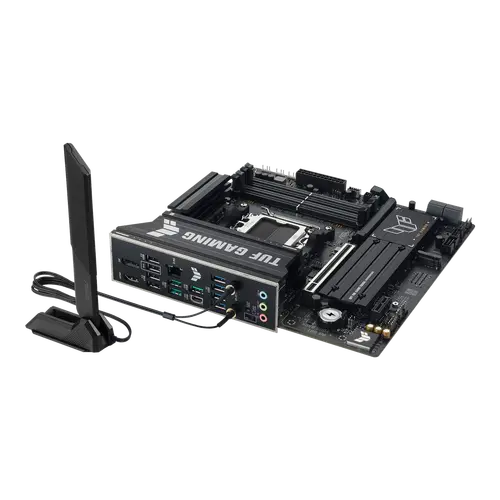

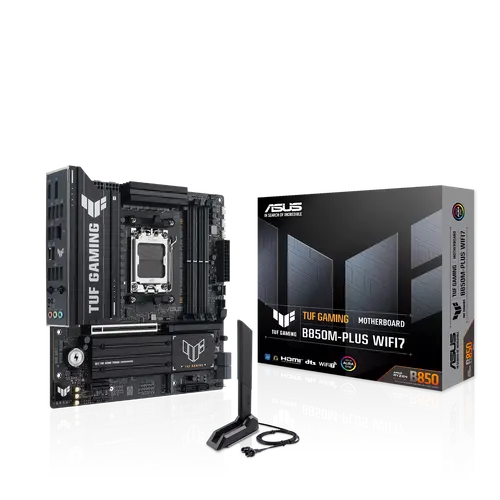

Дънна платка ASUS TUF Gaming B850M-PLUS WiFi7
Създадена за дълготрайна надеждност, ASUS TUF Gaming B850M-PLUS WiFi7 комбинира компоненти от военен клас с най-новите свързаност. С поддръжка на процесори AMD Ryzen 7000/8000/9000 за сокет AM5, DDR5 памет и интегриран Wi-Fi 7, тя осигурява солидна основа за следващия ви гейминг компютър.
Ключови Предимства
- Издръжливи TUF компоненти — TUF дросели, кондензатори и подсилен PCIe слот гарантират стабилна работа при големи натоварвания.
- Поддръжка на Wi-Fi 7 — Насладете се на изключително бърза безжична връзка с честотна лента до 320 MHz.
- DDR5 памет — Отключете по-висока производителност с поддръжка на AMD EXPO и овърклок.
- Цялостно охлаждане — Множество вентилаторни глави и радиатори за VRM поддържат температурата ниска.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Чипсет | AMD B850 |
| Форм фактор | Micro-ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка ASUS TUF Gaming B850M-PLUS WiFi7
- Ръководство за потребителя
- Заден панел I/O
- 2 x SATA 6Gb/s кабела
- Wi-Fi антена
- M.2 гумени подложки
- Комплект винтове за M.2
Abonați-vă la newsletterul nostru
Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Metodă de plată
- Plata la livrare
- Card de credit/debit
- Transfer bancar
- În rate prin PB Personal Finance
