- ASUS
Preț
€125 00 / 244 48 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/prime/prime-h810m-a-wifi/
Graphics
1 x DisplayPort
1 x HDMI™ port
CPU's supported
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® H810 Chipset
Expansion slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Memory type
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)

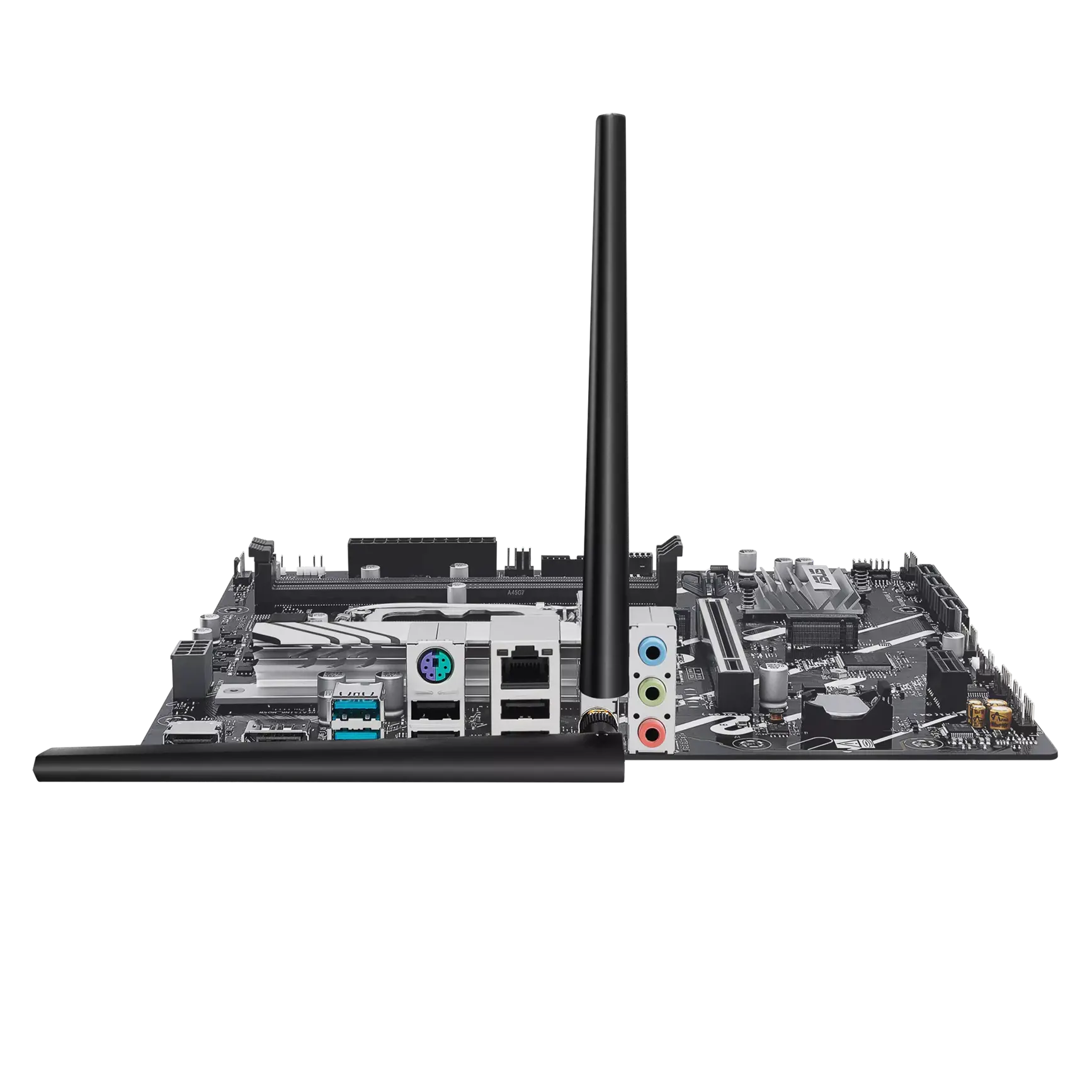

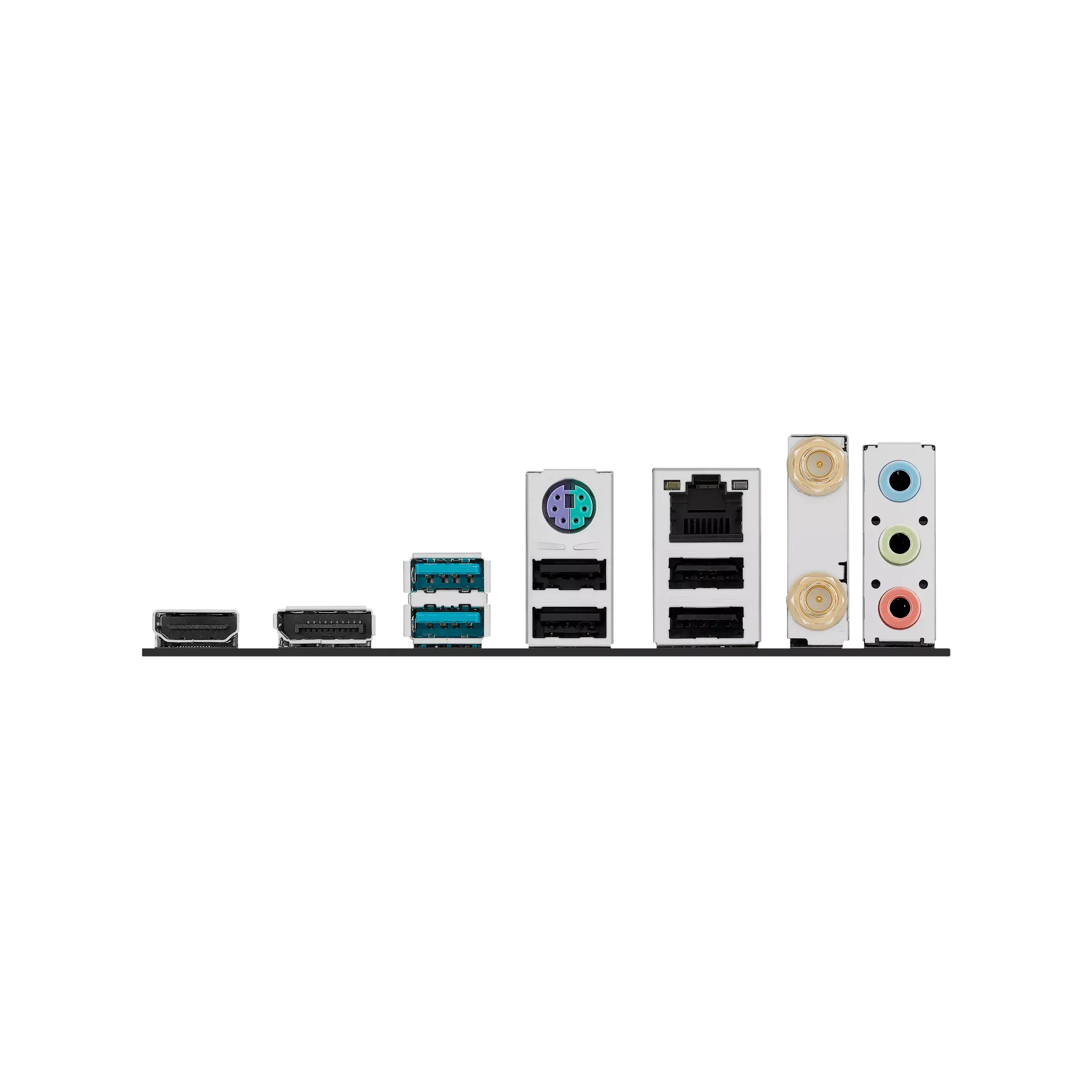

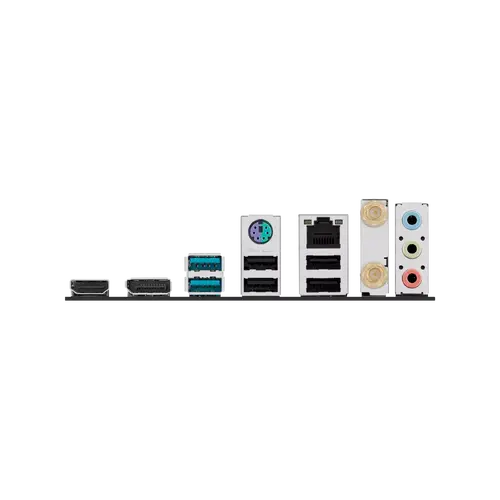

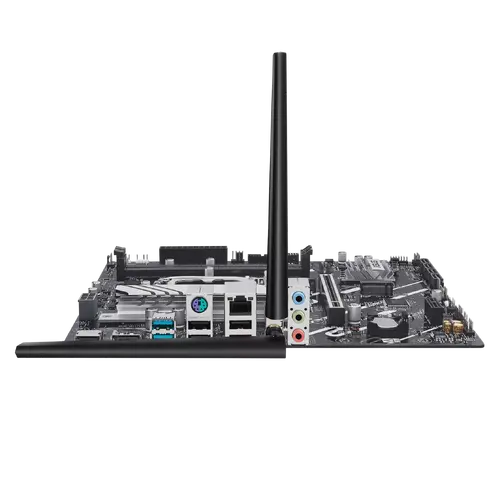

Rear panel I/O
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
USB
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Lan
1 x Intel® 1Gb Ethernet port
ASUS LANGuard
Wireless
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3
Bluetooth
5.3
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form factor
micro-ATX Form Factor 24.4 cm x 22.2 cm
OS
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-h810m-a-wifi/ |
| Chipset | Intel® H810 Chipset |
| OS | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Warranty | 36 Months |
| CPU's supported | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| CPU's supported | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 |
| Memory type | Dual channel memory architecture |
| Memory type | 2 x DIMM slots, max. 128GB, DDR5 |
| Memory type | ASUS Enhanced Memory Profile II (AEMP II) |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) memory module |
| Memory type | DIMM Fit |
| Memory type | Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) |
| Form Factor | micro-ATX Form Factor 24.4 cm x 22.2 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x PS/2 Keyboard/Mouse combo port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 1 x Wi-Fi Module |
| Rear panel I/O | 2 x USB 10Gbps ports (2 x Type-A) |
| Rear panel I/O | 1 x Intel® 1Gb Ethernet port |
| LAN | ASUS LANGuard |
| LAN | 1 x Intel® 1Gb Ethernet port |
| Expansion Slots | 1 x PCIe 4.0 x16 slot |
| Expansion Slots | 1 x PCIe 4.0 x1 slot |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2) |
| Expansion Slots | Intel® H810 Chipset |
| Wireless | Wi-Fi 6 |
| Wireless | Supports 2.4/5GHz frequency band |
| Wireless | Bluetooth® v5.3 |
| Wireless | 1x1 Wi-Fi 6 (802.11ax) |
| Graphics | 1 x HDMI™ port |
| Graphics | 1 x DisplayPort |
| Features | ASUS 5X PROTECTION III |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | - DIGI+ VRM |
| Features | - LANGuard |
| Features | - Overvoltage Protection |
| Features | - Stainless-Steel Back I/O |
| Features | - Q-DIMM |
| Features | - Q-LED Core |
| Features | - Q-Slot |
| Features | Aura Sync |
| Features | - Addressable Gen 2 headers |
| Features | - VRM heatsink design |
| Features | - SafeSlot Core+ |
| Features | - Q-Dashboard |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI™ port |
| I/O | 1 x PS/2 Keyboard/Mouse combo port |
| I/O | 4 x USB 2.0 ports (4 x Type-A) |
| I/O | 1 x Wi-Fi Module |
| I/O | 2 x USB 10Gbps ports (2 x Type-A) |
| I/O | 1 x Intel® 1Gb Ethernet port |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | Intel® H810 Chipset |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
| Bluetooth | 5.3 |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | 2 x 4-pin Chassis Fan headers |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 2 x M.2 slots (Key M) |
| Connectors | 1 x SPI TPM header (14-1 pin) |
| Connectors | 1 x USB 5Gbps connector (supports USB Type-C® ) |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 1 x Front Panel Audio header (F_AUDIO) |
| Connectors | 1 x 8-pin +12V CPU Power connector |
| Connectors | 1 x 10-1 pin Front Panel System header |
| Connectors | 3 x Addressable Gen2 headers |
| Connectors | 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| USB | Rear USB (Total 6 ports) |
| USB | 4 x USB 2.0 ports (4 x Type-A) |
| USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| USB | 2 x USB 10Gbps ports (2 x Type-A) |
| USB | Front USB (Total 5 ports) |
| USB | 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| USB | 1 x USB 5Gbps connector (supports USB Type-C®)* |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Chipset | Intel H810 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 6 |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
ASUS PRIME H810M-A WIFI – Надеждна Micro-ATX дънна платка с вграден Wi-Fi
С чипсет Intel H810, ASUS PRIME H810M-A WIFI предлага стабилна производителност и основни функции за ежедневна работа. Вграденият Wi-Fi 6 осигурява бърза безжична връзка без нужда от допълнителен адаптер.
Ключови Предимства
- Вграден Wi-Fi 6 – Насладете се на високоскоростна безжична мрежа за стрийминг, сърфиране и игри.
- Micro-ATX форм фактор – Компактен дизайн, който се побира в по-малки кутии, без да жертва разширяемостта.
- Поддръжка на DDR5 – Бъдеща технология за памет с по-бърз трансфер на данни и по-добра реакция на системата.
- Разнообразни портове – USB-C, HDMI, DisplayPort и други за свързване на различни устройства.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1851 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel H810 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Wi-Fi 6 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |

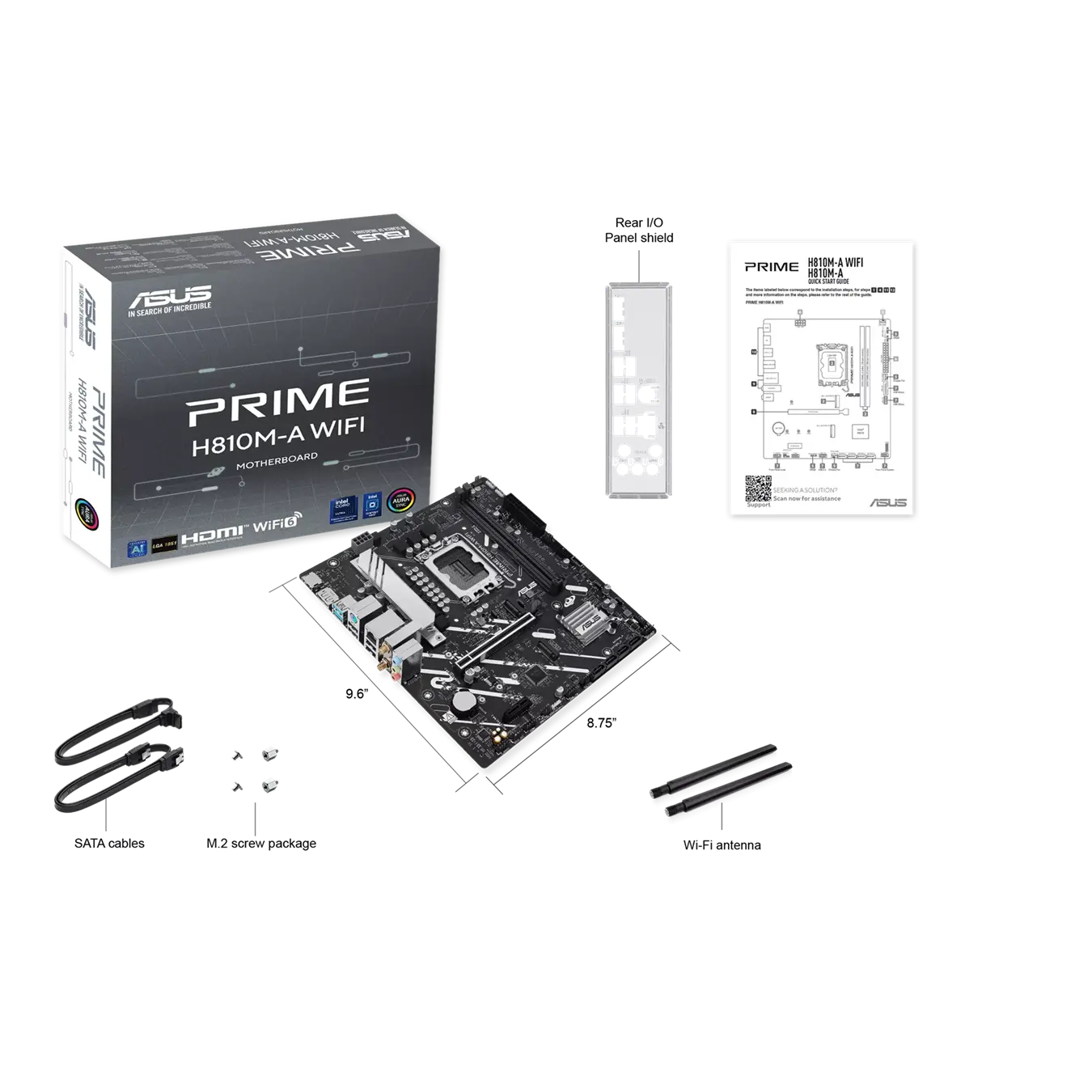

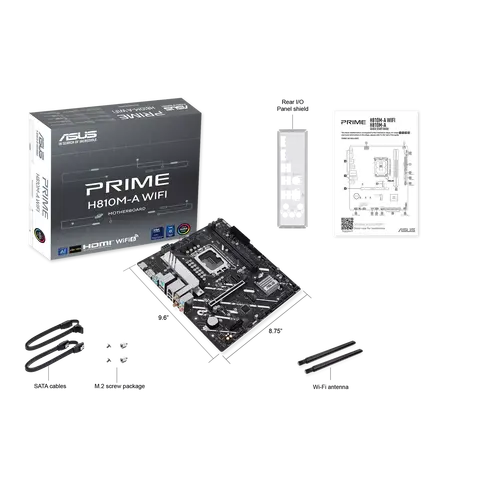

Какво има в кутията
- Дънна платка ASUS PRIME H810M-A WIFI
- Wi-Fi антена
- 2x SATA кабела
- Заден панел
- Ръководство за потребителя
