- MSI
Preț
€191 33 / 374 21 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/MAG-B760-TOMAHAWK-WIFI/Specification
Graphics
1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
Chipset
INTEL B760
Expansion slots
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Storage
3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
Memory type
4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile

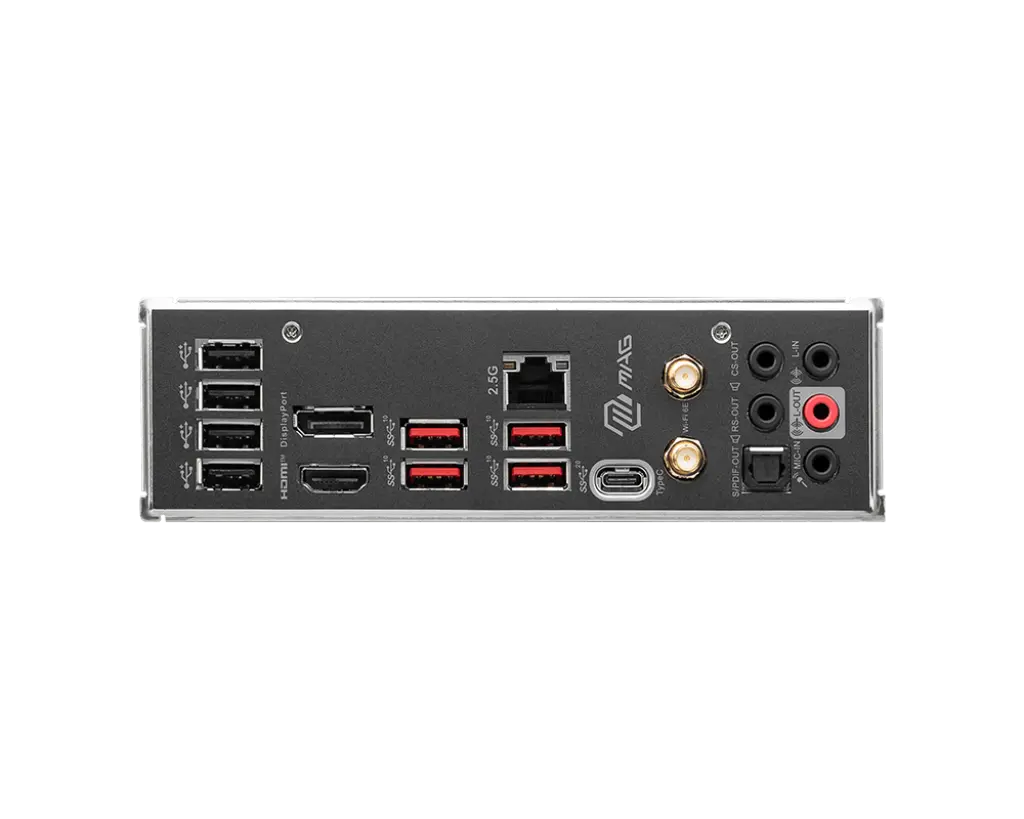

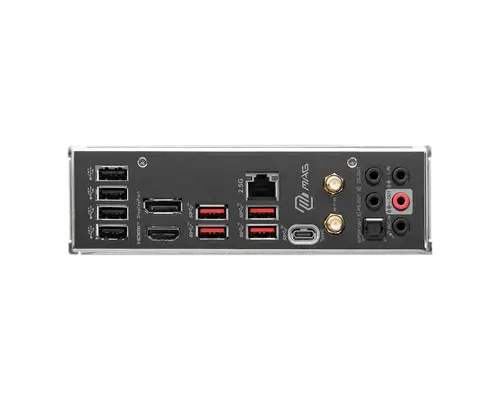

Rear panel I/O
USB 2.0
DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI™ 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
Audio
Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Lan
Realtek® 2.5Gbps LAN
Form factor
ATX,243.84mmx304.8mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Other
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/MAG-B760-TOMAHAWK-WIFI/Specification |
| Chipset | INTEL B760 |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA1700 |
| Memory type | 4x DDR5, Maximum Memory Capacity 128GB |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | • 2DPC 1R Max speed up to 6400+ MHz |
| Memory type | • 2DPC 2R Max speed up to 5600+ MHz |
| Memory type | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory type | Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz |
| Memory type | • 1DPC 2R Max speed up to 6600+ MHz |
| Memory type | Supports Intel® Extreme Memory Profile |
| Form Factor | ATX,243.84mmx304.8mm |
| Audio | Realtek® ALC897 Codec |
| Audio | Supports S/PDIF output |
| Audio | 7.1-Channel USB High Performance Audio |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | HD Audio Connectors |
| Rear panel I/O | Optical S/PDIF OUT |
| Rear panel I/O | DisplayPort 1.4 |
| Rear panel I/O | 2.5G LAN Port |
| Rear panel I/O | USB 3.2 Gen 2 10Gbps Type-A |
| Rear panel I/O | Wi-Fi / Bluetooth Antenna |
| Rear panel I/O | HDMI™ 2.1 Port |
| Rear panel I/O | USB 3.2 Gen 2x2 20Gbps Type-C |
| LAN | Realtek® 2.5Gbps LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E1 PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | Supports x16/x4 |
| Expansion Slots | PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) |
| Expansion Slots | PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Graphics | 1x HDMI™ |
| Graphics | 1x DisplayPort |
| Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* |
| Graphics | Support DP 1.4, maximum resolution of 8K 60Hz* |
| Other | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Other | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Other | Intel® Wi-Fi 6E |
| Other | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Other | Supports Bluetooth® 5.3, FIPS, FISMA |
| I/O | USB 2.0 |
| I/O | HD Audio Connectors |
| I/O | Optical S/PDIF OUT |
| I/O | DisplayPort 1.4 |
| I/O | 2.5G LAN Port |
| I/O | USB 3.2 Gen 2 10Gbps Type-A |
| I/O | Wi-Fi / Bluetooth Antenna |
| I/O | HDMI™ 2.1 Port |
| I/O | USB 3.2 Gen 2x2 20Gbps Type-C |
| Storage | 3x M.2 slot |
| Storage | M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices |
| Storage | M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Storage | M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Storage | 4x SATA 6G port |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Pump Fan |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 2x RGB LED connector(JRGB) |
| Connectors | 4x USB 2.0 |
| Connectors | 2x USB 3.2 Gen1 Type A |
| Connectors | 1x USB 3.2 Gen2 Type C |
| Connectors | 1x TBT connector (JTBT, supports RTD3) |
| Connectors | 5x System Fan |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 192 |
| M.2 Slots (count) | 3 |
| SATA Ports (count) | 6 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

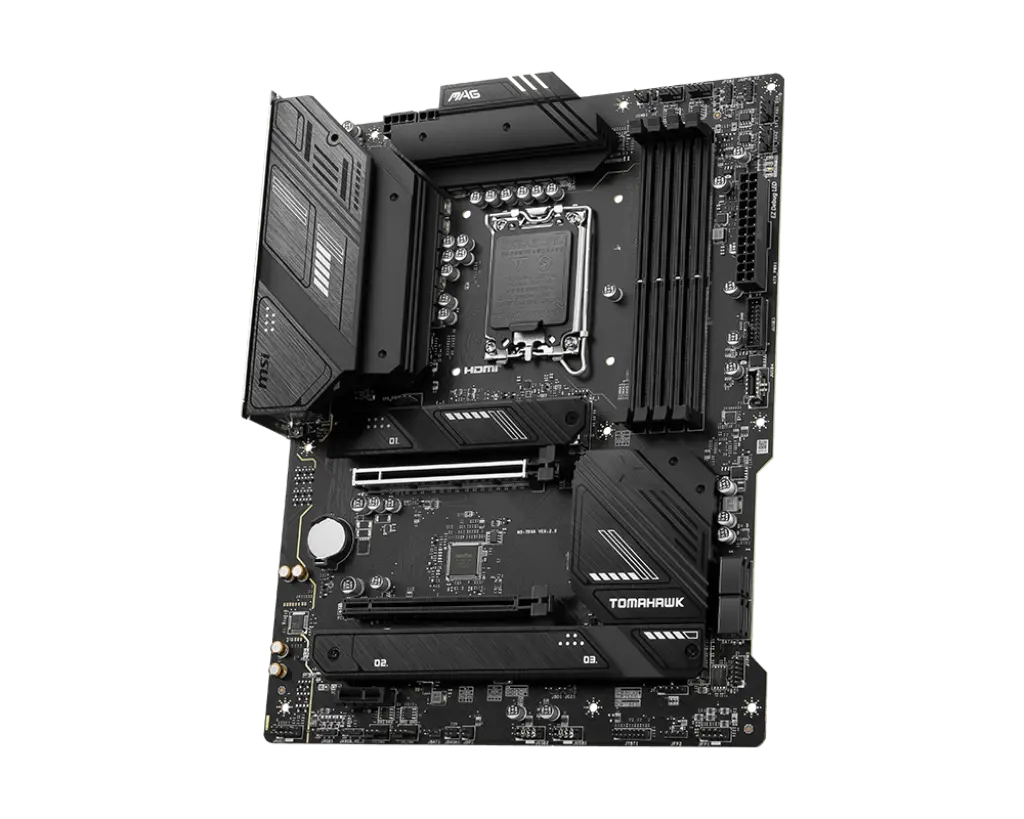

MSI MAG B760 TOMAHAWK WIFI – Мощна ATX дънна платка с чипсет Intel B760
Снабдете следващото си изграждане с MSI MAG B760 TOMAHAWK WIFI – дънна платка с богати възможности, проектирана за геймъри и творци, които търсят солидна производителност и свързаност. С поддръжка на процесори Intel от 12-то и 13-то поколение, DDR5 памет и вграден Wi-Fi 6E, тази платка осигурява изключителна скорост и стабилност за взискателни задачи.
Ключови Предимства
- Свързаност от следващо поколение — Вграденият Wi-Fi 6E и 2.5G LAN осигуряват светкавична безжична и жична мрежа, гарантирайки ниска латентност в онлайн игрите и стрийминга.
- Солидно захранване — 12+1+1 фазова Duet Rail захранваща система с DrMOS осигурява стабилно захранване за високопроизводителни процесори, дори при натоварване.
- Тройно M.2 съхранение — Три M.2 слота, включително един Lightning Gen5, предлагат изключително бърза поддръжка на NVMe SSD за бързо зареждане на игри и трансфер на файлове.
- Поддръжка на DDR5 памет — Четири слота за DDR5 памет със скорости до 7000+ MHz (OC) осигуряват превъзходна многозадачност и игрова производителност.
- Подобрено аудио — Realtek ALC897 кодек с технология Audio Boost осигурява потапящо висококачествено звуково изживяване.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 3 |
| SATA портове | 6 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI MAG B760 TOMAHAWK WIFI
- Ръководство за потребителя
- Бързо ръководство за инсталиране
- 4x SATA кабела
- Wi-Fi антена
- I/O щит
- Винтове и скоби за M.2 SSD
- DVD с драйвери
