- MSI
Preț
€452 54 / 885 09 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/MPG-X870E-CARBON-WIFI/Overview
Graphics
1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
Chipset
AMD X870E
Expansion slots
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4
Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot*
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors
•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

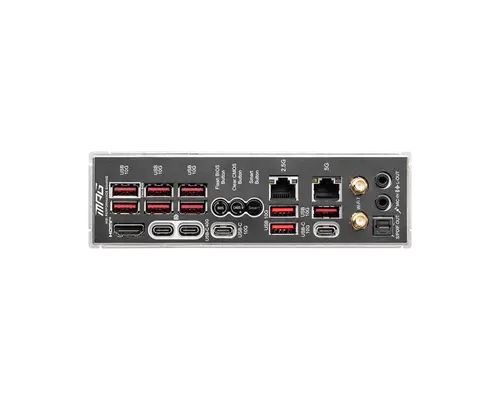

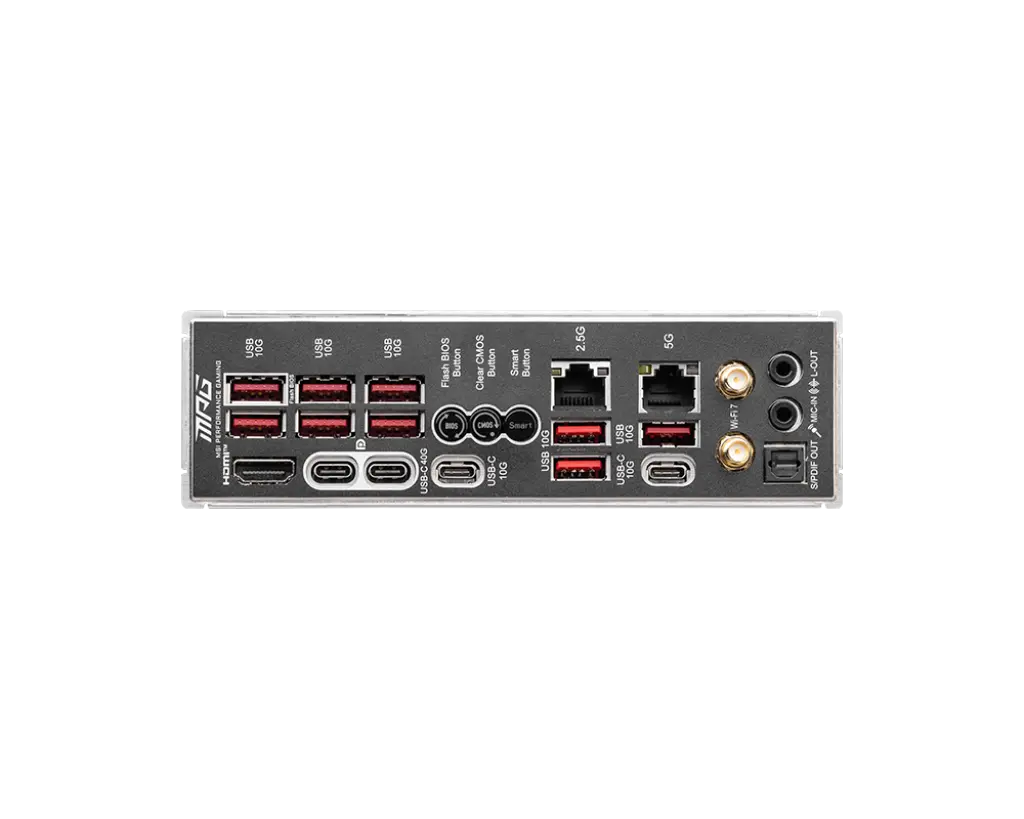

Rear panel I/O
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
9x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Audio
Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Lan
1x Realtek® 8126 5G LAN
1x Realtek® 8125 2.5G LAN
Wireless
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Bluetooth
5.4
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/MPG-X870E-CARBON-WIFI/Overview |
| Chipset | AMD X870E |
| OS | Support for Windows® 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 1DPC 2R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 2R Max speed up to 4800+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking frequency: |
| Memory type | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | • 1DPC 1R Max speed up to 8400+ MT/s |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Supports S/PDIF output |
| Audio | Realtek® ALC4080 Codec |
| Audio | Supports up to 32-Bit/384 kHz playback on front panel |
| Audio | 7.1-Channel USB High-Performance Audio |
| Rear panel I/O | 4x USB 2.0 (Front) |
| Rear panel I/O | 4x USB 5Gbps Type A (Front) |
| Rear panel I/O | 2x USB 10Gbps Type C (Rear) |
| Rear panel I/O | 9x USB 10Gbps Type A (Rear) |
| Rear panel I/O | 1x USB 20Gbps Type C (Front) |
| Rear panel I/O | 2x USB 40Gbps Type C (Rear) |
| LAN | 1x Realtek® 8126 5G LAN |
| LAN | 1x Realtek® 8125 2.5G LAN |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | 3x PCI-E x16 slot |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) |
| Expansion Slots | PCI_E1 & PCI_E2 slots |
| Expansion Slots | • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) |
| Expansion Slots | PCI_E3 slot |
| Expansion Slots | • Supports up to PCIe 4.0 x4 |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Wi-Fi 7 Solution |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Wireless | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Graphics | 1x HDMI™ |
| Graphics | 2x Type-C DisplayPort |
| Graphics | Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz |
| Graphics | USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz |
| Features | 4x EZ Debug LED |
| Features | 1x EZ Digit Debug LED |
| I/O | 4x USB 2.0 (Front) |
| I/O | 4x USB 5Gbps Type A (Front) |
| I/O | 2x USB 10Gbps Type C (Rear) |
| I/O | 9x USB 10Gbps Type A (Rear) |
| I/O | 1x USB 20Gbps Type C (Front) |
| I/O | 2x USB 40Gbps Type C (Rear) |
| Storage | 4x SATA 6G |
| Storage | 4x M.2 |
| Storage | M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | M.2_1 slot |
| Storage | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices |
| Storage | M.2_2 slot* |
| Storage | • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors |
| Storage | •Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices |
| Storage | •Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices |
| Bluetooth | 5.4 |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 5x System Fan |
| Connectors | 1x Thermal Sensor connectors(T_SEN) |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x Power Connector(PCIE_PWR 8pin) |
| Connectors | 4x USB 5Gbps Type A ports |
| Connectors | 1x EZ Conn-header (JAF_2) |
| Connectors | 1x USB 20Gbps Type C ports |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD X870E |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 4 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 3 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

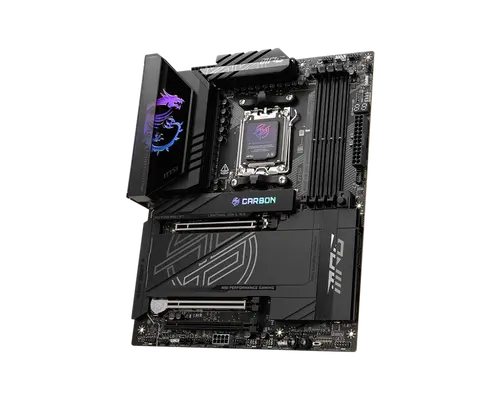

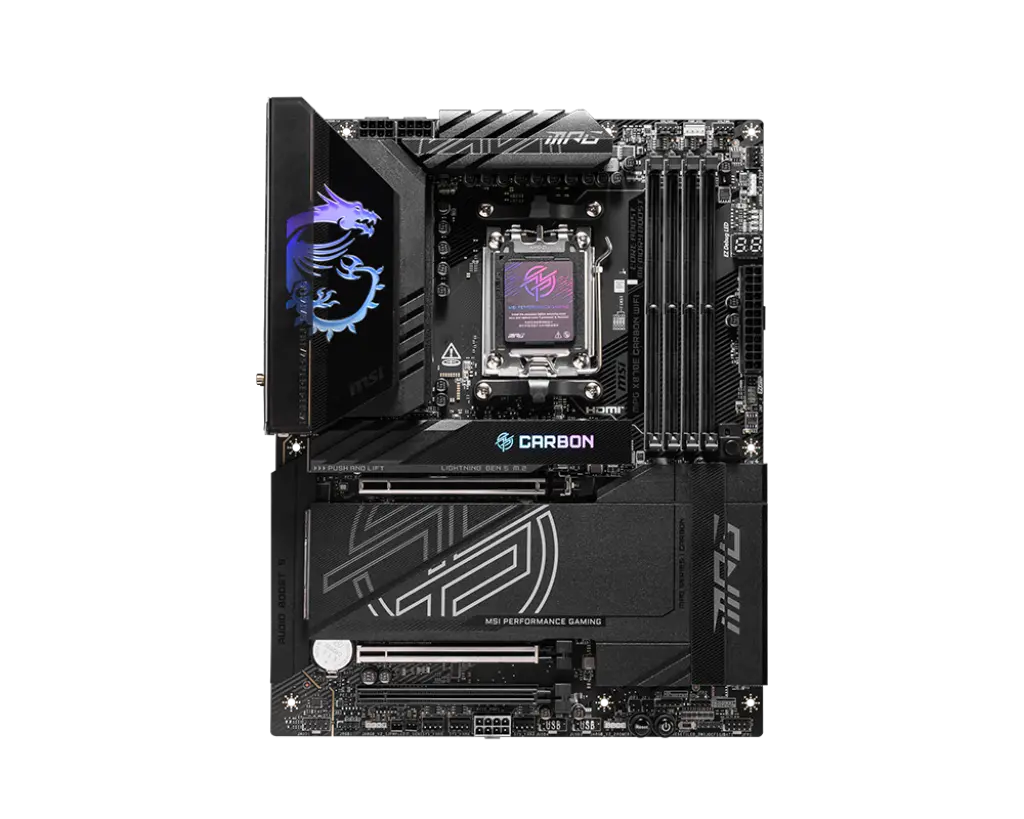

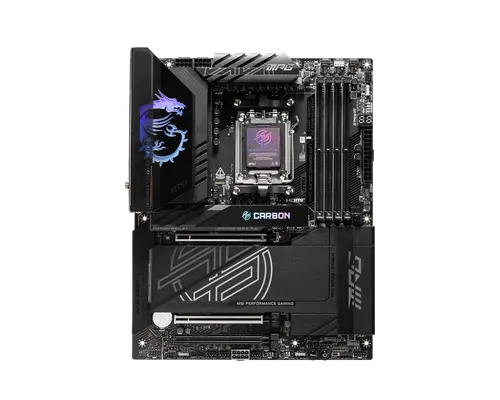

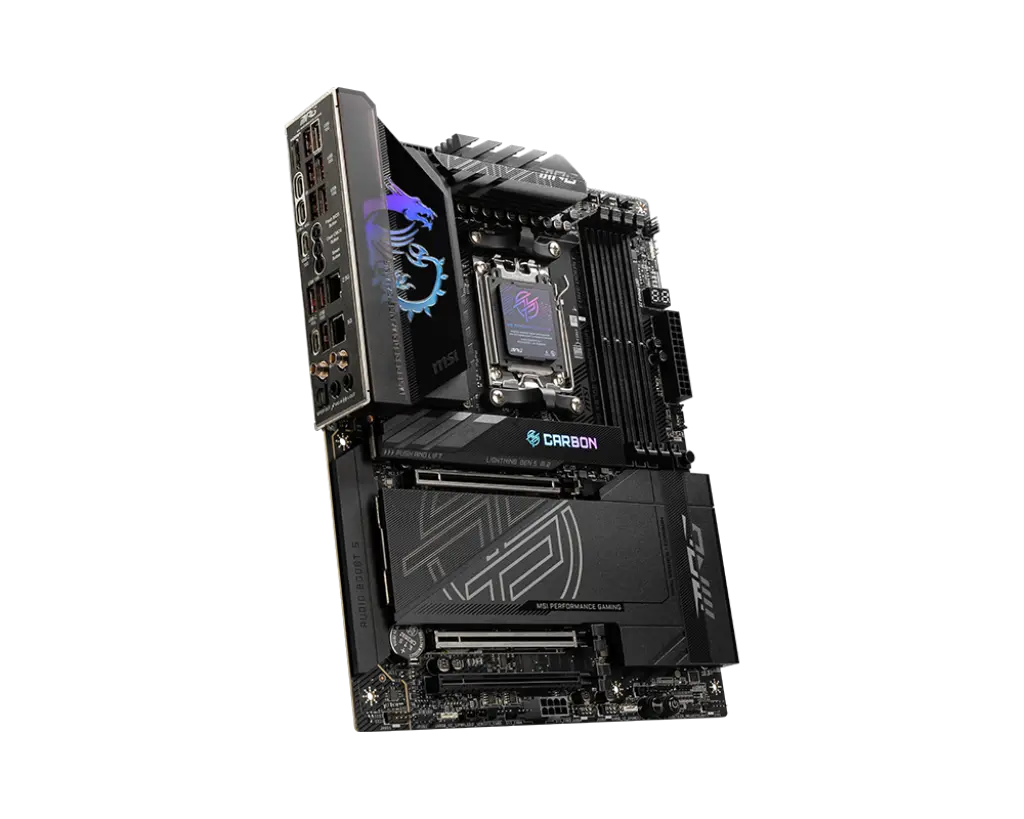

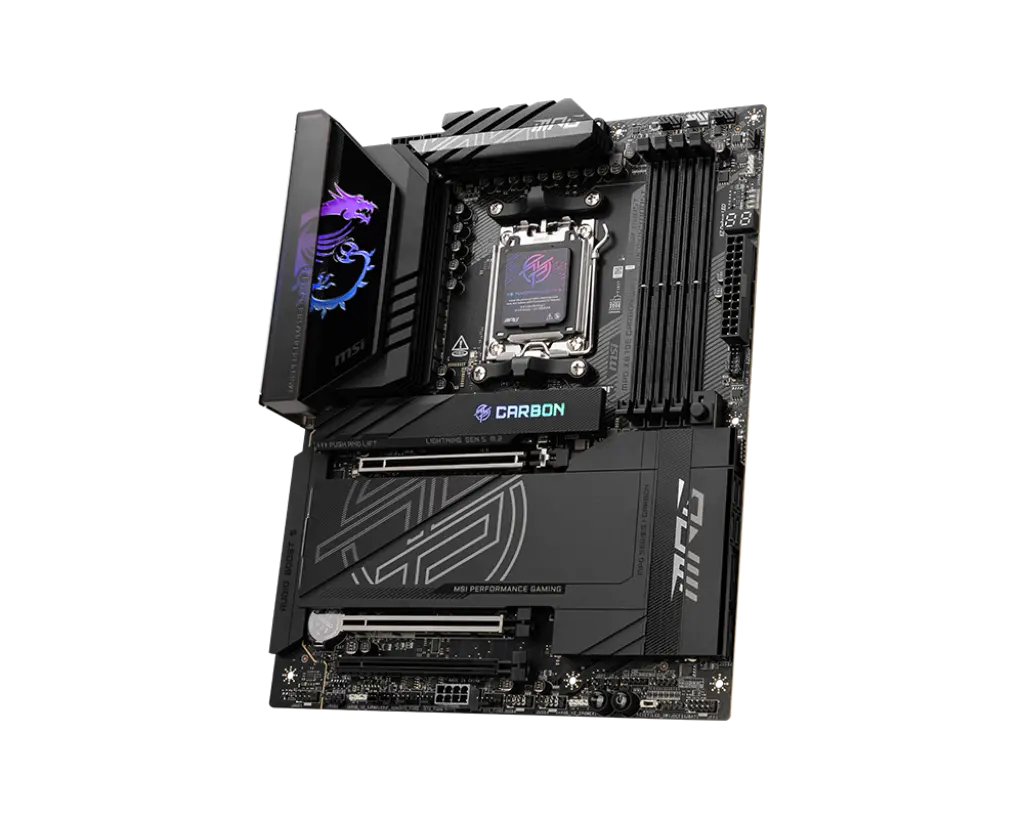

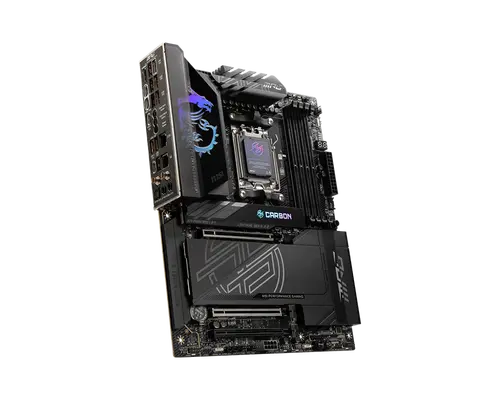

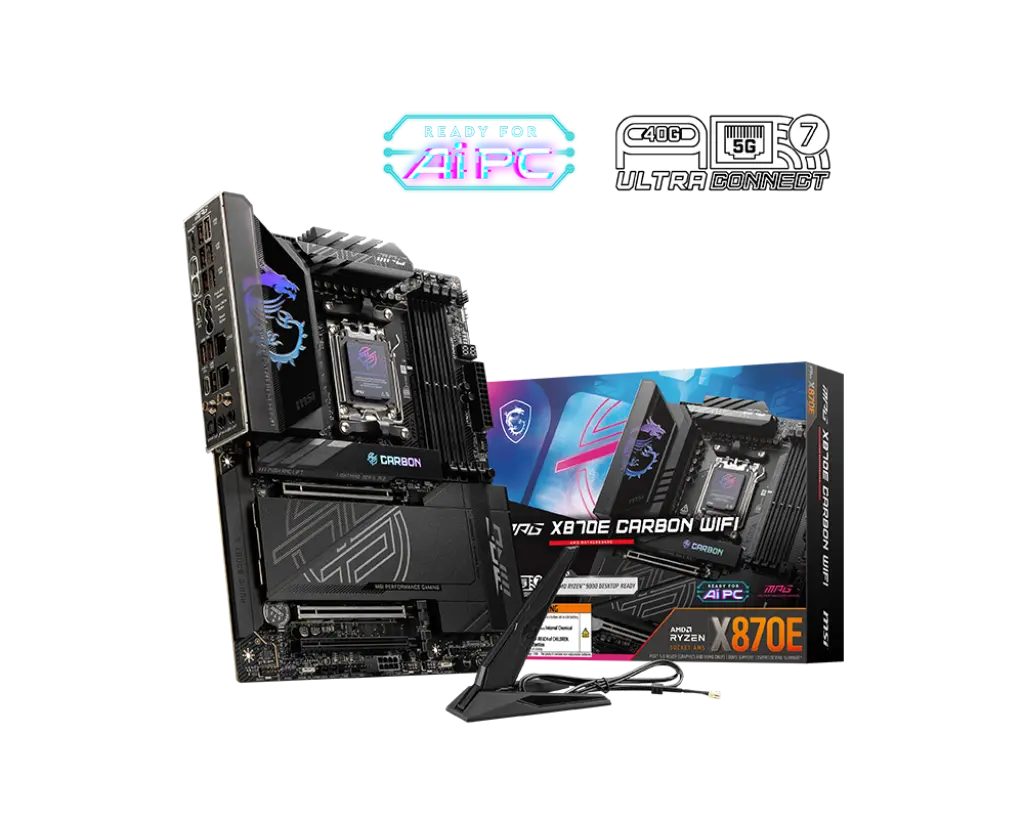

Дънна платка MSI MPG X870E CARBON WIFI
Извлечете максимума от процесора си AMD Ryzen 9000 с дънната платка MSI MPG X870E CARBON WIFI. Тя съчетава премиум свързаност, мощно захранване и елегантен карбонов дизайн за безупречно гейминг и продуктивност.
Ключови Предимства
- Производителност от ново поколение — Чипсет AMD X870E с поддръжка на PCIe 5.0 за светкавично бързи графики и съхранение.
- Ултрабърза свързаност — Интегриран Wi-Fi 7 и 5G LAN за безпроблемен онлайн гейминг и бърз трансфер на файлове.
- Разширена памет — Четири слота DDR5 с поддръжка на EXPO, овърклок до 256 GB за екстремна многозадачност.
- Обширно съхранение — Четири M.2 слота (един Gen5) и четири SATA порта за масивни и високоскоростни дискове.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD X870E |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 3 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |

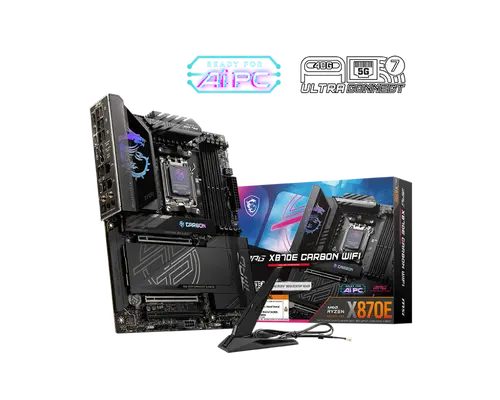

Какво има в кутията
- Дънна платка MSI MPG X870E CARBON WIFI
- Ръководство за потребителя
- SATA 6G кабели (2 бр.)
- Wi-Fi антена
- I/O щит (предварително монтиран)
- Комплект винтове за M.2
- Пакет стикери MSI
