- GIGABYTE
Preț
€157 90 / 308 83 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-V2-rev-1x#kf
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support
-1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
CPU's supported
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset
AMD B650
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot
Chipset
-2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
-AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
-4 x SATA 6Gb/s connectors
-RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
-RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
CPU
-1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
-1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
-1 x USB 3.2 Gen 1 port on the back panel
CPU + USB 2.0 Hub
-3 x USB 2.0/1.1 ports on the back panel
Chipset
-1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
-4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
-4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
iTE® I/O Controller Chip
1x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors:
2 x SMA antenna connectors (2T2R)
1 x Q-Flash Plus button
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.3
-Support for 11ax 160MHz wireless standard
AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.2
-Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX210 (PCB rev. 1.2)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.3
-Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-V2-rev-1x#kf |
| Chipset | AMD B650 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Rear panel I/O | CPU |
| Rear panel I/O | Chipset |
| Rear panel I/O | -1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| Rear panel I/O | -1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| Rear panel I/O | -1 x USB 3.2 Gen 1 port on the back panel |
| Rear panel I/O | CPU + USB 2.0 Hub |
| Rear panel I/O | -3 x USB 2.0/1.1 ports on the back panel |
| Rear panel I/O | -1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| Rear panel I/O | -4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Rear panel I/O | -4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | Chipset |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot |
| Expansion Slots | -AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | -AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | -AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | -2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) |
| Wireless | -WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | -BLUETOOTH 5.3 |
| Wireless | -Support for 11ax 160MHz wireless standard |
| Wireless | AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1) |
| Wireless | -BLUETOOTH 5.2 |
| Wireless | Intel® Wi-Fi 6E AX210 (PCB rev. 1.2) |
| Wireless | (Actual data rate may vary depending on environment and equipment.) |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | * Support for DisplayPort 1.4 version and HDR. |
| Graphics | ** Support native HDMI 2.1 TMDS compatible ports. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| Graphics | -1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | -1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | CPU |
| I/O | Chipset |
| I/O | -1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| I/O | -1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| I/O | -1 x USB 3.2 Gen 1 port on the back panel |
| I/O | CPU + USB 2.0 Hub |
| I/O | -3 x USB 2.0/1.1 ports on the back panel |
| I/O | -1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| I/O | -4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| I/O | -4 x USB 2.0/1.1 ports available through the internal USB headers |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs |
| Storage | 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs |
| Storage | -AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | -AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs |
| Storage | -4 x SATA 6Gb/s connectors |
| Storage | -RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Storage | -RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 2 x addressable LED strip headers |
| Connectors | 2 x RGB LED strip headers |
| Connectors | 3 x M.2 Socket 3 connectors |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x reset button |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 2 x system fan headers |
| Connectors | 1 x CPU cooler LED strip/RGB LED strip header |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 1x 24-pin ATX main power connector |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 1 x DisplayPort |
| Connectors | 1 x HDMI port |
| Connectors | 2 x SMA antenna connectors (2T2R) |
| Connectors | 1 x 4-pin ATX 12V power connector |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| Connectors | iTE® I/O Controller Chip |
| Connectors | Back Panel Connectors: |
| Connectors | 1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | 3 x USB 3.2 Gen 1 ports |
| Connectors | 3 x USB 2.0/1.1 ports |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD B650 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 192 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

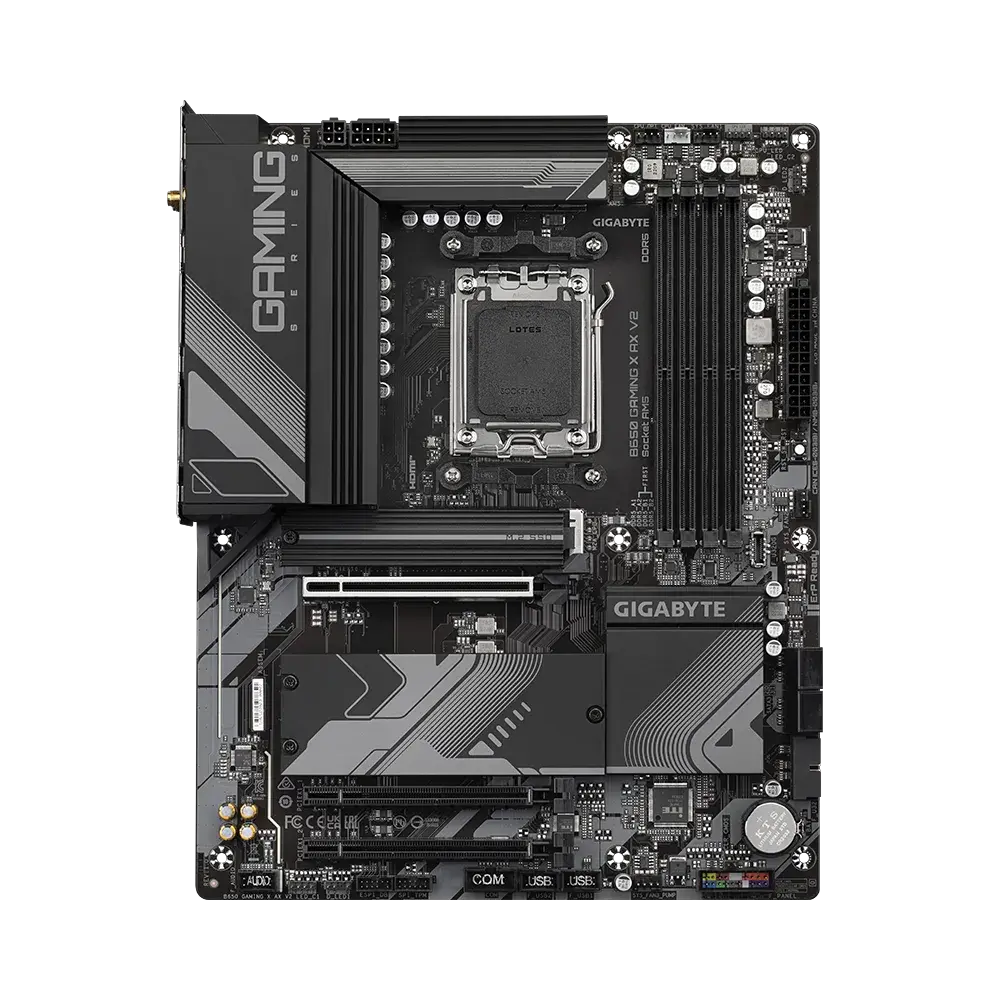

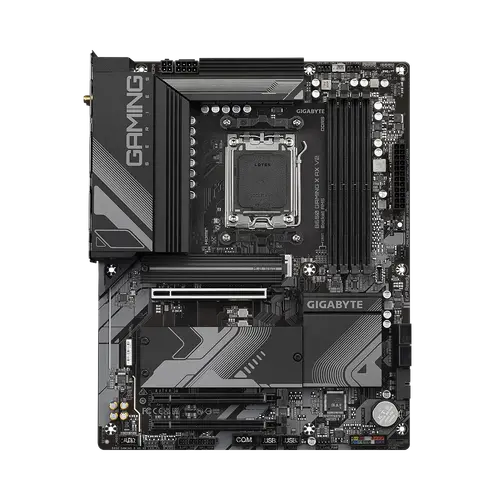

Дънна платка GIGABYTE B650 GAMING X AX V2
Освободете пълния потенциал на вашия AMD Ryzen 7000-серия процесор с дънната платка GIGABYTE B650 GAMING X AX V2. Този ATX модел предоставя производителност от ново поколение с поддръжка на PCIe 5.0, ултра-бърза DDR5 памет и вграден Wi-Fi 6E за безпроблемна свързаност.
Ключови Предимства
- AMD AM5 платформа — Поддръжка на последните процесори Ryzen 7000/8000/9000 с цокъл LGA 1718.
- Готовност за PCIe 5.0 — Един PCIe 5.0 x16 слот и един PCIe 5.0 M.2 слот за бъдещо ъпгрейдване на графиката и съхранението.
- Двоен M.2 с термични защити — Два M.2 слота (един Gen5, един Gen4) с радиатори за охлаждане на SSD дисковете.
- Бърза мрежа — 2.5GbE LAN и Wi-Fi 6E (802.11ax) с Bluetooth 5.3 за бързи и надеждни връзки.
- Подобрен звук — Realtek ALC897 кодек с висококачествени аудио кондензатори за потапящ звук.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B650 |
| Тип памет | DDR5 |
| Слотове за памет | 4 (Dual Channel) |
| Максимална памет | 192 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (отзад) | 1 |
| RGB подсветка | Не |
Какво има в кутията

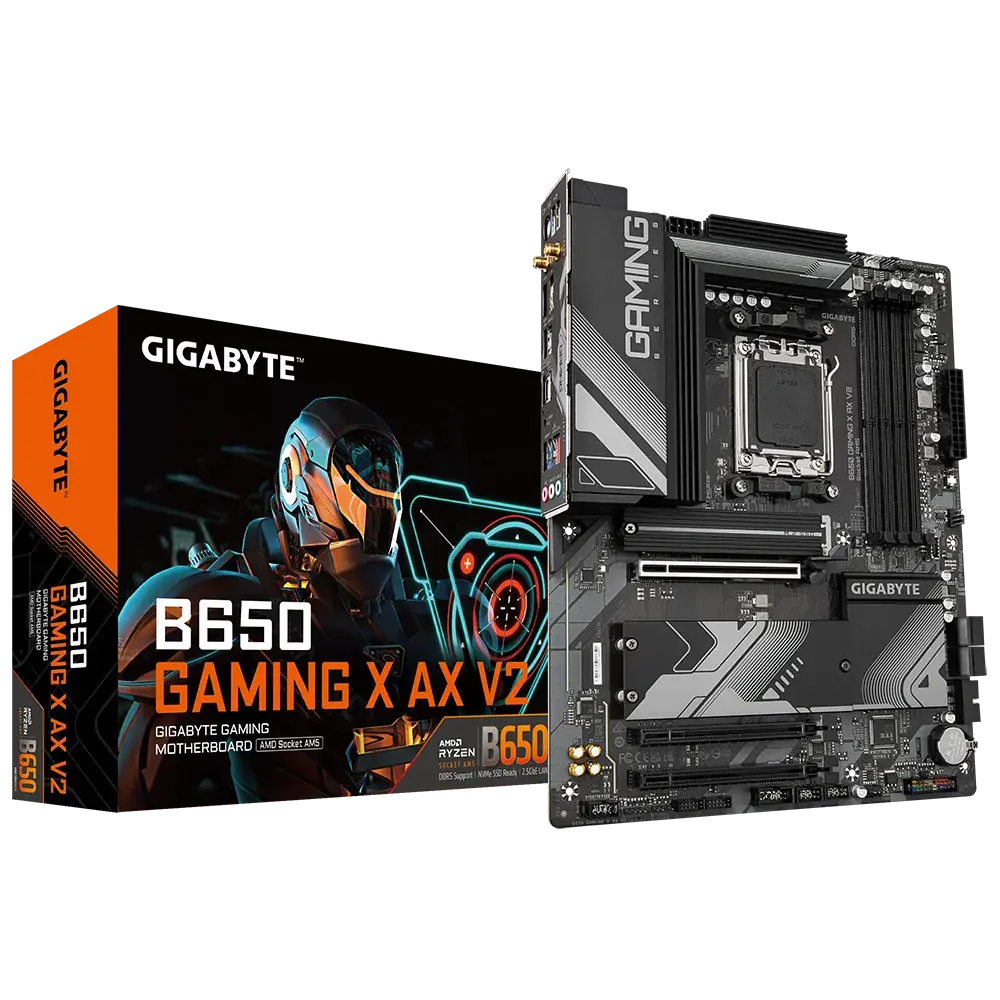

- Дънна платка GIGABYTE B650 GAMING X AX V2
- Ръководство за потребителя
- 2 x SATA кабела
- I/O щит
- Wi-Fi антена
- M.2 винтове и дистанционери
- DVD с драйвери (ако е приложимо)
Abonați-vă la newsletterul nostru
Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Metodă de plată
- Card de credit/debit
- Transfer bancar
