- TELTONIKA NETWORKS
Preț
€204 64 / 400 24 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta

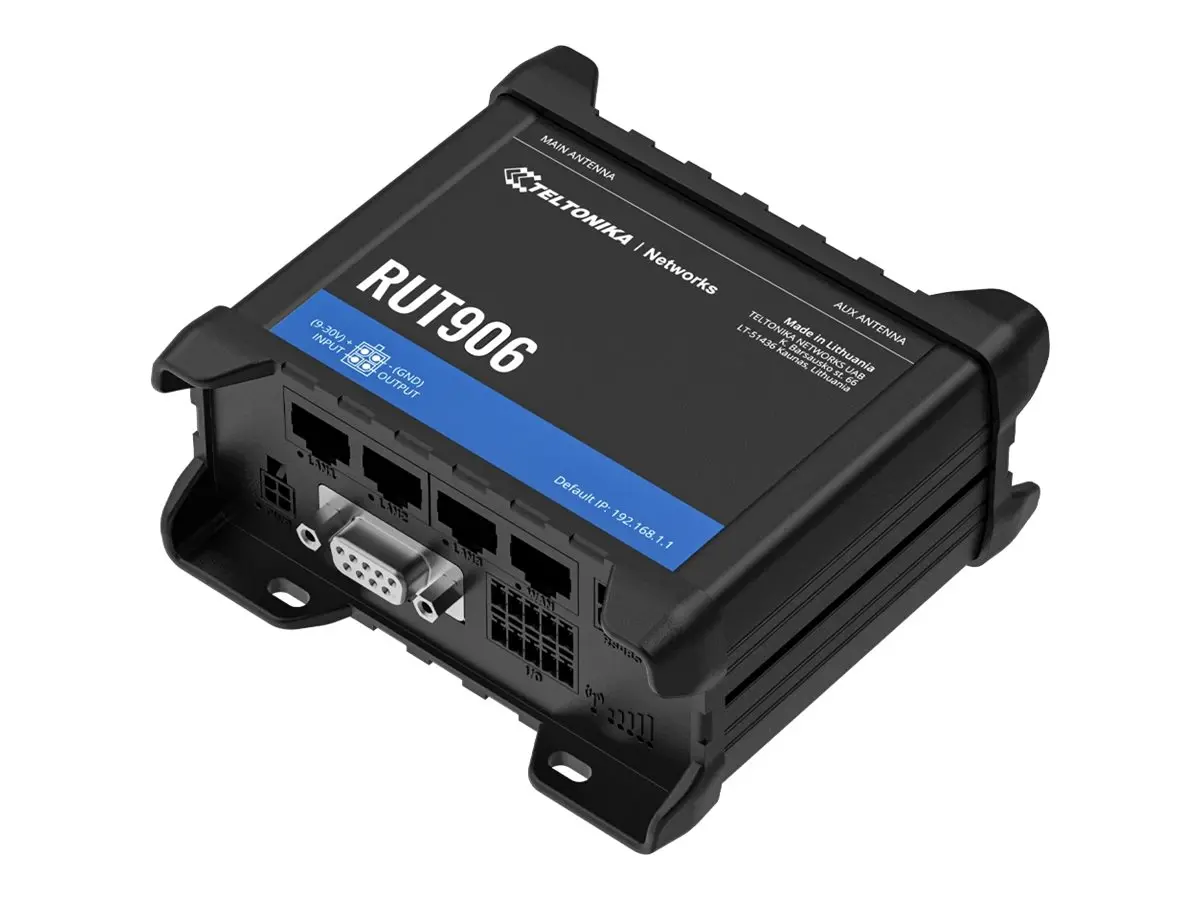

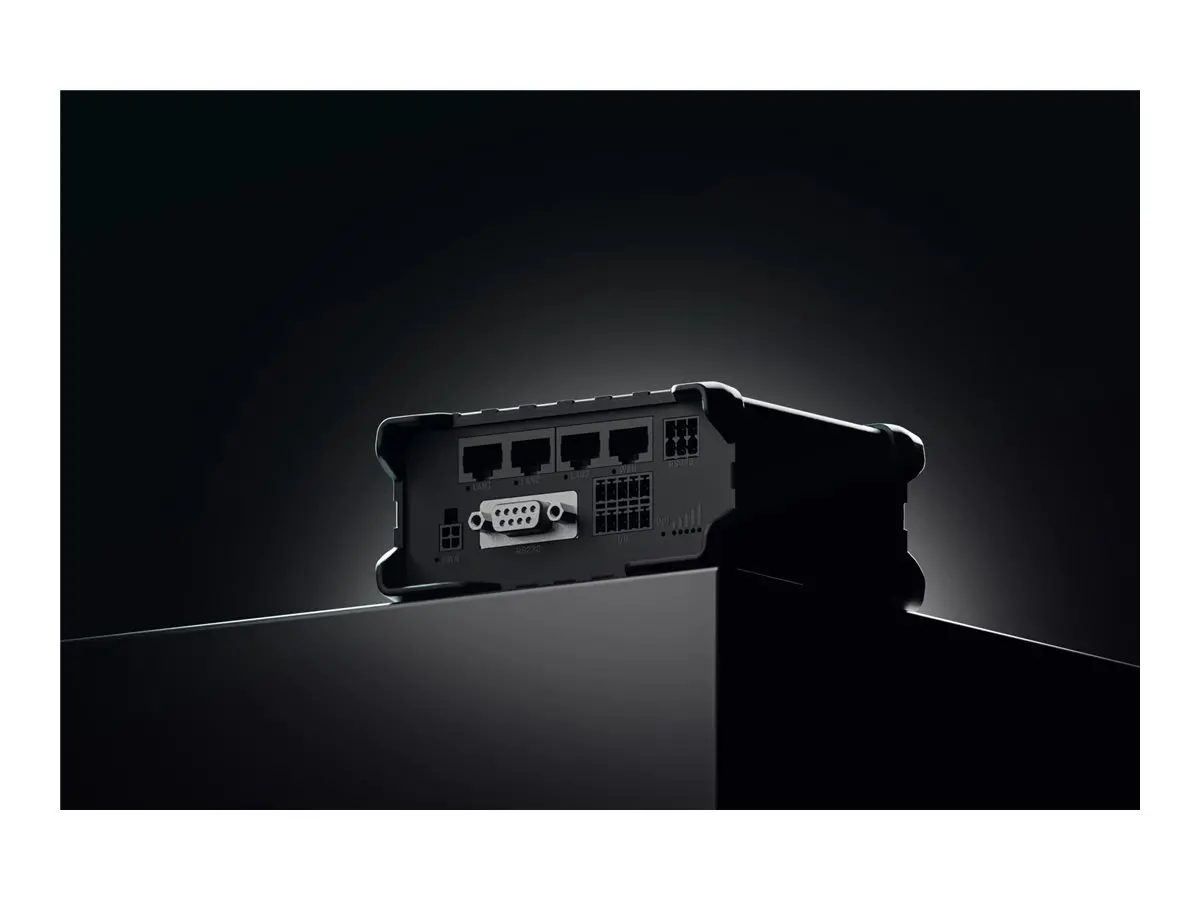

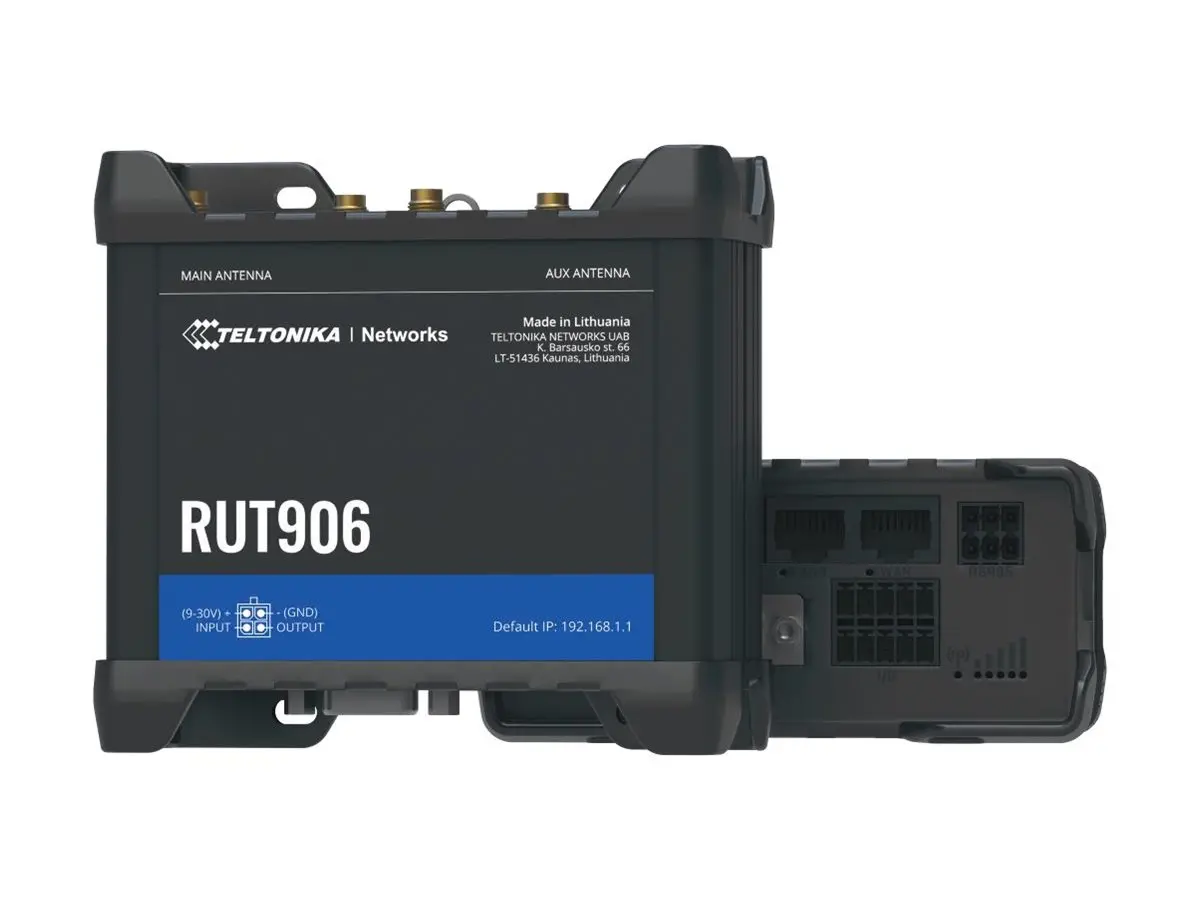

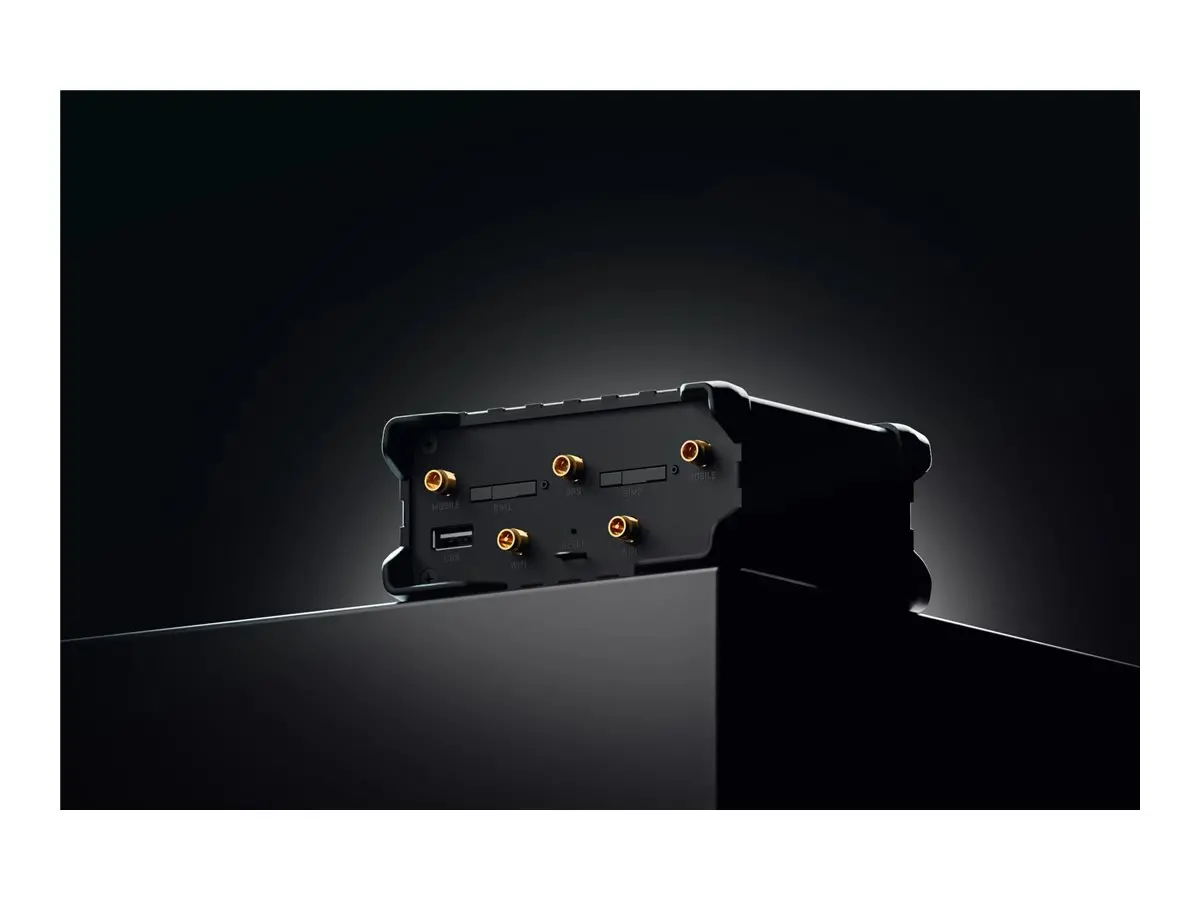

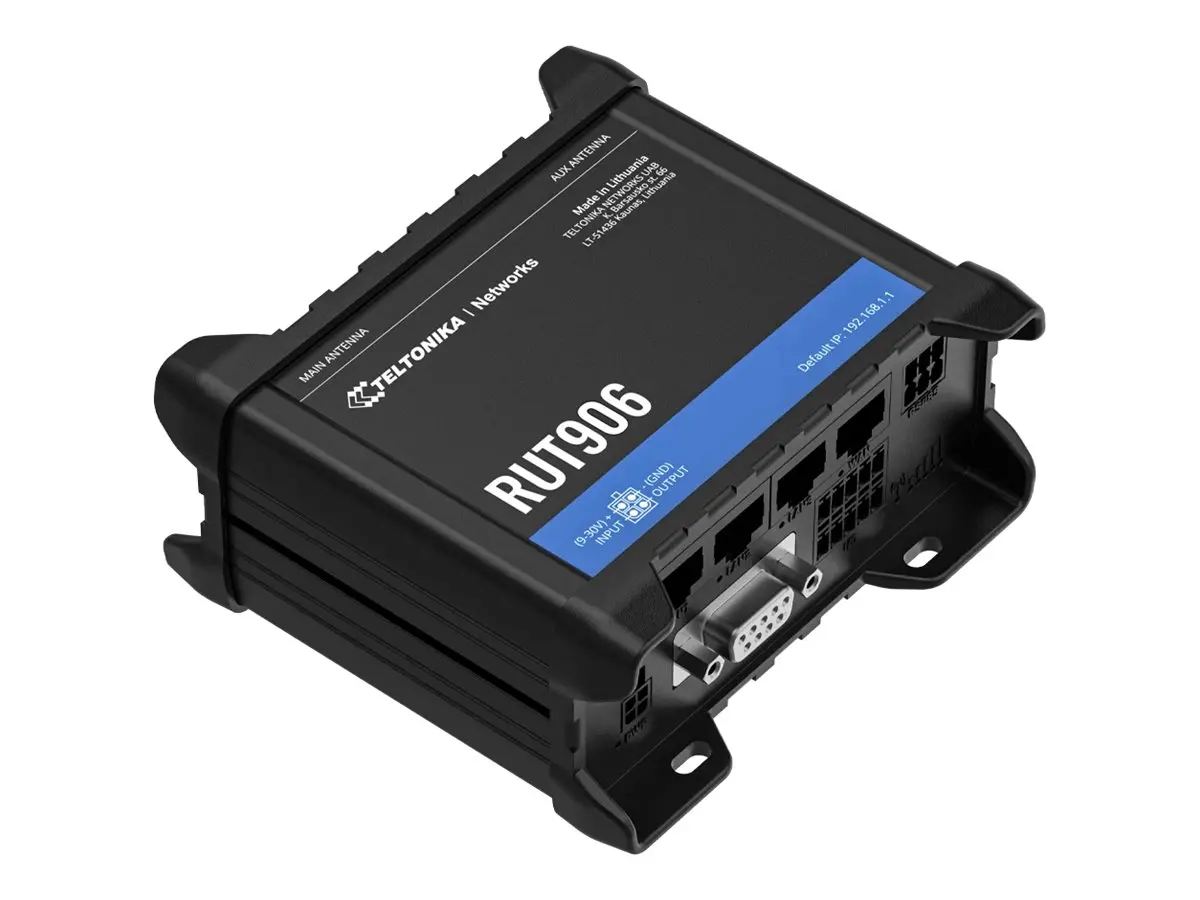

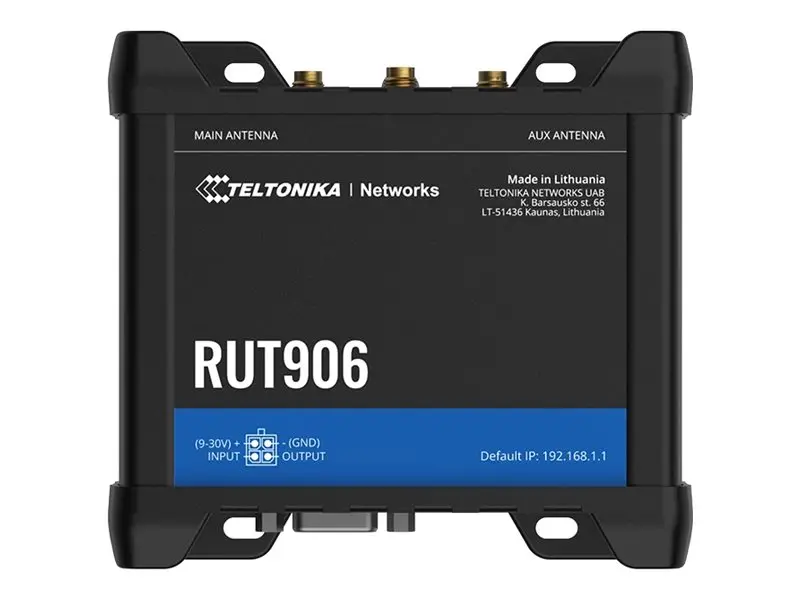

Teltonika RUT906 - Router wireless - WWAN switch cu 3 porturi - RS-232, RS-485 2.4 GHz - 4G, 2G, 3G - Se poate monta pe șină DIN
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.
| Description | |
|---|---|
| Marketing Description | Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN. |
| General | |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | DIN rail mountable |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, RS-232, RS-485 |
| Frequency Band | 2.4 GHz |
| Capacity | Simultaneous connections: 100 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, SFTP, FTP, ARP, PPPoE, DHCP, Telnet, PPTP, L2TPv3, WireGuard, OpenVPN |
| Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, NHRP, EIGRP, VRRP |
| Remote Management Protocol | ICMP, HTTP, HTTPS, SMTP, SSH, SMPP, SMNP, MQTT, SSH-2, SNMP 1, SNMP 2, SNMP 3, TR-069, BACnet, Kinesis |
| Encryption Algorithm | WPA3-EAP, WPA3-SAE, WPA2-Enterprise, PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, SSL, TLS, DES, DESX, IKEv1, IKEv2, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, CAST5 |
| Authentication Method | Radio Service Set ID (SSID), RADIUS, X.509 certificates, TACACS+ |
| Features | RSSI support, USSD support, white list, black list, band management, auto APN, bridge mode, Access Point operational mode, Auto Cipher modes, client separation, Stealth Mode, Fast Roaming, MAC address filtering, Captive Portal, RADIUS Server, static routing, policy based routing, WOL, port forwarding, DHCP relay, load balancing, QoS, SQM, SSHFS support, auto-uplink (auto MDI/MDI-X), PSK, IPSec NAT-T, DDos attack prevention, port scan prevention, VLAN support, mobile quota control, Web Filtering, GRE tunneling, Modbus compatible, DNP3 outstation, DLMS support, FOTA, SNMP trap, Teltonika RMS, GPS/GLONASS/Galileo/BeiDou/QZSS support, NTRIP, passive PoE supported, automated failover |
| Compliant Standards | IEEE 802.11r, UPnP, IEEE 802.11e, IEEE 802.3, IEEE 802.3u, IP30, UKCA, RCM, CB, E Mark, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.0, EN 301 489-52 V1.2.1, EN 61000-4-2:2009, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN 61000-4-3:2020, EN 62311, IEC 62368-1:2018, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 300 328 |
| Processor | 1 x MediaTek MIPS 24Kec 580 MHz |
| RAM | 128 MB DDR2 SDRAM |
| Flash Memory | 16 MB |
| Built-in Devices | GNSS receiver |
| Status Indicators | Connection status, signal strength, Ethernet link/activity, power |
| Communications | |
| Type | Wireless cellular modem |
| Mobile Communication Protocol | FDD LTE, TDD LTE |
| Generation | 4G, 2G, 3G |
| Cellular Band | LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41 |
| Max Transfer Rate | 150 Mbps |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| Expansion / Connectivity | |

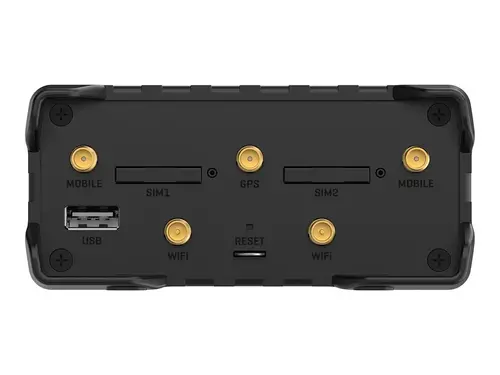

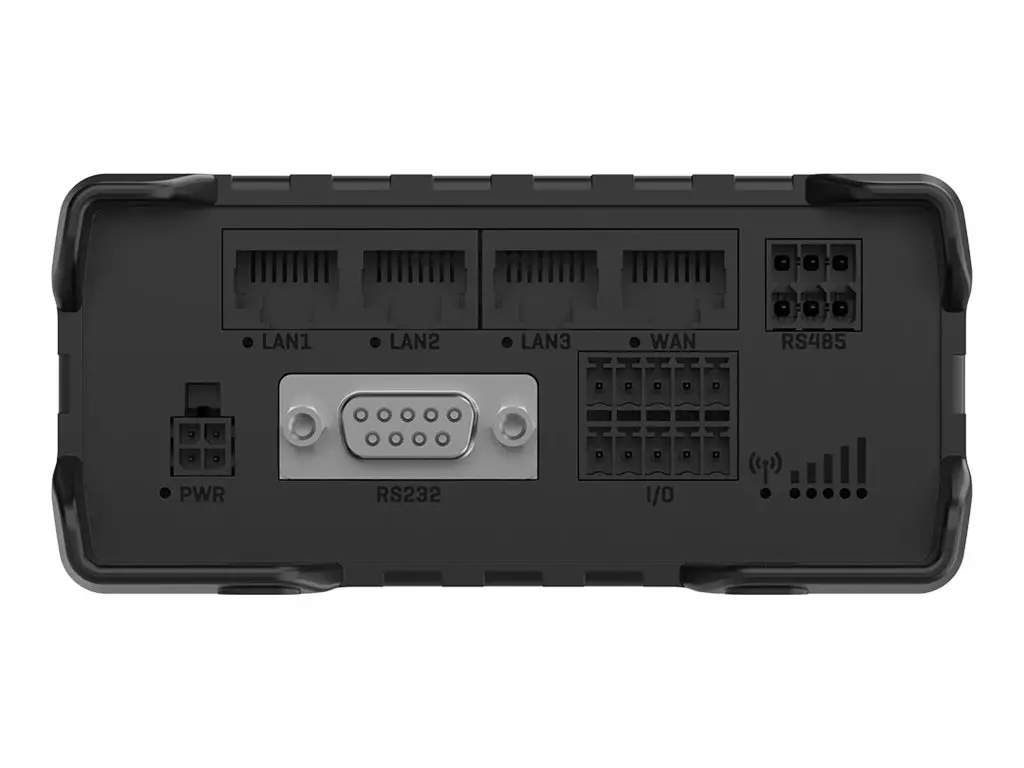

| Interfaces | WAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 3 x 10Base-T/100Base-TX - RJ-45 Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) Serial: 1 x RS-485 USB 2.0: 1 x 4 pin USB Type A Antenna: 2 x SMA - LTE Antenna: 2 x RP-SMA - Wi-Fi Antenna: 1 x SMA - GNSS aerial Input / output |
| Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
| Aerial | |
| Aerial | External detachable |
| Antenna Qty | 5 |
| Power | |
| Power Device | External power adapter - 9 Watt |
| Miscellaneous | |
| Included Accessories | Power adapter (EU), 2 x LTE aerials, 2 x WiFi aerials, GNSS aerial, RS-485 connector, I/O connector, SIM card adapter kit |
| Cables Included | 1 x network cable - 1.5 m |
| Localisation | Europe (excluding Belarus, Russia), Middle East, Africa, Thailand |
| Software / System Requirements | |
| OS Provided | RutOS |
| Dimensions & Weight | |
| Width | 10.95 cm |
| Depth | 10 cm |
| Height | 5 cm |
| Weight | 295 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Device Type | Wireless router - 3-port switch (integrated) |
| Marketing Description | Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN. |
| Marketing Description | Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN. |
| Enclosure Type | DIN rail mountable |
| Device Type | Wireless router - 3-port switch (integrated) |
| Connectivity Technology | Wired, wireless |
| Width | 10.95 cm |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, RS-232, RS-485 |
| Depth | 10 cm |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, SFTP, FTP, ARP, PPPoE, DHCP, Telnet, PPTP, L2TPv3, WireGuard, OpenVPN |
| Height | 5 cm |
| Encryption Algorithm | WPA3-EAP, WPA3-SAE, WPA2-Enterprise, PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, SSL, TLS, DES, DESX, IKEv1, IKEv2, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, CAST5 |
| Weight | 295 g |
| Features | RSSI support, USSD support, white list, black list, band management, auto APN, bridge mode, Access Point operational mode, Auto Cipher modes, client separation, Stealth Mode, Fast Roaming, MAC address filtering, Captive Portal, RADIUS Server, static routi |
| Localisation | Europe (excluding Belarus, Russia), Middle East, Africa, Thailand |
| Compliant Standards | IEEE 802.11r, UPnP, IEEE 802.11e, IEEE 802.3, IEEE 802.3u, IP30, UKCA, RCM, CB, E Mark, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489 |
| Status Indicators | Connection status, signal strength, Ethernet link/activity, power |
| Type | Wireless cellular modem |
| RAM | 128 MB DDR2 SDRAM |
| Mobile Communication Protocol | FDD LTE, TDD LTE |
| Flash Memory | 16 MB |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 3 x 10Base-T/100Base-TX - RJ-45 Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) Serial: 1 x RS-485 |
| Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
| Connectivity Technology | Wired, wireless |
| Aerial | External detachable |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, RS-232, RS-485 |
| Antenna Qty | 5 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, SFTP, FTP, ARP, PPPoE, DHCP, Telnet, PPTP, L2TPv3, WireGuard, OpenVPN |
| Power Device | External power adapter - 9 Watt |
| Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, NHRP, EIGRP, VRRP |
| Width | 10.95 cm |
| Remote Management Protocol | ICMP, HTTP, HTTPS, SMTP, SSH, SMPP, SMNP, MQTT, SSH-2, SNMP 1, SNMP 2, SNMP 3, TR-069, BACnet, Kinesis |
| Depth | 10 cm |
| Capacity | Simultaneous connections: 100 |
| Height | 5 cm |
| Status Indicators | Connection status, signal strength, Ethernet link/activity, power |
| Weight | 295 g |
| Features | RSSI support, USSD support, white list, black list, band management, auto APN, bridge mode, Access Point operational mode, Auto Cipher modes, client separation, Stealth Mode, Fast Roaming, MAC address filtering, Captive Portal, RADIUS Server, static routi |
| Min Operating Temperature | -40 °C |
| Encryption Algorithm | WPA3-EAP, WPA3-SAE, WPA2-Enterprise, PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, SSL, TLS, DES, DESX, IKEv1, IKEv2, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, CAST5 |
| Max Operating Temperature | 75 °C |
| Authentication Method | Radio Service Set ID (SSID), RADIUS, X.509 certificates, TACACS+ |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Antenna Qty | 5 |
| Mobile Communication Protocol | FDD LTE, TDD LTE |
| Frequency Band | 2.4 GHz |
| Internet of Things (IoT) Compatible | Yes |
| Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 3 x 10Base-T/100Base-TX - RJ-45 Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) Serial: 1 x RS-485 |
| Included Accessories | Power adapter (EU), 2 x LTE aerials, 2 x WiFi aerials, GNSS aerial, RS-485 connector, I/O connector, SIM card adapter kit |
| Cables Included | 1 x network cable - 1.5 m |
| Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, NHRP, EIGRP, VRRP |
| Compliant Standards | IEEE 802.11r, UPnP, IEEE 802.11e, IEEE 802.3, IEEE 802.3u, IP30, UKCA, RCM, CB, E Mark, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489 |
| Remote Management Protocol | ICMP, HTTP, HTTPS, SMTP, SSH, SMPP, SMNP, MQTT, SSH-2, SNMP 1, SNMP 2, SNMP 3, TR-069, BACnet, Kinesis |
| Power Device | External power adapter - 9 Watt |
| Authentication Method | Radio Service Set ID (SSID), RADIUS, X.509 certificates, TACACS+ |
| RAM | 128 MB DDR2 SDRAM |
| OS Provided | RutOS |
| Flash Memory | 16 MB |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| OS Provided | RutOS |
| Enclosure Type | DIN rail mountable |
| Frequency Band | 2.4 GHz |
| Processor | 1 x MediaTek MIPS 24Kec 580 MHz |
| Type | Wireless cellular modem |
| Generation | 4G, 2G, 3G |
| Cellular Band | LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41 |
| Generation | 4G, 2G, 3G |
| Max Transfer Rate | 150 Mbps |
| Cellular Band | LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41 |
| VoIP Protocols | SIP, H.323 |
| Max Transfer Rate | 150 Mbps |
| Platform | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| Aerial | External detachable |
| Localisation | Europe (excluding Belarus, Russia), Middle East, Africa, Thailand |
| Capacity | Simultaneous connections: 100 |
| VoIP Protocols | SIP, H.323 |
| Processor | 1 x MediaTek MIPS 24Kec 580 MHz |
| Cables Included | 1 x network cable - 1.5 m |
| Platform | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| Built-in Devices | GNSS receiver |
| Included Accessories | Power adapter (EU), 2 x LTE aerials, 2 x WiFi aerials, GNSS aerial, RS-485 connector, I/O connector, SIM card adapter kit |
| Internet of Things (IoT) Compatible | Yes |
| Built-in Devices | GNSS receiver |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Router Type | 4G/5G LTE |
| Wi-Fi Standard | Wi-Fi 4 (802.11n) |
| Frequency Bands | Single-band 2.4 GHz |
| WAN Port Speed | 100 Mbps |
| LAN Ports (count) | 1 |
| LAN Port Speed | 100 Mbps |
| Max Wireless Speed (Mbps) | 300 |
| Antennas | External detachable |
| Number of Antennas (count) | 3 |
| USB Ports (count) | 1 |
| VPN Support | Yes |
| Mesh Support | No |
| MU-MIMO | No |
| PoE Support | None |
| SIM Slot | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Телтоника Нетуъркс RUT906 4G/LTE/3G/2G WiFi рутер
Останете свързани навсякъде с Teltonika RUT906 – здрав индустриален клетъчен рутер, проектиран за надеждна основна или резервна свързаност. С 4G LTE Cat 4 скорости, двойно SIM превключване и усъвършенствани функции за сигурност, той осигурява непрекъснат интернет за критични приложения.
Ключови Предимства
- Надеждна свързаност — 4G LTE Cat 4 с резервно превключване към 3G/2G гарантира, че оставате онлайн дори в отдалечени райони.
- Двойно SIM превключване — Автоматично превключване между две SIM карти осигурява непрекъсната връзка при отказ на едната мрежа.
- Индустриална издръжливост — Широк температурен диапазон на работа и здрав дизайн за тежки условия.
- Разширена сигурност — Вграден VPN, защитна стена и контрол на достъпа предпазват мрежата ви от заплахи.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Мобилна свързаност | 4G LTE Cat 4, 3G, 2G |
| Wi-Fi стандарт | 802.11b/g/n (Wi-Fi 4) |
| Честотни обхвати | Еднообхватен 2.4 GHz |
| Ethernet портове | 1 x 10/100 Mbps WAN, 1 x 10/100 Mbps LAN |
| SIM слотове | 2 x SIM (двойна SIM) |
| Антени | 2 x SMA за мобилна, 1 x RP-SMA за Wi-Fi |
| USB | 1 x USB 2.0 |
| Вход/Изход | 1 x цифров вход, 1 x цифров изход |
| Захранване | 9-30 VDC |
| Работна температура | -40°C до 75°C |
| Размери | 83 x 74 x 25 mm |
| Тегло | 125 g |
Какво има в кутията
- RUT906 рутер
- Захранващ адаптер
- 2 x мобилни антени (SMA)
- 1 x Wi-Fi антена (RP-SMA)
- Ethernet кабел
- Ръководство за бърз старт
