- GIGABYTE
Preț
€125 58 / 245 61 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
CPU's supported
AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD A620A
Expansion slots
1 x PCI Express x16 slot, integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID
RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
Memory type
Support for DDR5 8000(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable RGB Gen2 LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header

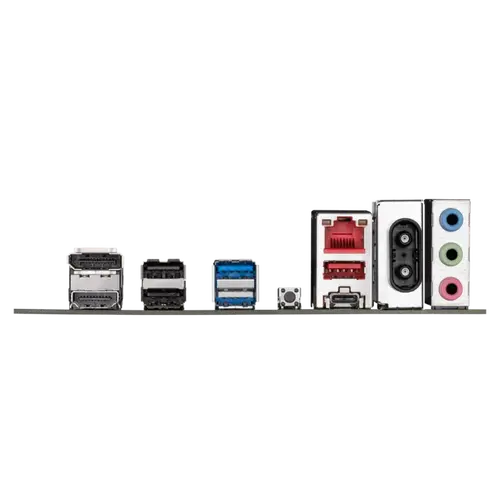

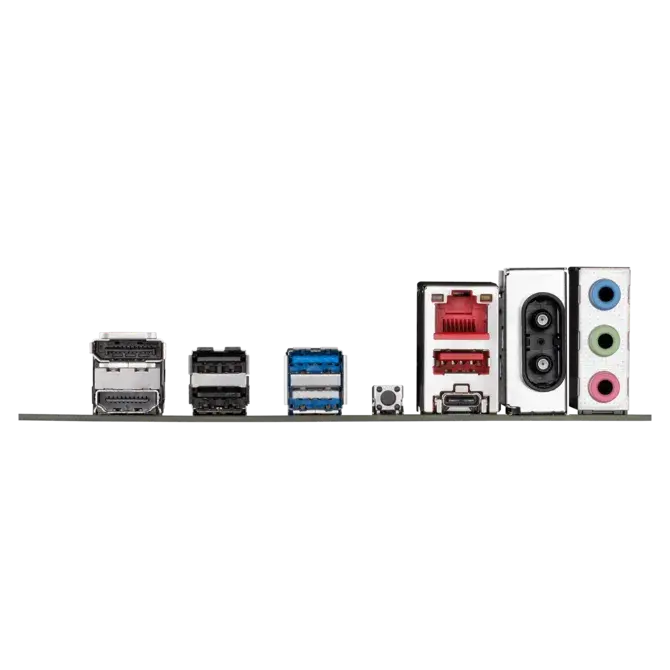

Back Panel Connectors:
1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
* Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Bluetooth
5.4
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Mini-ITX Form Factor
17.0cm x 17.0cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Chipset | AMD A620A |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| CPU's supported | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 8000(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules |
| Memory type | Support for DDR5 8000(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel me |
| Form Factor | Mini-ITX Form Factor |
| Form Factor | 17.0cm x 17.0cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mo |
| Wireless | - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | - BLUETOOTH 5.4 |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE |
| Wireless | - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipmen |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | * Support for DisplayPort 1.4 version. |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support fo |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Features | Support for Smart Backup |
| Features | Support for Q-FlashSupport for Q-Flash Plus |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | iTE® I/O Controller Chip |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: |
| Storage | 2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devices |
| Storage | RAID 0 and RAID 1 support for SATA storage devices |
| Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-P |
| Bluetooth | 5.4 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 1 x M.2 Socket 3 connector |
| Connectors | 1 x speaker header |
| Connectors | 1 x chassis intrusion header |
| Connectors | 2 x system fan headers |
| Connectors | 1 x RGB LED strip header |
| Connectors | 1 x USB 2.0/1.1 header |
| Connectors | Back Panel Connectors |
| Connectors | 1 x HDMI port (Note) |
| Connectors | 1 x DisplayPort (Note) |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 1 support |
| Connectors | 2 x antenna connectors (2T2R) |
| Connectors | 1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | 3 x USB 2.0/1.1 ports |
| Connectors | 2 x SATA 6Gb/s connectors |
| Connectors | 1 x USB 3.2 Gen 1 port |
| Connectors | 1 x addressable RGB Gen2 LED strip header |
| Connectors | 1 x reset jumper1 x Clear CMOS jumper |
| Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable RGB Gen2 LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| USB | - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support |
| USB | - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) |
| USB | - 1 x USB 2.0/1.1 port on the back panel |
| USB | - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| USB | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the in |
| RAID | RAID 0 and RAID 1 support for NVMe SSD storage devices RAID 0 and RAID 1 support for SATA storage devices |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | Mini-ITX |
| Chipset | AMD A620 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 2 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Дънна платка GIGABYTE A620I AX 2.0 – Компактна Мощност за AMD Ryzen AM5
Разгърнете пълния потенциал на вашата компактна система с GIGABYTE A620I AX 2.0 – Mini-ITX дънна платка, проектирана за процесори AMD Ryzen™ от серии 7000, 8000 и 9000. Тази платка предлага мощна производителност и авангардна свързаност в малък форм фактор, идеална за HTPC или компактни гейминг конфигурации.
Насладете се на скорости от следващо поколение с поддръжка на DDR5 памет и PCIe 4.0, съчетани с интегриран Wi-Fi 6E и 2.5 Gigabit Ethernet за светкавично бърза мрежова свързаност. Нейният обмислен дизайн, включващ Q-Flash Plus и EZ-Latch, опростява инсталацията и поддръжката, което я прави отличен избор както за опитни ентусиасти, така и за начинаещи.
Ключови Предимства
- Платформа AMD AM5 — Поддържа най-новите процесори AMD Ryzen™ от серии 7000, 8000 и 9000, осигурявайки производителност, ориентирана към бъдещето.
- Изключително Бърза Свързаност — Интегрираните Wi-Fi 6E (802.11ax) и 2.5GbE LAN осигуряват превъзходни безжични и кабелни мрежови скорости за игри и стрийминг.
- Поддръжка на DDR5 Памет — Използвайте силата на двуканалната DDR5 памет за подобрен мултитаскинг и бърза реакция на системата.
- PCIe 4.0 Съхранение и Графика — Разполага с PCIe 4.0 x4 M.2 конектор и PCIe 4.0 x16 слот, готови за високоскоростни SSD дискове и модерни графични карти.
- Q-Flash Plus — Актуализирайте лесно BIOS без да инсталирате процесор, памет или видеокарта, опростявайки процеса на сглобяване.
- Mini-ITX Форм фактор — Идеална за компактни системи (SFF), предлагайки мощни функции в малък дизайн.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Цокъл на процесора | AMD AM5 |
| Чипсет | AMD A620 |
| Форм фактор | Mini-ITX |
| Тип памет | DDR5 |
| Слотове за памет | 2 x DIMM |
| Максимален капацитет на паметта | 128 GB |
| M.2 слотове | 1 x PCIe 4.0 x4 |
| SATA портове | 2 x SATA 6Gb/s |
| PCIe x16 слотове | 1 x PCIe 4.0 |
| Скорост на LAN | 2.5 Gbps |
| Безжична свързаност | Wi-Fi 6E, Bluetooth 5.3 |
| Задни USB-C портове | 1 x USB 3.2 Gen 1 |
| Видео изходи | 1 x HDMI, 1 x DisplayPort |
| Аудио | Realtek Audio CODEC, висококачествени аудио кондензатори |
Какво има в кутията
- Дънна платка GIGABYTE A620I AX 2.0
- Ръководство за потребителя
- Wi-Fi антена (2 бр.)
- SATA 6Gb/s кабели (2 бр.)
- M.2 винт
Abonați-vă la newsletterul nostru
Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Metodă de plată
- Plata la livrare
- Card de credit/debit
- Transfer bancar
- În rate prin PB Personal Finance
