- GIGABYTE
Preț
€308 07 / 602 53 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.gigabyte.com/Motherboard/X870E-EAGLE-X3D-WIFI7
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Chipset
AMD X870E
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 4 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x noise detection header

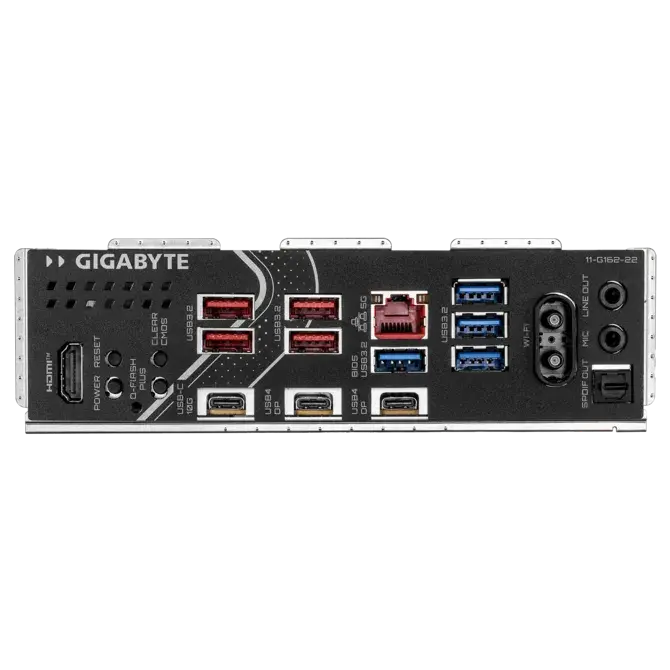

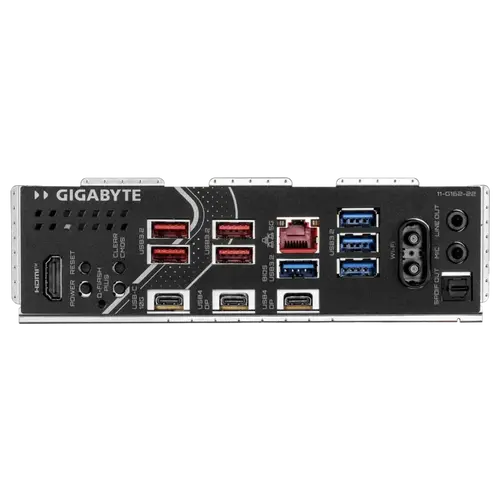

Back Panel Connectors
1 x HDMI port*
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
4 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB4® USB Type-C® ports (DisplayPort*)
1 x RJ-45 port
4 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
Bluetooth
5.4
BIOS
1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/X870E-EAGLE-X3D-WIFI7 |
| Chipset | AMD X870E |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for: |
| CPU's supported | AMD Ryzen™ 9000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 8000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 7000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memor |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Support for S/PDIF Out |
| Audio | Realtek® ALC1220 CODEC |
| Audio | * The back panel line out jack supports DSD audio. |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Expansion Slots | - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Expansion Slots | * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector. |
| Wireless | - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | - BLUETOOTH 5.4 |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 |
| Wireless | - Support for 11be 320MHz wireless standard |
| Graphics | * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | * Support for DisplayPort 1.4 version and HDR. |
| Graphics | - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 512 Mbit flash |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs: |
| Storage | - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| Storage | * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
| Storage | 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| Bluetooth | 5.4 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 2 x 8-pin ATX 12V power connectors |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x reset button |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | Back Panel Connectors |
| Connectors | 4 x USB 3.2 Gen 1 ports |
| Connectors | 1 x RJ-45 port |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 4 x System fan headers |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| Connectors | 2 x antenna connectors (2T2R) |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| Connectors | 1 x HDMI port* |
| Connectors | 1 x optical S/PDIF Out connector |
| Connectors | 2 x audio jacks |
| Connectors | 4 x M.2 Socket 3 connectors |
| Connectors | 2 x USB 3.2 Gen 1 headers |
| Connectors | 1 x power button |
| Connectors | 1 x Clear CMOS button |
| Connectors | 1 x noise detection header |
| Connectors | 2 x temperature sensor headers |
| Connectors | 2 x USB4® USB Type-C® ports (DisplayPort*) |
| Connectors | 2 x system fan/water cooling pump headers |
| Connectors | 4 x USB 3.2 Gen 2 Type-A ports (red) |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| USB | CPU: |
| USB | - 4 x USB 3.2 Gen 1 ports on the back panel |
| USB | Chipset: |
| USB | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| USB | Chipset+USB 3.2 Gen 1 Hub: |
| USB | CPU+ASMedia USB4® controller: |
| USB | - 2 x USB4® USB Type-C® ports on the back panel |
| USB | - 4 x USB 3.2 Gen 1 ports available through the internal USB headers |
| USB | - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD X870E |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 4 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 3 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 5 Gbps |
| USB-C Ports (count) | 4 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Дънна платка GIGABYTE X870E EAGLE X3D WF7 – Отключете Екстремна Производителност
Подобрете вашето гейминг и творческо изживяване с дънната платка GIGABYTE X870E EAGLE X3D WF7. Проектирана за най-новите AMD Ryzen процесори, тази ATX мощност комбинира авангардна свързаност, стабилно захранване и усъвършенствани термични решения, за да разшири границите на производителността.
Създадена за ентусиасти, X870E EAGLE X3D WF7 предлага цялостна поддръжка за PCIe 5.0, DDR5 памет и ултра-бърз Wi-Fi 7, гарантирайки, че вашата система е готова за изискванията на бъдещите приложения и игри.
Ключови Предимства
- Поддръжка на AMD AM5 сокет — Готова за процесори AMD Ryzen™ от серии 9000, 8000 и 7000, предлагайки несравнима изчислителна мощ.
- Превъзходна DDR5 памет — Поддържа 4 DDR5 DIMM слота за до 256 GB двуканална памет, с поддръжка на AMD EXPO™ и XMP за екстремен овърклок.
- Свръхбързо съхранение — Оборудвана с 4 M.2 слота, включително един PCIe 5.0 x4 за най-бързите SSD дискове, заедно с 4 SATA 6Gb/s конектора за изобилни опции за съхранение.
- Свързаност от следващо поколение — Включва Wi-Fi 7 и 5 GbE LAN за светкавично бърза кабелна и безжична мрежа, плюс множество USB4 Type-C портове за гъвкава поддръжка на периферни устройства.
- Здрав дизайн на захранването — Цифров двоен 14+2+2 фазов дизайн на захранването с 8-слойна печатна платка осигурява стабилно подаване на енергия за върхова производителност и стабилност при овърклок.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Чипсет | AMD X870E |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 x DIMM |
| Максимална памет | 256 GB |
| M.2 слотове | 4 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4) |
| SATA портове | 4 x SATA 6Gb/s |
| PCIe x16 слотове | 3 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x2) |
| Скорост на LAN | 5 Gbps |
| Безжична свързаност | Wi-Fi 7, Bluetooth 5.4 |
| Задни USB-C портове | 2 x USB4 Type-C (с DP Alt), 1 x USB 3.2 Gen 2 Type-C |
| Преден USB-C хедър | 1 x USB 3.2 Gen 2x2 Type-C |
| Аудио | Realtek ALC1220 HD Audio |
| RGB подсветка | Да (RGB FUSION) |

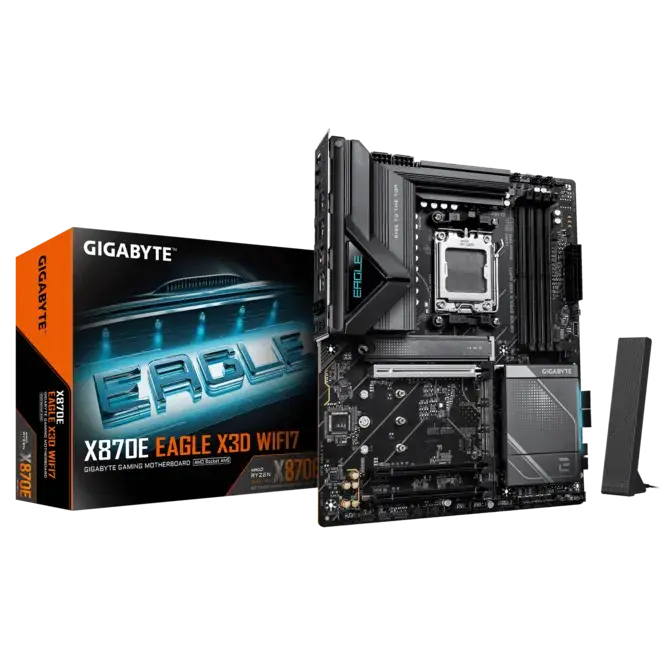

Какво има в кутията

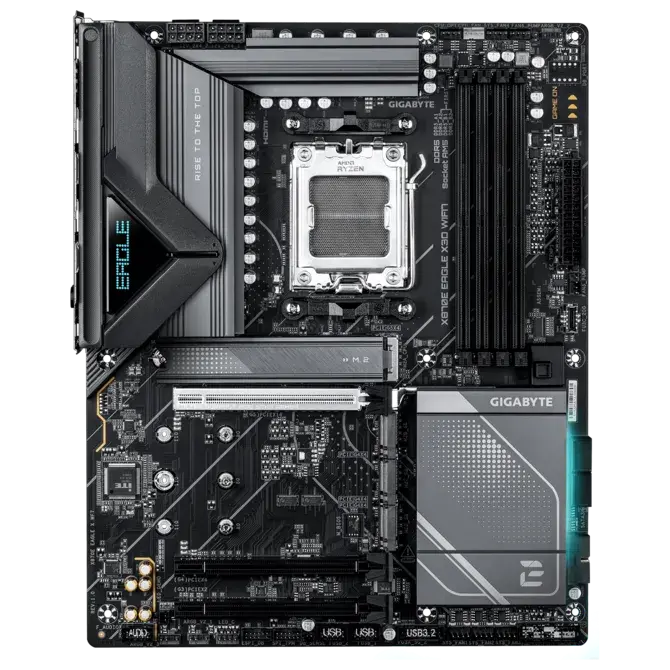

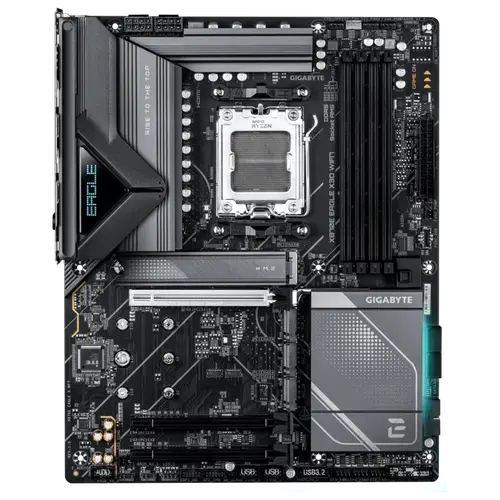

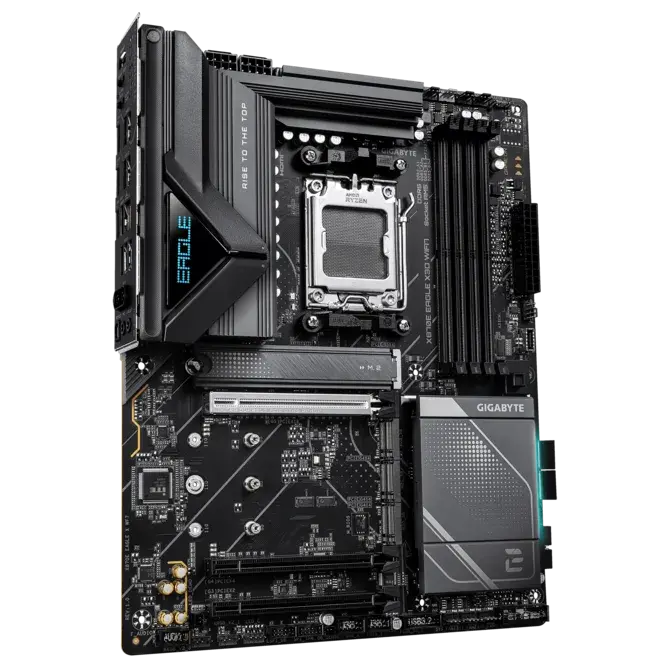

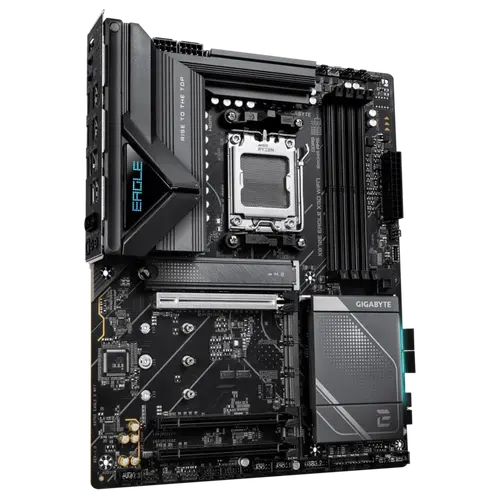

- Дънна платка GIGABYTE X870E EAGLE X3D WF7
- Wi-Fi антена
- SATA кабели
- Ръководство за потребителя
- Диск/USB с драйвери (ако е включен от производителя)
Abonați-vă la newsletterul nostru
Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Metodă de plată
- Plata la livrare
- Card de credit/debit
- Transfer bancar
- În rate prin PB Personal Finance
