- ASUS
Preț
€134 80 / 263 65 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620m-plus/
Model

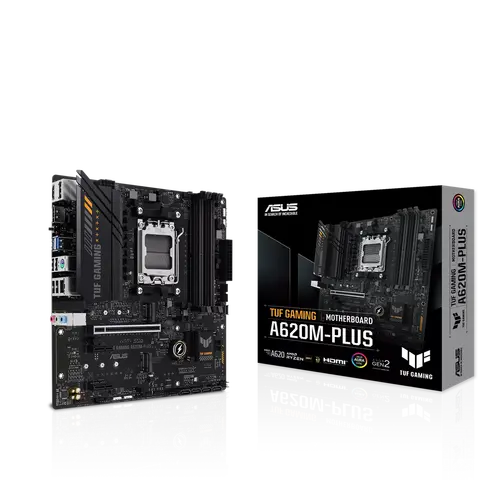

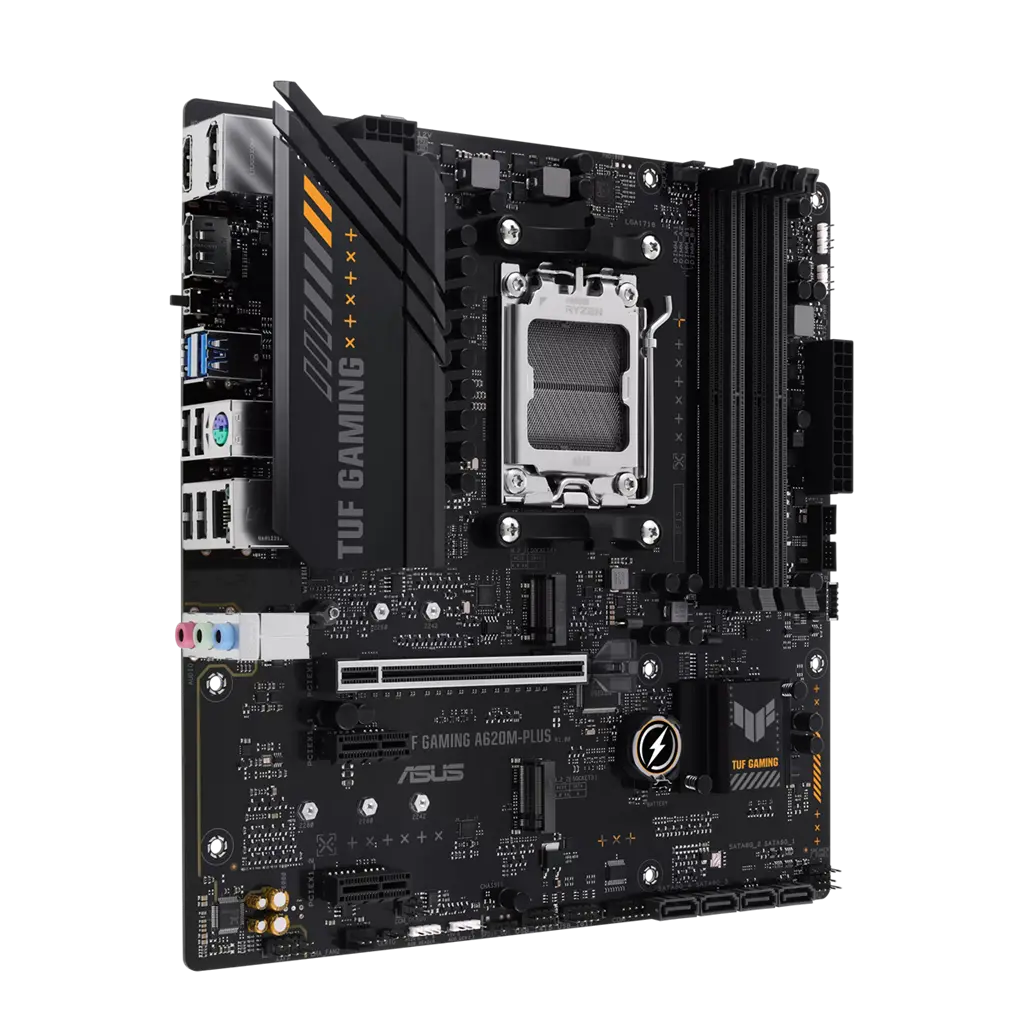

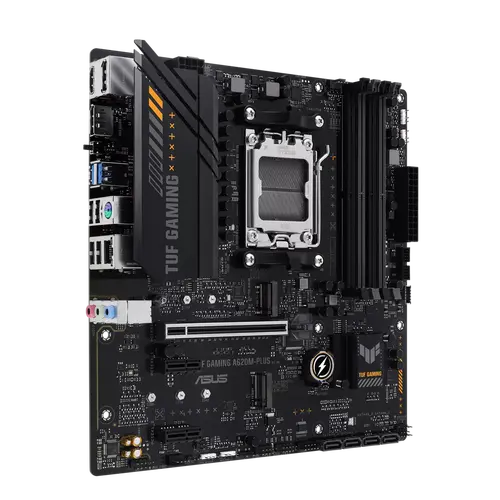

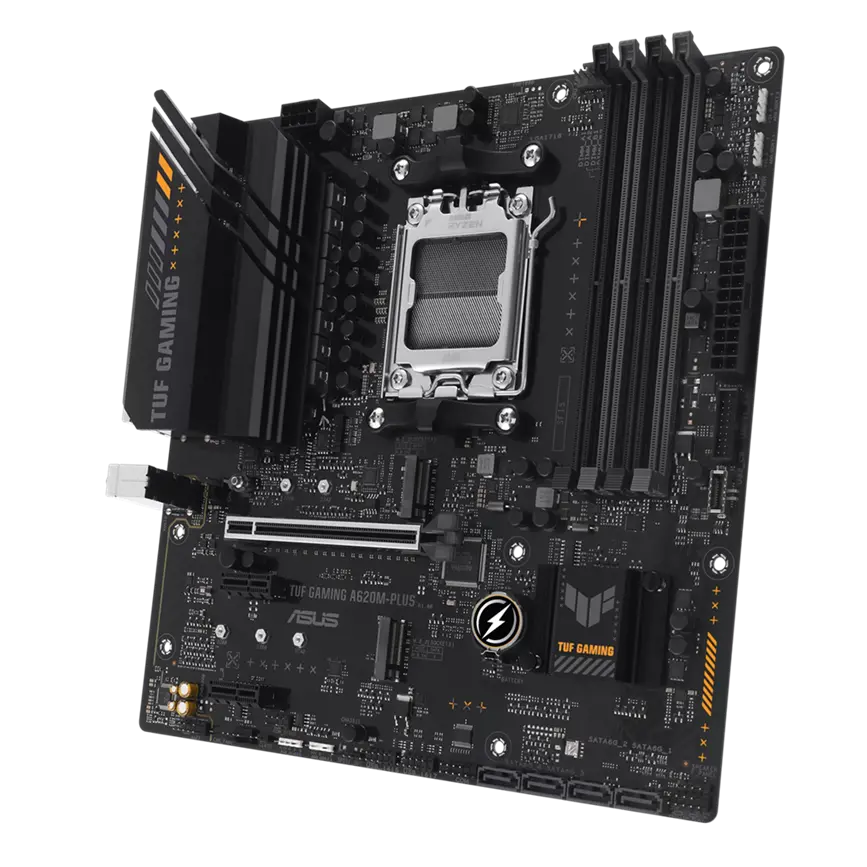

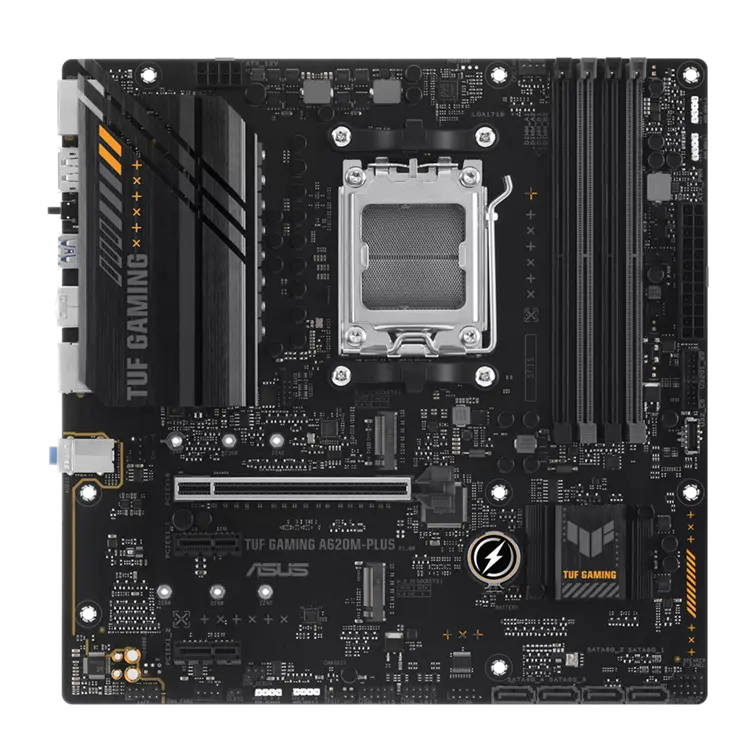

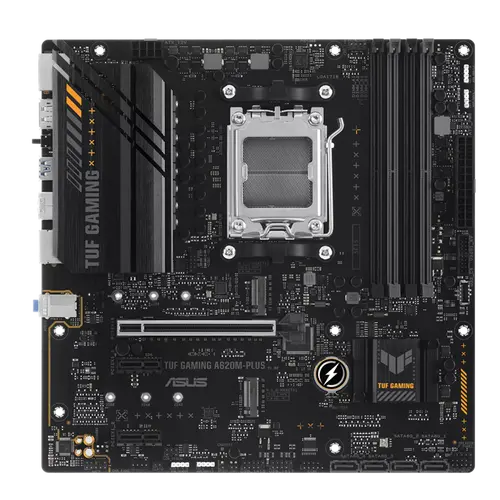

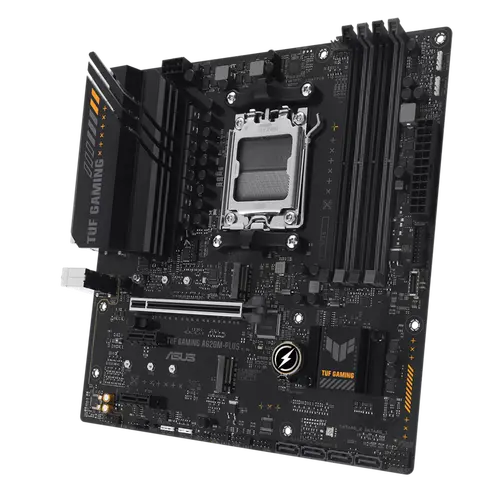

TUF GAMING A620M-PLUS
Graphics
2 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Supports up to AMD 170W CPU
Chipset
AMD A620A Chipset
Expansion slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD A620A Chipset
1 x PCIe 3.0 x1 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD A620A Chipset
4 x SATA 6Gb/s ports
RAID
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Memory type
4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM
Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

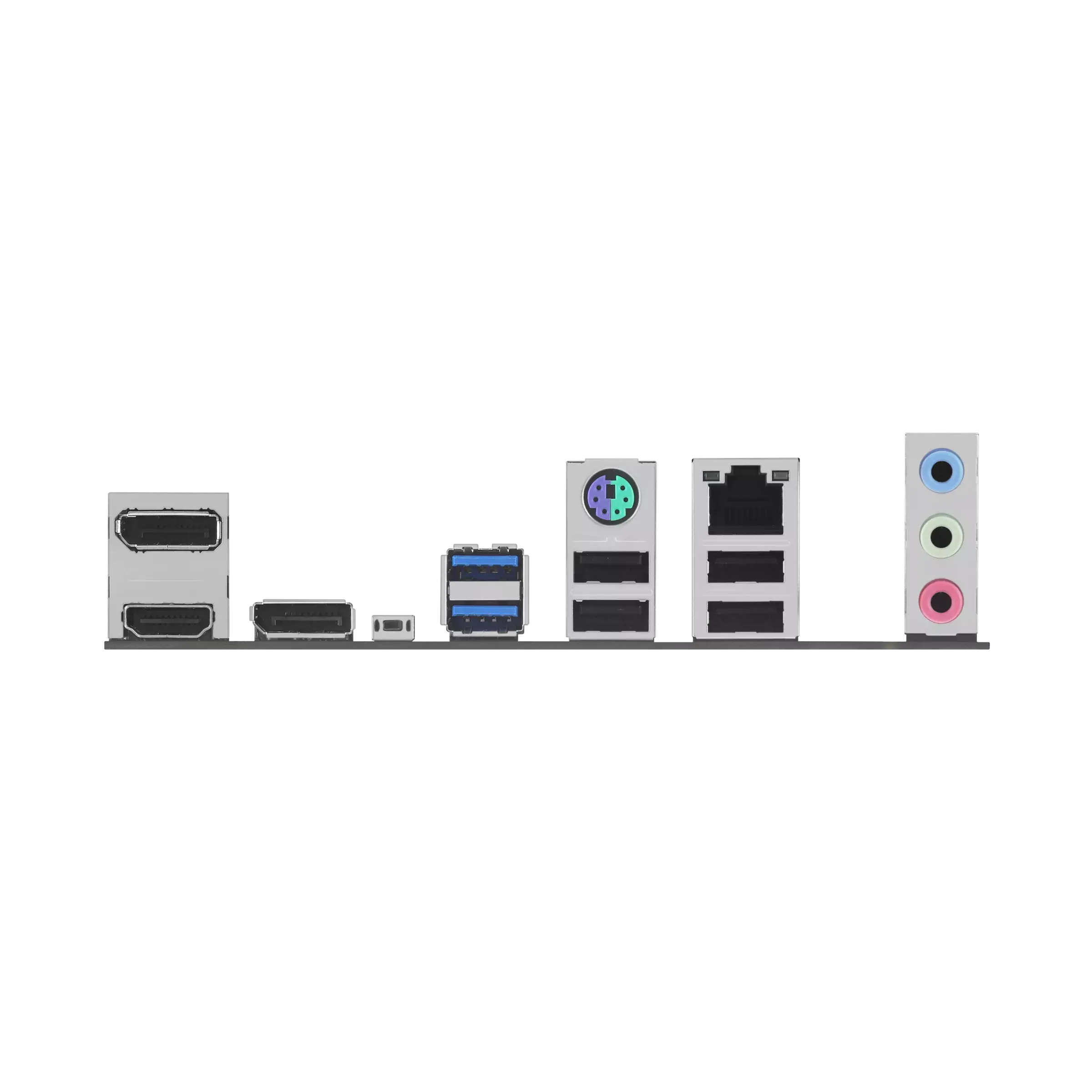

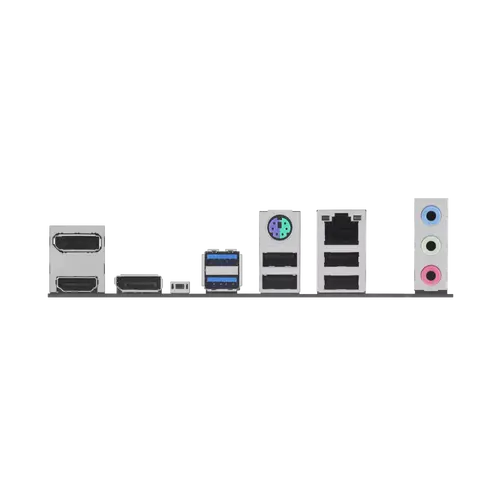

Rear panel I/O
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 keyboard/mouse combo port
USB
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin Front Panel System header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Lan
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro-ATX Form Factor
OS
Windows 11, Windows 10 64-bit
Dimensions
24.4 cm x 24.4 cm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620m-plus/ |
| Chipset | AMD A620A Chipset |
| OS | Windows 11, Windows 10 64-bit |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| CPU's supported | Supports up to AMD 170W CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Memory type | ASUS Enhanced Memory Profile (AEMP) |
| Memory type | 4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM |
| Memory type | Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors |
| Form Factor | Micro-ATX Form Factor |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x BIOS FlashBack™ button |
| Rear panel I/O | 1 x PS/2 Keyboard/Mouse combo port |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 2 x DisplayPort |
| Rear panel I/O | 2 x USB 10Gbps ports (2 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| LAN | TUF LANGuard |
| Model | TUF GAMING A620M-PLUS |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| Expansion Slots | 1 x PCIe 3.0 x1 slot |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Expansion Slots | AMD Ryzen™ 8000 Series Desktop Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| Expansion Slots | AMD A620A Chipset |
| Dimensions | 24.4 cm x 24.4 cm |
| Graphics | * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
| Graphics | *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Graphics | 1 x HDMI™ port*** |
| Graphics | 2 x DisplayPort** |
| Graphics | ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | AMD A620A Chipset |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | 2 x 4-pin Chassis Fan headers |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 2 x M.2 slots (Key M) |
| Connectors | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | 1 x USB 5Gbps connector (supports USB Type-C® ) |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 1 x Front Panel Audio header (F_AUDIO) |
| Connectors | 1 x 8-pin +12V CPU Power connector |
| Connectors | 1 x 10-1 pin Front Panel System header |
| Connectors | 3 x Addressable RGB Gen 2 headers |
| USB | Rear USB (Total 6 ports) |
| USB | Front USB (Total 7 ports) |
| USB | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB | 4 x USB 2.0 ports (4 x Type-A) |
| USB | * USB Type-C® power delivery output: max. 5V/3A |
| USB | 1 x USB 5Gbps connector (supports USB Type-C®) |
| USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| USB | 2 x USB 10Gbps ports (2 x Type-A) |
| RAID | AMD RAIDXpert2 Technology |
| RAID | Ryzen™ 9000 Series Processors: RAID 0/1/5/10 |
| RAID | Ryzen™ 8000 Series Processors: RAID 0/1 |
| RAID | Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
| Chipset | AMD A620 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 96 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
ASUS TUF GAMING A620M-PLUS — Военен Клас Издръжливост за AMD AM5
Създайте непоклатима гейминг конфигурация с ASUS TUF GAMING A620M-PLUS. Проектирана с компоненти от серията TUF, тя осигурява безупречна стабилност и дългосрочна надеждност за вашия AMD Ryzen 7000 процесор. Насладете се на модерна свързаност и основни гейминг функции без излишни разходи.
Ключови Предимства
- TUF Защита — Кондензатори с военен клас, TUF дросели и SafeSlot Core+ гарантират издръжливост при екстремни условия.
- PCIe 4.0 Готовност — Поддържа най-новите графични карти и NVMe SSD за светкавична скорост.
- Цялостно Охлаждане — VRM радиатор, PCH радиатор и Fan Xpert 2+ поддържат температурите под контрол.
- 2.5 Gb Ethernet — Без забавяне в онлайн игрите с високоскоростна LAN връзка с ниска латентност.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Чипсет | AMD A620 |
| Форм фактор | microATX |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 96 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |

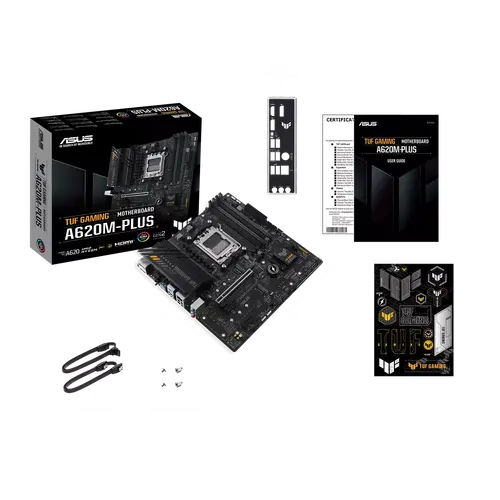

Какво има в кутията
- Дънна платка ASUS TUF GAMING A620M-PLUS
- 2 x SATA 6Gb/s кабела

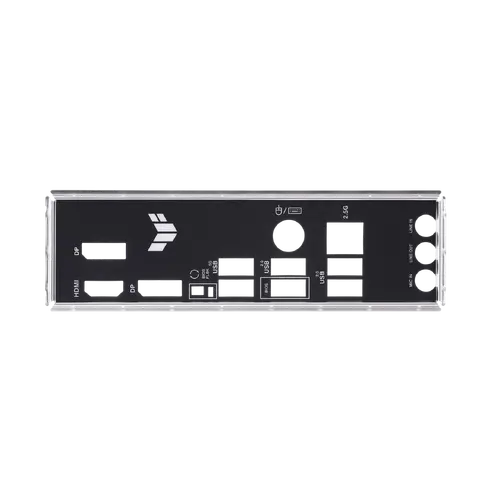

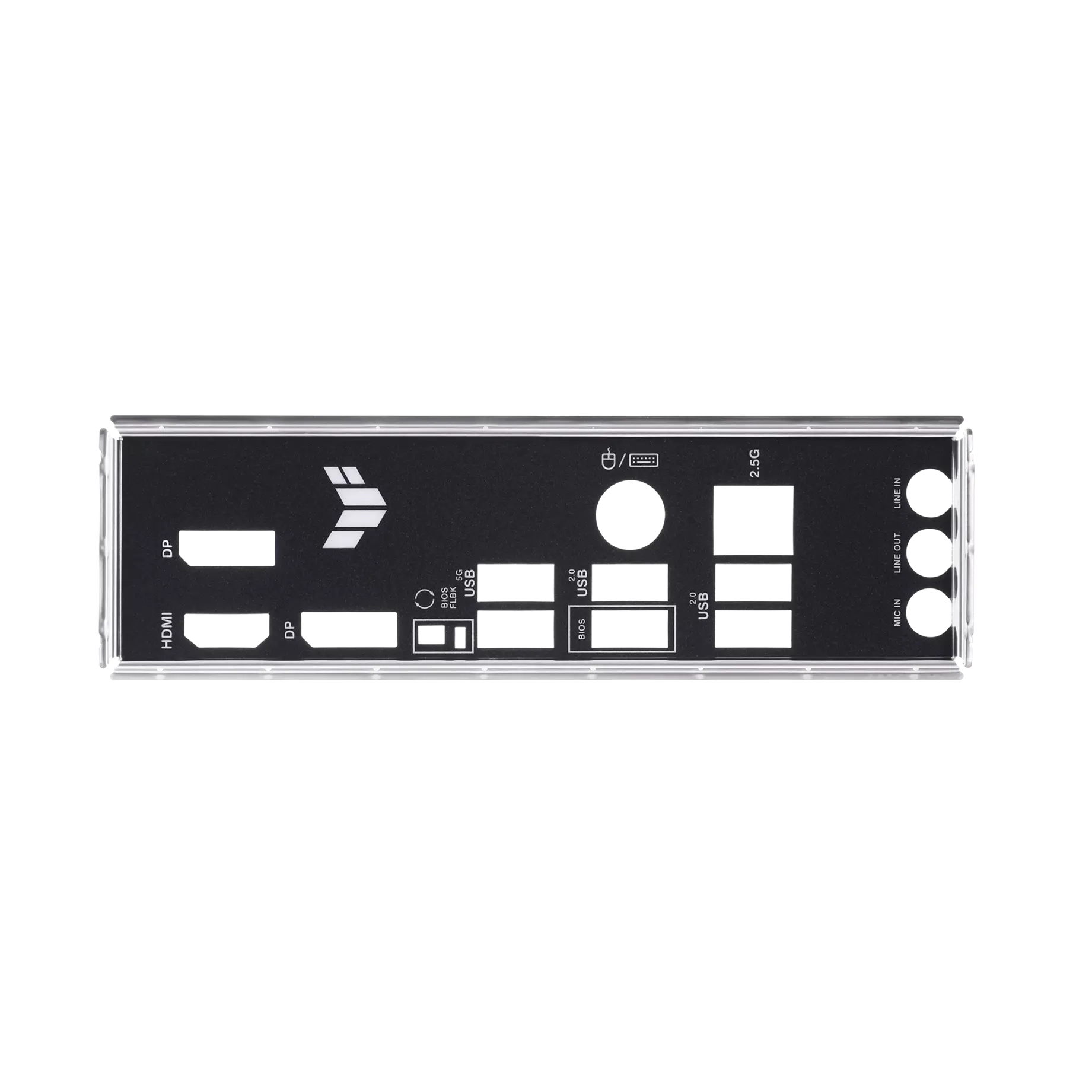

- 1 x I/O щит
- 1 x M.2 гумени подложки
- 1 x TUF Gaming стикер
- 1 x поддържащ DVD
- 1 x ръководство на потребителя
