- ASUS
Preț
€162 64 / 318 10 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/prime/prime-b660m-a-d4-csm/
Model

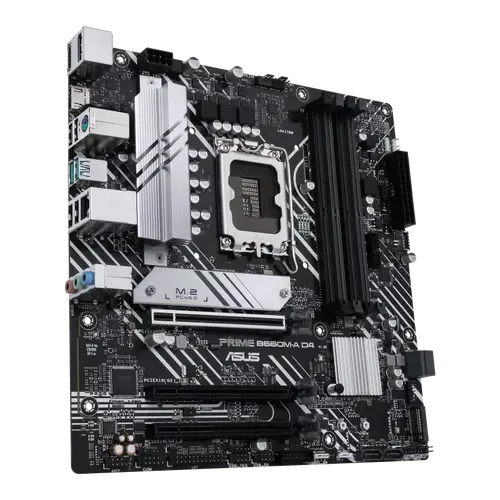

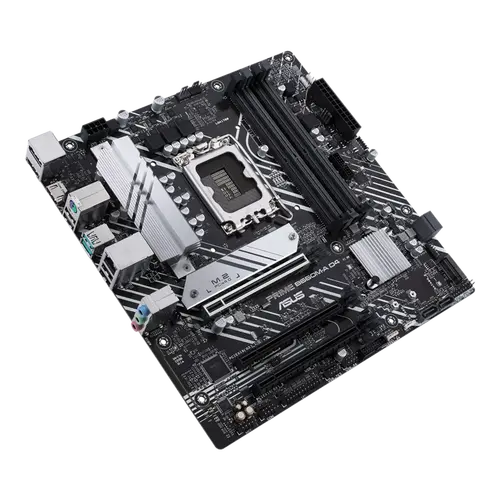

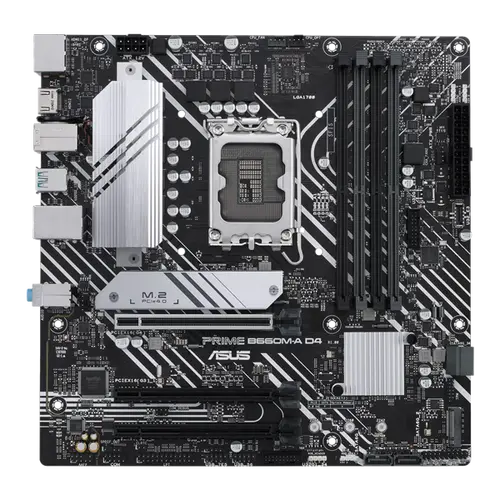

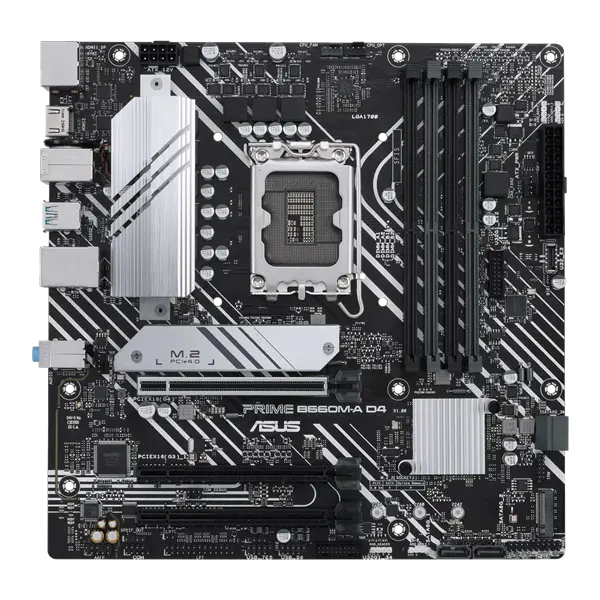

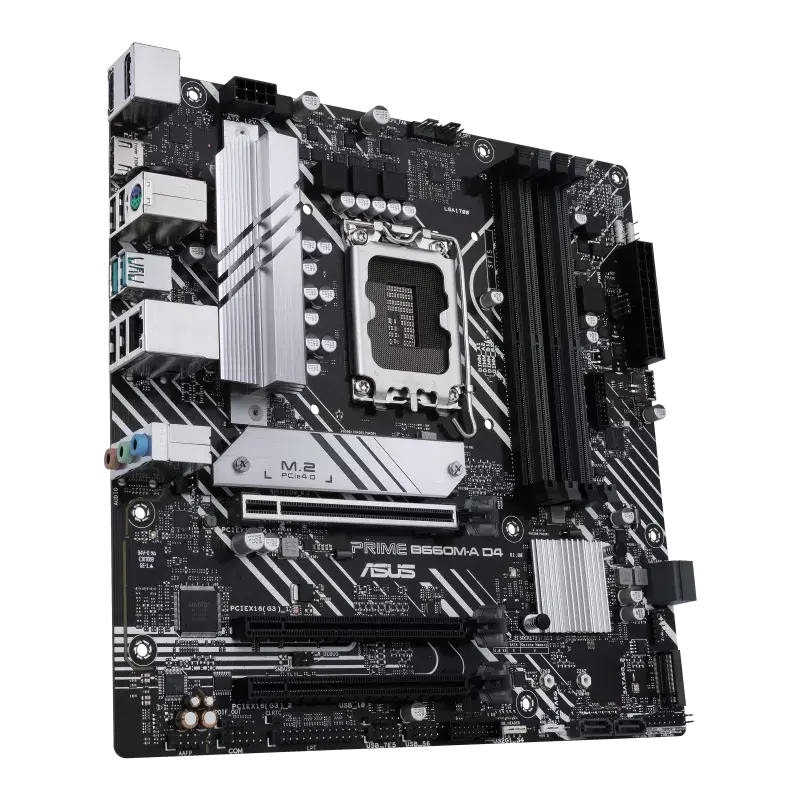

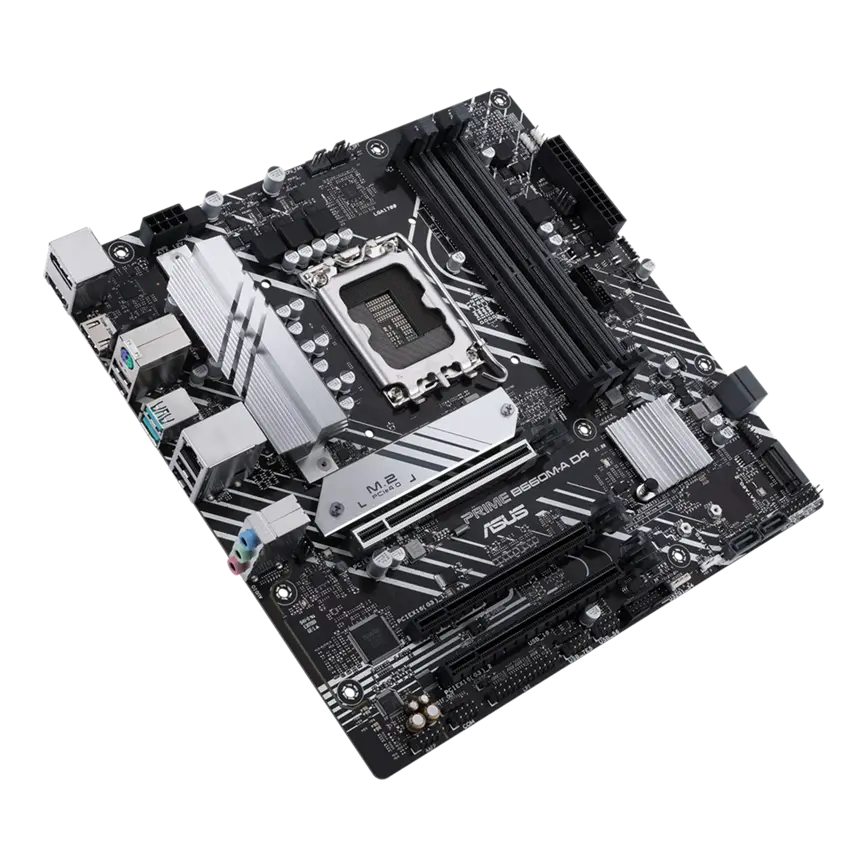

PRIME B660M-A D4-CSM
Graphics
1 x DisplayPort **
2 x HDMITM ports***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
1 x DisplayPort**
2 x HDMI® ports***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
CPU's supported
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B660 Chipset
Intel® B660 Chipset
Expansion slots
Intel® 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel® B660 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x16 slot (supports x1 mode)
*Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
1 x PCle 4.0 x16+1 x PCle 3.0 x16 (max. x4)+2 x PCle 3.0 x16 (max. x1)
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0/3.0 x16 slot
Intel® B660 Chipset *
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x16 slot (supports x1 mode)
Storage
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Memory type
4 x DIMM, Max. 128GB, DDR4
5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
4 x DIMM, Max. 128GB, DDR4
5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

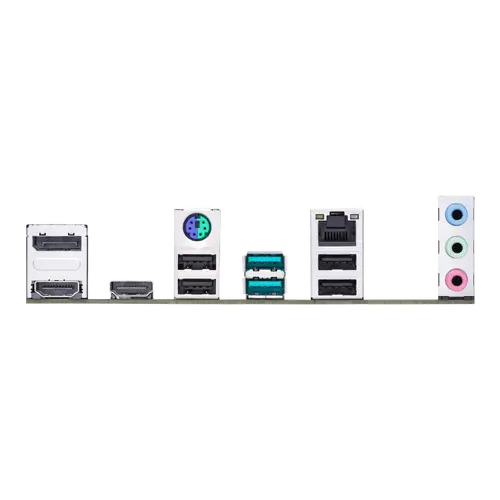

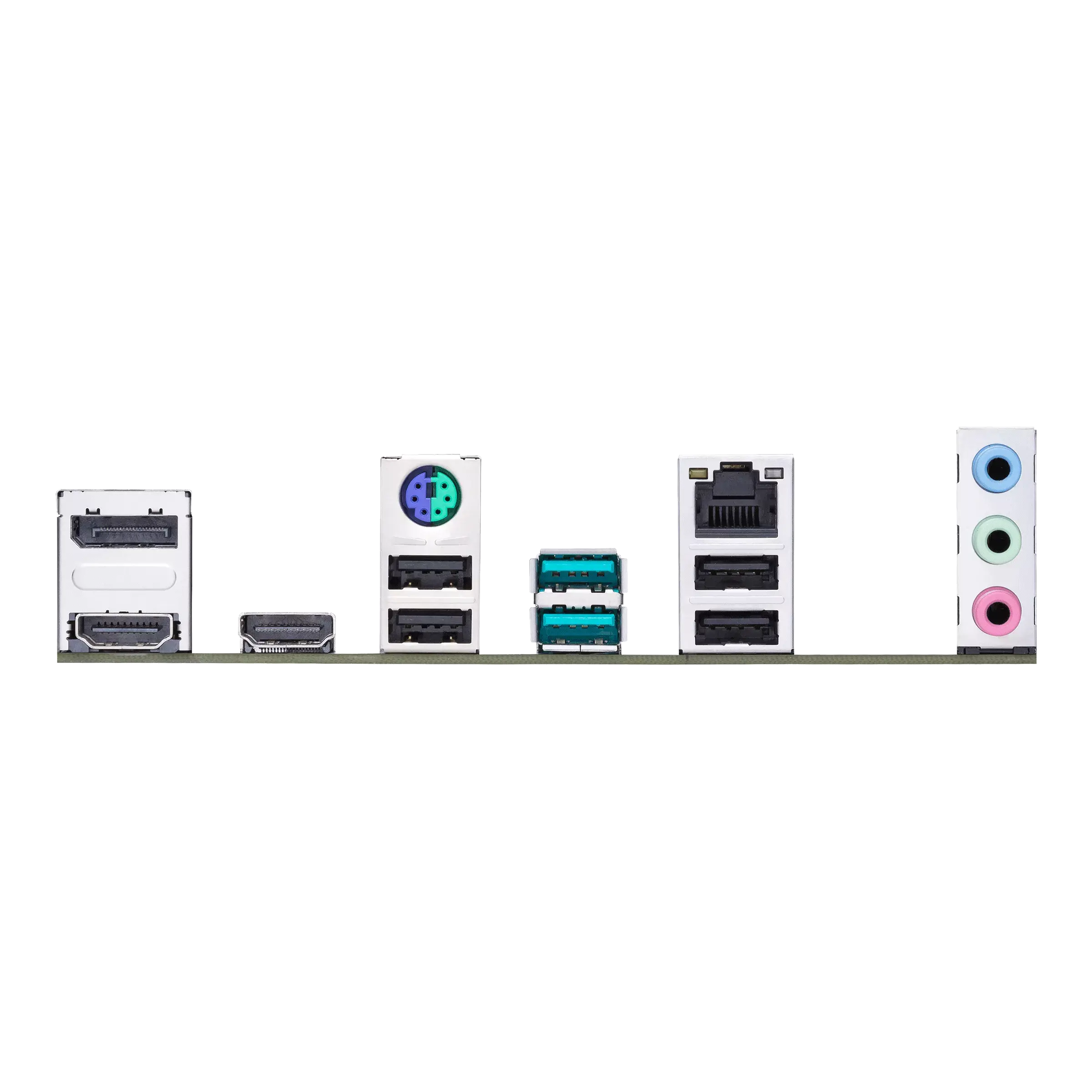

Rear panel I/O
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI® ports
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x USB 2.0 header support 1 USB 2.0 port
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB:Total 10 ports
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x USB 2.0 header supports 1 USB 2.0 port
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x USB 2.0 header supports 1 USB 2.0 port
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x USB 2.0 header supports 1 USB 2.0 port
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Lan
1 x Intel® 1Gb Ethernet
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form factor
mATX Form Factor
OS
Windows® 11 64-bit, Windows® 10 64-bit
Dimensions
24.4 cm x 24.4 cm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-b660m-a-d4-csm/ |
| Chipset | Intel® B660 Chipset |
| OS | Windows® 11 64-bit, Windows® 10 64-bit |
| CPU's supported | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| CPU's supported | * Refer to www.asus.com for CPU support list. |
| CPU's supported | ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Memory type | Dual channel memory architecture |
| Memory type | OptiMem II |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* |
| Memory type | *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Memory type | 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* |
| Memory type | *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Form Factor | mATX Form Factor |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio | ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x PS/2 Keyboard/Mouse combo port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 1 x Intel® 1Gb Ethernet port |
| Rear panel I/O | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
| Rear panel I/O | 2 x HDMI® ports |
| Rear panel I/O | 2 x HDMITM ports |
| LAN | 1 x Intel® 1Gb Ethernet |
| Model | PRIME B660M-A D4-CSM |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 slot |
| Expansion Slots | 1 x PCIe 3.0 x16 slot (supports x1 mode) |
| Expansion Slots | Intel® 12th Gen Processors |
| Expansion Slots | Intel® B660 Chipset |
| Expansion Slots | 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Expansion Slots | Intel® CoreTM Processors (14th & 13th & 12th Gen)* |
| Expansion Slots | *Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
| Expansion Slots | 1 x PCle 4.0 x16+1 x PCle 3.0 x16 (max. x4)+2 x PCle 3.0 x16 (max. x1) |
| Expansion Slots | Intel® B660 Chipset * |
| Dimensions | 24.4 cm x 24.4 cm |
| Graphics | 1 x DisplayPort** |
| Graphics | ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
| Graphics | 2 x HDMITM ports*** |
| Graphics | * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| Graphics | 1 x DisplayPort ** |
| Graphics | ***Supports 4K@60Hz as specified in HDMI 2.1. |
| Graphics | 2 x HDMI® ports*** |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280 |
| Storage | Intel® 12th Gen Processors |
| Storage | - Intel® 12th Gen processors support PCIe 4.0 x4 mode. |
| Storage | Intel® B660 Chipset** |
| Storage | * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Storage | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* |
| Storage | Intel® Core™ Processors (14th & 13th & 12th Gen)* |
| Storage | * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Storage | ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* |
| Storage | ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | 2 x 4-pin Chassis Fan headers |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | 1 x 8-pin +12V Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x Front Panel Audio header (AAFP) |
| Connectors | 1 x LPT header |
| Connectors | 1 x SPI TPM header (14-1pin) |
| Connectors | 2 x M.2 slots (Key M) |
| Connectors | 1 x Aura RGB header |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 20-3 pin System Panel header with Chassis intrude function |
| Connectors | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) |
| Connectors | 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports |
| Connectors | 1 x USB 2.0 header supports 1 USB 2.0 port |
| Connectors | 3 x AURA Addressable Gen 2 headers |
| Connectors | 1 x USB 2.0 header supports 1 USB 2.0 port |
| USB | 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| USB | Rear USB (Total 6 ports) |
| USB | 4 x USB 2.0 ports (4 x Type-A) |
| USB | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) |
| USB | Front USB (Total 10 ports) |
| USB | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
| USB | 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports |
| USB | 1 x USB 2.0 header support 1 USB 2.0 port |
| USB | Front USB:Total 10 ports |
| USB | 1 x USB 2.0 header supports 1 USB 2.0 port |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B660 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
ASUS PRIME B660M-A D4-CSM – Надеждна производителност за бизнес и ежедневна употреба
Базирана на чипсета Intel B660, дънната платка ASUS PRIME B660M-A D4-CSM предлага перфектен баланс от основни функции и надеждна производителност за бизнес професионалисти и домашни потребители. С цялостно охлаждане, стабилно захранване и предимствата на програмата ASUS CSM, тя осигурява стабилна работа и опростено ИТ управление.
Ключови Предимства
- Стабилност за бизнес среда — ASUS Corporate Stable Model (CSM) предлага удължен жизнен цикъл, стабилни доставки и валидирана съвместимост за корпоративни среди.
- Цялостно охлаждане — VRM радиатор, PCH радиатор и Fan Xpert 2+ поддържат ниски температури при продължително натоварване.
- Свръхбърза свързаност — PCIe 4.0 M.2 слот, USB 3.2 Gen 2 Type-C и Realtek 1 Gb Ethernet за бърз трансфер на данни.
- Подобрена поддръжка на памет — Четири DIMM слота поддържат до 128 GB DDR4 памет с ASUS OptiMem за подобрена цялост на сигнала.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | Intel LGA 1700 |
| Чипсет | Intel B660 |
| Форм фактор | microATX (mATX) |
| Тип памет | DDR4 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASUS PRIME B660M-A D4-CSM
- 2 x SATA 6Gb/s кабела

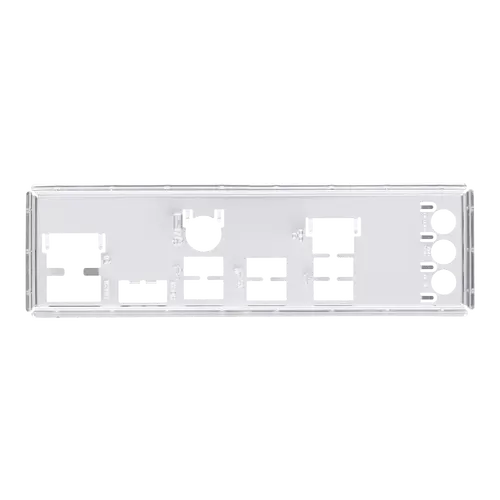

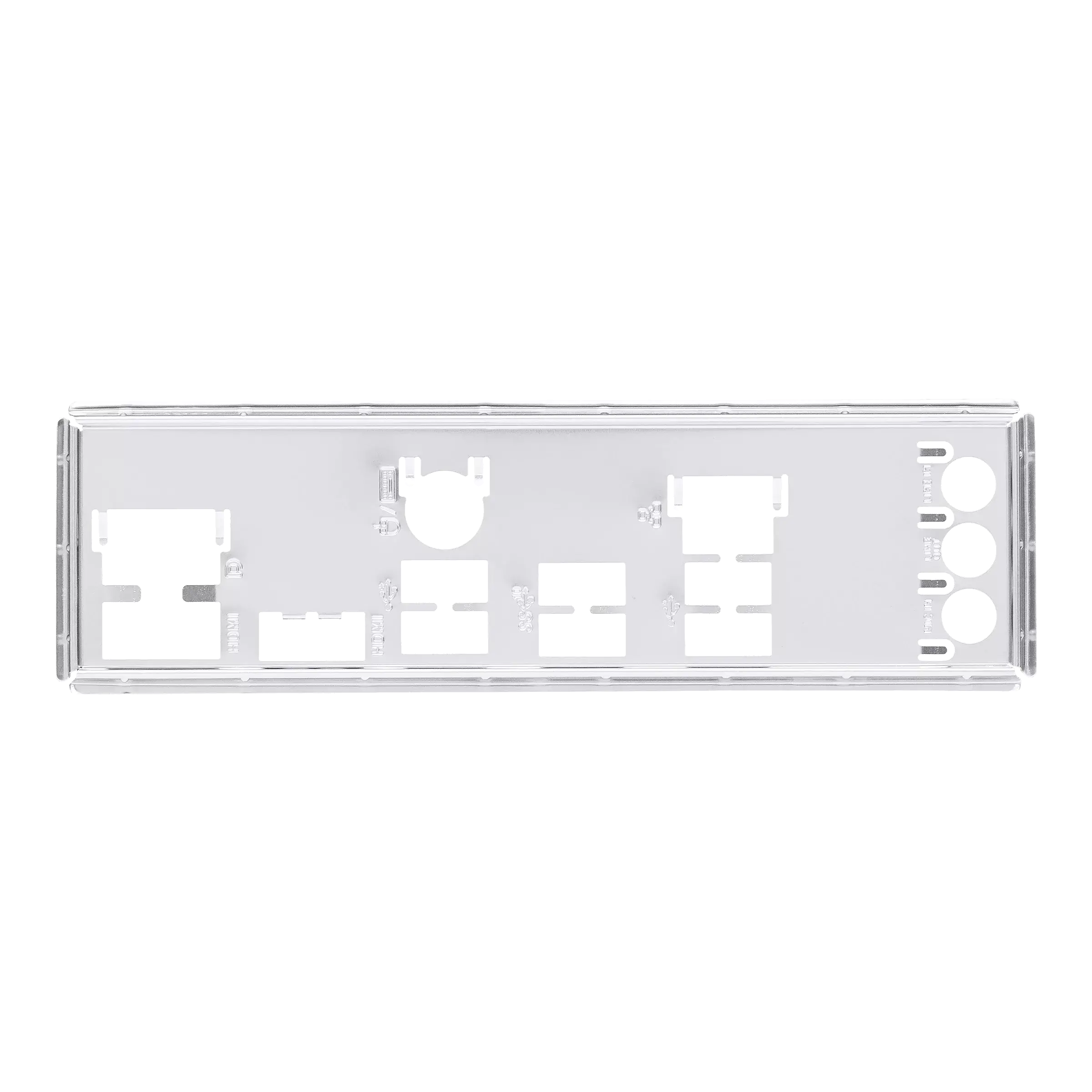

- 1 x I/O щит
- 1 x M.2 гумен пакет
- 1 x поддържащ DVD
- 1 x ръководство за потребителя
Abonați-vă la newsletterul nostru
Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Metodă de plată
- Plata la livrare
- Card de credit/debit
- Transfer bancar
- În rate prin PB Personal Finance
