- NETGEAR
Preț
€1819 80 / 3559 22 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
Livrare gratuită
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta

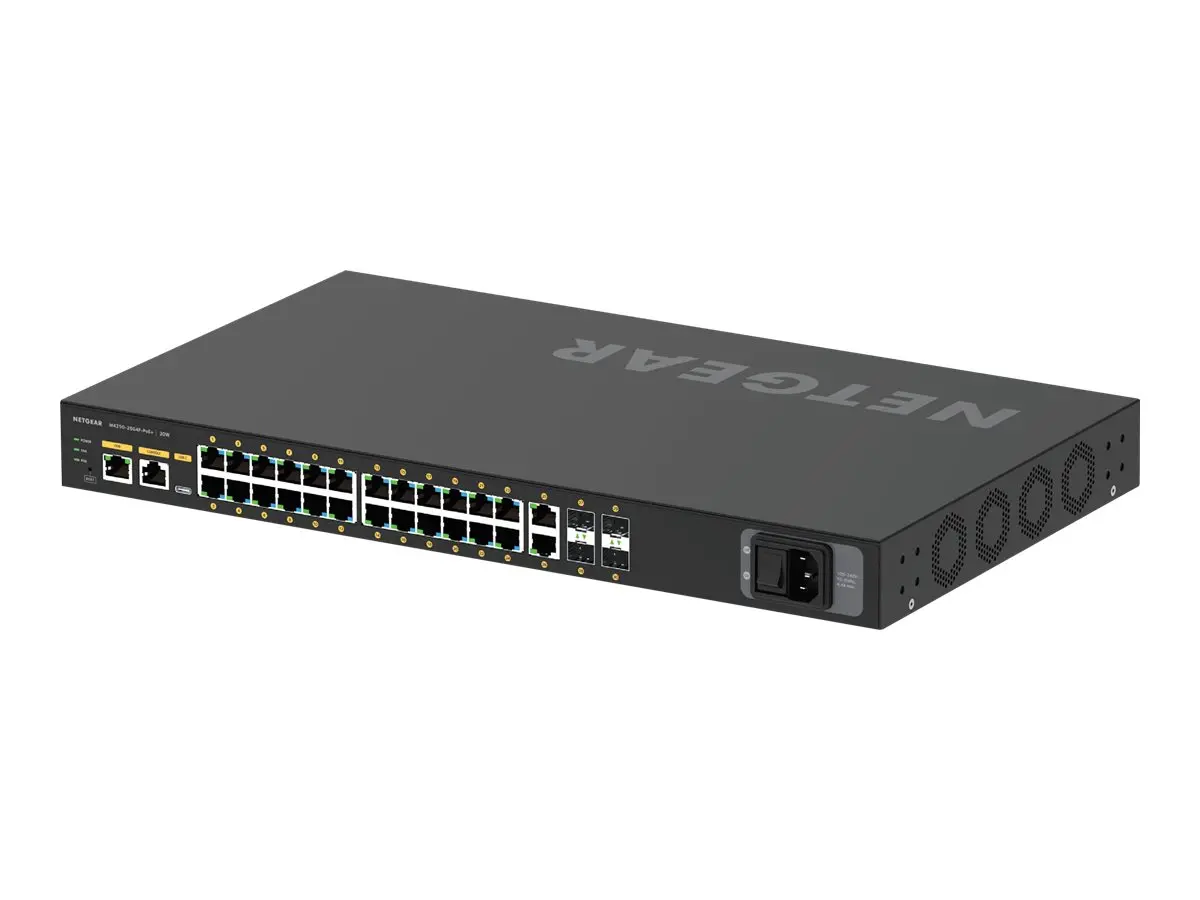

NETGEAR AV Line M4250-26G4F-PoE+ - Switch - L3 - Gestionabil - 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1000Base-X SFP - flux de aer lateral - montare în rack - PoE+ (300 W)
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
The NETGEAR AV Line series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software.
| Description | |
|---|---|
| Marketing Description | The NETGEAR AV Line series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software. |
| General | |
| Device Type | Switch - 24 ports - L3 - Managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 300 W |
| Performance | Switching capacity: 60 Gbps Firewall throughput (64-byte packet size): 44.64 Mpps 1 Gbps fibre latency (64-byte packets): 1.164 µs 1 Gbps fibre latency (512-byte packets): 1.129 µs 1 Gbps fibre latency (1024-byte packets): 1.124 μs 1 Gbps fibre latency (1518-byte packets): 1.146 μs 1 Gbps copper latency (64-byte packets): 2.146 μs 1 Gbps copper latency (512-byte packets): 2.148 μs 1 Gbps copper latency (1024-byte packets): 2.14 μs 1 Gbps copper latency (1518-byte packets): 2.15 μs |
| Capacity | ARP entries: 4000 NDP entries: 4000 Packet buffer size: 16 MB VLANs supported: 4093 IGMP multicast groups: 4000 QoS hardware queues: 8 IPv4 routes (static): 64 IPv6 routes (static): 64 RIP application route scaling (IPv4): 32 IPv4 groups (Multicast): 512 IPv6 groups (Multicast): 128 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | IGMP, STP, MSTP, RSTP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIP-1, RIP-2, PIM-SSM |
| Remote Management Protocol | HTTP, Telnet, SSH, DHCP, CLI, RADIUS, ICMP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+, SSH-2, TFTP, HTTPS, SCP, SFTP |
| Encryption Algorithm | SSL 3.0, TLS 1.0, TLS 1.2, AES |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | LAG, PIM, DHCP server, PTP, AVB, IPTV support, sFlow, RSPAN, auto-sensing per device, LLDP support, dual firmware images, Energy Efficient Ethernet, store and forward, Voice VLAN, 802.1x authentication, TPID, GARP, GVRP, GMRP, MRP, MVRP, MVR, LACP support, full duplex mode, flow control, UDLD, RPVST+, STP loop guard, STP Root Guard, STP BPDU Guard, STP BPDU Filtering, STP BPDU Flooding, IGMP snooping, MLD snooping, MGMD Snooping, IGMP proxy, MLD proxy, ASM, SSM, NDP, BOOTP support, DHCP relay, DNS client, ISDP, LLDP-MED, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DoS protection, MACAL, MAB, Port Security, IP source guard, DHCP snooping, DAI, RA guard, MAC address filtering, DiffServ support, QoS, CoS, WRED, SP, DSCP support, SNTP support, port mirroring, cable test |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1x, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1v, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac |
| Processor | X ARM: 1.8 GHz |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| Status Indicators | Power, PoE max, fan, port status |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 2 x 10/100/1000 Base-T RJ-45 4 x 1000Base-X SFP 1 x management (Gigabit LAN) RJ-45 1 x management (RS-232) RJ-45 1 x USB-C 1 x USB Type A |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Consumption Operational | 401 watt |
| Power Consumption Stand by | 23.4 watt |
| Miscellaneous | |
| Included Accessories | Rubber caps, rubber feet |
| Cables Included | 1 x console cable 1 x USB-C to USB-A cable |
| Rack Mounting Kit | Included |
| MTBF | 511,054 hours |
| Compliant Standards | EN 55032:2012+AC:2013 Class A, CISPR 32:2012, EN 61000-3-2:2014, EN 60950-1, EN 62368-1, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016 Class A, RCM, AS/NZS CISPR32:2013 Class A, GB 4943, FCC CFR47 Part 15 A, ANSI C63.4:2014, ICES-003:2016 issue 6 Class A, CNS 13438 Class A, CB, IEC 62368-1, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, UL 1950, cUL, IEC 950, EN 60950, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, AS/NZS 60950-1:2015, CCC, CNS 14336-1 |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 25.7 cm |
| Height | 4.32 cm |
| Weight | 4.3 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime Limited warranty - technical support - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Device Type | Switch - 24 ports - L3 - Managed |
| Marketing Description | The NETGEAR AV Line series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software. |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1000Base-X SFP |
| Performance | Switching capacity: 60 Gbps Firewall throughput (64-byte packet size): 44.64 Mpps 1 Gbps fibre latency (64-byte packets): 1.164 µs 1 Gbps fibre |
| Capacity | ARP entries: 4000 NDP entries: 4000 Packet buffer size: 16 MB VLANs supported: 4093 IGMP multicast groups: |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | IGMP, STP, MSTP, RSTP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIP-1, RIP-2, PIM-SSM |
| Remote Management Protocol | HTTP, Telnet, SSH, DHCP, CLI, RADIUS, ICMP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+, SSH-2, TFTP, HTTPS, SCP, SFTP |
| Encryption Algorithm | SSL 3.0, TLS 1.0, TLS 1.2, AES |
| Features | LAG, PIM, DHCP server, PTP, AVB, IPTV support, sFlow, RSPAN, auto-sensing per device, LLDP support, dual firmware images, Energy Efficient Ethernet, store and forward, Voice VLAN, 802.1x authentication, TPID, GARP, GVRP, GMRP, MRP, MVRP, MVR, LACP support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1x, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1v, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac |
| Compliant Standards | EN 55032:2012+AC:2013 Class A, CISPR 32:2012, EN 61000-3-2:2014, EN 60950-1, EN 62368-1, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016 Class A, RCM, AS/NZS CISPR32:2013 Class A, GB 4943, FCC CFR47 Part 15 A, ANSI C63.4:2014, ICES-003:2016 issue 6 C |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| Status Indicators | Power, PoE max, fan, port status |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 2 x 10/100/1000 Base-T RJ-45 4 x 1000Base-X SFP 1 x management (Gigabit LAN) RJ-45 |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| MTBF | 511,054 hours |
| Width | 44 cm |
| Depth | 25.7 cm |
| Height | 4.32 cm |
| Weight | 4.3 kg |
| Service & Support | Limited warranty - lifetime Limited warranty - technical support - 90 days |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Included Accessories | Rubber caps, rubber feet |
| Cables Included | 1 x console cable 1 x USB-C to USB-A cable |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 300 W |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Processor | X ARM: 1.8 GHz |
| Rack Mounting Kit | Included |
| Localisation | Europe |
| Power Consumption Operational | 401 watt |
| Power Consumption Stand by | 23.4 watt |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Number of Ports (count) | 26 |
| Port Speed | 10/100/1000 Mbps |
| Switch Type | Managed |
| PoE Support | PoE+ |
| Form Factor | Rack Mount |
| Layer | Layer 3 |
| SFP Ports (count) | 4 |
| SFP+ Ports (count) | 0 |
| Switching Capacity (Gbps) | 56 |
| PoE Power Budget (W) | 300 W |
| VLAN Support | Yes |
| Stackable | Yes |
| Fanless | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
NETGEAR M4250-26G4F-POE+ Управляем Суич — 26 Портов Гигабит PoE+ с 4 SFP Uplink, 300W Бюджет, Стекируем
Проектиран за професионални AV-over-IP инсталации, NETGEAR M4250-26G4F-POE+ осигурява безпроблемно мултикаст превключване без загуби чрез специализиран AV уеб интерфейс. Неговите 24 PoE+ порта доставят до 300W обща мощност, а четирите 1G SFP uplink порта предлагат гъвкава оптична свързаност. Стекируемият дизайн и функциите Layer 3 Lite го правят надеждна основа за взискателни мрежови AV среди.
Ключови Предимства
- Създаден за AV over IP — Предварително конфигурирани профили за основни аудио/видео протоколи елиминират сложната настройка и гарантират безупречна мултикаст производителност.
- 24 PoE+ Порта с 300W Бюджет — Захранвайте камери, колони, дисплеи и други устройства директно през Ethernet, намалявайки окабеляването и разходите за инсталация.
- Гъвкави Uplink Портове — Четири 1G SFP слота осигуряват оптична свързаност за дълги разстояния или интеграция в съществуващи оптични инфраструктури.
- Стекируем за Разширение — Стекирайте до 8 суича с единен интерфейс за управление, мащабирайки мрежата без допълнителна сложност.
- Интуитивен AV-Ориентиран Интерфейс — NETGEAR Engage™ контролерът опростява конфигурацията, мониторинга и отстраняването на проблеми за AV интегратори.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Модел | M4250-26G4F-POE+ (GSM4230P) |
| Общо Мрежови Портове | 26 |
| 10/100/1000 RJ-45 PoE+ Портове | 24 |
| 1G SFP Оптични Портове | 4 |
| PoE Стандарт | IEEE 802.3at (PoE+) |
| PoE Бюджет | 300W |
| Капацитет на Превключване | 56 Gbps |
| Скорост на Препращане | 41.66 Mfps |
| Пакетен Буфер | 16 Mb |
| MAC Адресна Таблица | 16K |
| VLAN | До 4,094 (IEEE 802.1Q) |
| Слой | Layer 3 Lite (статично рутиране) |
| Стекиране | До 8 устройства, единен IP мениджмънт |
| Форм Фактор | За монтаж в рак (1U) |
| Размери (Ш x Д x В) | 440 x 350 x 43.2 мм |
| Тегло | 5.5 кг |
| Захранване | Вградено, 100-240V AC |
| Без Вентилатор | Не (вентилатори с променлива скорост) |
Какво Има в Кутията
- NETGEAR M4250-26G4F-POE+ Суич (GSM4230P)
- Захранващ кабел
- Комплект за монтаж в рак
- Гумени крачета за настолно поставяне
- Ръководство за бърза инсталация
