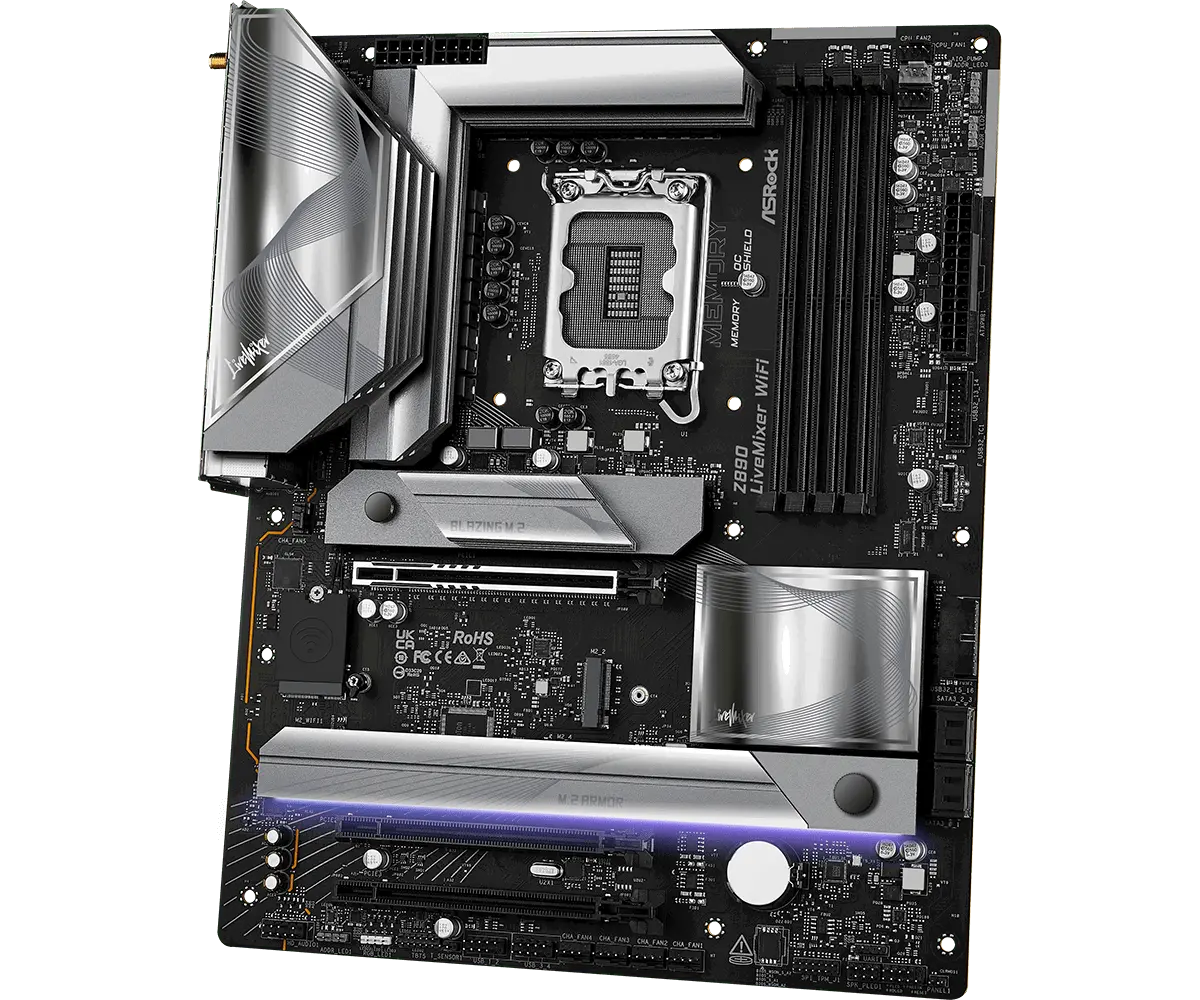

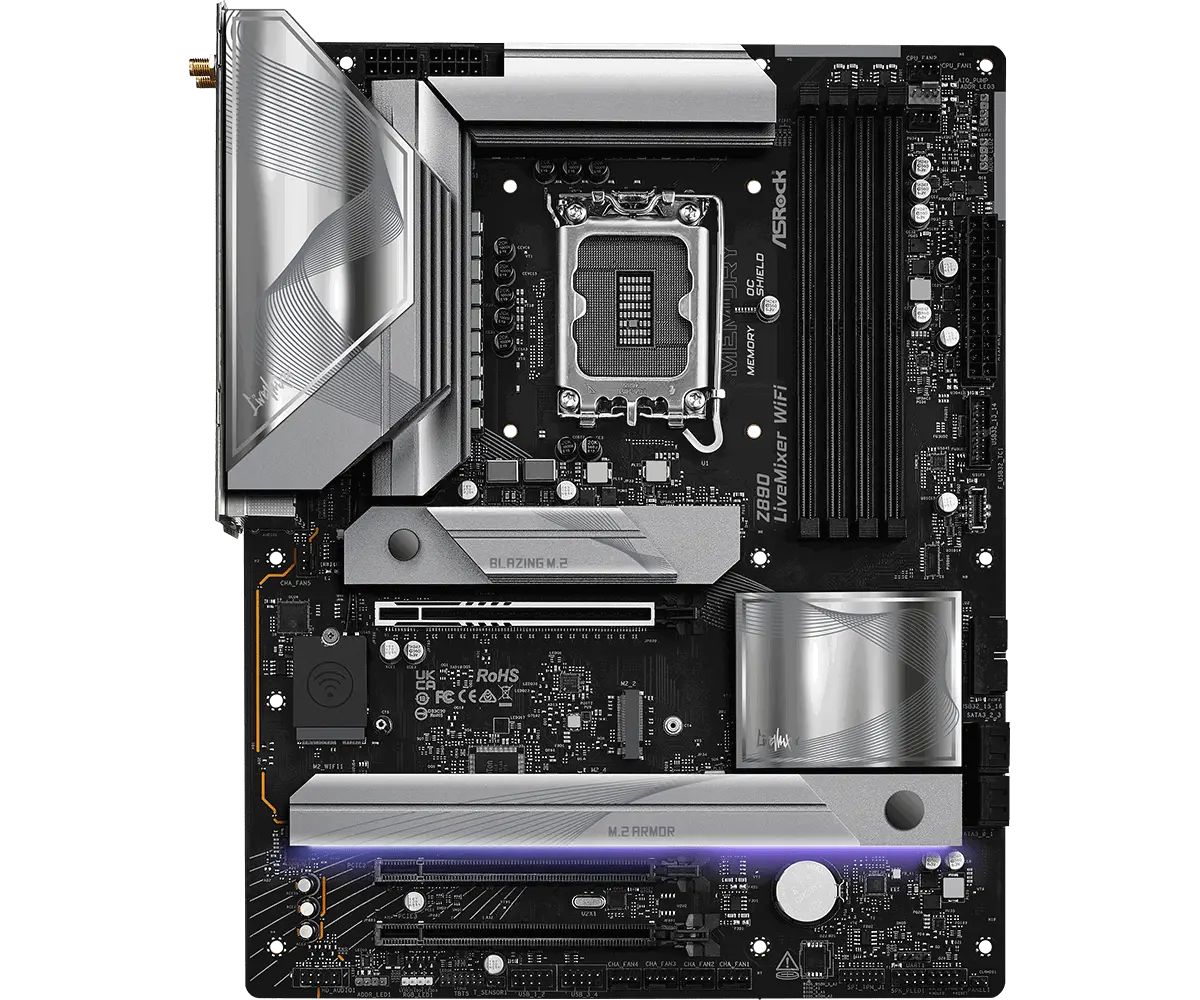

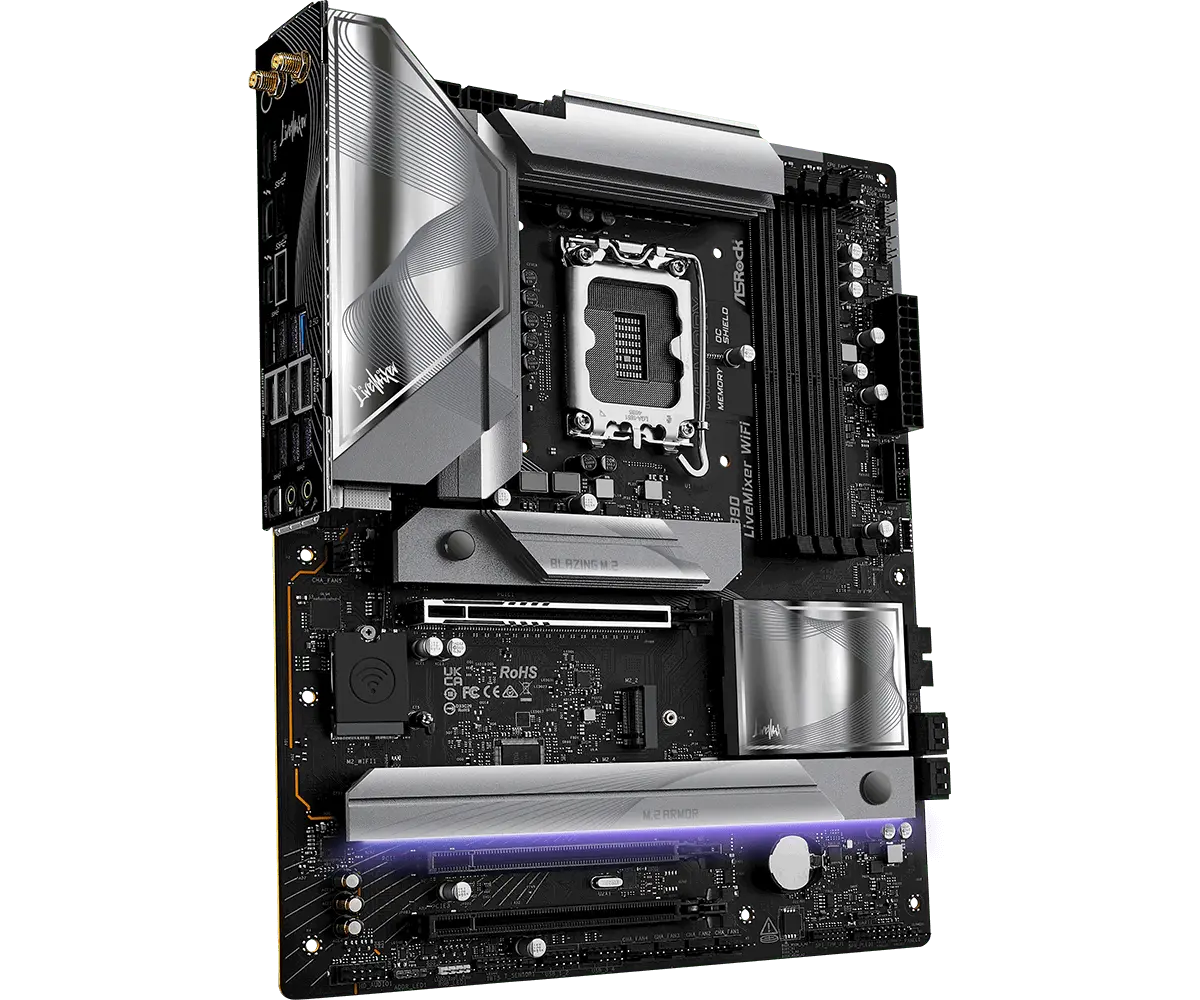

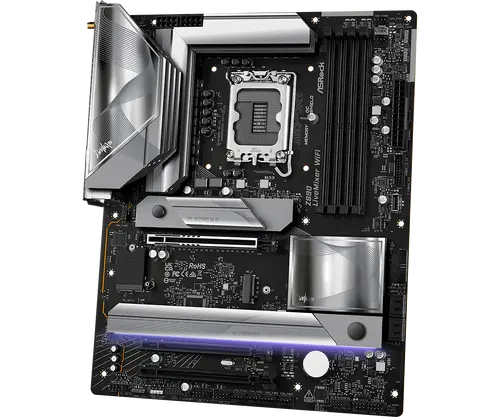

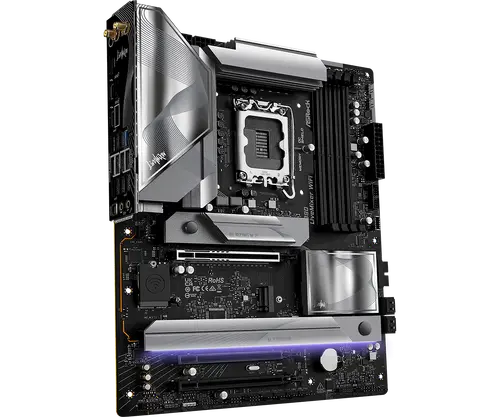

- ASROCK
Preț
€229 60 / 449 06 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asrock.com/mb/Intel/Z890%20LiveMixer%20WiFi/index.asp
Graphics
Intel® Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
CPU's supported
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration
Chipset
Intel® Z890
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
- 4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x

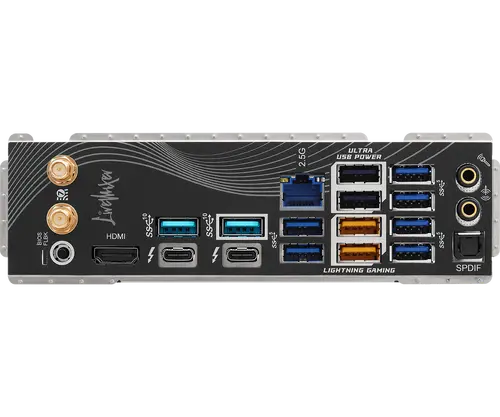

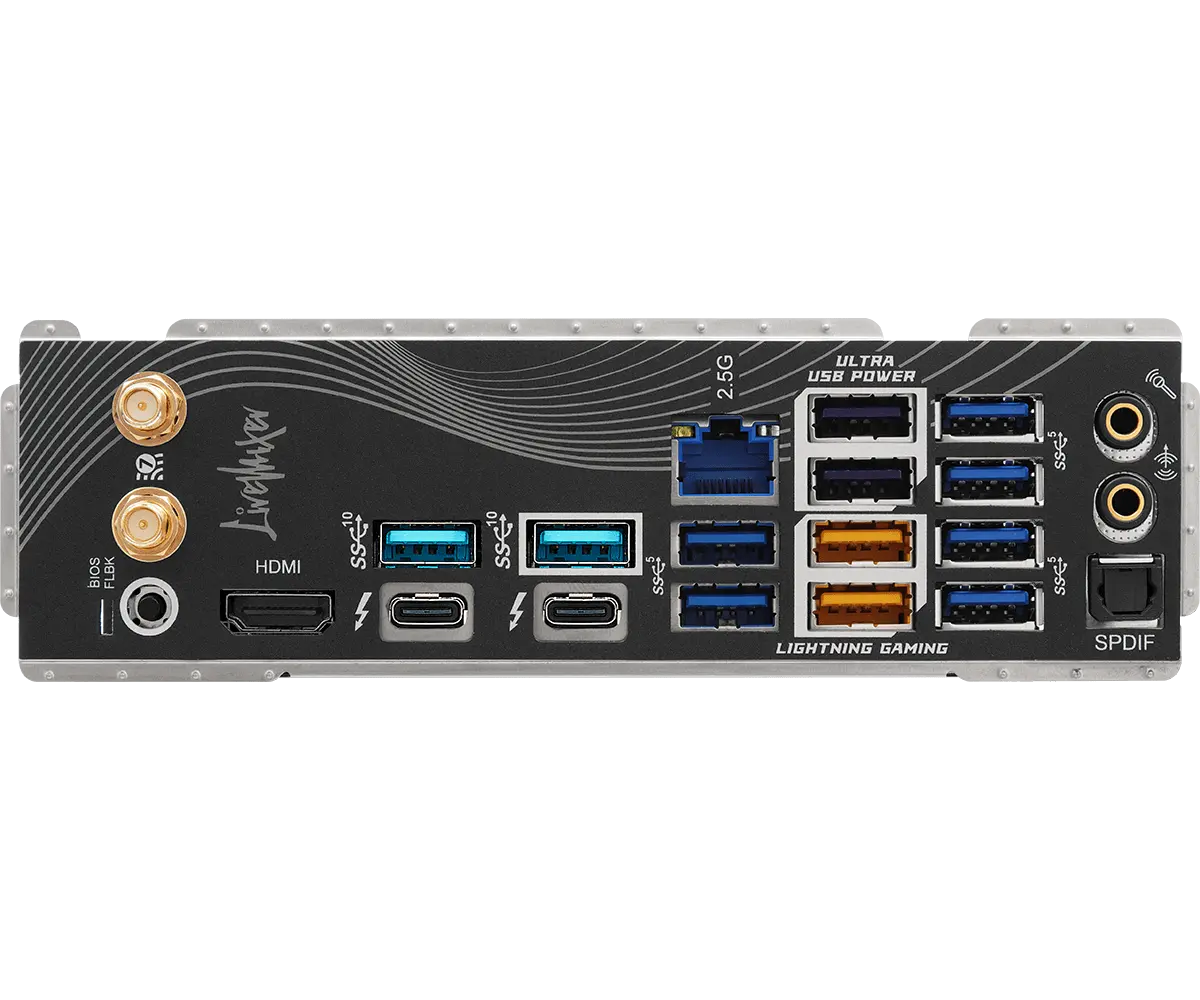

Rear panel I/O
2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s)
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 10 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
USB
CPU:
- 2 x Thunderbolt™ 4/USB4 Type-C (Rear)
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 14 x USB 3.2 Gen1 (10 Rear, 4 Front)
- 4 x USB 2.0 (Front)
Connectors
1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz* frequency band
Supports 320MHz channel bandwidth with 6GHz frequency band*
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO
Bluetooth
5.4
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
2oz Copper PCB
OS
Microsoft Windows® 11 64-bit
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asrock.com/mb/Intel/Z890%20LiveMixer%20WiFi/index.asp |
| Chipset | Intel® Z890 |
| OS | Microsoft Windows® 11 64-bit |
| CPU's supported | Supports Intel® Hybrid Technology |
| CPU's supported | Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | Supports Intel® Adaptive Boost Technology (ABT) |
| CPU's supported | Integrated NPU for dedicated AI acceleration |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports Clocked Unbuffered DIMM (CUDIMM) |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Memory type | Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC) |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Form Factor | 2oz Copper PCB |
| Audio | Nahimic Audio |
| Audio | Individual PCB Layers for R/L Audio Channel |
| Audio | Impedance Sensing on Rear Out port |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - 1 x Optical SPDIF Out Port |
| Rear panel I/O | - 1 x RJ-45 LAN Port |
| Rear panel I/O | - 1 x BIOS Flashback Button |
| Rear panel I/O | 2 x Antenna Ports |
| Rear panel I/O | - 1 x Line Out Jack (Gold Audio Jack) |
| Rear panel I/O | - 1 x Microphone Input Jack (Gold Audio Jack) |
| Rear panel I/O | - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) |
| Rear panel I/O | - 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s) |
| Rear panel I/O | - 10 x USB 3.2 Gen1 Ports |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Dragon RTL8125BG |
| LAN | Smart Auto Adjust Bandwidth Control |
| LAN | Visual User Friendly UI |
| LAN | Visual Network Usage Statistics |
| LAN | Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | User Customized Priority Control |
| LAN | Supports Dragon 2.5G LAN Software |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module |
| Wireless | Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz frequency band* 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO |
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | Intel® Xe LPG Graphics Architecture |
| Graphics | 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes |
| Bluetooth | 5.4 |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| Connectors | 1 x Thermistor Cable Header |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Connectors | 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Front) |
| USB | - 2 x USB 3.2 Gen2 Type-A (Rear) |
| USB | - 2 x Thunderbolt™ 4/USB4 Type-C (Rear) |
| USB | - 14 x USB 3.2 Gen1 (10 Rear, 4 Front) |
| USB | - 4 x USB 2.0 (Front) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1851 |
| Form Factor | ATX |
| Chipset | Intel Z890 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 4 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
ASROCK Z890 LIVEMIXER WIFI — Най-добрата дънна платка за творци
Отключете творческия си потенциал с ASROCK Z890 LIVEMIXER WIFI, проектирана за създатели на съдържание, стриймъри и напреднали потребители, които изискват безкомпромисна производителност. С поддръжка на най-новите процесори Intel Core Ultra, DDR5 памет и светкавична свързаност, тази дънна платка е основата за изграждане на мощна работна станция или геймърска конфигурация.
Ключови Предимства
- Платформа от ново поколение — Сокет LGA 1851 и чипсет Z890 използват пълната мощ на процесорите Intel Core Ultra (Series 2) за изключителна многозадачна производителност.
- DDR5 памет — Четири DIMM слота с капацитет до 256 GB и скорости на овърклок над 9000 MHz осигуряват плавна работа при рендиране и мултитаскинг.
- Ултра бързо съхранение — Множество M.2 слота, включително PCIe 5.0 x4, предлагат светкавично зареждане на големи медийни файлове и приложения.
- Свързаност за професионалисти — Wi-Fi 7, 5 Gbps LAN и два Thunderbolt 4 порта осигуряват безпроблемна мрежова връзка и разширяване на периферията.
- Професионално аудио — Кодек Realtek ALC4080 и DAC ESS SABRE9219 доставят кристален звук за мониторинг, миксиране и стрийминг.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA 1851 |
| Чипсет | Intel Z890 |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 4 (1x PCIe 5.0, 3x PCIe 4.0) |
| SATA портове | 4 |
| PCIe x16 слотове | 2 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4) |
| Wi-Fi | Wi-Fi 7 |
| LAN скорост | 5 Gbps |
| USB-C портове | 2 (Thunderbolt 4) |
| Аудио | Realtek ALC4080 + ESS SABRE9219 DAC |

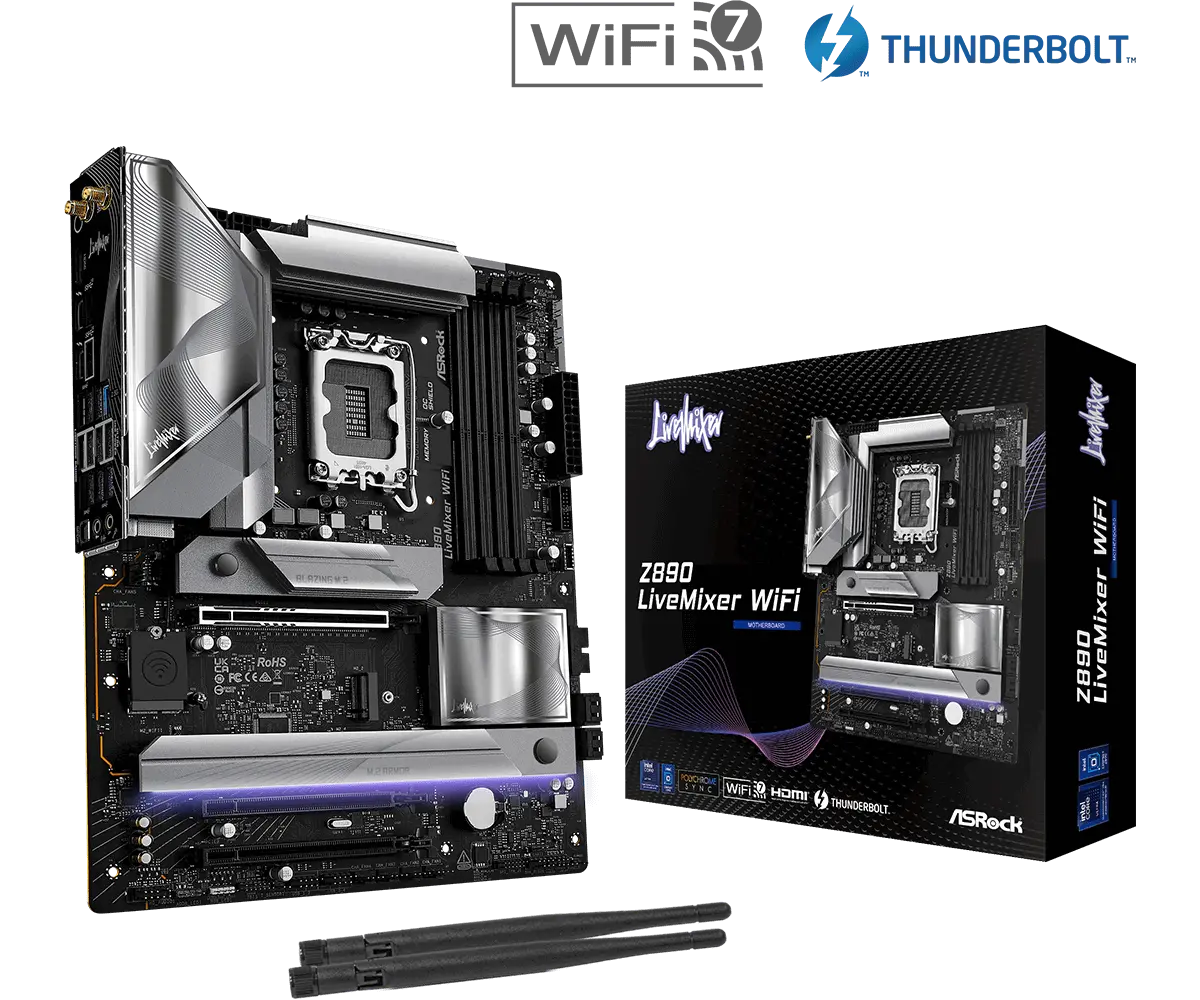

Какво има в кутията
- Дънна платка ASROCK Z890 LIVEMIXER WIFI
- Wi-Fi антена
- 2x SATA кабела
- Винтове и стойки за M.2
- Ръководство за бърза инсталация
