- MSI
Preț
€91 24 / 178 45 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/PRO-B550M-P
Socket
Socket AM4
Graphics
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Supports DP 1.4, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
CPU's supported
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Chipset
AMD B550
Expansion slots
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Memory type
4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4400+ MT/s
• 1DPC 2R Max speed up to 3733+ MT/s
• 2DPC 1R Max speed up to 3866+ MT/s
• 2DPC 2R Max speed up to 3466+ MT/s
Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode

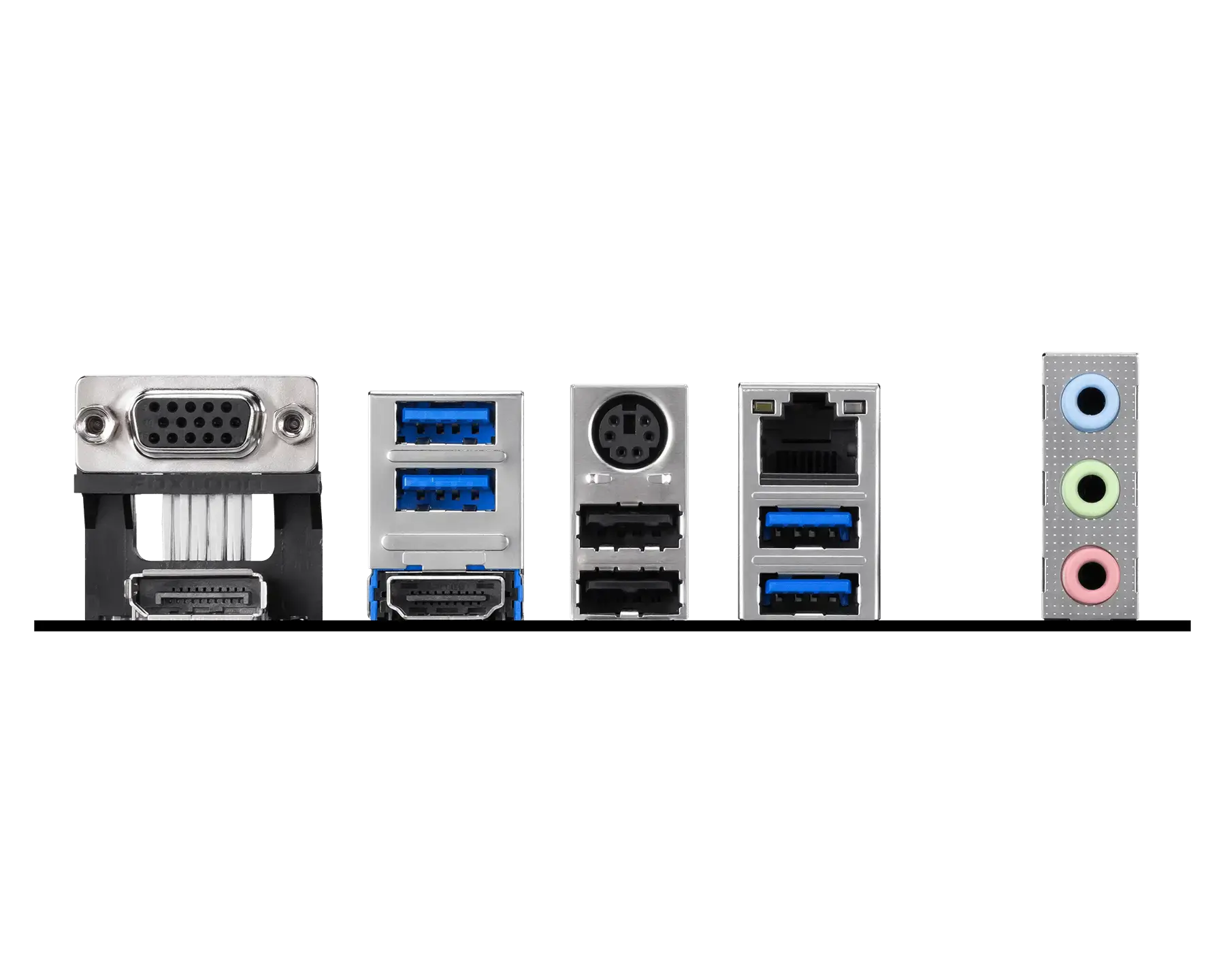

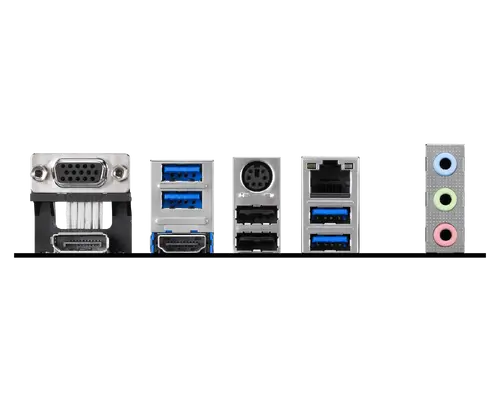

Rear panel I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Lan
Realtek® RTL8111H 1Gbps LAN
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimensions
mATX
243.84mmx243.84mm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | Socket AM4 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-B550M-P |
| Chipset | AMD B550 |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| CPU's supported | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | Max. overclocking frequency: |
| Memory type | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory type | Supports JEDEC Speed |
| Memory type | Supports Memory Overclocking by A-XMP OC mode |
| Memory type | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE |
| Memory type | • 1DPC 1R Max speed up to 4400+ MT/s |
| Memory type | • 1DPC 2R Max speed up to 3733+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 3866+ MT/s |
| Memory type | • 2DPC 2R Max speed up to 3466+ MT/s |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Rear panel I/O | 1x Power Connector(ATX_PWR) |
| Rear panel I/O | 1x Power Connector(CPU_PWR) |
| Rear panel I/O | 1x CPU Fan |
| Rear panel I/O | 2x System Fan |
| Rear panel I/O | 2x Front Panel (JFP) |
| Rear panel I/O | 1x Chassis Intrusion (JCI) |
| Rear panel I/O | 1x Front Audio (JAUD) |
| Rear panel I/O | 1x Com Port (JCOM) |
| Rear panel I/O | 1x TPM pin header(Support TPM 2.0) |
| Rear panel I/O | 4x USB 2.0 ports |
| Rear panel I/O | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Rear panel I/O | 2x RGB LED connector(JRGB) |
| Rear panel I/O | 1x USB 5Gbps Type C ports |
| Rear panel I/O | 2x USB 5Gbps Type A ports |
| LAN | Realtek® RTL8111H 1Gbps LAN |
| Expansion Slots | 1x PCI-E x16 slot |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | 2x PCI-E x1 slot |
| Expansion Slots | PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Dimensions | mATX 243.84mmx243.84mm |
| Graphics | 1x HDMI™ |
| Graphics | 1x VGA |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz |
| Graphics | 1x DisplayPort |
| Graphics | Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| Graphics | Supports DP 1.4, maximum resolution of 4K 60Hz |
| Storage | 4x SATA 6G |
| Storage | 2x M.2 |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices |
| USB | 2x USB 2.0 (Rear) |
| USB | 4x USB 2.0 (Front) |
| USB | 4x USB 5Gbps Type A (Rear) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 1x USB 5Gbps Type C (Front) |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

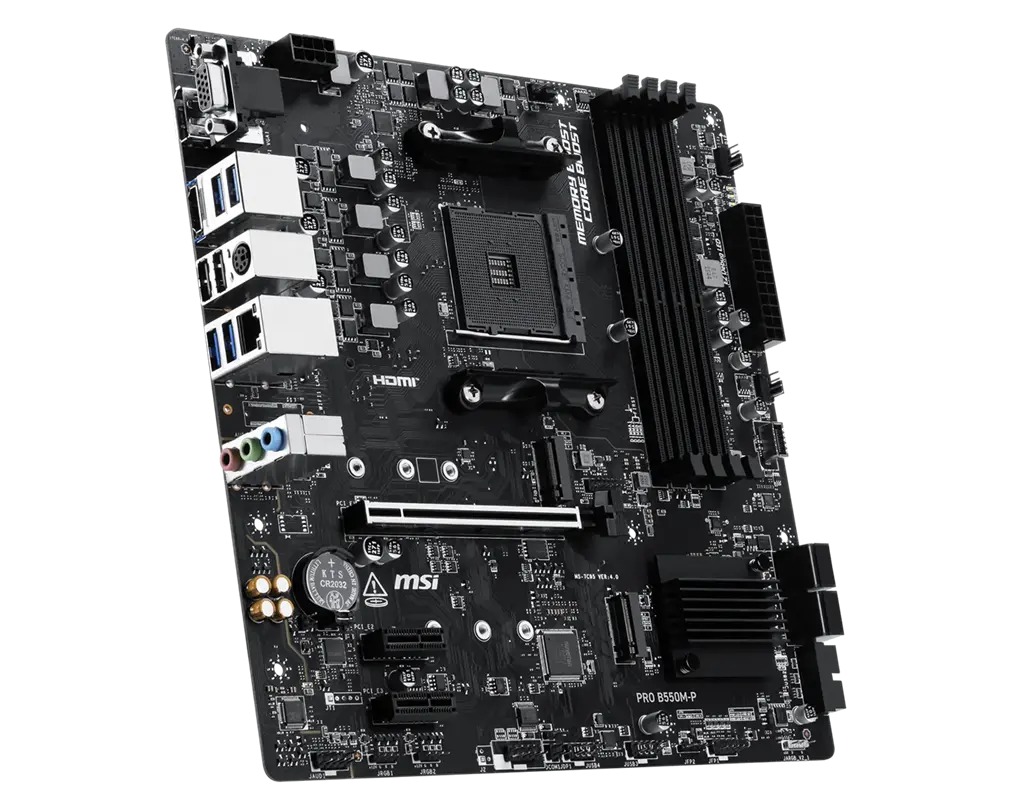

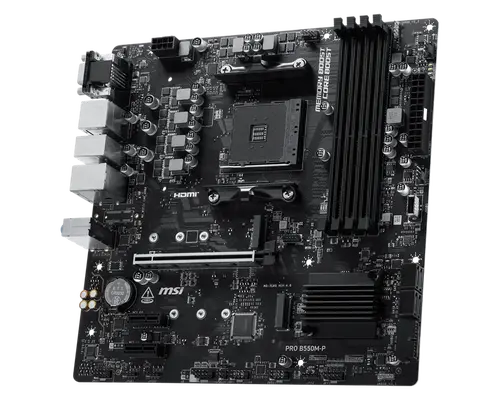

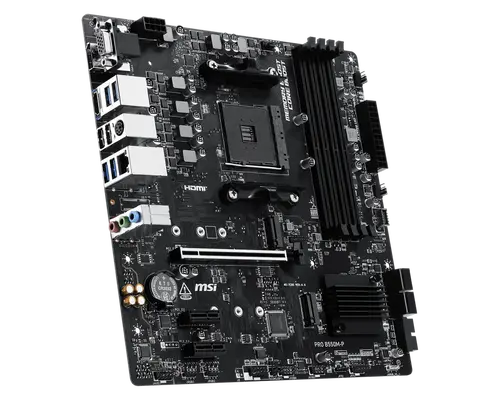

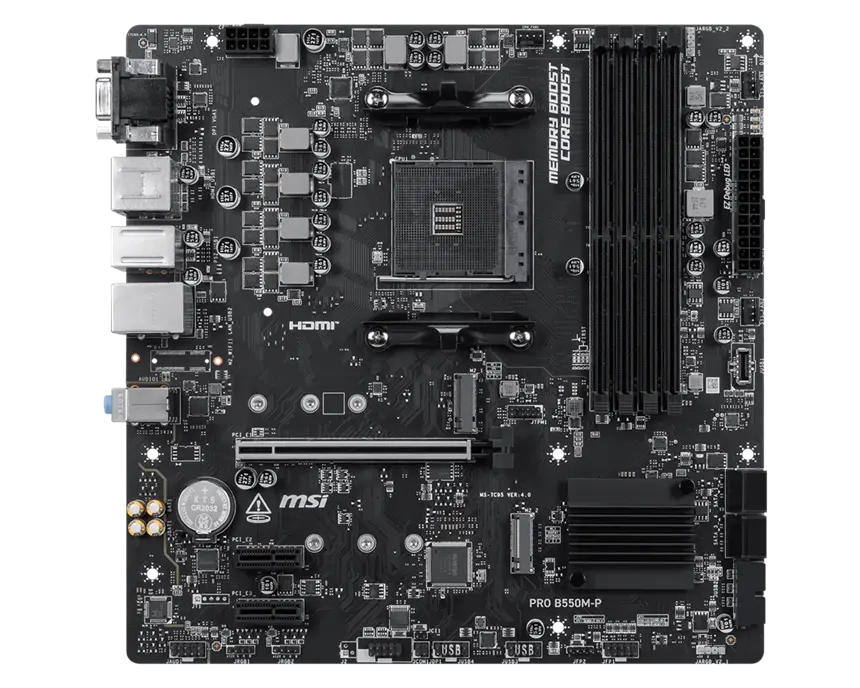

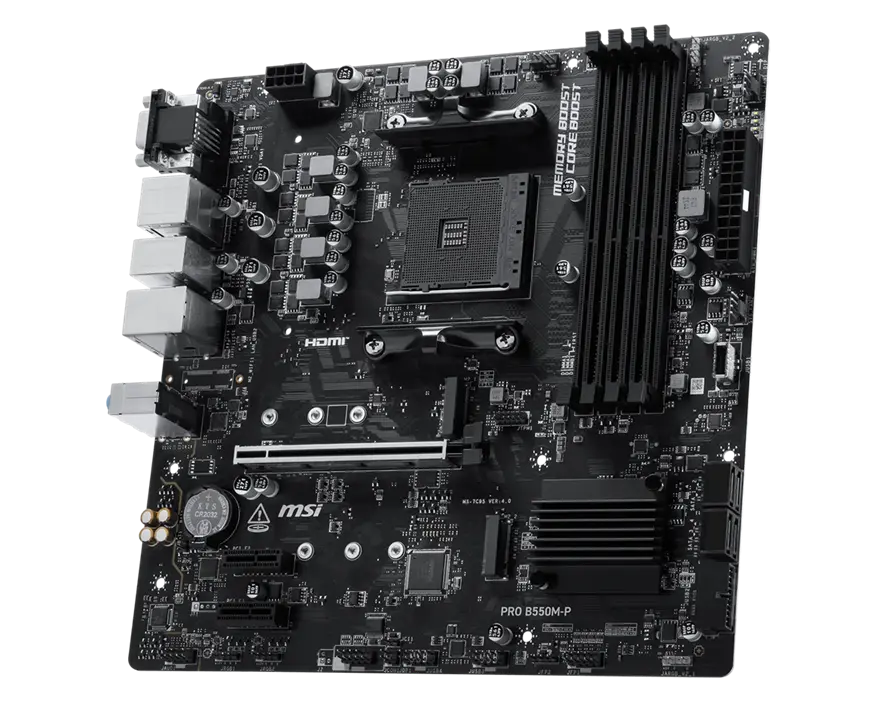

Дънна платка MSI PRO B550M-P
Изградете надеждна и ефективна AMD система с MSI PRO B550M-P. Тази micro-ATX дънна платка предлага основни функции за професионалисти и домашни потребители, осигурявайки стабилна производителност за ежедневни задачи и леки игри.
Ключови Предимства
- AMD AM4 Сокет — Поддържа широка гама процесори Ryzen за гъвкава производителност.
- DDR4 Памет — До 128 GB капацитет за плавна многозадачност и продуктивност.
- PCIe 4.0 Готовност — Един PCIe 4.0 x16 слот за графични карти от ново поколение и NVMe SSD.
- Два M.2 Слота — Бързи опции за съхранение с един PCIe 4.0 и един PCIe 3.0 M.2 слот.
- Gigabit LAN — Надеждна кабелна мрежова свързаност за непрекъснат онлайн достъп.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM4 |
| Форм фактор | microATX (mATX) |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |

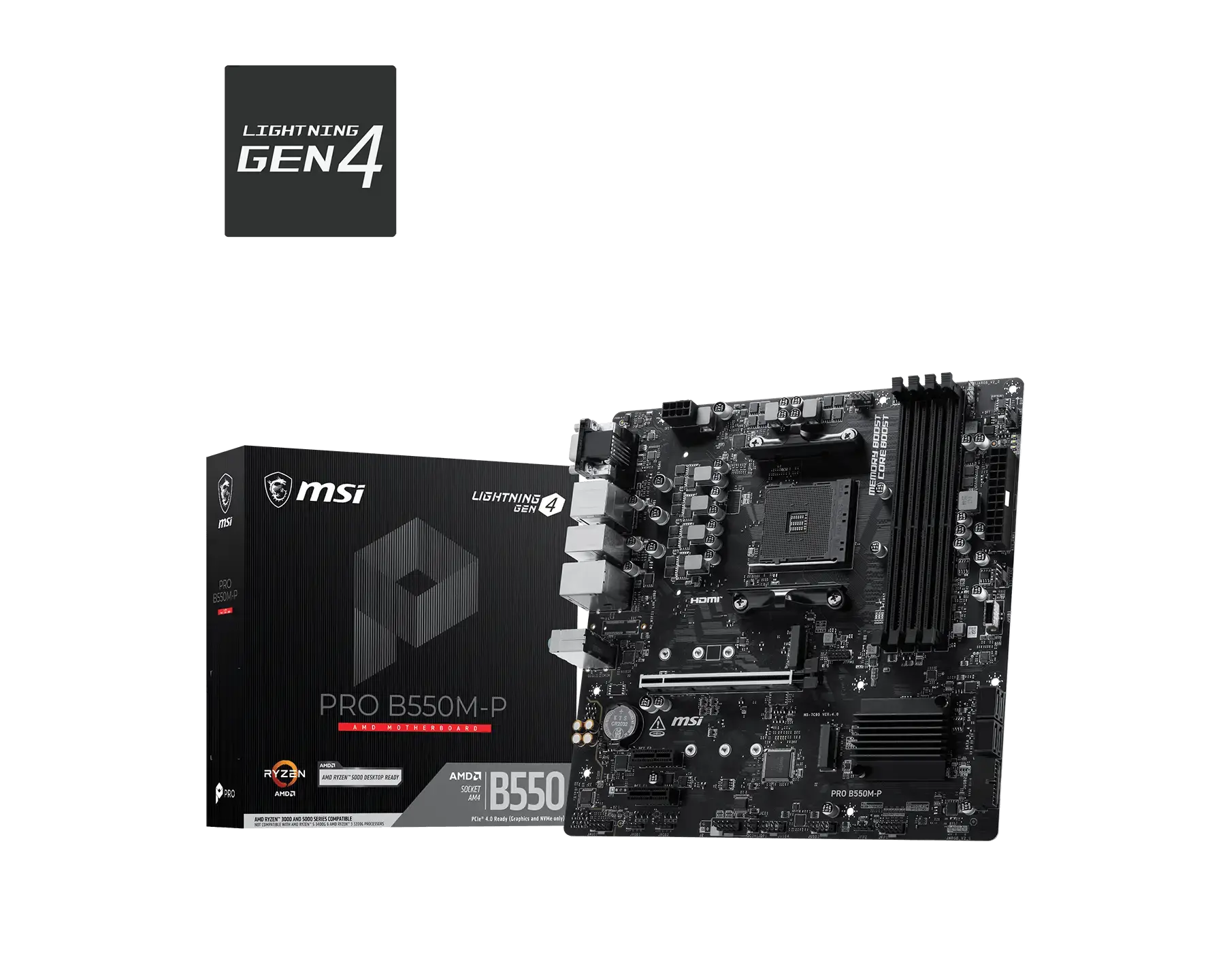

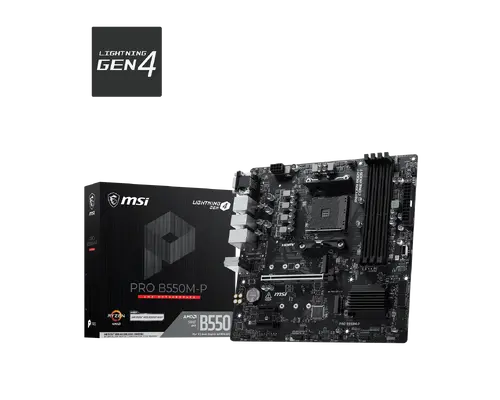

Какво има в кутията
- Дънна платка MSI PRO B550M-P
- I/O щит
- SATA кабели
- Драйверен диск
- Ръководство за бърза инсталация
