- MSI
Preț
€119 68 / 234 07 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/B550-GAMING-WIFI
Socket
Socket AM4
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz
CPU's supported
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset
AMD B550
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices
6x SATA 6G
Memory type
4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
• 1DPC 1R Max speed 4800 MHz
• 1DPC 2R max speed 3866 MHZ
• 2DPC 1R max speed 4000 MHZ
• 2DPC 2R max speed 3600 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

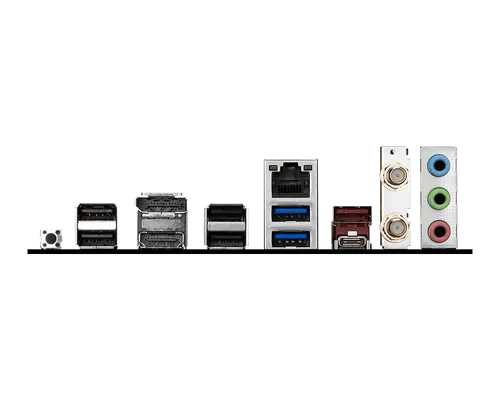

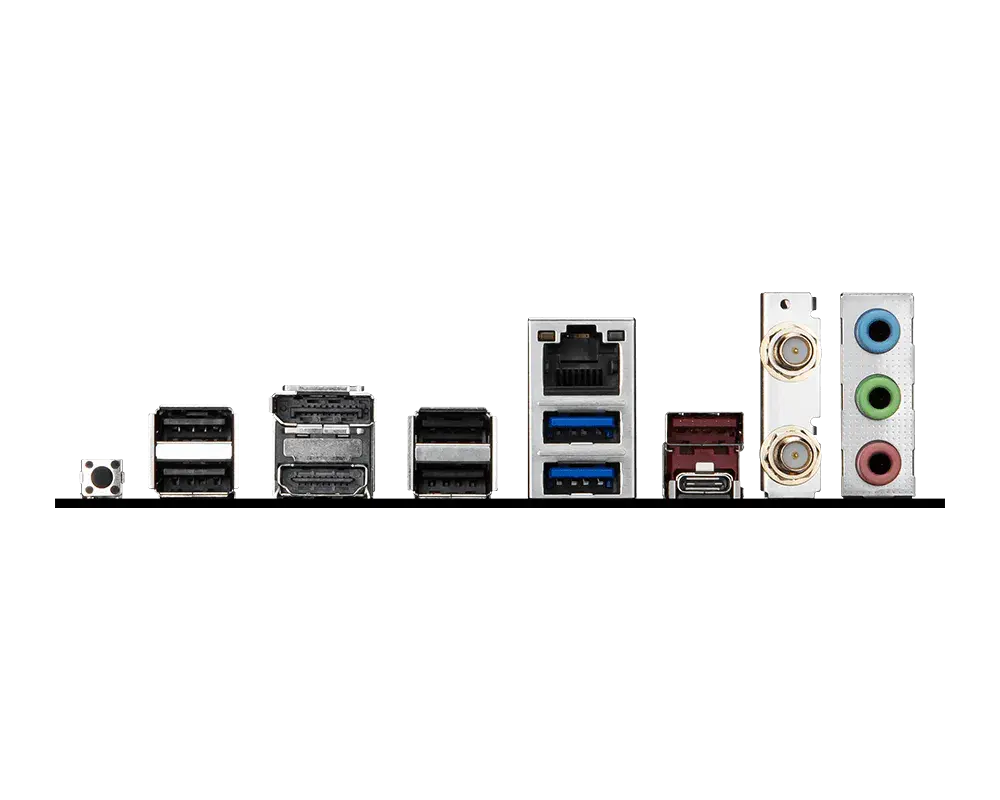

Rear panel I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
1x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Lan
Realtek® 8111H 1G LAN
Wireless
Wi-Fi 5 Solution
Bluetooth
Supports Bluetooth® 5.0
OS
Support for Windows® 11 64-bit
Dimensions
ATX
243.84mmx304.8mm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | Socket AM4 |
| Vendor_url | https://www.msi.com/Motherboard/B550-GAMING-WIFI |
| Chipset | AMD B550 |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Memory type | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory type | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE |
| Memory type | • 1DPC 1R Max speed 4800 MHz |
| Memory type | • 1DPC 2R max speed 3866 MHZ |
| Memory type | • 2DPC 1R max speed 4000 MHZ |
| Memory type | • 2DPC 2R max speed 3600 MHZ |
| Memory type | • Dual channel memory architecture |
| Memory type | • Supports non-ECC UDIMM memory |
| Memory type | • Supports ECC UDIMM memory (non-ECC mode) |
| Memory type | • Supports un-buffered memory |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 |
| Rear panel I/O | 1x Power Connector(ATX_PWR) |
| Rear panel I/O | 1x Power Connector(CPU_PWR) |
| Rear panel I/O | 1x CPU Fan |
| Rear panel I/O | 2x Front Panel (JFP) |
| Rear panel I/O | 1x Chassis Intrusion (JCI) |
| Rear panel I/O | 1x Front Audio (JAUD) |
| Rear panel I/O | 1x Com Port (JCOM) |
| Rear panel I/O | 1x RGB LED connector(JRGB) |
| Rear panel I/O | 1x TPM pin header(Support TPM 2.0) |
| Rear panel I/O | 4x USB 2.0 ports |
| Rear panel I/O | 1x Pump Fan |
| Rear panel I/O | 1x USB 5Gbps Type C ports |
| Rear panel I/O | 6x System Fan |
| Rear panel I/O | 2x Addressable RGB LED connector(JRAINBOW) |
| Rear panel I/O | 1x USB 5Gbps Type A ports |
| LAN | Realtek® 8111H 1G LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) |
| Dimensions | ATX 243.84mmx304.8mm |
| Wireless | Wi-Fi 5 Solution |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz |
| Graphics | 1x DisplayPort |
| Graphics | Support DisplayPort 1.2, maximum resolution of 4K 60Hz |
| Storage | 2x M.2 |
| Storage | 6x SATA 6G |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices |
| Bluetooth | Supports Bluetooth® 5.0 |
| USB | 4x USB 2.0 (Front) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 2x USB 5Gbps Type A (Rear) |
| USB | 4x USB 2.0 (Rear) |
| USB | 1x USB 5Gbps Type C (Front) |
| USB | 1x USB 10Gbps Type A (Rear) |
| USB | 1x USB 10Gbps Type C (Rear) |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 6 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

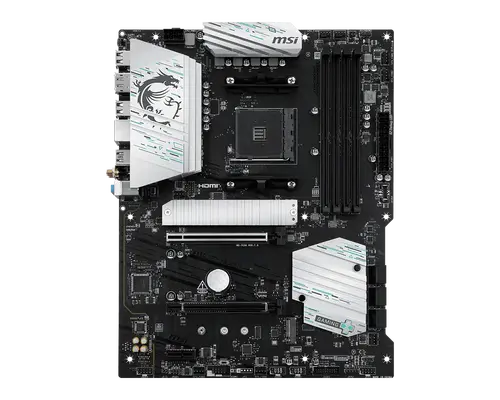

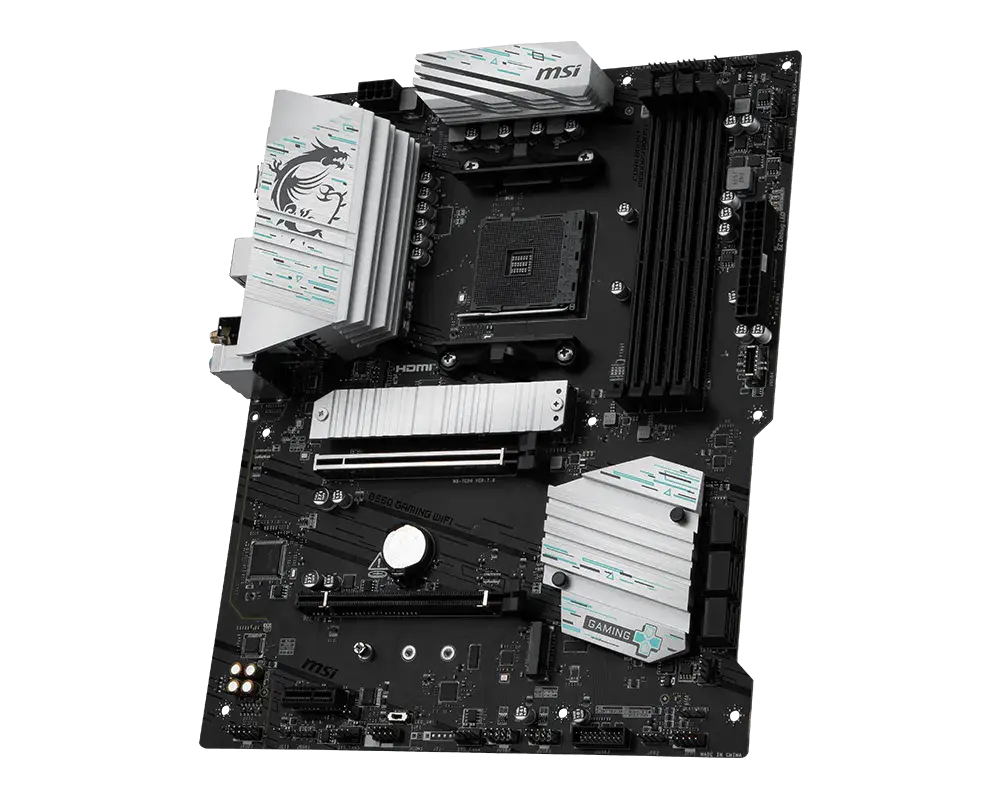

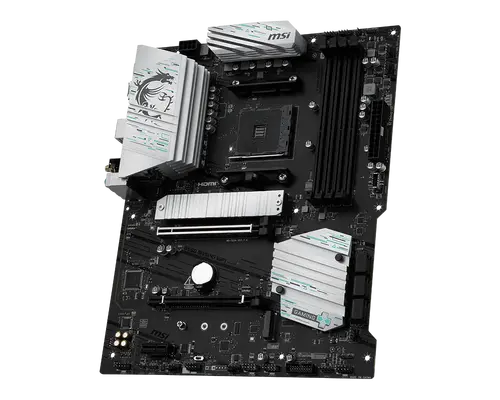

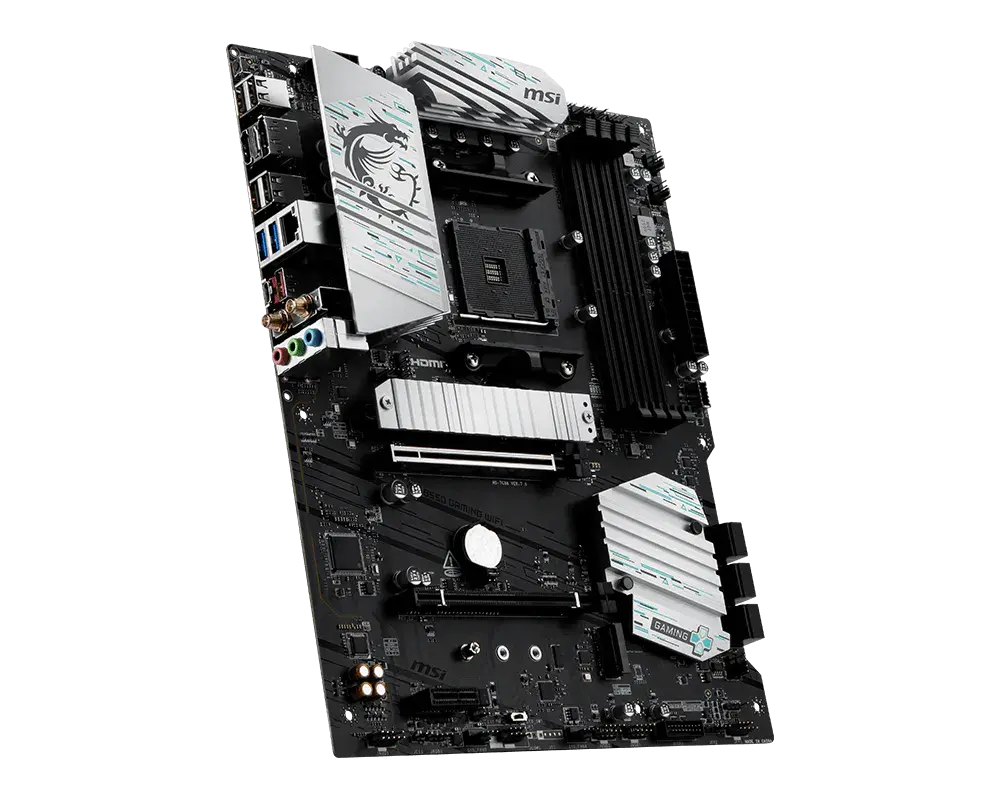

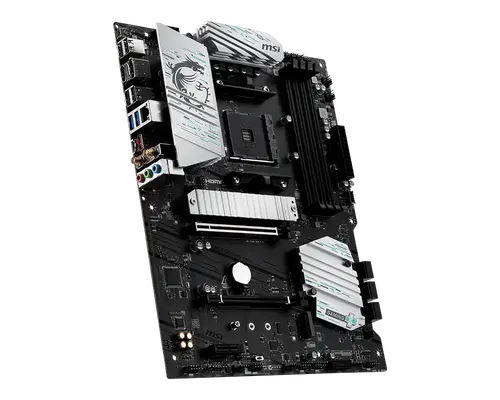

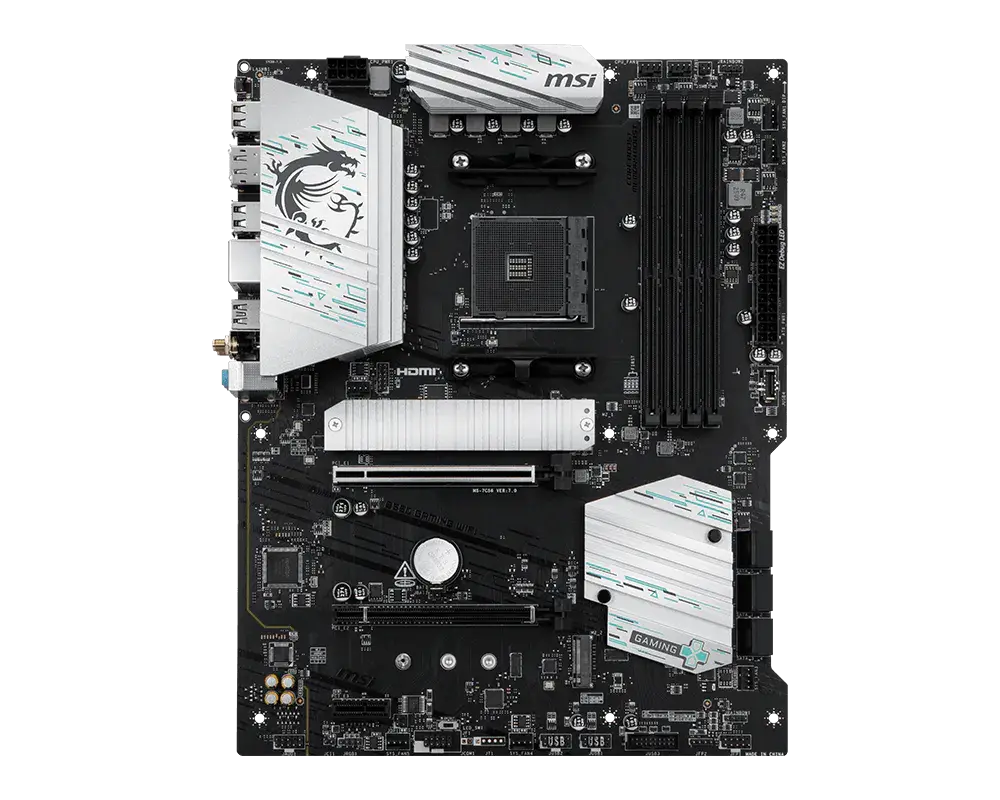

Дънна платка MSI B550 GAMING – Отключете производителността на вашия AMD Ryzen
Създадена за геймъри и творци, дънната платка MSI B550 GAMING предлага стабилност и светкавична PCIe 4.0 скорост за най-новите процесори AMD Ryzen. С оптимизирано захранване и обширно охлаждане, можете да натоварите системата до краен предел без притеснения.
Ключови Предимства
- Готова за PCIe 4.0 — Осигурява двойно по-голяма честотна лента спрямо PCIe 3.0 за графични карти и NVMe SSD от ново поколение.
- Технология Core Boost — Премиум оформление и цифрово захранване поддържат многоядрени процесори с прецизно подаване на ток.
- Разширен дизайн на радиаторите — Уголемените радиатори поддържат VRM и чипсета хладни при интензивни натоварвания, гарантирайки постоянна производителност.
- Audio Boost — Студийно качество на изолиран звук с висококачествени кондензатори за потапящо аудио при игри и забавления.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM4 |
| Чипсет | AMD B550 |
| Форм фактор | ATX |
| Тип памет | DDR4 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| PCIe x16 слотове | 2 |
| M.2 слотове | 2 |
| SATA портове | 6 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 1 |
| Вграден Wi-Fi | Не |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка MSI B550 GAMING
- I/O щит
- SATA кабели
- Диск с драйвери
- Ръководство за бърза инсталация
