Vendor_url
https://www.msi.com/Motherboard/PRO-B840M-B
Socket
Socket AM5
Graphics
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD B840
Expansion slots
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Memory type
2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

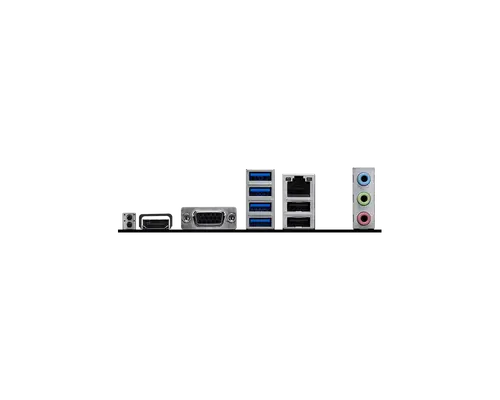

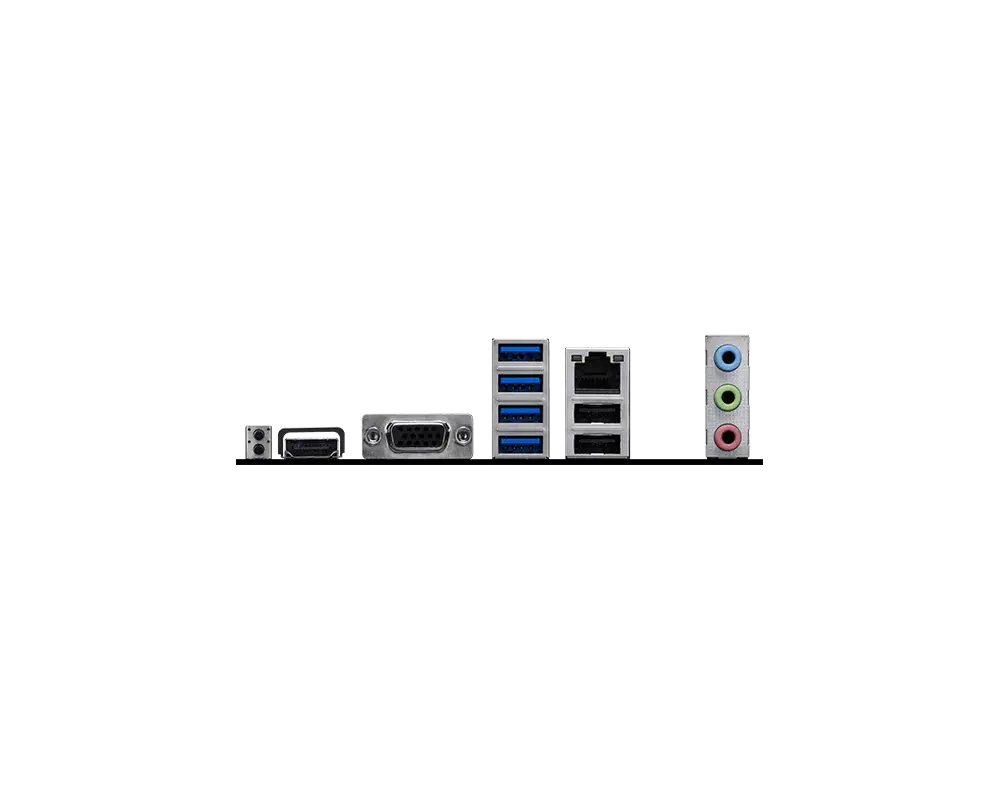

Rear panel I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Lan
Realtek® 8125D 2.5G LAN
OS
Support for Windows® 11 64-bit
Dimensions
mATX
226mmx243.84mm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | Socket AM5 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-B840M-B |
| Chipset | AMD B840 |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | • 1DPC 1R Max speed up to 8000+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking frequency: |
| Memory type | • 1DPC 2R Max speed up to 7200+ MT/s |
| Memory type | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 |
| Rear panel I/O | 1x Power Connector(ATX_PWR) |
| Rear panel I/O | 1x Power Connector(CPU_PWR) |
| Rear panel I/O | 1x CPU Fan |
| Rear panel I/O | 2x System Fan |
| Rear panel I/O | 2x Front Panel (JFP) |
| Rear panel I/O | 1x Chassis Intrusion (JCI) |
| Rear panel I/O | 1x Front Audio (JAUD) |
| Rear panel I/O | 1x Com Port (JCOM) |
| Rear panel I/O | 1x RGB LED connector(JRGB) |
| Rear panel I/O | 1x TPM pin header(Support TPM 2.0) |
| Rear panel I/O | 4x USB 2.0 ports |
| Rear panel I/O | 1x USB 5Gbps Type C ports |
| Rear panel I/O | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Rear panel I/O | 2x USB 5Gbps Type A ports |
| LAN | Realtek® 8125D 2.5G LAN |
| Expansion Slots | 1x PCI-E x16 slot |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E1 slot |
| Expansion Slots | • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) |
| Expansion Slots | 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Dimensions | mATX 226mmx243.84mm |
| Graphics | 1x HDMI™ |
| Graphics | 1x VGA |
| Graphics | Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz |
| Storage | 4x SATA 6G |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | 2x M.2 |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | M2_2 slot |
| Storage | • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 |
| USB | 2x USB 2.0 (Rear) |
| USB | 4x USB 2.0 (Front) |
| USB | 4x USB 5Gbps Type A (Rear) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 1x USB 5Gbps Type C (Front) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
| Chipset | AMD B840 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

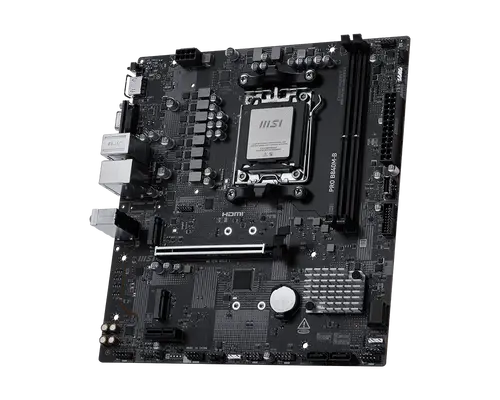

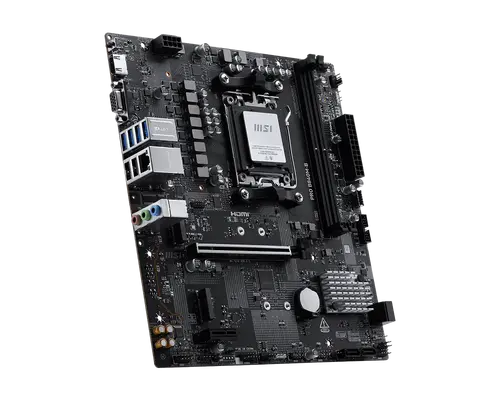

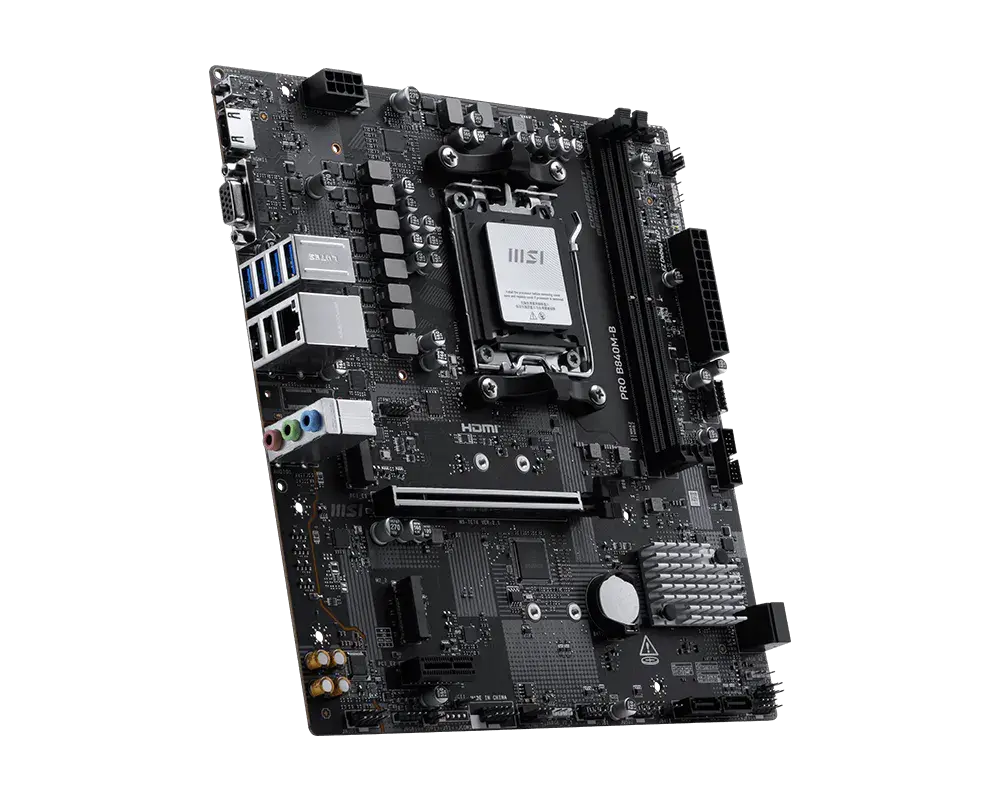

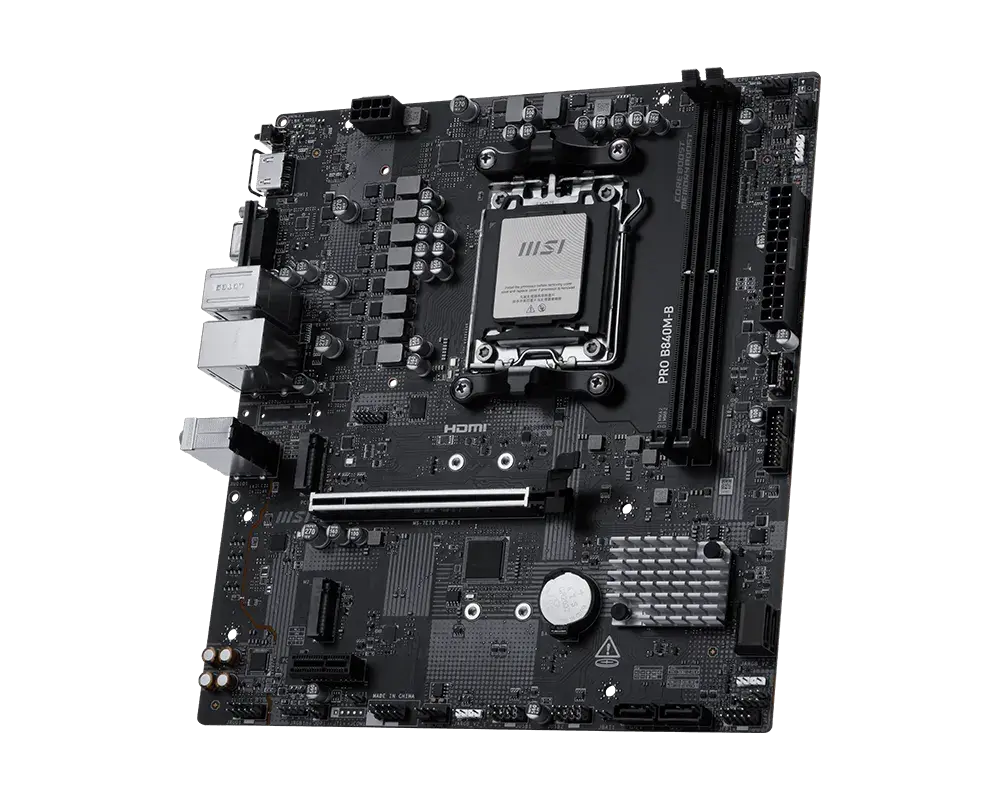

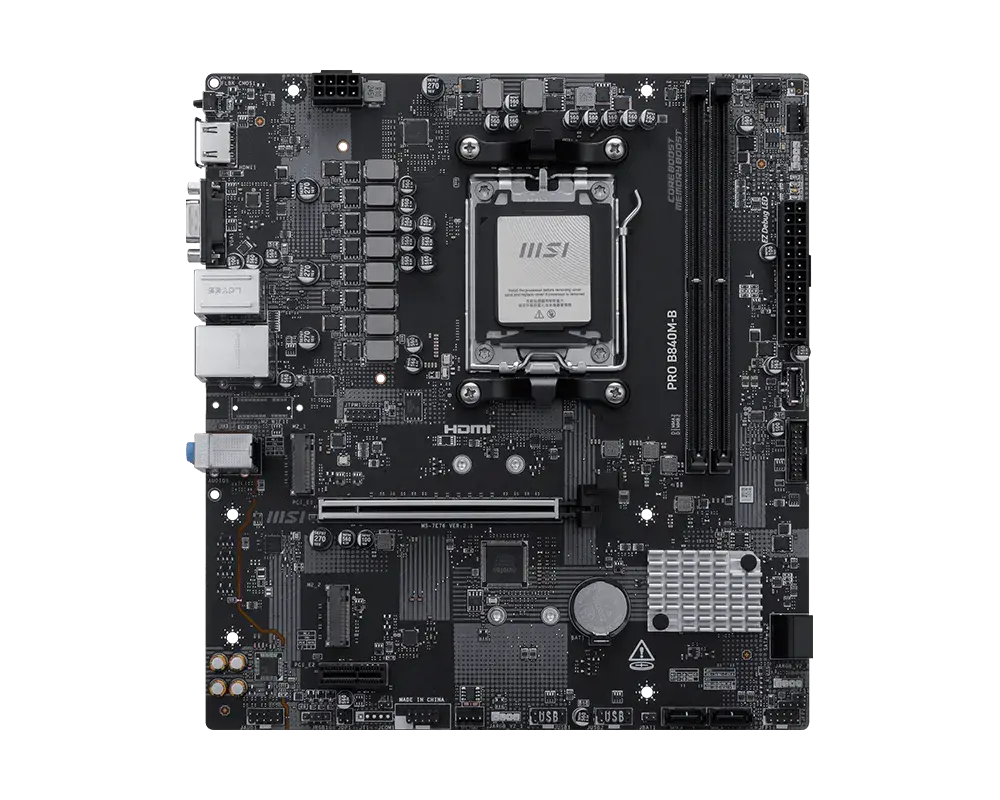

MSI PRO B840M-B — Надеждна производителност за ежедневни задачи
Сглобете надежден компютър с дънната платка MSI PRO B840M-B, предназначена за процесори AMD AM5 и DDR5 памет. Тя осигурява стабилна работа и основни възможности за свързване за дома и офиса.
Ключови Предимства
- Платформа AMD AM5 — Поддържа най-новите процесори Ryzen 7000/8000/9000 серия за модерна производителност.
- Поддръжка на DDR5 памет — Насладете се на по-високи скорости на данните и подобрена честотна лента за многозадачна работа.
- Готовност за PCIe 4.0 — Един PCIe 4.0 x16 слот за графични карти и един M.2 слот за високоскоростни NVMe SSD дискове.
- Пълна свързаност — Включва 2.5 Gbps LAN, USB 3.2 Gen 2 портове и множество видеоизходи.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Форм фактор | microATX (mATX) |
| Чипсет | AMD B840 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 128 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка MSI PRO B840M-B
- I/O щит
- 2x SATA кабела
- Ръководство за бърза инсталация
- Драйверен диск
