- MSI
Preț
€123 19 / 240 94 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/PRO-B850-S-WIFI6E
Socket
Socket AM5
Graphics
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD B850
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

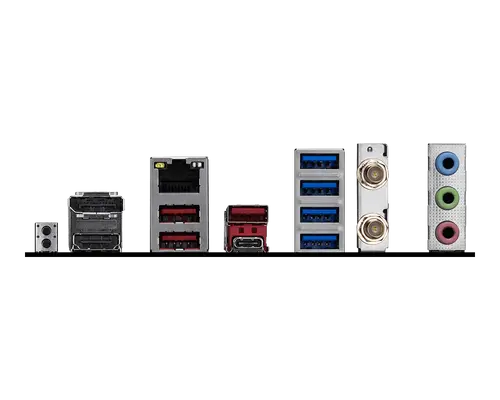

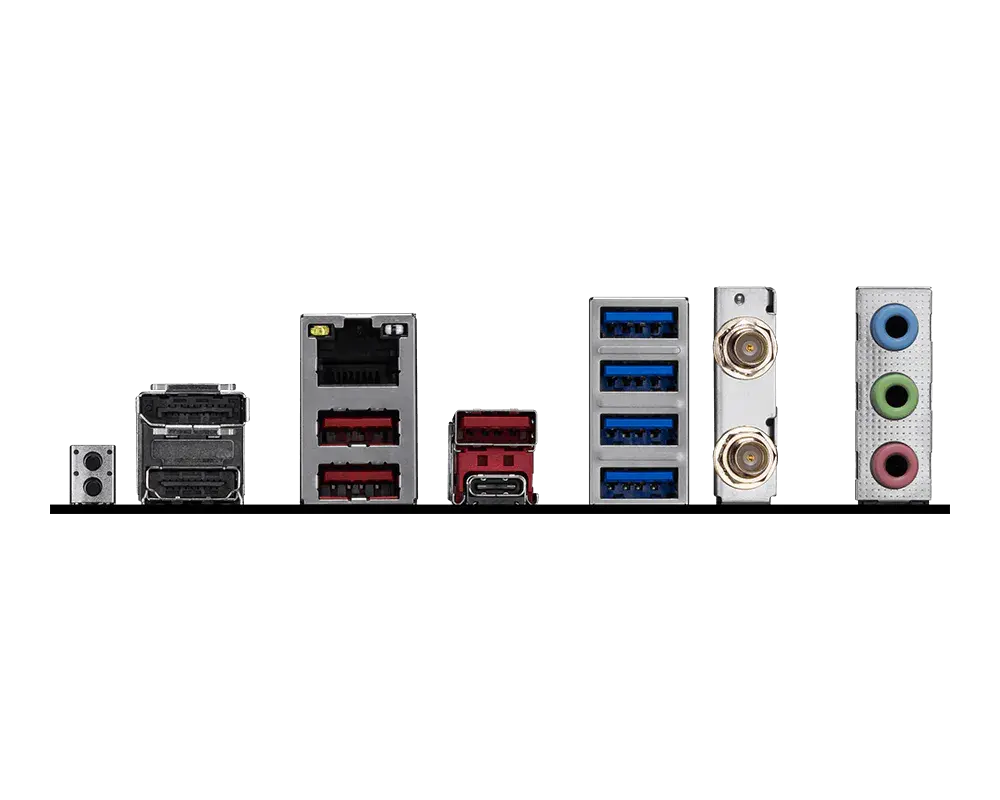

Rear panel I/O
Clear CMOS Button
DisplayPort
2.5G LAN
USB 10Gbps Type-A
USB 5Gbps Type-A
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-A
USB 10Gbps Type-C
USB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Lan
Realtek® 8125 2.5G LAN
Wireless
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**, FIPS, FISMA
* 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
Bluetooth
Supports Bluetooth® 5.3**, FIPS, FISMA
OS
Support for Windows® 11 64-bit
Other
4x EZ Debug LED
1x EZ Memory Detection LED
Dimensions
ATX
243.84mmx304.8mm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | Socket AM5 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-B850-S-WIFI6E |
| Chipset | AMD B850 |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 1DPC 2R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only |
| Memory type | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking frequency: |
| Memory type | • 1DPC 1R Max speed up to 8200+ MT/s |
| Memory type | • 2DPC 2R Max speed up to 6000+ MT/s |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | Flash BIOS button |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | Clear CMOS Button |
| Rear panel I/O | USB 10Gbps Type-A |
| Rear panel I/O | USB 10Gbps Type-C |
| Rear panel I/O | USB 5Gbps Type-A |
| LAN | Realtek® 8125 2.5G LAN |
| Expansion Slots | 1x PCI-E x1 slot |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | 2x PCI-E x16 slot |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | PCI_E1 slot |
| Expansion Slots | • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Dimensions | ATX 243.84mmx304.8mm |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Wireless | Wi-Fi 6E |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps |
| Wireless | Supports Bluetooth® 5.3**, FIPS, FISMA |
| Wireless | * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11. |
| Wireless | ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz |
| Graphics | 1x DisplayPort |
| Graphics | Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
| Other | 4x EZ Debug LED |
| Other | 1x EZ Memory Detection LED |
| Storage | 4x SATA 6G |
| Storage | 2x M.2 |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices |
| Storage | M2_2 slot |
| Storage | M2_1 slot |
| Storage | • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| Storage | *Please refer to the manual for M.2 SSD heatsink restrictions. |
| Bluetooth | Supports Bluetooth® 5.3**, FIPS, FISMA |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 1x USB 10Gbps Type C ports |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 4x System Fan |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| USB | 4x USB 2.0 (Front) |
| USB | 4x USB 5Gbps Type A (Rear) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 1x USB 10Gbps Type C (Front) |
| USB | 3x USB 10Gbps Type A (Rear) |
| USB | 1x USB 10Gbps Type C (Rear) |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 192 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

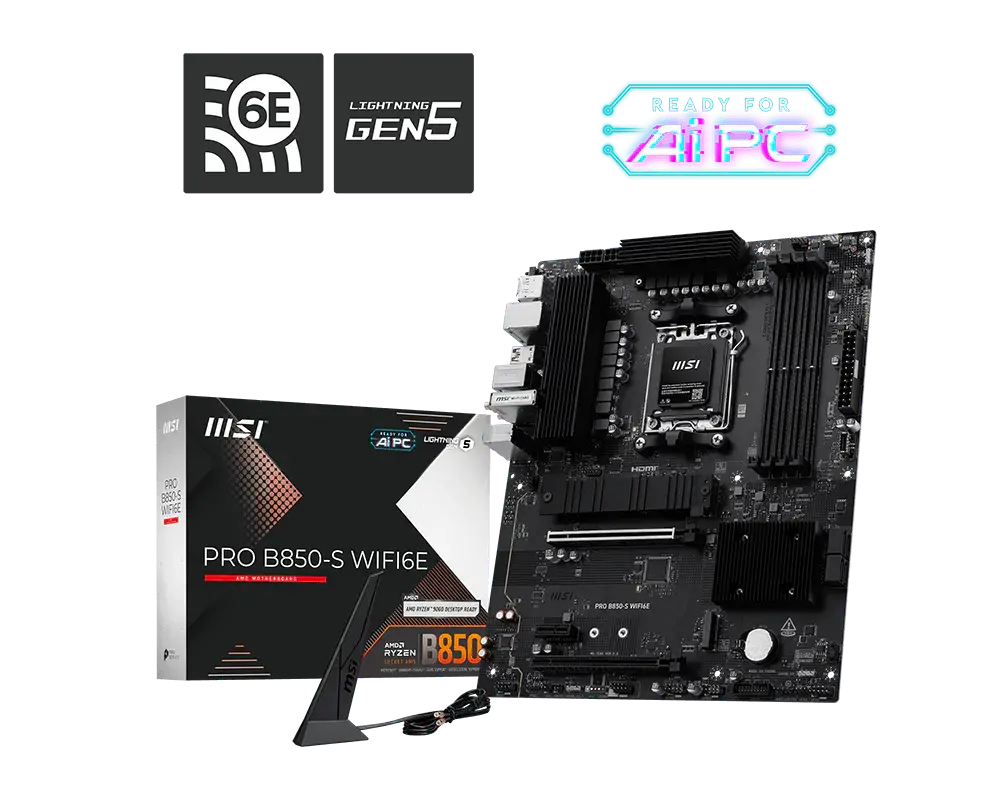

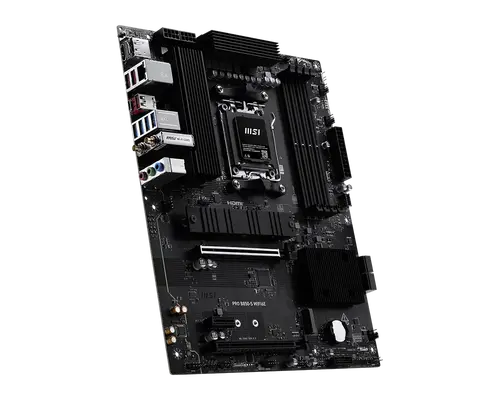

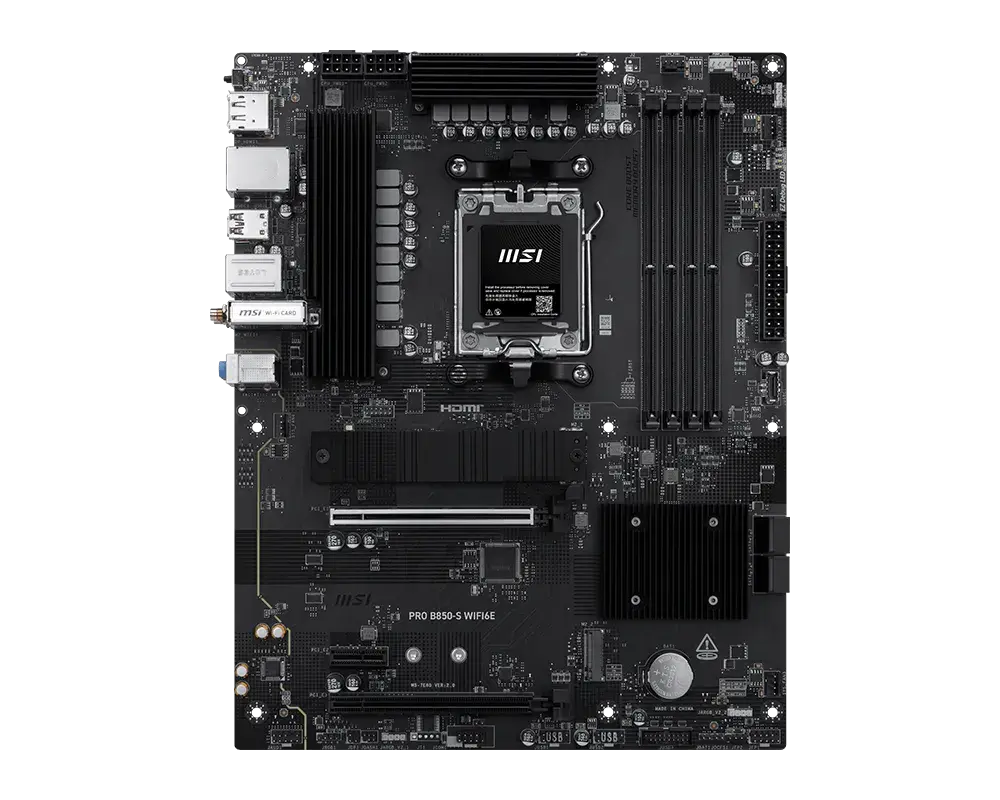

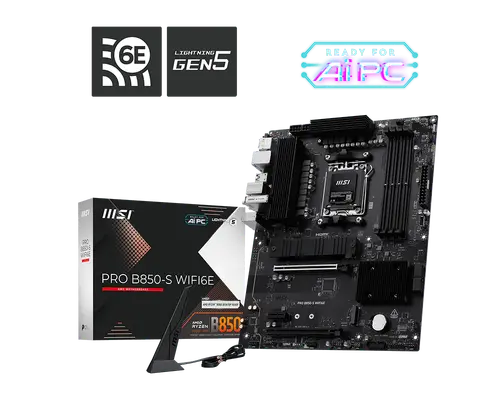

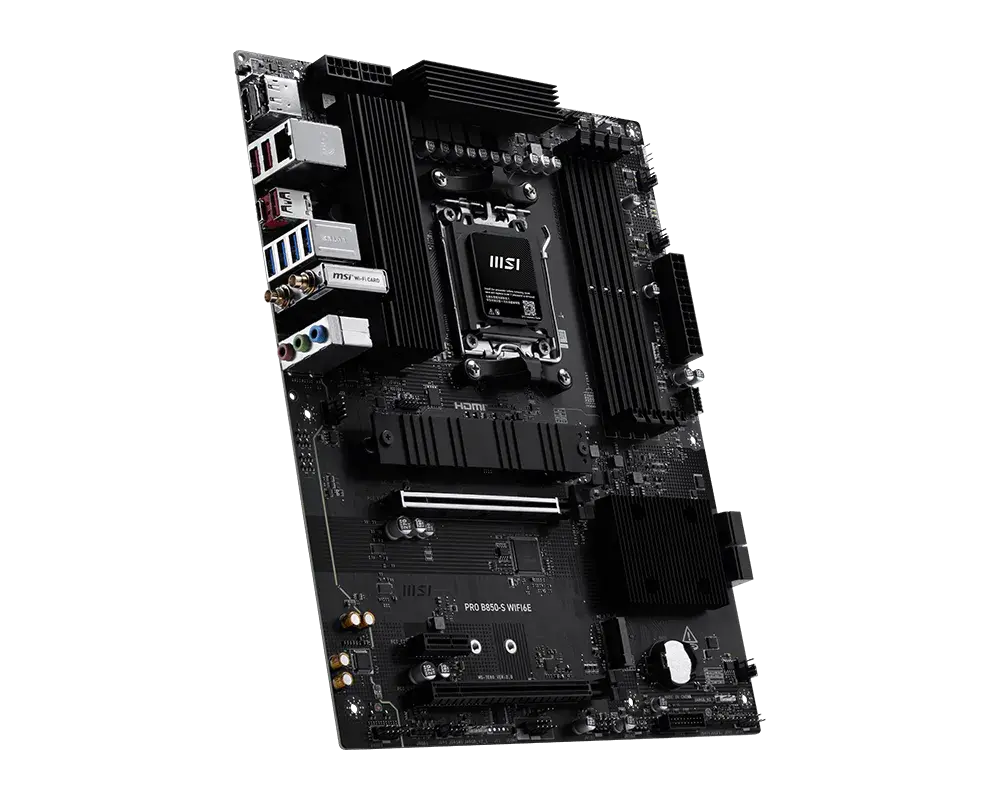

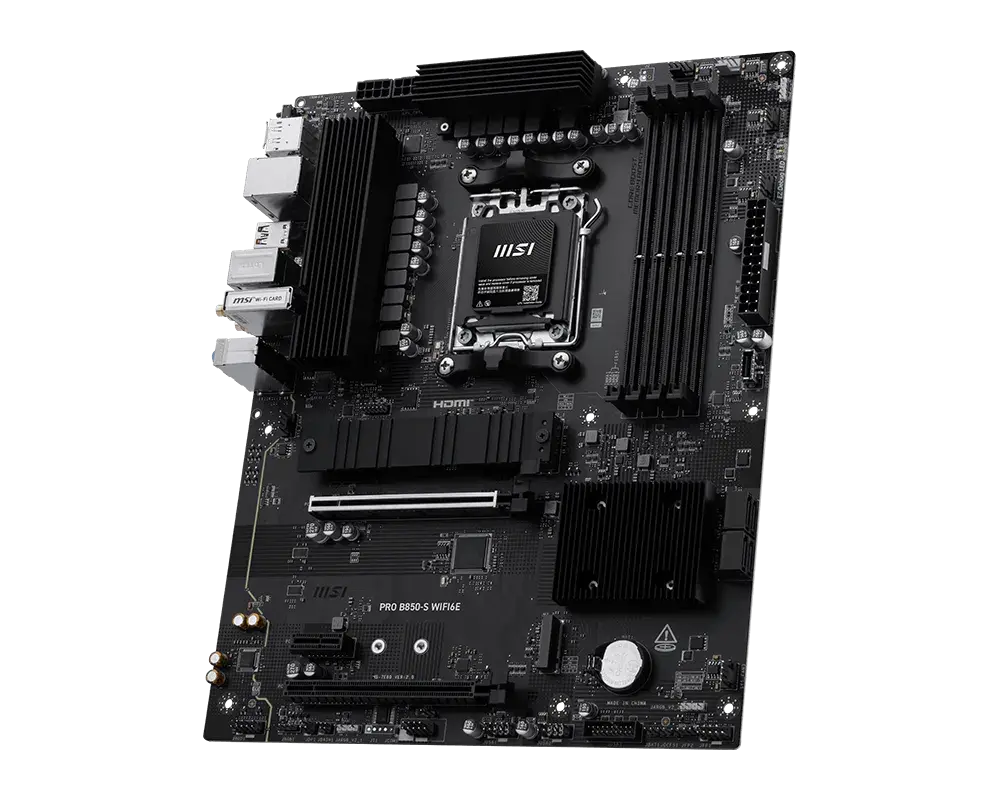

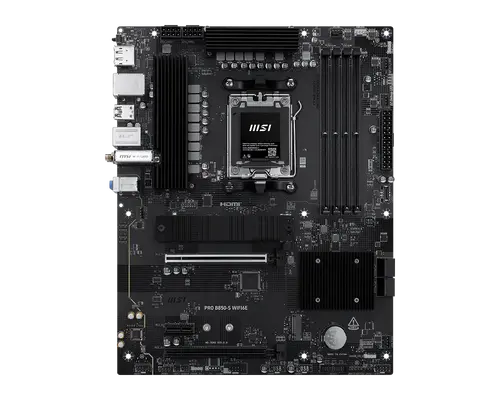

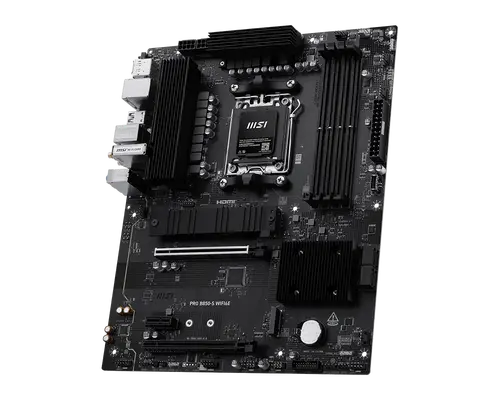

Дънна платка MSI PRO B850-S WiFi6E
Изградете готова за бъдещето система с AMD AM5 с дънната платка MSI PRO B850-S WiFi6E. Тази ATX платка предлага стабилност, бърза DDR5 памет и вграден Wi-Fi 6E за безпроблемна игра и продуктивност.
Ключови Предимства
- Платформа AMD AM5 — Поддържа най-новите процесори Ryzen серия 7000/8000/9000 за изключителна производителност.
- DDR5 памет — До 192 GB високоскоростна DDR5 RAM за взискателни приложения и многозадачност.
- Вграден Wi-Fi 6E — Насладете се на по-високи безжични скорости и по-ниска латентност в 6 GHz обхвата.
- 2.5 Gbps LAN — Кабелна мрежа с висока пропускателна способност за големи файлове и онлайн игри.
- Два M.2 слота — Инсталирайте ултрабързи NVMe SSD за бързо зареждане на системата и игрите.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B850 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка MSI PRO B850-S WiFi6E
- Ръководство на потребителя
- Кратко ръководство за инсталация
- Wi-Fi антена
- SATA кабели
- I/O щит
