Name: Placă de bază, MSI MAG B850 TOMAHAWK WIFI
Brand: MSI
SKU: 911-7E53-001
Price: 236.88 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Livrare· Termeni și condiții· Reclamații· Contact·

Autentificare

⇆Compară ⚙Configurează PC Coș

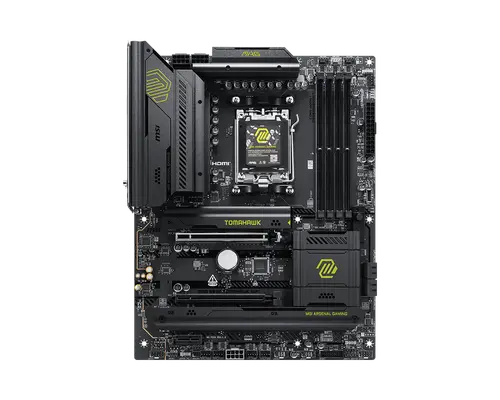

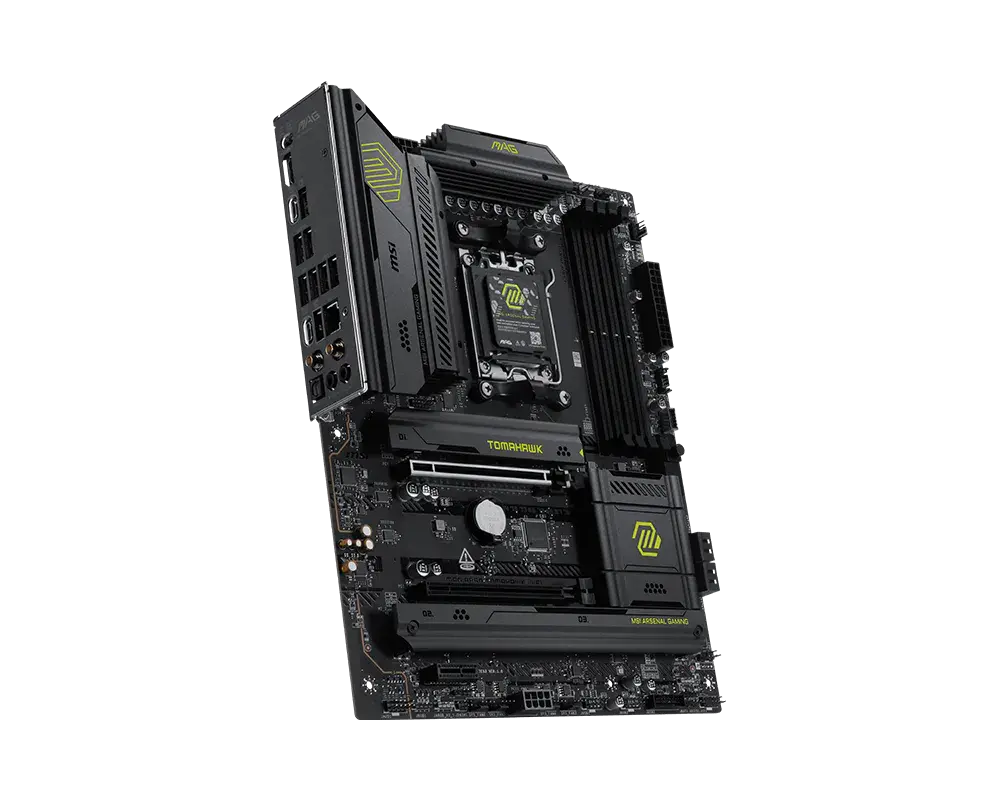

Placă de bază, MSI MAG B850 TOMAHAWK WIFI - 1

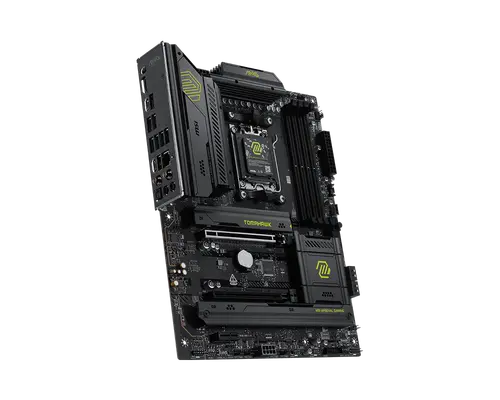

Placă de bază, MSI MAG B850 TOMAHAWK WIFI - 2

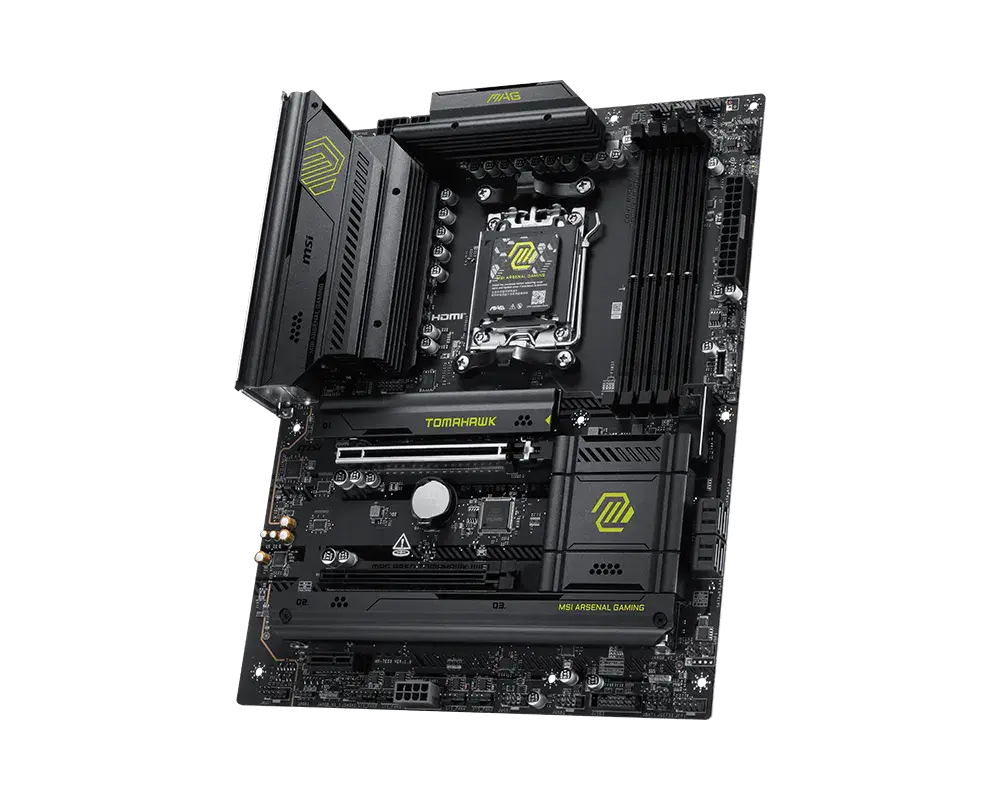

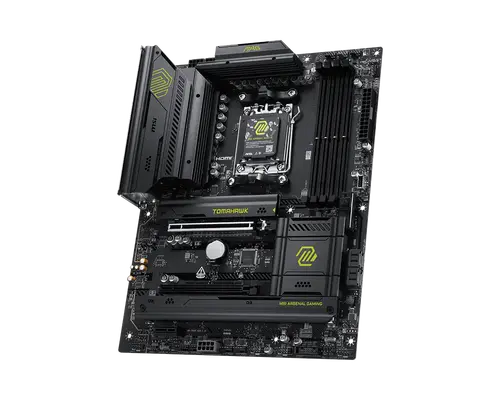

Placă de bază, MSI MAG B850 TOMAHAWK WIFI - 3

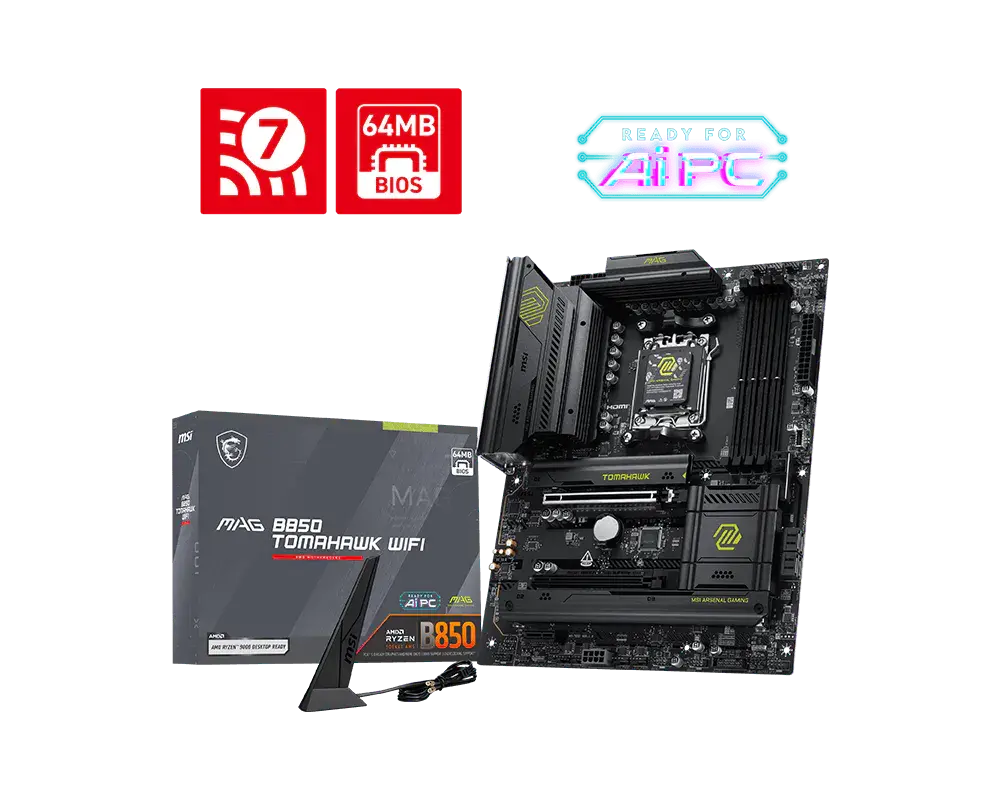

Placă de bază, MSI MAG B850 TOMAHAWK WIFI - 4

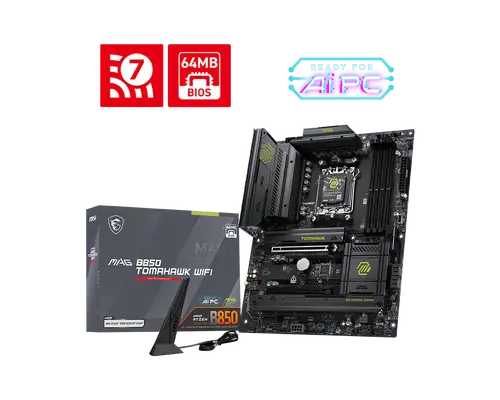

Placă de bază, MSI MAG B850 TOMAHAWK WIFI - 5

Placă de bază, MSI MAG B850 TOMAHAWK WIFI

Preț

€236⁸⁸ / 463³⁰ BGN

cu TVA

* FURNIZOR EXTERN - (1 până la 3 zile)

* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta

Cant.:

Adaugă în coș

Prelungiți garanția

+1 an: + 31€

+2 ani: + 46€

Cod: 911-7E53-001
Categorie: Plăci de bază
Garanție: 3 ani

EVALUARE

EVALUAREA DUMNEAVOASTRĂ

Recenzii

Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.

Descriere
Detalii
Recenzii
Descriere IA

Vendor_url

https://www.msi.com/Motherboard/MAG-B850-TOMAHAWK-WIFI

Socket

Socket AM5

Graphics

1x HDMI™

Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz

CPU's supported

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

AMD B850

Expansion slots

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Storage

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot

• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)

• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

M2_3 slot

• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)

* Please refer to the manual for M.2 SSD heatsink restrictions

RAID

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Memory type

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8200+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPO™

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only

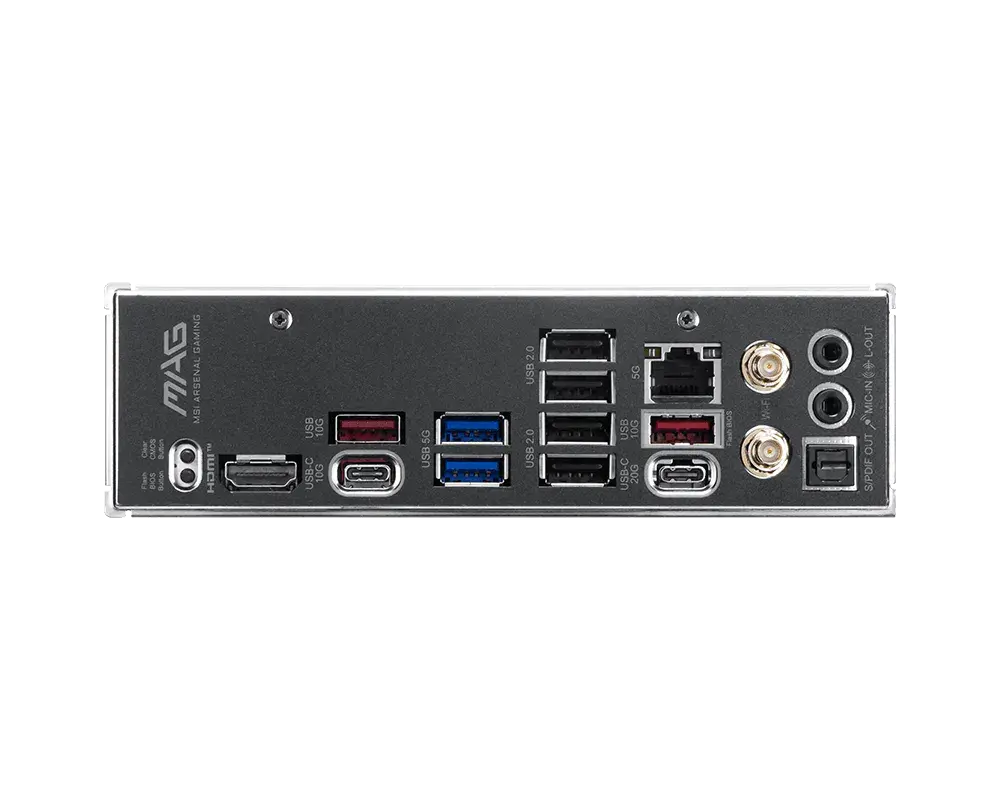

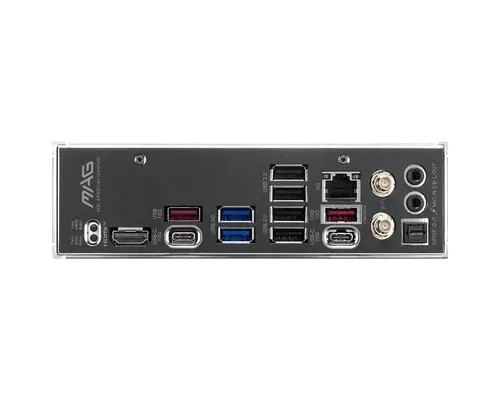

Rear panel I/O

Clear CMOS Button

USB 10Gbps Type-A

USB 5Gbps Type-A

USB 2.0

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

HDMI™

USB 10Gbps Type-C

USB 20Gbps Type-C

USB 10Gbps Type-A

Optical S/PDIF Out

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

2x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

Connectors

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

2x Direct OC Jumper (JBCLK)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

Audio

Realtek® ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports up to 32-bit/384kHz playback on front panel

Supports S/PDIF output

Lan

Realtek® 8126VB 5G LAN

Wireless

Wi-Fi 7 Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Bluetooth

Supports Bluetooth® 5.4**, MLO, 4KQAM

Support for Windows® 11 64-bit

Other

4x EZ Debug LED

1x EZ Memory Detection LED

Dimensions

ATX

243.84mmx304.8mm

Date transmise de importatorul oficial pentru Bulgaria.

Atribut	Valoare
Socket	Socket AM5
Vendor_url	https://www.msi.com/Motherboard/MAG-B850-TOMAHAWK-WIFI
Chipset	AMD B850
OS	Support for Windows® 11 64-bit
CPU's supported	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Memory type	Supports Dual-Channel mode
Memory type	Supports non-ECC, un-buffered memory
Memory type	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory type	• 1DPC 2R Max speed up to 6400+ MT/s
Memory type	• 2DPC 1R Max speed up to 6400+ MT/s
Memory type	Supports AMD POR Speed and JEDEC Speed
Memory type	Supports Memory Overclocking and AMD EXPOTM
Memory type	Supports CUDIMM, Clock Driver bypass mode only
Memory type	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Memory type	Ryzen™ 9000 Series Processors max. overclocking frequency:
Memory type	• 1DPC 1R Max speed up to 8200+ MT/s
Memory type	• 2DPC 2R Max speed up to 6000+ MT/s
Audio	Supports S/PDIF output
Audio	Realtek® ALC4080 Codec
Audio	7.1-Channel USB High Performance Audio
Audio	Supports up to 32-bit/384kHz playback on front panel
Rear panel I/O	Audio Connectors
Rear panel I/O	HDMI™
Rear panel I/O	Flash BIOS button
Rear panel I/O	USB 2.0
Rear panel I/O	Wi-Fi / Bluetooth
Rear panel I/O	Optical S/PDIF OUT
Rear panel I/O	Clear CMOS Button
Rear panel I/O	5G LAN
Rear panel I/O	USB 10Gbps Type-A
Rear panel I/O	USB 10Gbps Type-C
Rear panel I/O	USB 5Gbps Type-A
Rear panel I/O	USB 20Gbps Type-C
LAN	Realtek® 8126VB 5G LAN
Expansion Slots	1x PCI-E x1 slot
Expansion Slots	2x PCI-E x16 slot
Expansion Slots	PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion Slots	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Expansion Slots	PCI_E1 slot
Expansion Slots	• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Expansion Slots	• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Expansion Slots	• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
Expansion Slots	PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Dimensions	ATX
Dimensions	243.84mmx304.8mm
Wireless	The Wireless module is pre-installed in the M.2 (Key-E) slot
Wireless	Wi-Fi 7 Solution
Wireless	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Wireless	Supports Bluetooth® 5.4**, MLO, 4KQAM
Wireless	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Wireless	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
Wireless	** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Graphics	1x HDMI™
Graphics	Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz
Other	4x EZ Debug LED
Other	1x EZ Memory Detection LED
Storage	4x SATA 6G
Storage	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Storage	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
Storage	M2_2 slot
Storage	3x M.2
Storage	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
Storage	M2_1 slot
Storage	• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Storage	• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
Storage	• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Storage	• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Storage	M2_3 slot
Storage	* Please refer to the manual for M.2 SSD heatsink restrictions
Bluetooth	Supports Bluetooth® 5.4**, MLO, 4KQAM
Connectors	1x Power Connector(ATX_PWR)
Connectors	1x CPU Fan
Connectors	2x Front Panel (JFP)
Connectors	1x Chassis Intrusion (JCI)
Connectors	1x Front Audio (JAUD)
Connectors	1x TPM pin header(Support TPM 2.0)
Connectors	4x USB 2.0 ports
Connectors	1x RGB LED connector(JRGB)
Connectors	2x USB 5Gbps Type A ports
Connectors	2x Power Connector(CPU_PWR)
Connectors	6x System Fan
Connectors	1x Tuning Controller connector(JDASH)
Connectors	1x USB 10Gbps Type C ports
Connectors	3x Addressable V2 RGB LED connector (JARGB_V2)
Connectors	1x Combo Fan (Pump_Sys Fan)
Connectors	1x Power Connector(PCIE_PWR 8pin)
Connectors	1x EZ Conn-header (JAF_2)
Connectors	2x Direct OC Jumper (JBCLK)
USB	4x USB 2.0 (Front)
USB	2x USB 5Gbps Type A (Front)
USB	2x USB 5Gbps Type A (Rear)
USB	1x USB 10Gbps Type C (Front)
USB	1x USB 20Gbps Type C (Rear)
USB	4x USB 2.0 (Rear)
USB	1x USB 10Gbps Type C (Rear)
USB	2x USB 10Gbps Type A (Rear)
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Greutate	0.00kg

Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.

Atribut	Valoare
Socket	AM5
Form Factor	ATX
Chipset	AMD B850
Memory Type	DDR5
Memory Slots (count)	4
Max Memory (GB)	256
M.2 Slots (count)	4
SATA Ports (count)	4
PCIe x16 Slots (count)	2
Wi-Fi Built-in	Wi-Fi 7
LAN Speed	2.5 Gbps
USB-C Ports (count)	2
RGB Lighting	Yes
Greutate	0.00kg

Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка MSI MAG B850 TOMAHAWK WIFI

Базирана на чипсет AMD B850 за процесори AM5, тази ATX дънна платка предлага стабилна производителност с DDR5 памет, PCIe 5.0 и вграден Wi-Fi 7 за свързаност от следващо поколение.

Ключови Предимства

Wi-Fi 7 — ултрабърза безжична мрежа с по-ниска латентност и по-висока честотна лента.
Поддръжка на DDR5 памет — до 256 GB в 4 слота за взискателни натоварвания.
PCIe 5.0 x16 слот — готов за най-новите графични карти и NVMe устройства.
2.5G LAN — високоскоростна кабелна мрежа за игри без забавяне и бърз трансфер на файлове.
USB-C свързаност — модерен реверсивен порт за бързи периферни устройства и външни дискове.

Технически Спецификации

Спецификация	Стойност
Сокет	AMD AM5
Форм фактор	ATX
Чипсет	AMD B850
Тип памет	DDR5
Слотове за памет	4
Максимална памет	256 GB
M.2 слотове	4
SATA портове	4
PCIe x16 слотове	2
Вграден Wi-Fi	Wi-Fi 7
Скорост на LAN	2.5 Gbps
USB-C портове	2
RGB подсветка	Да

Какво има в кутията

Дънна платка MSI MAG B850 TOMAHAWK WIFI
Wi-Fi антена
SATA кабели
M.2 винтове
Ръководство за бърза инсталация
