- MSI
Preț
€338 49 / 662 03 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-MAX-WIFI
Socket
Socket AM5
Graphics
1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics
**Graphics specifications may vary depending on the CPU installed
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD X870E
Expansion slots
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
*The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
**USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

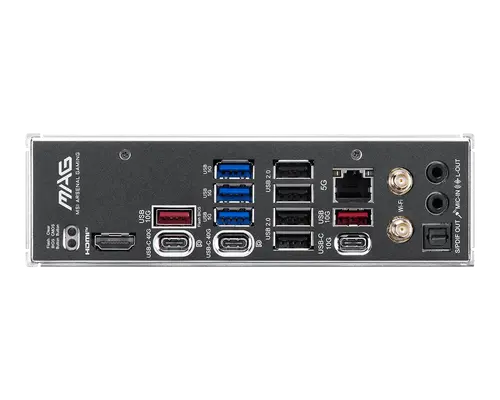

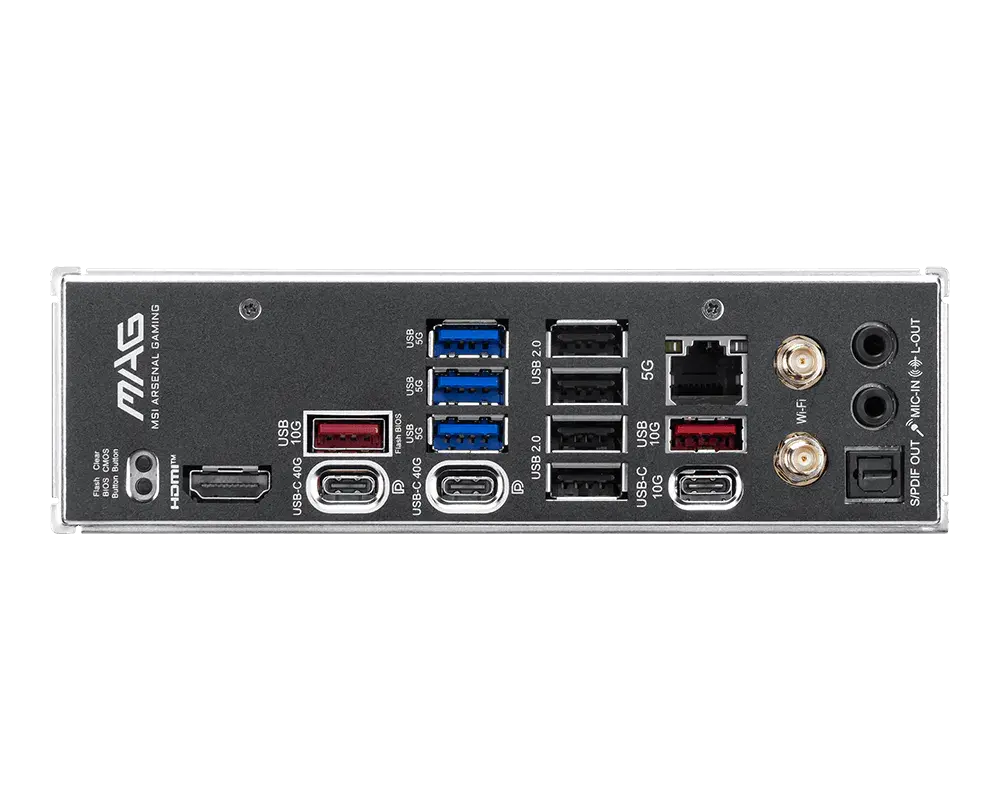

Rear panel I/O
Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
Optical S/PDIF-OUT
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x Direct OC Jumper (JBCLK)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Audio
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Lan
1x Realtek® 8126 5G LAN
Wireless
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
OS
Support for Windows® 11 64-bit
Other
4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ Memory Detection LED
Dimensions
ATX 243.84mmx304.8mm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | Socket AM5 |
| Vendor_url | https://www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-MAX-WIFI |
| Chipset | AMD X870E |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory type | • 1DPC 2R Max speed up to 6400+ MT/s |
| Memory type | • 2DPC 1R Max speed up to 6400+ MT/s |
| Memory type | Supports AMD POR Speed and JEDEC Speed |
| Memory type | Supports Memory Overclocking and AMD EXPOTM |
| Memory type | Ryzen™ 9000 Series Processors max. overclocking frequency: |
| Memory type | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory type | • 1DPC 1R Max speed up to 8400+ MT/s |
| Memory type | Supports CUDIMM, Clock Driver bypass mode only* |
| Memory type | * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
| Memory type | • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Memory type | • The DIMM slots on this motherboard have double-sided latches. |
| Memory type | • 2DPC 2R Max speed up to 6400+ MT/s |
| Audio | Supports S/PDIF output |
| Audio | Realtek® ALC4080 Codec |
| Audio | 7.1-Channel USB High Performance Audio |
| Audio | Supports up to 32-bit/384kHz playback on front panel |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | Flash BIOS button |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | Clear CMOS Button |
| Rear panel I/O | 5G LAN |
| Rear panel I/O | USB 10Gbps Type-A |
| Rear panel I/O | USB 10Gbps Type-C |
| Rear panel I/O | USB 5Gbps Type-A |
| Rear panel I/O | USB 40Gbps Type-C |
| Rear panel I/O | Optical S/PDIF-Out |
| LAN | 1x Realtek® 8126 5G LAN |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | 3x PCI-E x16 slot |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E1 slot |
| Expansion Slots | • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Expansion Slots | • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Dimensions | ATX 243.84mmx304.8mm |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Wireless | Wi-Fi 7 |
| Wireless | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Wireless | * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. |
| Wireless | ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* |
| Graphics | 2x Type-C DisplayPort |
| Graphics | USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* |
| Graphics | *Available only on processors featuring integrated graphics |
| Graphics | **Graphics specifications may vary depending on the CPU installed |
| Other | 4x EZ Debug LED |
| Other | 1x EZ Memory Detection LED |
| Other | 1x EZ Digit Debug LED |
| Storage | 4x SATA 6G |
| Storage | 4x M.2 |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices |
| Storage | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| Storage | M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| Storage | • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Storage | M.2_1 slot (From CPU) |
| Storage | M.2_2 slot (From CPU) |
| Storage | *The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. |
| Storage | **USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 6x System Fan |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 1x Combo Fan (Pump_Sys Fan) |
| Connectors | 1x Power Connector(PCIE_PWR 8pin) |
| Connectors | 4x USB 5Gbps Type A ports |
| Connectors | 1x EZ Conn-header (JAF_2) |
| Connectors | 1x USB 20Gbps Type C ports |
| Connectors | 2x Direct OC Jumper (JBCLK) |
| USB | 4x USB 2.0 (Front) |
| USB | 4x USB 2.0 (Rear) |
| USB | 4x USB 5Gbps Type A (Front) |
| USB | 3x USB 5Gbps Type A (Rear) |
| USB | 1x USB 10Gbps Type C (Rear) |
| USB | 2x USB 10Gbps Type A (Rear) |
| USB | 1x USB 20Gbps Type C (Front) |
| USB | 2x USB 40Gbps Type C (Rear) |
| RAID | *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. |
| RAID | •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| RAID | •Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| RAID | *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors. |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD X870E |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 4 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 7 |
| LAN Speed | 5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

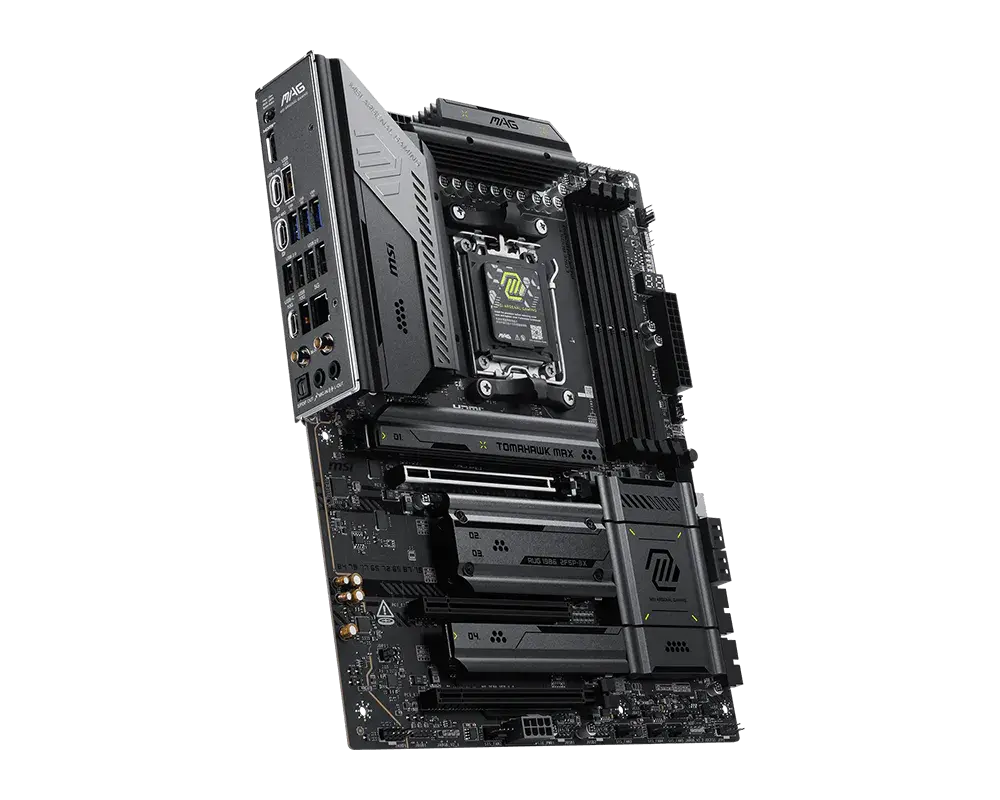

MSI MAG X870E TOMAHAWK MAX WF — Производителност от следващо поколение за AM5
Отключете пълния потенциал на процесорите AMD Ryzen 9000 и 8000 серия с дънната платка MSI MAG X870E TOMAHAWK MAX WF. Базирана на чипсета AMD X870E, тя предлага PCIe 5.0 свързаност, поддръжка на DDR5 памет и авангардни мрежови възможности за взискателни геймъри и творци.
Ключови Предимства
- Готовност за PCIe 5.0 — Два PCIe 5.0 x16 слота и M.2 слотове осигуряват максимална честотна лента за видеокарти и SSD от следващо поколение.
- Поддръжка на DDR5 памет — Четири DIMM слота със скорости до 8000+ MHz (OC) за високопроизводителна многозадачност.
- Wi-Fi 7 и 5G LAN — Ултрабърза безжична и кабелна мрежа за онлайн игри и стрийминг без забавяне.
- Стабилно захранване — 16+2+1 Duet Rail Power System с 80A SPS за стабилен овърклок.
- Разширено охлаждане — Удължени радиатори, M.2 Shield Frozr и термоподложки 7W/mK поддържат ниски температури.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Чипсет | AMD X870E |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |

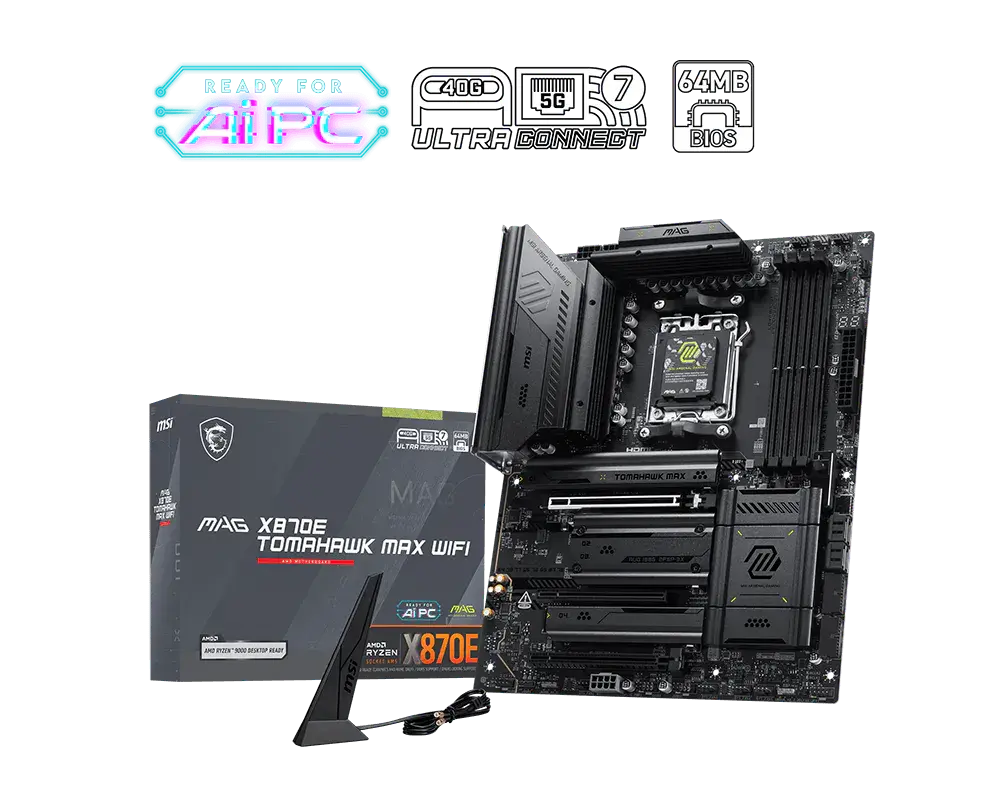

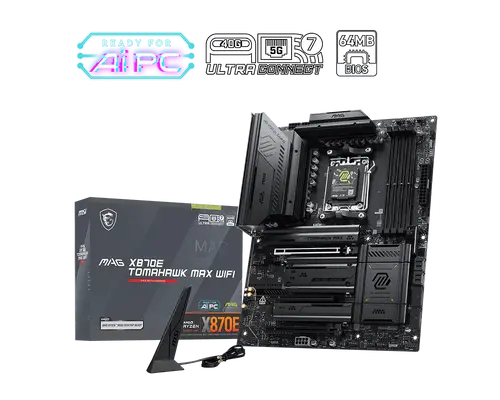

Какво има в кутията
- Дънна платка MSI MAG X870E TOMAHAWK MAX WF
- Wi-Fi антена
- 2x SATA кабела
- M.2 винтове
- Ръководство за бърза инсталация
- USB драйвер
Abonați-vă la newsletterul nostru
Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Metodă de plată
- Plata la livrare
- Card de credit/debit
- Transfer bancar
- În rate prin PB Personal Finance
