- MSI
Preț
€87 00 / 170 16 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/PRO-H810M-B
Socket
LGA 1851
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supported
Supports Intel® Core™ Ultra Processors (Series 2)
Chipset
INTEL H810
Expansion slots
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.
Memory type
2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 7200 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200 MT/s
• 1DPC 2R Max speed up to 6400 MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

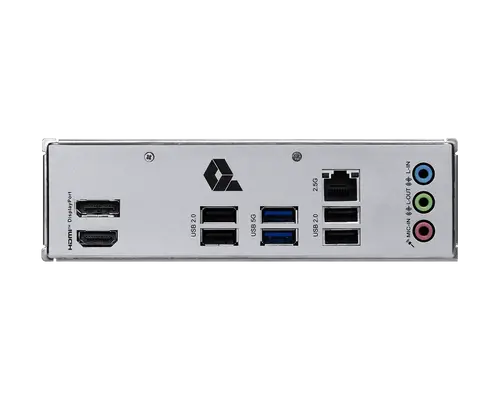

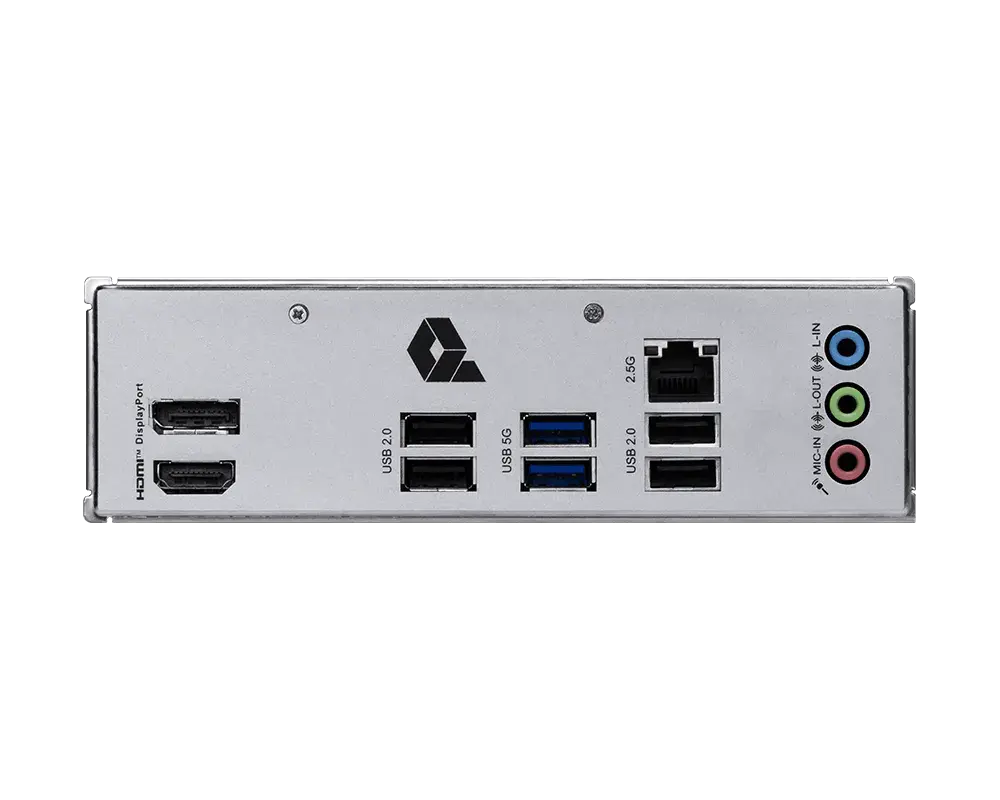

Rear panel I/O
DisplayPort
USB 2.0
USB 5Gbps Type-A
2.5G LAN
Audio Connectors
HDMITM
USB 2.0
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Front)
Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Lan
Realtek® 8125 2.5Gbps LAN
OS
Support for Windows® 11 64-bit
Other
4x EZ Debug LED
1x EZ Memory Detection LED
Dimensions
mATX, 220mmx243.84mm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | LGA 1851 |
| Vendor_url | https://www.msi.com/Motherboard/PRO-H810M-B |
| Chipset | INTEL H810 |
| OS | Support for Windows® 11 64-bit |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | Max. overclocking frequency: |
| Memory type | Supports Dual-Controller Dual-Channel mode |
| Memory type | Supports Intel® POR Speed and JEDEC Speed |
| Memory type | Supports CUDIMM |
| Memory type | • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Memory type | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Memory type | • The DIMM slots on this motherboard have double-sided latches. |
| Memory type | Memory Support DDR5 7200 - 4800 (JEDEC) MT/s |
| Memory type | • 1DPC 1R Max speed up to 7200 MT/s |
| Memory type | • 1DPC 2R Max speed up to 6400 MT/s |
| Memory type | Supports Intel® XMP 3.0 |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | USB 5Gbps Type-A |
| LAN | Realtek® 8125 2.5Gbps LAN |
| Expansion Slots | 1x PCI-E x16 slot |
| Expansion Slots | 2x PCI-E x1 slot |
| Expansion Slots | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Dimensions | mATX, 220mmx243.84mm |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
| Graphics | 1x DisplayPort |
| Graphics | Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Graphics | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Other | 4x EZ Debug LED |
| Other | 1x EZ Memory Detection LED |
| Storage | 1x M.2 |
| Storage | 4x SATA 6G |
| Storage | *Please refer to the manual for M.2 SSD heatsink restrictions. |
| Storage | M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x Power Connector(CPU_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 2x System Fan |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 1x Tuning Controller connector(JDASH) |
| Connectors | 1x USB 10Gbps Type C ports |
| Connectors | 3x Addressable V2 RGB LED connector (JARGB_V2) |
| USB | 4x USB 2.0 (Front) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 2x USB 5Gbps Type A (Rear) |
| USB | 1x USB 10Gbps Type C (Front) |
| USB | 4x USB 2.0 (Rear) |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Chipset | Intel H810 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

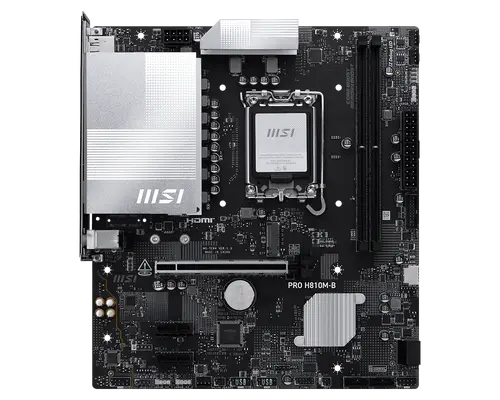

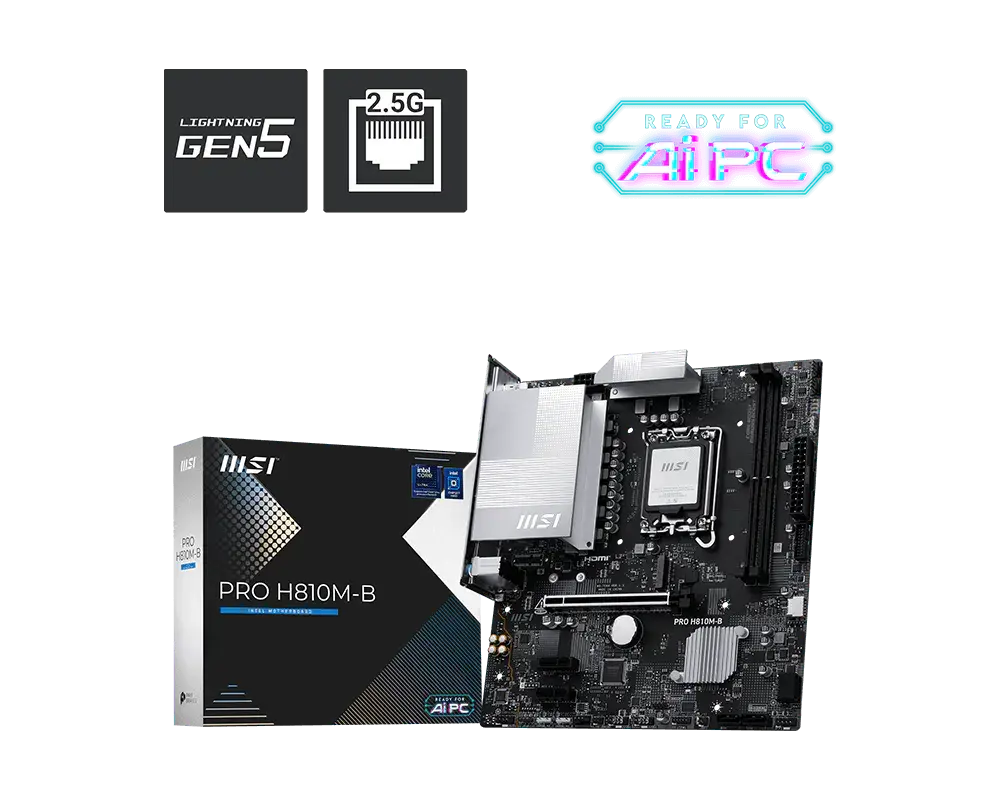

Дънна платка MSI PRO H810M-B
Изградете надежден и ефективен компютър с MSI PRO H810M-B, microATX дънна платка, проектирана за най-новите процесори на Intel. Тя осигурява необходимата производителност и свързаност за ежедневна работа и бизнес приложения.
Ключови Предимства
- Поддръжка на Intel LGA 1851 — Готова за процесори Intel Core Ultra, предлагащи модерна производителност и ефективност.
- DDR5 памет — Поддържа високоскоростна DDR5 памет за по-бърз трансфер на данни и по-добра многозадачност.
- PCIe 4.0 слот — Един PCIe x16 слот за дискретна видеокарта или други разширителни карти.
- M.2 слот — Един M.2 слот за бързи NVMe SSD, намаляващ времето за зареждане.
- Gigabit LAN — Надеждна кабелна мрежова връзка за стабилен интернет достъп.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | Intel LGA 1851 |
| Чипсет | Intel H810 |
| Форм фактор | microATX (mATX) |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 128 GB |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
| Вграден Wi-Fi | Не |
| USB-C портове | 0 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка MSI PRO H810M-B
- I/O щит
- SATA кабели
- Ръководство за бърза инсталация
- DVD с драйвери
