Vendor_url
https://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI-DDR4
Socket
LGA 1700
Graphics
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supported
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Chipset
INTEL B760
Expansion slots
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC) / 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

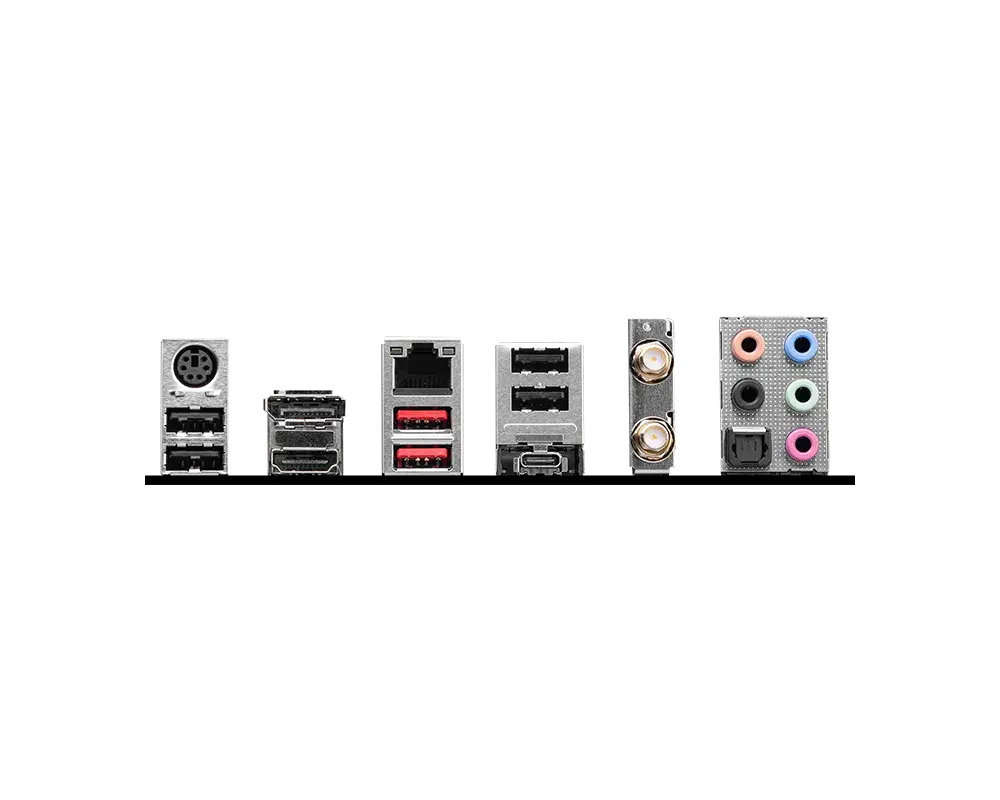

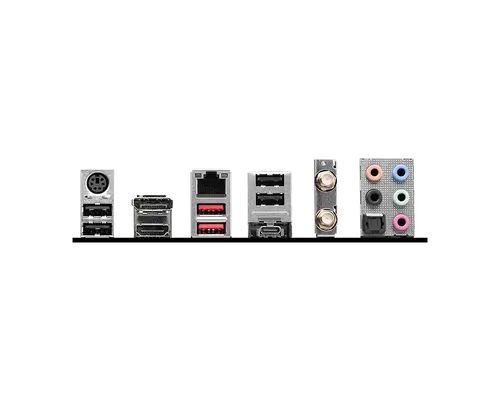

Rear panel I/O
Keyboard / Mouse
DisplayPort
2.5G LAN
USB 2.0
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
S/PDIF-OUT
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Lan
Realtek® RTL8125BG 2.5G LAN
Wireless
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
Bluetooth
Supports Bluetooth® 5.3, FIPS, FISMA
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Form factor
ATX, 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | LGA 1700 |
| Vendor_url | https://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI-DDR4 |
| Chipset | INTEL B760 |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| CPU's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | Max. overclocking frequency: |
| Memory type | Supports Intel® XMP 3.0 OC |
| Memory type | Supports Dual-Controller Dual-Channel mode |
| Memory type | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory type | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Memory type | • 1DPC 2R Max speed up to 4800+ MHz |
| Memory type | • 2DPC 1R Max speed up to 4400+ MHz |
| Memory type | • 2DPC 2R Max speed up to 4000+ MHz |
| Memory type | • 1DPC 1R Max speed up to 5333+ MHz |
| Form Factor | ATX, 243.84mmx304.8mm |
| Audio | 7.1-Channel High Definition Audio |
| Audio | Realtek® ALC897 Codec |
| Audio | Supports S/PDIF output |
| Rear panel I/O | Keyboard / Mouse |
| Rear panel I/O | Audio Connectors |
| Rear panel I/O | HDMI™ |
| Rear panel I/O | DisplayPort |
| Rear panel I/O | USB 2.0 |
| Rear panel I/O | 2.5G LAN |
| Rear panel I/O | Wi-Fi / Bluetooth |
| Rear panel I/O | USB 3.2 Gen 2 10Gbps (Type-A) |
| Rear panel I/O | USB 3.2 Gen 2 10Gbps (Type-C) |
| Rear panel I/O | S/PDIF-Out |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Expansion Slots | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Expansion Slots | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Expansion Slots | 5x PCI-E x16 slot |
| Expansion Slots | PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Expansion Slots | PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Wireless | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Wireless | Intel® Wi-Fi 6E |
| Wireless | * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| Graphics | 1x HDMI™ |
| Graphics | 1x DisplayPort |
| Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* |
| Graphics | Support DP 1.4, maximum resolution of 4K 60Hz* |
| Graphics | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage | 4x SATA 6G |
| Storage | 2x M.2 |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Storage | * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| Bluetooth | Supports Bluetooth® 5.3, FIPS, FISMA |
| Bluetooth | ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Connectors | 1x Power Connector(ATX_PWR) |
| Connectors | 1x CPU Fan |
| Connectors | 2x Front Panel (JFP) |
| Connectors | 1x Chassis Intrusion (JCI) |
| Connectors | 1x Front Audio (JAUD) |
| Connectors | 1x Com Port (JCOM) |
| Connectors | 1x TPM pin header(Support TPM 2.0) |
| Connectors | 4x USB 2.0 ports |
| Connectors | 1x RGB LED connector(JRGB) |
| Connectors | 2x USB 5Gbps Type A ports |
| Connectors | 2x Power Connector(CPU_PWR) |
| Connectors | 1x Pump Fan |
| Connectors | 2x Addressable V2 RGB LED connector (JARGB_V2) |
| Connectors | 5x System Fan |
| Connectors | 1x USB 5Gbps Type C ports |
| Connectors | 1x Printer Port (JLPT) |
| USB | 4x USB 2.0 (Front) |
| USB | 2x USB 5Gbps Type A (Front) |
| USB | 4x USB 2.0 (Rear) |
| USB | 1x USB 5Gbps Type C (Front) |
| USB | 1x USB 10Gbps Type C (Rear) |
| USB | 2x USB 10Gbps Type A (Rear) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel B760 |
| Memory Type | DDR4 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 3 |
| SATA Ports (count) | 6 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6 |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
MSI B760 GAMING PLUS WIFI DDR4 — стабилна основа за твоята гейминг конфигурация
Дънната платка MSI B760 GAMING PLUS WIFI DDR4 съчетава здрава захранваща схема, поддръжка на DDR4 памет и вградена Wi-Fi 6 връзка — всичко нужно за модерна гейминг система без излишни компромиси. Базирана на чипсета Intel B760 и сокет LGA 1700, тя е готова за процесори Intel Core от 12-о, 13-о и 14-о поколение.
Ключови Предимства
- Захранваща схема Core Boost — Усилено захранване с разширени радиатори държи процесора стабилен при продължително натоварване.
- Поддръжка на DDR4 памет — Четири DIMM слота позволяват да използваш наличните си DDR4 модули или да сглобиш система с голям капацитет на по-ниска цена.
- Вградени Wi-Fi 6 и 2.5G LAN — Бърза мрежа с ниска латентност още от кутията, без допълнителни карти.
- Lightning Gen 4 M.2 — Няколко M.2 слота с M.2 Shield Frozr охлаждат NVMe дисковете и им позволяват да работят на пълна скорост.
- MSI Mystic Light — Вградени RGB конектори и синхронизация Mystic Light за завършен визуален стил.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Производител | MSI |
| Модел | B760 GAMING PLUS WIFI DDR4 |
| Сокет | Intel LGA 1700 |
| Чипсет | Intel B760 |
| Форм фактор | ATX |
| Тип памет | DDR4 |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| M.2 слотове | 3 |
| SATA портове | 6 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI B760 GAMING PLUS WIFI DDR4
- Wi-Fi антена
- SATA кабели
- I/O панел
- Ръководство за бърза инсталация
